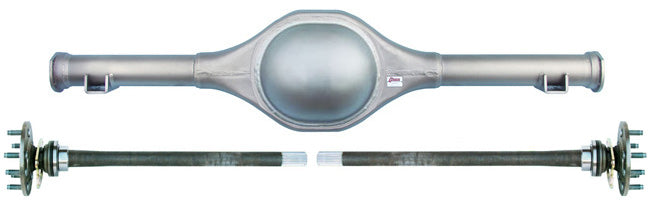

REAR KIT 55-59 GM TRUCK,6 LUG,DROPPED 9"

BRAND NEW CURRIE ENTERPRISES DROPPED REAR END WITH 31 SPLINE FLANGED AXLES FOR THE APPLICATIONS BELOW (CURRIE PART #CE-GMC5559X8).

THESE REAR ENDS HAVE THE LEAF SPRING PADS ON THE BOTTOM OF THE HOUSING, WHICH RESULTS IN A 9" DROP IN THE REAR OF THE TRUCK!!!

FITS:

• 1955-1959 CHEVY TRUCKS WITH 6-LUGS

FEATURES:

• 9-PLUS CURRIE 9" FORD HEAVY-DUTY REAR END HOUSING
• 31 SPLINE PERFORMANCE AXLE PACKAGE
• BUILT TO THE STOCK OVERALL WIDTH (62") AND PINION OFFSET SPECS
  • 62" IS MEASURED OUTSIDE-OF-AXLE-FLANGE TO OUTSIDE-OF-AXLE-FLANGE, IN OTHER WORDS, WHERE THE WHEEL BOLTS ON TO WHERE THE WHEEL BOLTS ON
• ALL NEW HEAVY-DUTY LEAF SPRING PADS ARE INSTALLED ON THE BOTTOM OF THE HOUSING TO GIVE THE 9" DROP (41 1/2" CENTER-TO-CENTER AT 12 DEGREES)
• HOUSING INCLUDES ALL 3RD MEMBER STUDS INSTALLED
• GMC55598
• THESE ARE 9" FORD CENTER SECTIONS, SO THEY DO REQUIRE A 9" FORD 3RD MEMBER (SOMETIMES REFERRED TO AS A CHUNK); IF YOU DONT CURRENTLY HAVE ONE, WE DO OFFER THEM IN SEVERAL RATIOS
• AXLES INCLUDE:
  • 6 X 5 1/2" WHEEL BOLT PATTERN
  • WHEEL STUDS INSTALLED
  • 1/4" THICK HEAVY-DUTY BEARING RETAINER PLATES
  • TAPERED TIMKEN STYLE WHEEL BEARINGS PRESSED ON
• THE AXLE FLANGES ON THIS REAR END ARE THE BIG BEARING FORD (NEW STYLE), ALSO KNOWN AS "TORINO":
