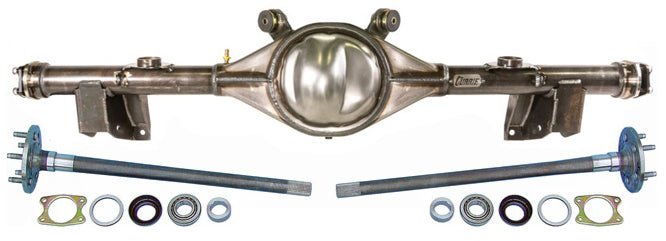

REAR KIT,71-76 GM B-BODY,IMPALA,CAPRICE,BEL AIR,BISCAYNE

Brand New Currie Enterprises 9-Inch Notch-Back Rear End with 31 Spline Flanged Axles for the applications below (Currie Part #CE-GMB7176X). Currie Crate Rear Ends are designed to be a bolt-in upgrade.

Fits:

• Chevrolet:
  • 1971-1975 Bel Air
  • 1971-1972 Biscayne
  • 1971-1976 Caprice
  • 1971-1976 Impala

Features:

• Currie Centurion High-Strength 9-Inch Notchback Housing with Flush Drain Plug
• Currie Performance 1541 alloy 31-spline axles
• Built to the stock overall width (64.9") and pinion offset specs
  • 64.9" is measured outside-of-axle-flange to outside-of-axle-flange, in other words, where the wheel bolts on to where the wheel bolts on
• Suspension Brackets Installed in the Factory Locations

• These are 9" Ford center sections, so they do require a 9" Ford 3rd Member (sometimes referred to as a Chunk);  if you don't currently have one, we do offer them in several ratios.

• Axles include:
  • Stock 5 x 5" wheel bolt pattern
  • 1/2 in. Wheel studs installed

  • 1/4" thick heavy duty plates, gold zinc plated

  • Tapered Timken style wheel bearings pressed on
• The Axle flanges on this rear end are the Big Bearing Ford (New Style), also known as "Torino":
  •
  • We have Currie Drum brake kits, Currie Disc Brake kits, and Wilwood Disc Brake kits available to bolt directly on this rear end
