REAR KIT 55-57 GM B-BODY/CHEVY

REAR KIT 55-57 GM B-BODY/CHEVY

CUR CE-GMB5557X

$1,399.99
$1,399.99
This item requires an additional shipping fee of $50 over standard shipping.
View full details

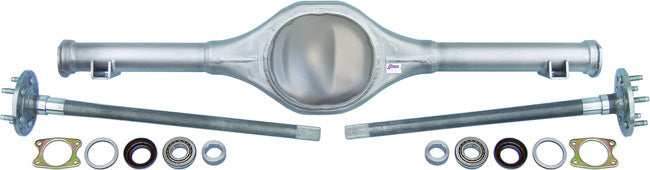

  • CURRIE ENTERPRISES 9-PLUS NOTCH-BACK REAR END WITH 31 SPLINE FLANGED AXLES FOR THE APPLICATIONS BELOW (CURRIE PART #CE-GMB5557X). CURRIE CRATE REAR ENDS ARE DESIGNED TO BE A BOLT-IN UPGRADE.
    • FITS:
    • CHEVROLET:
      • 1955-1957 BEL AIR, DELRAY, 150, AND 210
      • *EXCLUDES ALL STATION WAGONS, SEDAN DELIVERIES, AND NOMADS DUE TO THEIR "BOWTIE" SHAPED GAS TANK THAT REQUIRES A CENTERED HOUSING REAR END, AS OPPOSED TO A CENTERED PINION REAR END
    FEATURES:
    • 9-PLUS NOTCHBACK HEAVY DUTY HOUSING
    • 31 SPLINE PERFORMANCE AXLE PACKAGE
    • BUILT TO THE STOCK OVERALL WIDTH (60") AND PINION OFFSET SPECS
      • 60" IS MEASURED OUTSIDE-OF-AXLE-FLANGE TO OUTSIDE-OF-AXLE-FLANGE, IN OTHER WORDS, WHERE THE WHEEL BOLTS ON TO WHERE THE WHEEL BOLTS ON
    • HEAVY-DUTY 2" WIDE LEAF SPRING PADS ARE INSTALLED IN THE STOCK LOCATION FOR AN EASY BOLT-IN INSTALLATION
    • HOUSING INCLUDES ALL 3RD MEMBER STUDS INSTALLED
    • THESE ARE 9" FORD CENTER SECTIONS, SO THEY DO REQUIRE A 9" FORD 3RD MEMBER (SOMETIMES REFERRED TO AS A CHUNK); IF YOU DO NOT CURRENTLY HAVE ONE, WE DO OFFER THEM IN SEVERAL RATIOS.
    AXLES INCLUDE:
    • STOCK 5 X 4 3/4" WHEEL BOLT PATTERN
    • WHEEL STUDS INSTALLED
    • 1/4" THICK HEAVY-DUTY BEARING RETAINER PLATES
    • TAPERED TIMKEN STYLE WHEEL BEARINGS PRESSED ON
    • THE AXLE FLANGES ON THIS REAR END ARE THE BIG BEARING FORD (NEW STYLE), ALSO KNOWN AS "TORINO".
    Currie GM Rear Ends > Chevy, 1955-1957
