REAR KIT,05-14 FORD,MUSTANG,FAB

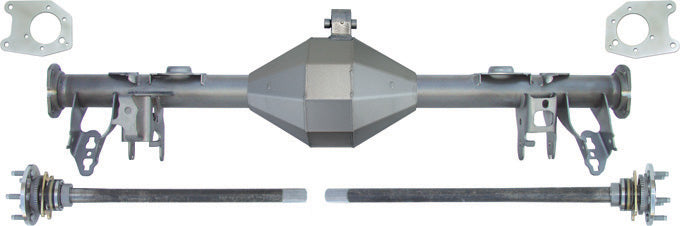

CURRIE ENTERPRISES F9 FABRICATED REAR END WITH 31 SPLINE FLANGED AXLES FOR THE APPLICATIONS BELOW (CURRIE PART #CE-FDM0507X). CURRIE CRATE REAR ENDS ARE DESIGNED TO BE A BOLT-IN UPGRADE.

FITS:

2005-2013 FORD MUSTANG

FEATURES:

F9 FABRICATED HEAVY DUTY HOUSING

31 SPLINE PERFORMANCE AXLE PACKAGE

BUILT TO THE STOCK OVERALL WIDTH (66 1/8") AND PINION OFFSET SPEC

* 66 1/8" IS MEASURED OUTSIDE-OF-AXLE-FLANGE TO OUTSIDE-OF-AXLE-FLANGE, IN OTHER WORDS, WHERE THE WHEEL BOLTS ON TO WHERE THE WHEEL BOLTS ON

STOCK SUSPENSION BRACKETS ARE INSTALLED IN THE STOCK LOCATION FOR AN EASY BOLT-IN INSTALLATION, INCLUDING A HEAVY-DUTY UPPER CONTROL ARM BRACKET WITH JOHNNY JOINT ROD INSTALLED

HOUSING INCLUDES ALL 3RD MEMBER STUDS INSTALLED

THESE ARE 9" FORD CENTER SECTIONS, SO THEY DO REQUIRE A 9" FORD 3RD MEMBER (SOMETIMES REFERRED TO AS A CHUNK); IF YOU DON T CURRENTLY HAVE ONE, WE DO OFFER THEM IN SEVERAL RATIOS.

AXLES INCLUDE:

STOCK 5 X 4 1/2" WHEEL BOLT PATTERN

WHEEL STUDS INSTALLED

1/4" THICK HEAVY-DUTY BEARING RETAINER PLATES

TAPERED TIMKEN STYLE WHEEL BEARINGS PRESSED ON

FACTORY ABS RELUCTOR WHEELS ARE INCLUDED

ALSO INCLUDED IS THE CURRIE CALIPER BRACKETS THAT ALLOW FOR THE RE-USE OF THE FACTORY MUSTANG REAR DISC BRAKES AND ABS HARDWARE

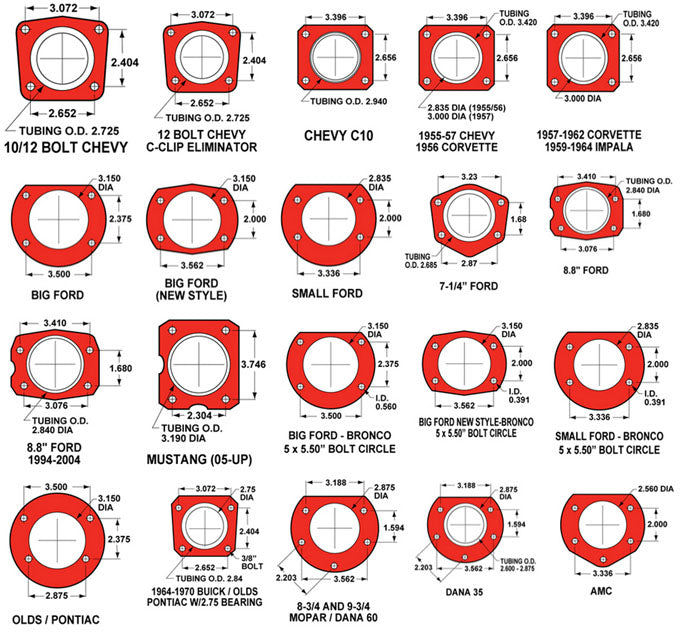

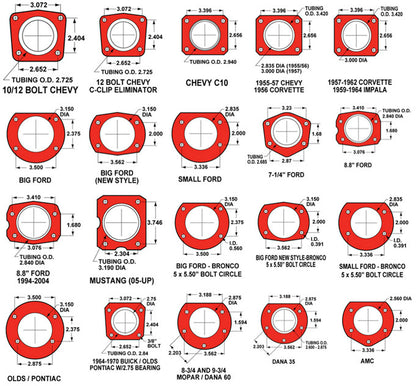

THE AXLE FLANGES ON THIS REAR END ARE THE BIG BEARING FORD (NEW STYLE), ALSO KNOWN AS "TORINO".
