REAR KIT,57-72 FORD,F-100 PICKUP

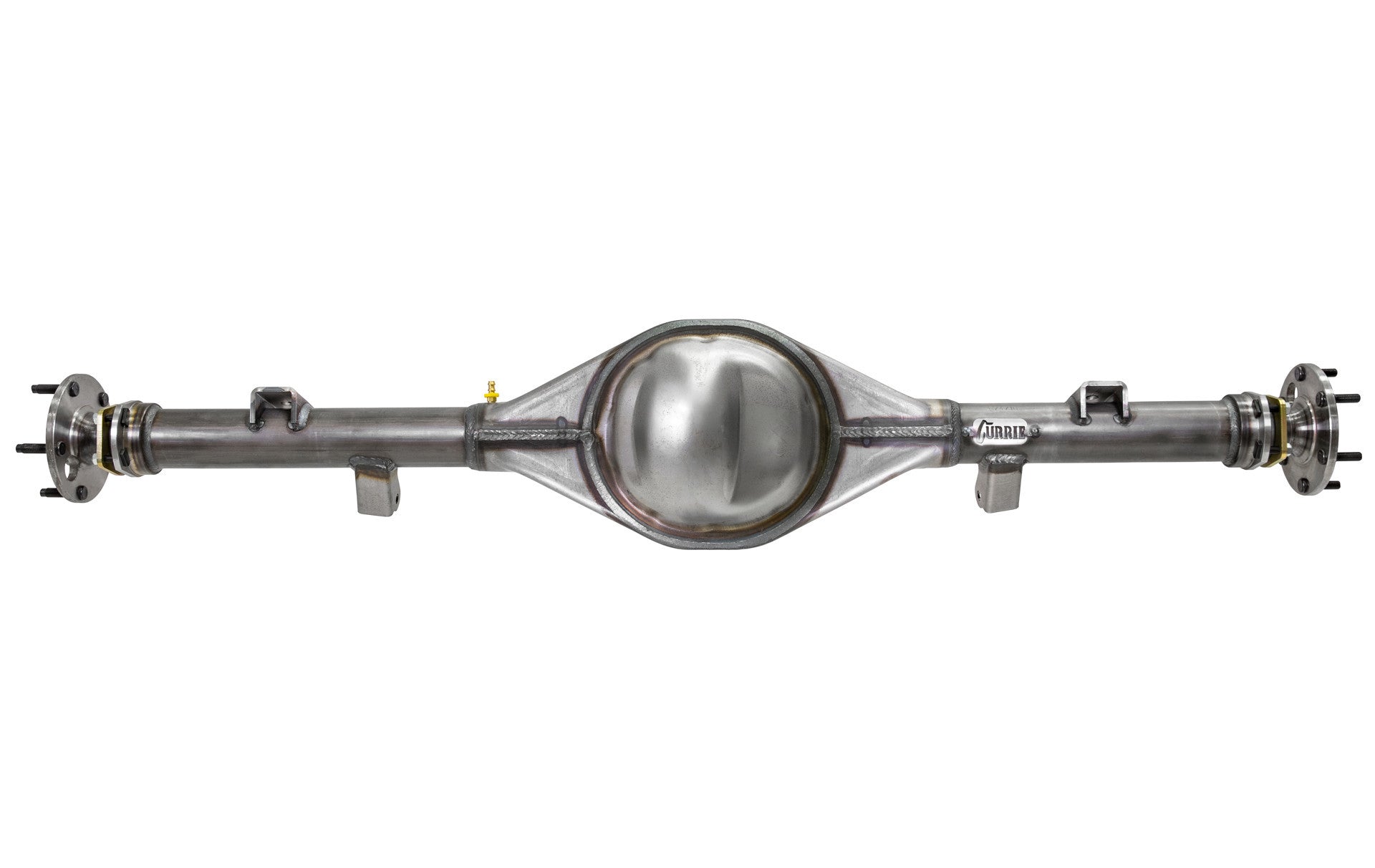

• BRAND NEW CURRIE ENTERPRISES 9" NOTCHBACK REAR END WITH 31 SPLINE FLANGED AXLES FOR THE APPLICATIONS BELOW (CURRIE PART #CE-FDF5772X).

FITS:

• 1957-1972 FORD F-100

FEATURES:

• CENTURION HIGH-STRENGTH 9-INCH NOTCHBACK HOUSING WITH FLUSH DRAIN PLUG
• PERFORMANCE 31-SPLINE 1541 ALLOY AXLES
• BUILT TO THE STOCK OVERALL WIDTH (61") AND PINION OFFSET SPECS. 61" IS MEASURED OUTSIDE-OF-AXLE-FLANGE TO OUTSIDE-OF-AXLE-FLANGE, IN OTHER WORDS, WHERE THE WHEEL BOLTS ON TO WHERE THE WHEEL BOLTS ON
• HEAVY DUTY 2" SPRINGS PADS MATCHED TO OEM FITMENT AND LOCATIONS
• HOUSING INCLUDES ALL 3RD MEMBER STUDS INSTALLED
• THESE ARE 9" FORD CENTER SECTIONS, SO THEY DO REQUIRE A 9" FORD 3RD MEMBER (SOMETIMES REFERRED TO AS A CHUNK); IF YOU DO NOT CURRENTLY HAVE ONE, WE DO OFFER THEM IN SEVERAL RATIOS

AXLES INCLUDE:

• STOCK 5 X 5 1/2" WHEEL BOLT PATTERN
• 1/2 IN. WHEEL STUDS INSTALLED
• 1/4" THICK HEAVY DUTY PLATES, FINISHED IN GOLD ZINC PLATING
• TAPERED TIMKEN STYLE WHEEL BEARINGS PRESSED ON

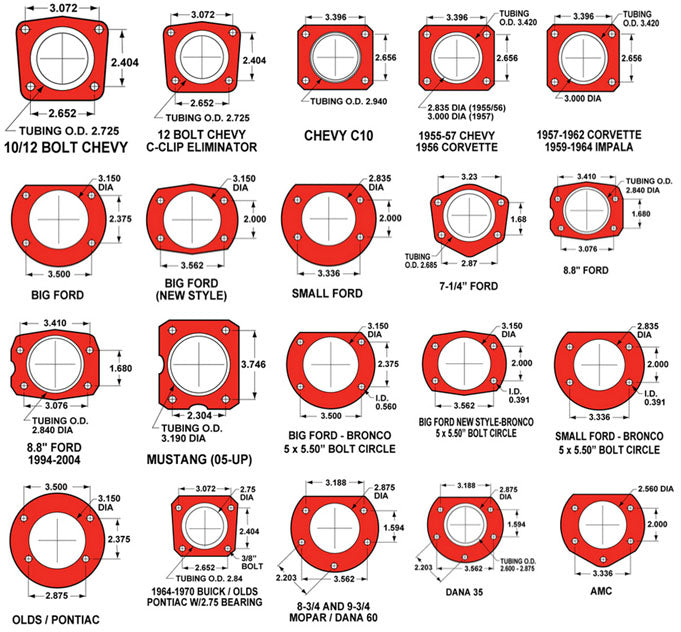

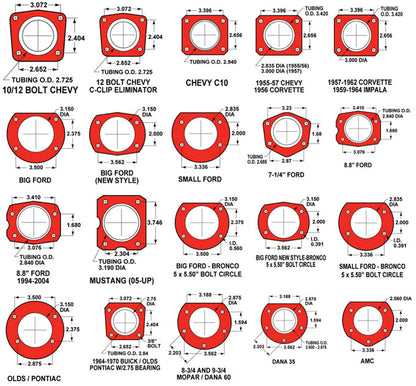

• THE AXLE FLANGES ON THIS REAR END ARE THE BIG BEARING FORD (NEW STYLE), ALSO KNOWN AS "TORINO"
