BRAKE KIT,11" DISC,4 1/2 & 4 3/4,STAGGER

CURRIE EXPLORER REAR PARKING BRAKE, BOLT-ON 11" DISC BRAKE KIT WITH PARKING BRAKE CABLE SET, FLEXLINE SET, AND HARD LINE SET FOR STAGGERED SHOCK APPLICATIONS (PART #CE-6012GMF KIT) FOR BOTH REAR WHEELS.

FITS:

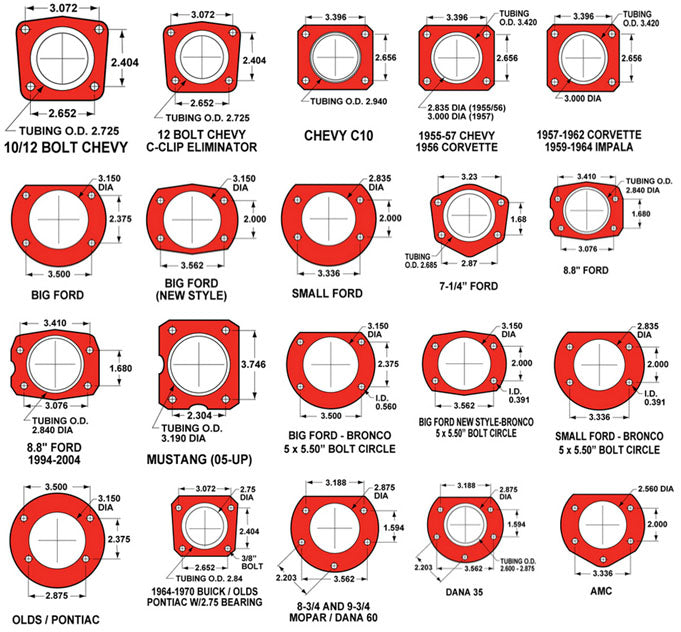

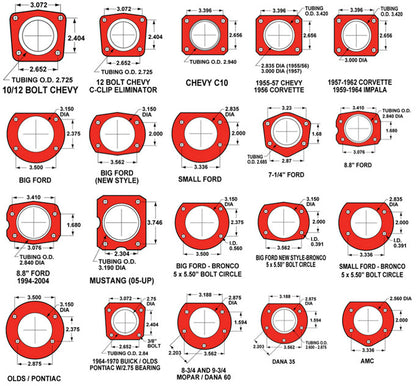

STAGGERED SHOCK APPLICATIONS WITH BIG BEARING FORD NEW STYLE (ALSO KNOWN AS TORINO) REAR ENDS WITH A 3.562" X 2.000" MOUNTING PATTERN ON THE AXLE FLANGE & WITH A 2.50" FLANGE OFFSET

STAGGERED SHOCKS WERE COMMON ON 1967-1969 GM F-BODIES (CHEVY CAMARO AND PONTIAC FIREBIRD) WITH LEAF SPRINGS.

CURRIE BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

THESE BRAKE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS.

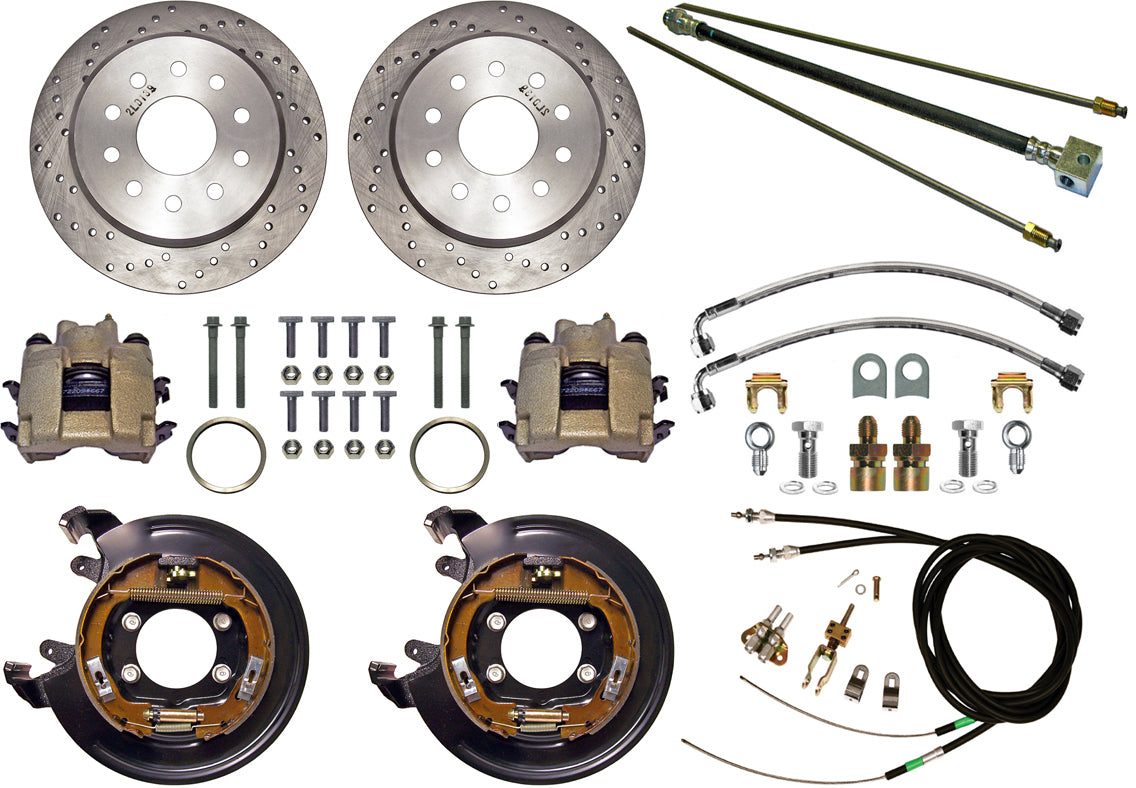

KIT INCLUDES PARTS FOR BOTH REAR WHEELS:

0.50" THICK X 11.00" O.D. SOLID ROTORS WITH HATS

FEATURE BOTH 5 X 4 1/2" AND 5 X 4 3/4" BOLT PATTERNS

SINGLE PISTON BRAKE CALIPERS WITH PADS

BACKING PLATE / CALIPER MOUNTING BRACKET PLATES WITH DRUM-STYLE PARKING BRAKE ASSEMBLIES INSTALLED

NECESSARY BOLTS, NUTS, AND REGISTERS TO INSTALL THE BRAKING SYSTEM ON BOTH REAR WHEELS

PARKING BRAKE CABLE KIT:

CONNECTS TO THE CURRIE PARKING BRAKE ASSEMBLIES, THEN COMES TOGETHER TO JOIN THE STOCK CABLE BEHIND THE TRANSMISSION

FLEXLINE KIT:

STEEL BRAIDED BRAKE LINES, BANJO FITTINGS & BOLTS, AND CHASSIS FITTINGS TO CONNECT THE CALIPERS TO THE HARD LINES

ALSO INCLUDES WELD-ON LINE TABS TO INSTALL ON YOUR REAR END

HARD LINE KIT:

STEEL HARD BRAKE LINE TUBING TO CONNECT THE CHASSIS FITTINGS TO THE INCLUDED RUBBER HOSE.

RUBBER HOSE CONNECTS THOSE HARD LINES TO THE LINES ON THE FRAME

NOTE: TUBING BENDING IS GENERALLY NECESSARY FOR THE INSTALLATION OF THESE LINES.
