BRAKE KIT,CABLE,LINES,11" DISC,PB,5x5.5"

CURRIE EXPLORER REAR PARKING BRAKE, BOLT-ON 11" DISC BRAKE KIT WITH PARKING BRAKE CABLE SET, FLEXLINE SET, AND HARD LINE SET (PART #CE-6012E4 KIT) FOR BOTH REAR WHEELS.

FITS:

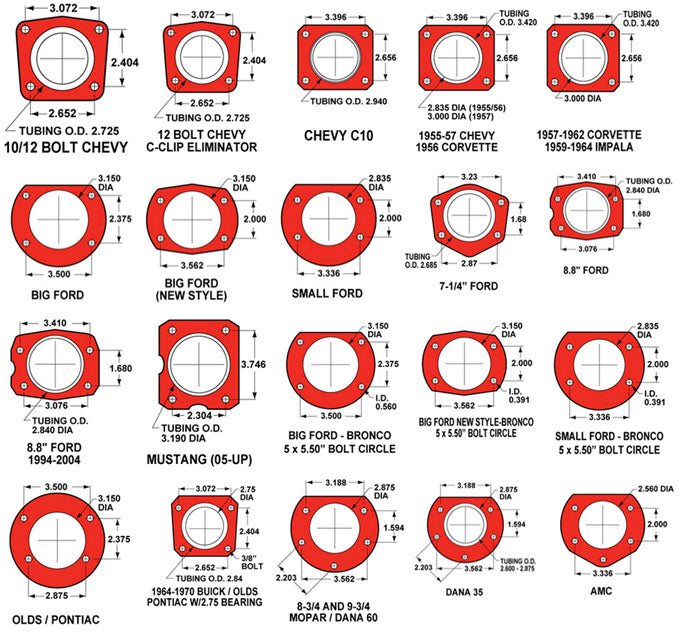

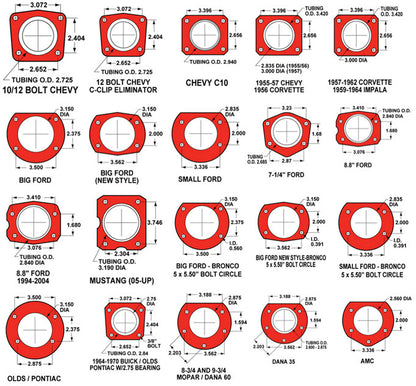

BIG BEARING FORD NEW STYLE (ALSO KNOWN AS TORINO) REAR ENDS WITH A 3.562" X 2.000" MOUNTING PATTERN ON THE AXLE FLANGE & WITH A 2.50" FLANGE OFFSET.

CURRIE BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

THESE BRAKE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS.

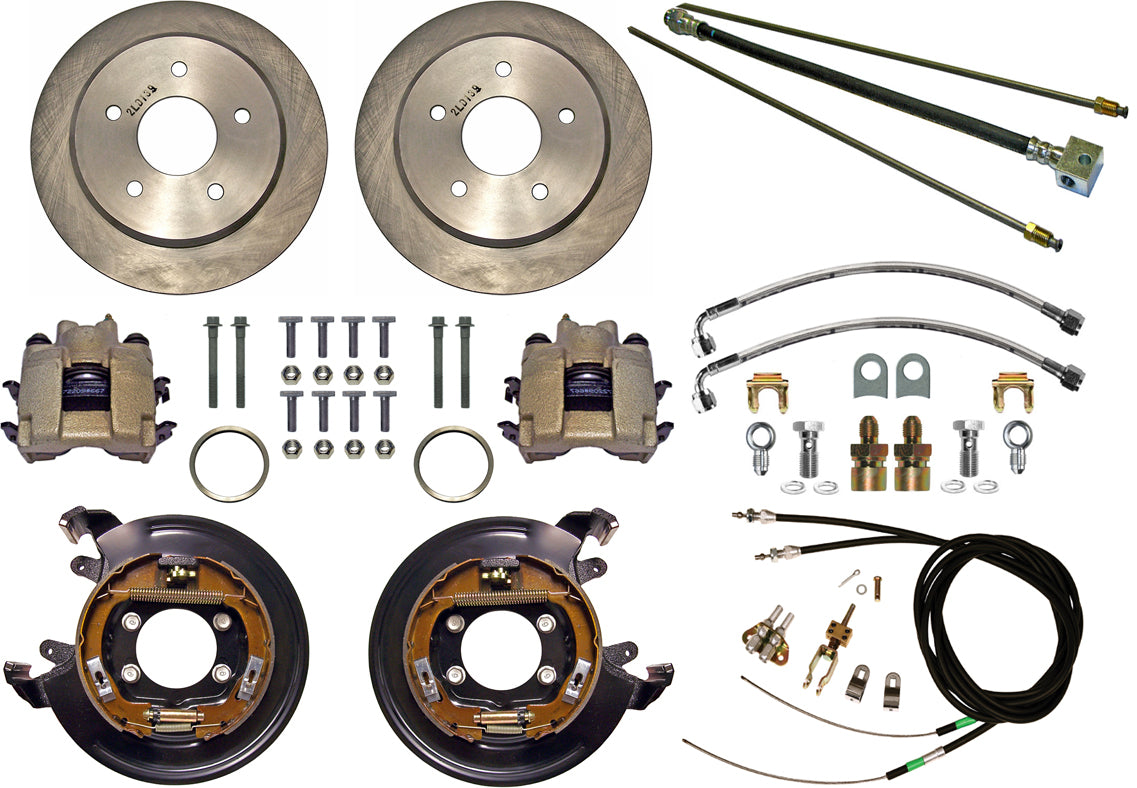

KIT INCLUDES PARTS FOR BOTH REAR WHEELS:

0.50" THICK X 11.00" O.D. SOLID ROTORS WITH HATS

5 X 5 1/2" BOLT PATTERN

SINGLE PISTON BRAKE CALIPERS WITH PADS

BACKING PLATE / CALIPER MOUNTING BRACKET PLATES WITH DRUM-STYLE

PARKING BRAKE ASSEMBLIES INSTALLED

NECESSARY BOLTS, NUTS, AND REGISTERS TO INSTALL THE BRAKING SYSTEM ON BOTH REAR WHEELS.

PARKING BRAKE CABLE KIT:

CONNECTS TO THE CURRIE PARKING BRAKE ASSEMBLIES, THEN COMES TOGETHER TO JOIN THE STOCK CABLE BEHIND THE TRANSMISSION.

FLEXLINE KIT:

STEEL BRAIDED BRAKE LINES, BANJO FITTINGS & BOLTS, AND CHASSIS FITTINGS TO CONNECT THE CALIPERS TO THE HARD LINES.

ALSO INCLUDES WELD-ON LINE TABS TO INSTALL ON YOUR REAR END.

HARD LINE KIT:

STEEL HARD BRAKE LINE TUBING TO CONNECT THE CHASSIS FITTINGS TO THE INCLUDED RUBBER HOSE

RUBBER HOSE CONNECTS THOSE HARD LINES TO THE LINES ON THE FRAME.

NOTE: TUBING BENDING IS GENERALLY NECESSARY FOR THE INSTALLATION OF THESE LINES
