BRAKE KIT,11" DRILLED,4 1/2 & 4 3/4,STAGGERED SHOCKS

CURRIE EXPLORER REAR PARKING BRAKE, BOLT-ON 11" DISC BRAKE KIT FOR STAGGERED SHOCK APPLICATIONS (PART #CE-6012DGMF) FOR BOTH REAR WHEELS.

FEATURES DRILLED ROTORS.

FITS:

STAGGERED SHOCK APPLICATIONS WITH BIG BEARING FORD NEW STYLE (ALSO KNOWN AS TORINO) REAR ENDS WITH A 3.562" X 2.000" MOUNTING PATTERN ON THE AXLE FLANGE & WITH A 2.50" FLANGE OFFSET.

STAGGERED SHOCKS WERE COMMON ON 1967-1969 GM F-BODIES (CHEVY CAMARO AND PONTIAC FIREBIRD) WITH LEAF SPRINGS.

CURRIE BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

THESE BRAKE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS.

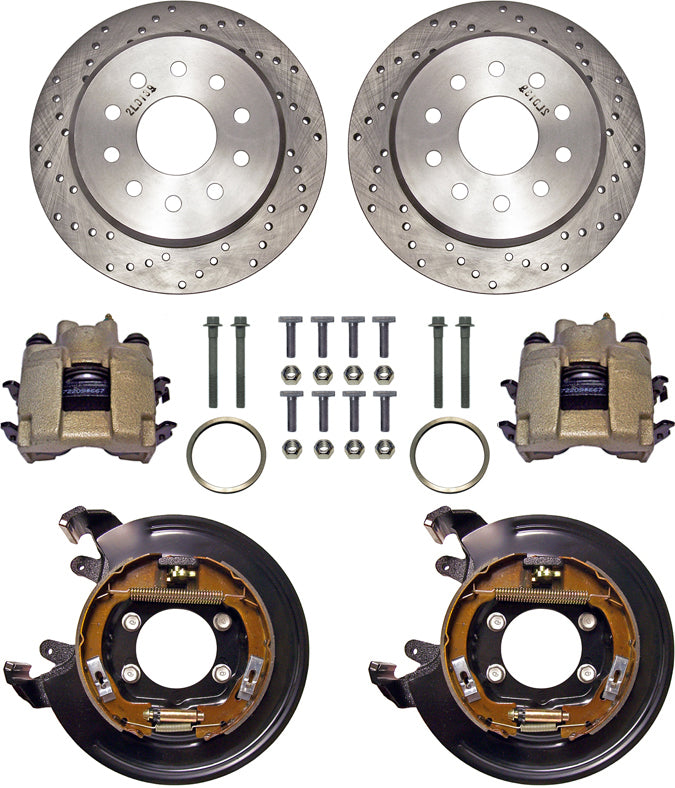

KIT INCLUDES PARTS FOR BOTH REAR WHEELS:

CROSS DRILLED, 0.50" THICK X 11.00" O.D. SOLID ROTORS WITH HATS

FEATURE BOTH 5 X 4 1/2" AND 5 X 4 3/4" BOLT PATTERNS

SINGLE PISTON BRAKE CALIPERS WITH PADS

BACKING PLATE / CALIPER MOUNTING BRACKET PLATES WITH DRUM-STYLE

PARKING BRAKE ASSEMBLIES INSTALLED.

CURRIE DOES NOT INCLUDE THE PARKING BRAKE CABLE KIT OR THE BRAKE LINES WITH THESE SETS.

NECESSARY BOLTS, NUTS, AND REGISTERS TO INSTALL THE BRAKING SYSTEM ON BOTH REAR WHEELS.
