BRAKE KIT,CABLE,LINES,11" DRILLED ROTORS,PB,5x5.5"

BRAKE KIT,CABLE,LINES,11" DRILLED ROTORS,PB,5x5.5"

SKU:CUR CE-6012D4KT

Regular price $1,199.99
Regular price Sale price $1,199.99
This item requires an additional shipping fee of $10.00 over standard shipping.
View full details

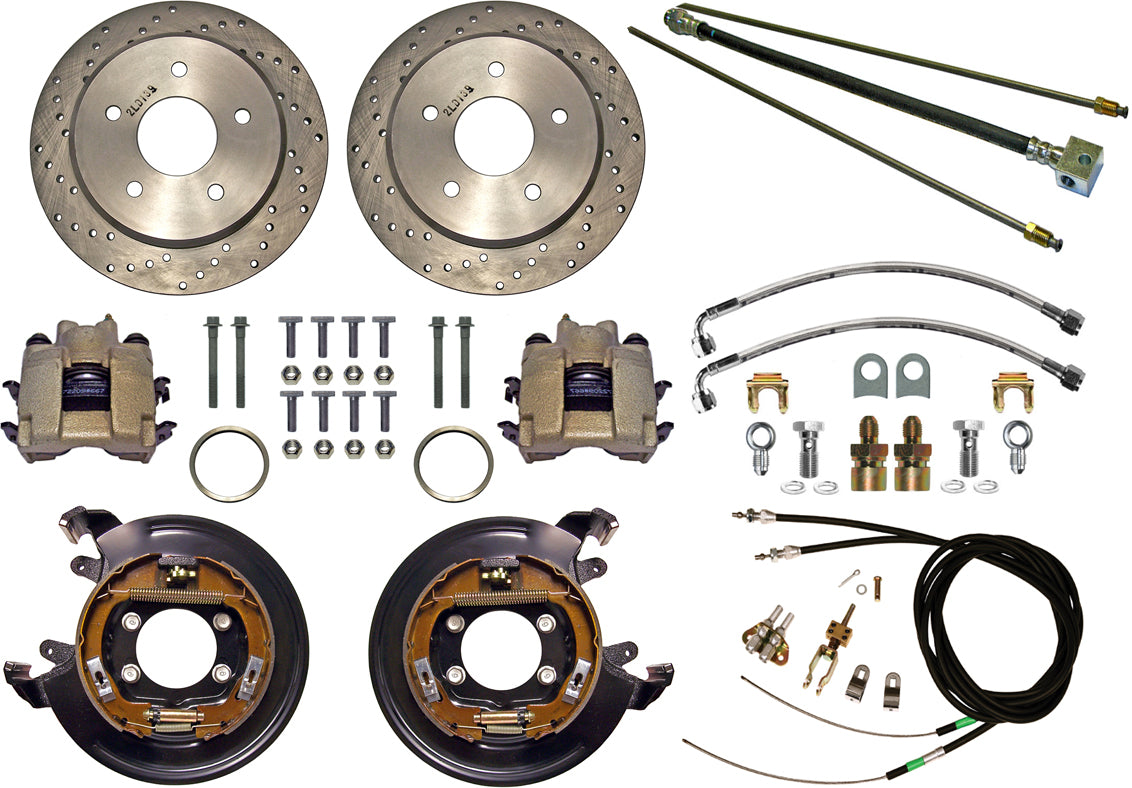

CURRIE EXPLORER REAR PARKING BRAKE, BOLT-ON 11" DISC BRAKE KIT WITH PARKING BRAKE CABLE SET, FLEXLINE SET, AND HARD LINE SET (PART #CE-6012D4 KIT) FOR BOTH REAR WHEELS.

FEATURES DRILLED ROTORS.

FITS:

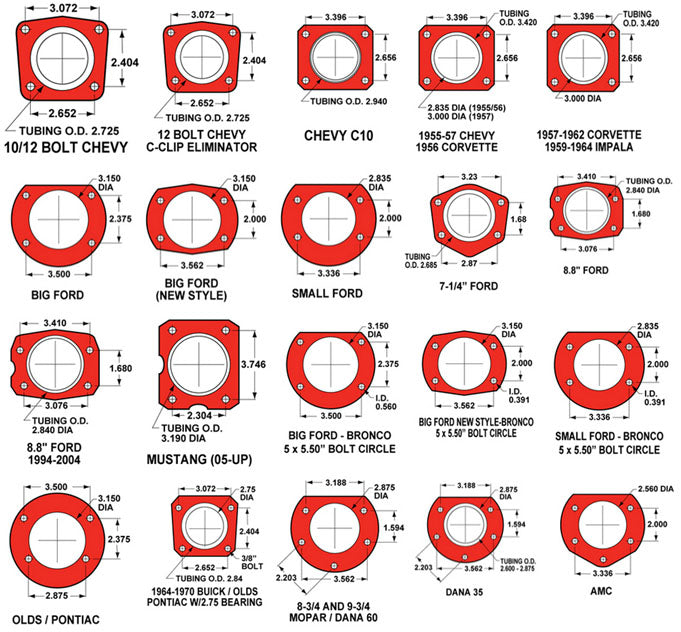

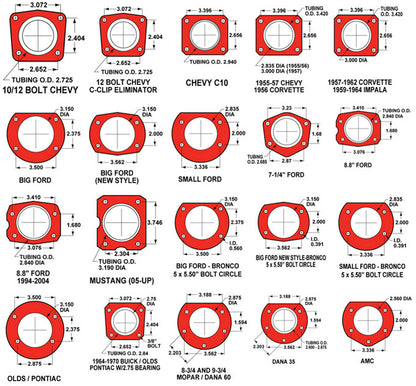

BIG BEARING FORD NEW STYLE (ALSO KNOWN AS TORINO) REAR ENDS WITH A 3.562" X 2.000" MOUNTING PATTERN ON THE AXLE FLANGE & WITH A 2.50" FLANGE OFFSET.

CURRIE BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

THESE BRAKE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS.

KIT INCLUDES PARTS FOR BOTH REAR WHEELS:

  • CROSS DRILLED, 0.50" THICK X 11.00" O.D. SOLID ROTORS WITH HATS
  • 5 X 5 1/2" BOLT PATTERN
  • SINGLE PISTON BRAKE CALIPERS WITH PADS
  • BACKING PLATE / CALIPER MOUNTING BRACKET PLATES WITH DRUM-STYLE
  • PARKING BRAKE ASSEMBLIES INSTALLED
  • NECESSARY BOLTS, NUTS, AND REGISTERS TO INSTALL THE BRAKING SYSTEM ON BOTH REAR WHEELS

    PARKING BRAKE CABLE KIT:

  • CONNECTS TO THE CURRIE PARKING BRAKE ASSEMBLIES, THEN COMES TOGETHER TO JOIN THE STOCK CABLE BEHIND THE TRANSMISSION.
  • FLEXLINE KIT:

  • STEEL BRAIDED BRAKE LINES, BANJO FITTINGS & BOLTS, AND CHASSIS FITTINGS TO CONNECT THE CALIPERS TO THE HARD LINES
  • ALSO INCLUDES WELD-ON LINE TABS TO INSTALL ON YOUR REAR END
  • HARD LINE KIT:

  • STEEL HARD BRAKE LINE TUBING TO CONNECT THE CHASSIS FITTINGS TO THE INCLUDED RUBBER HOSE.
  • RUBBER HOSE CONNECTS THOSE HARD LINES TO THE LINES ON THE FRAME.
  • NOTE:TUBING BENDING IS GENERALLY NECESSARY FOR THE INSTALLATION OF THESE LINES.
