BRAKE KIT,CABLE,LINES,10" DRUM,PB,5 X 5"

CURRIE REAR 10" DRUM BRAKE KIT WITH PARKING BRAKE CABLE SET AND HARD BRAKE LINE SET (PART #CE-6005B KIT 5 X 5") FOR BOTH REAR WHEELS.

FITS:

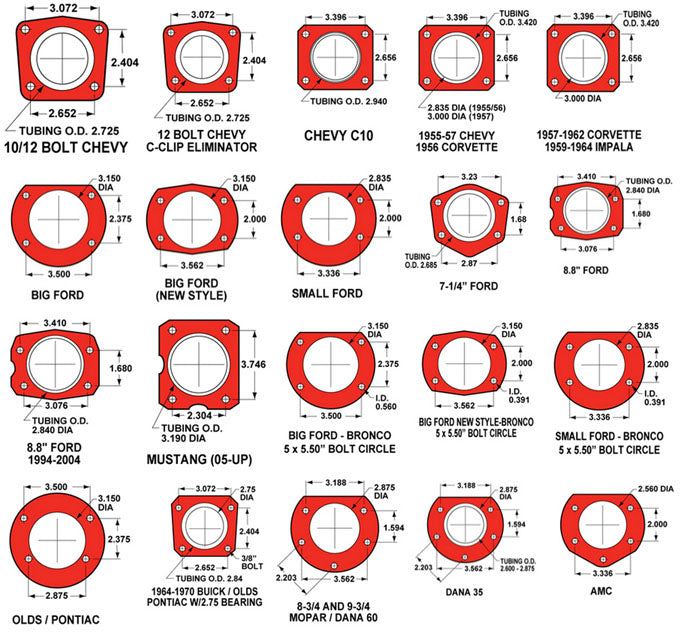

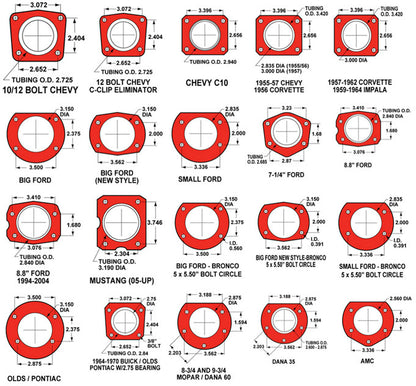

BIG BEARING FORD NEW STYLE (ALSO KNOWN AS TORINO) REAR ENDS WITH A 3.562" X 2.000" MOUNTING PATTERN ON THE AXLE FLANGE & WITH A 2.50" FLANGE OFFSET.

CURRIE BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

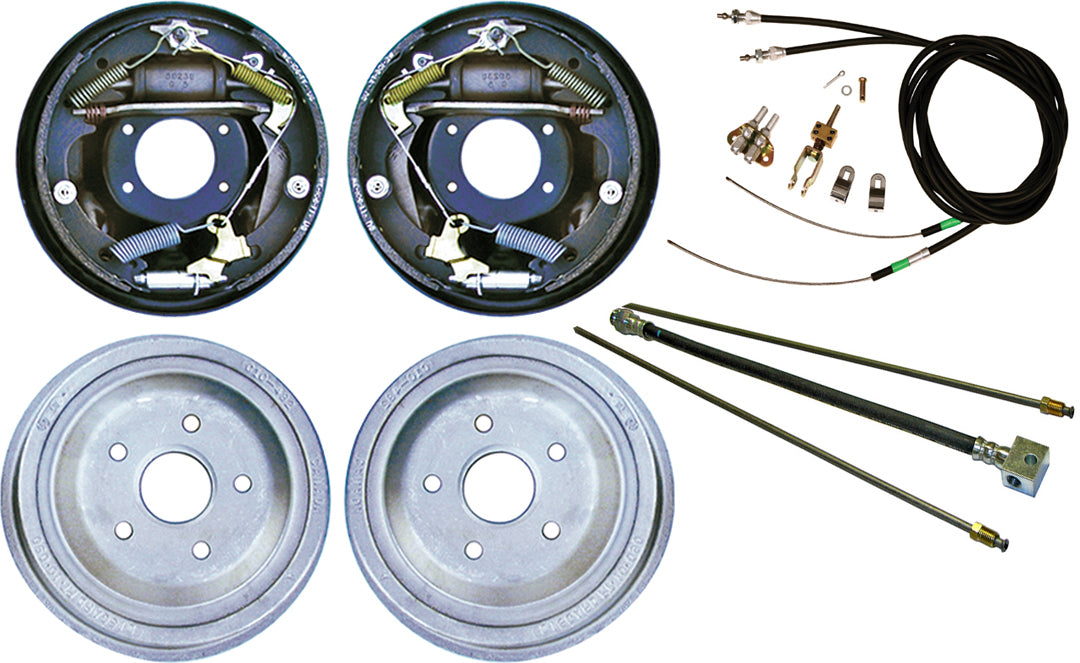

KIT INCLUDES PARTS FOR BOTH REAR WHEELS:

10" HYDRAULIC DRUMS

5 X 5" BOLT PATTERN

2 1/2" X 10"

2.80" CENTER REGISTER HOLE

INCLUDES CABLE OPERATED PARKING BRAKE MECHANISMS

PARKING BRAKE CABLE KIT:

CONNECTS TO THE CURRIE PARKING BRAKE ASSEMBLIES, THEN COMES TOGETHER TO JOIN THE STOCK CABLE BEHIND THE TRANSMISSION

HARD BRAKE LINE KIT:

STEEL HARD BRAKE LINE TUBING TO CONNECT THE CURRIE DRUMS TO THE INCLUDED RUBBER HOSE

RUBBER HOSE CONNECTS THOSE HARD LINES TO THE LINES ON THE FRAME

NOTE: TUBING BENDING IS GENERALLY NECESSARY FOR THE INSTALLATION OF THESE LINES
