BRAKE KIT,CABLE,LINES,11" DRUM,PB,4.50/5

CURRIE REAR 11" DRUM BRAKE KIT WITH PARKING BRAKE CABLE SET AND HARD BRAKE LINE SET (PART #CE-6005ACT KIT) FOR BOTH REAR WHEELS.

FITS:

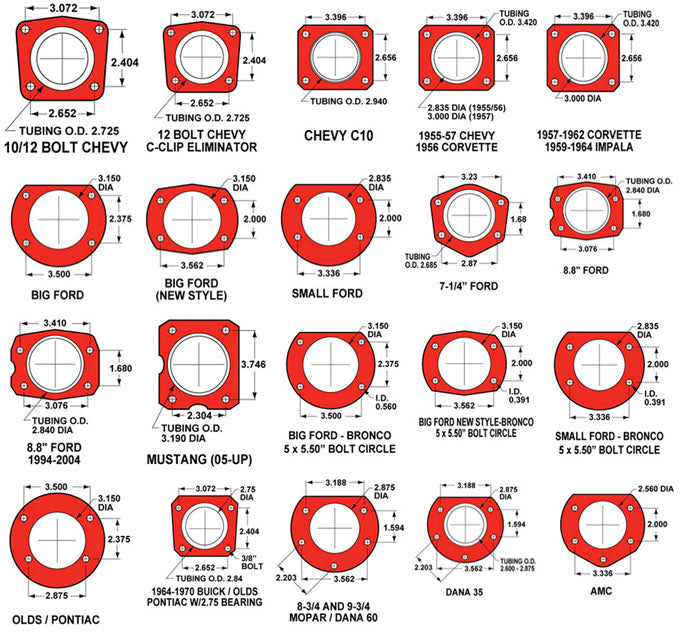

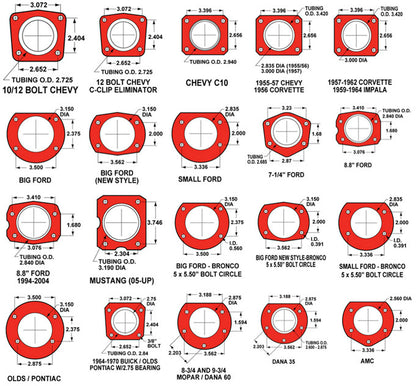

BIG BEARING FORD NEW STYLE (ALSO KNOWN AS TORINO) REAR ENDS WITH A 3.562" X 2.000" MOUNTING PATTERN ON THE AXLE FLANGE & WITH A 2.50" FLANGE OFFSET.

CURRIE BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

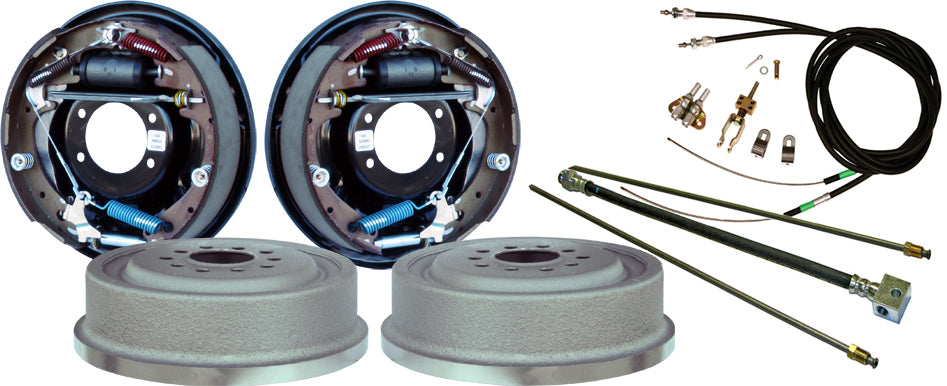

KIT INCLUDES PARTS FOR BOTH REAR WHEELS:

11" HYDRAULIC DRUMS

FEATURE BOTH 5 X 4 1/2" AND 5 X 5" BOLT PATTERNS

2 1/4" X 11"

2.80" CENTER REGISTER HOLE

INCLUDES CABLE OPERATED PARKING BRAKE MECHANISMS

PARKING BRAKE CABLE KIT:

CONNECTS TO THE CURRIE PARKING BRAKE ASSEMBLIES, THEN COMES TOGETHER TO JOIN THE STOCK CABLE BEHIND THE TRANSMISSION.

HARD BRAKE LINE KIT:

STEEL HARD BRAKE LINE TUBING TO CONNECT THE CURRIE DRUMS TO THE INCLUDED RUBBER HOSE

RUBBER HOSE CONNECTS THOSE HARD LINES TO THE LINES ON THE FRAME

NOTE: TUBING BENDING IS GENERALLY NECESSARY FOR THE INSTALLATION OF THESE LINES.
