ZEUS LINK MODULE FOR S1 OBDII
ZEUS LINK MODULE FOR S1 OBDII
SKU:CLI SN73Z-S1
Yes, we have this item in stock and ready to ship immediately!
Couldn't load pickup availability

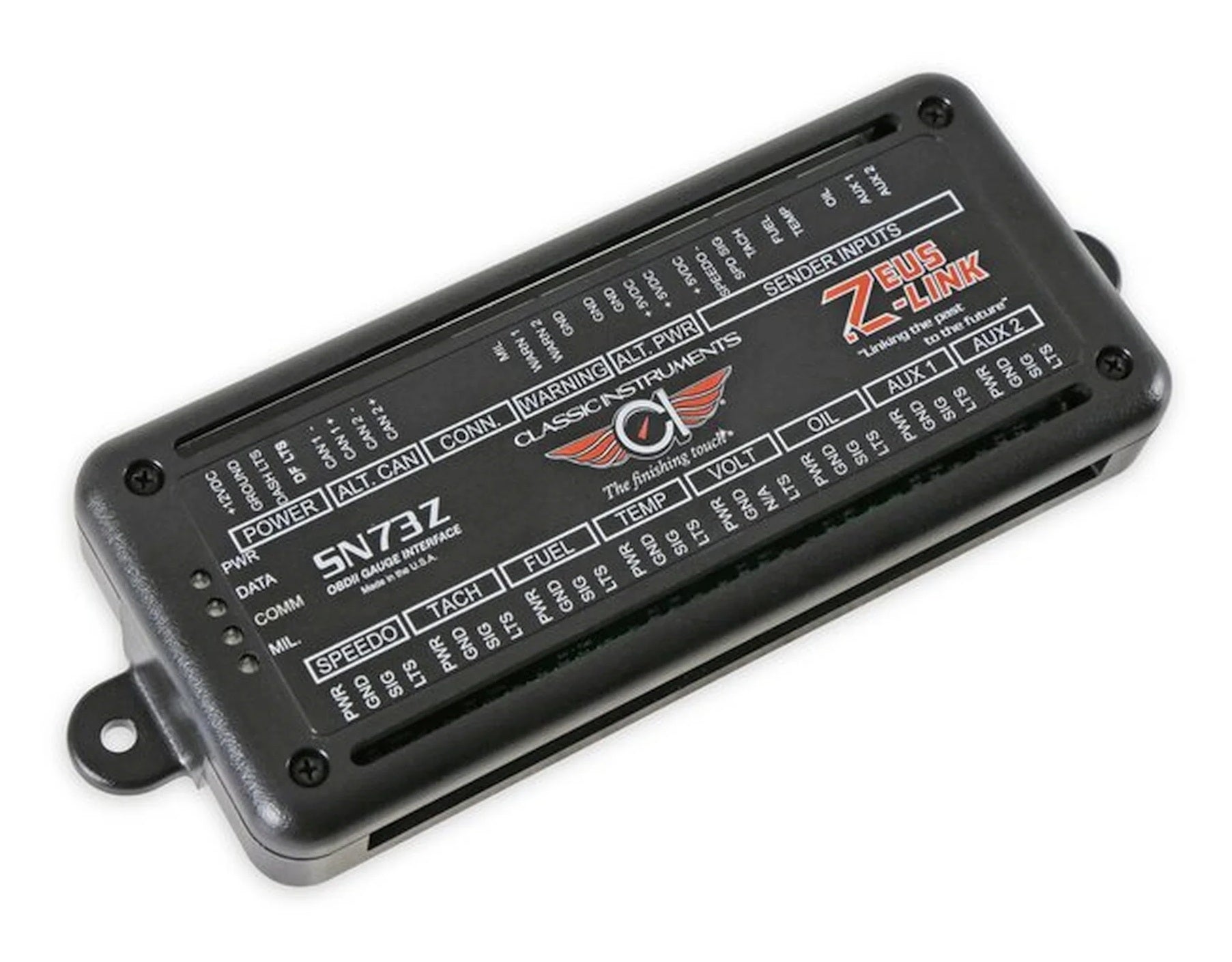

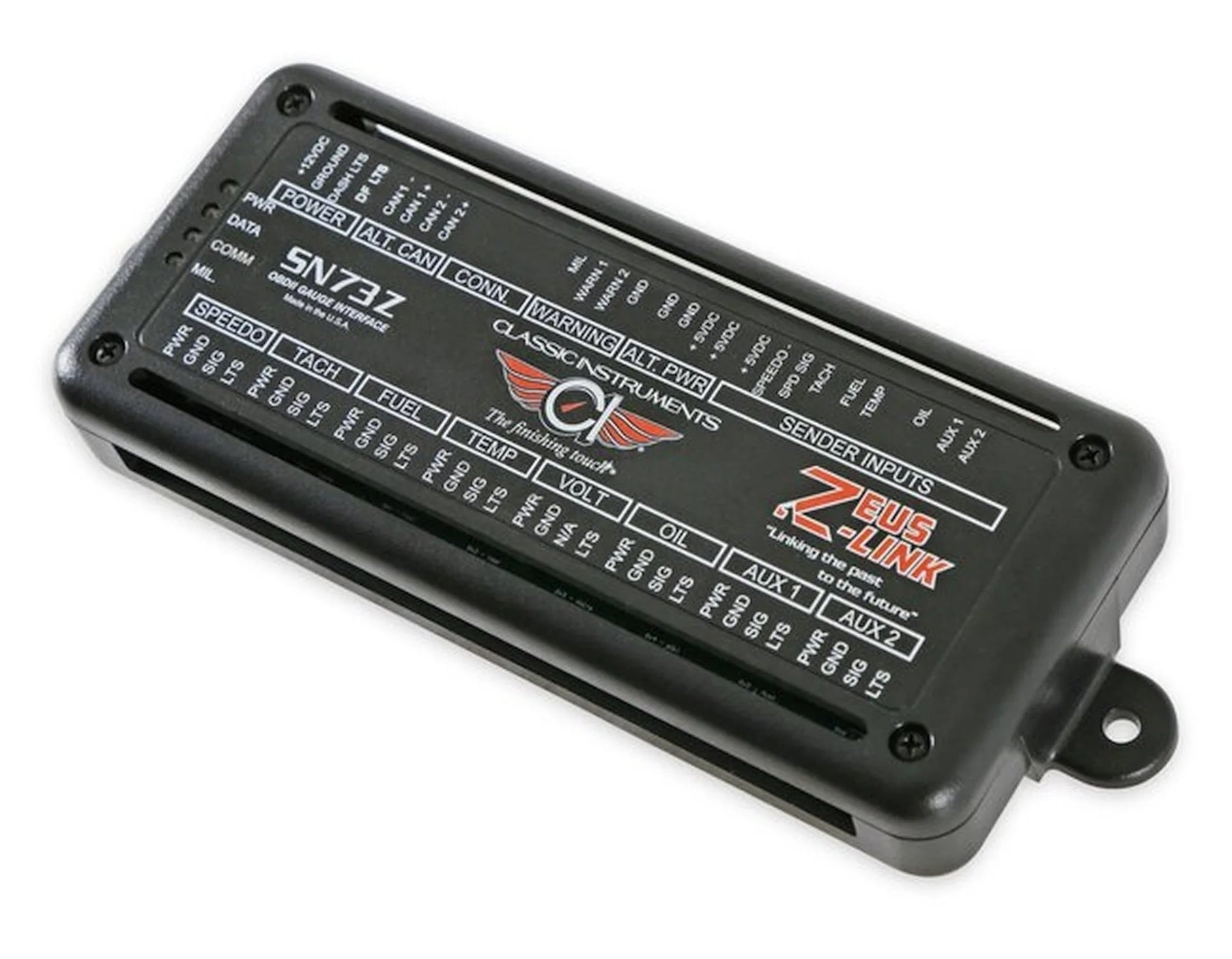

Brand New Classic Instruments Zeus-Link Gauge Interface Module (Part #SN73Z-S1).
Bridge your gauges and modern engine management with one smart box. Zeus-Link reads CAN BUS data from Holley ECUs (Dominator, HP, Terminator X/Max, Sniper/Sniper 2) and GM OBDII ports to accurately drive Classic Instruments gauges—without a tangle of separate adapters. Connect up to six standard gauges and two auxiliary channels using any combination of sender inputs or none at all; if your ECU doesn’t output a value you want, you can still wire that gauge traditionally. The module includes warning and check-engine light outputs, a dash-light lead, and onboard diagnostic LEDs for power, BLE, and data status, plus a pass-through CAN port for additional devices. Setup and management are all handled in the companion app (App Store/Google Play): choose which gauges you’re running, assign inputs/outputs, view live values, and verify wiring. For maximum Holley compatibility on shared CAN harnesses, an additional resistor is available and Zeus-Link supports the extra Holley ECU connector when provided. It’s the cleanest, most flexible way to make your dash talk to your ECU.
Compatible with:
- Holley Dominator, HP, Sniper, Terminator, & Terminator X ECUs
- Warning and check engine light outputs on the Zeus-Link and external contacts to light a dash light
- System queries vehicle upon installation to determine what list of parameters can be obtained from the vehicle and used as inputs to gauges
- Holley harness has additional Holley ECU connector for other devices
- All instruments can be driven traditionally through proper senders if vehicle ECU does not support an output the driver wants to monitor
- The app has easy diagnostics, displays values being received by Zeus-Link and will allow user to cycle gauges to predetermined positions, to verify correct outputs and wiring
- Dash light connection

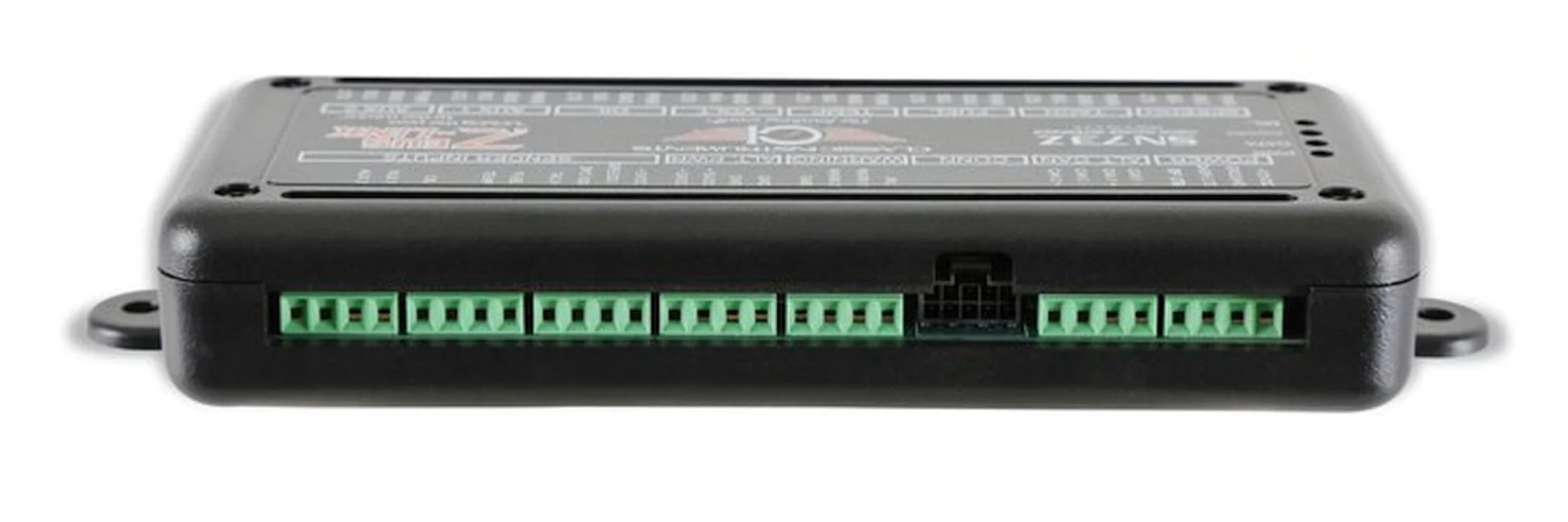

- All gauge connections to Zeus-Link (power, ground, signal, dash lights)
- The app has a virtual gauge screen, aligning with the dash instruments
- Compatible with all Classic Instruments sending units and gauges
- Spaces for 6 standard gauges: speedo, tach, fuel, oil, volt, temp, and 2 auxiliary gauges of the customers’ choosing
- Pass-through CAN port connection for other CAN devices

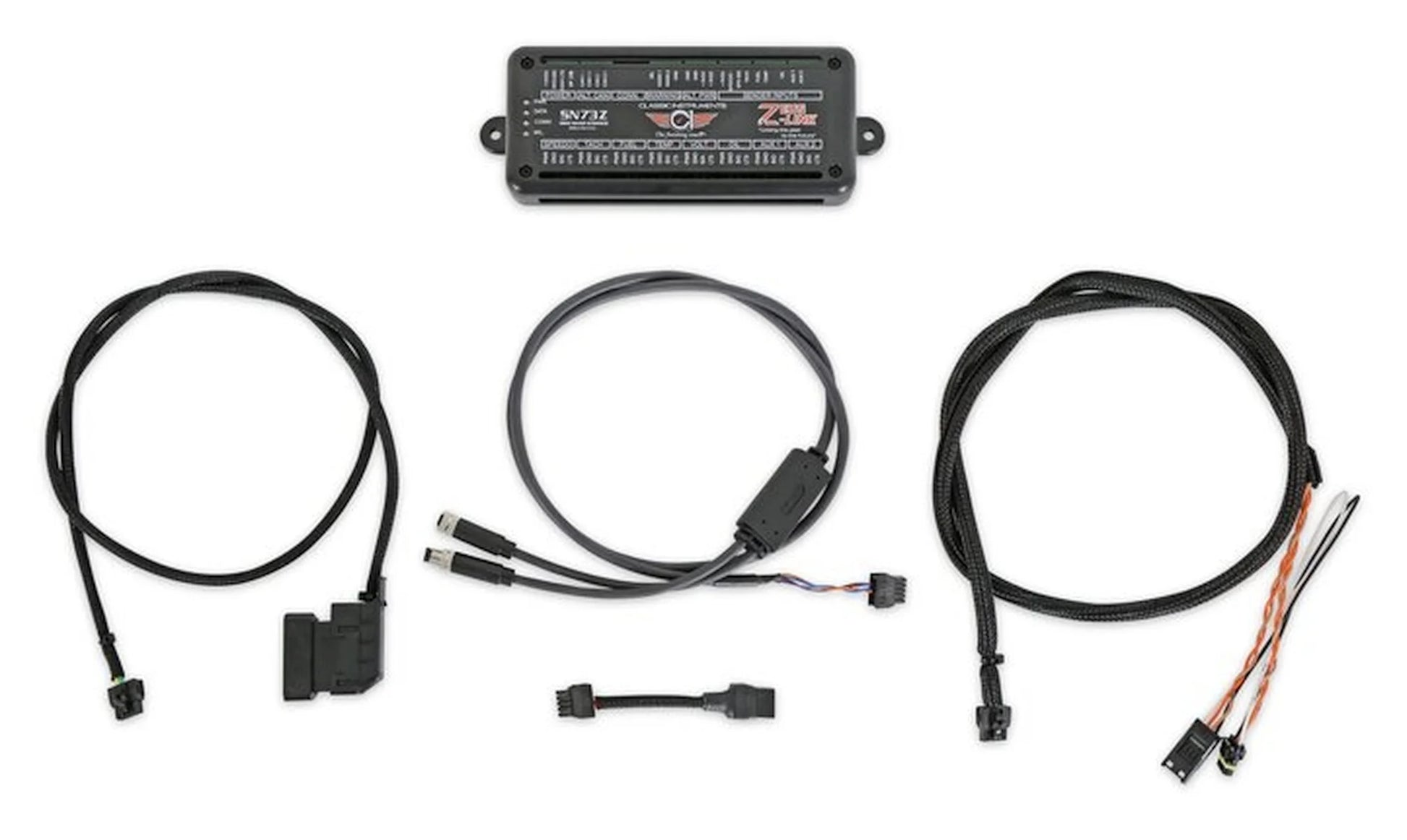

- Harness plugs direct into Zeus-Link and then to Holley ECU or OBD
- Additional resistor dongle available if needed to use multiple Holley CAN devices on the same harness
- The app is used to configure by choosing which gauges a customer has in the dash and how each gauge gets its signal
- Set up and managed all through an app available on the App Store or Google Play
- On-board diagnostic lights give status of power, BLE, and data on the circuit board for Zeus-Link
You can view and download the instruction booklet here.
