AUTO CROSS PACKAGE,YELLOW,BRUSHED ALUM,1967-1968 MUSTANG,OLED

Brand New Classic Instruments Brushed Aluminum AutoCross Yellow 1967-68 Mustang (Part #MU67DAXYBA).

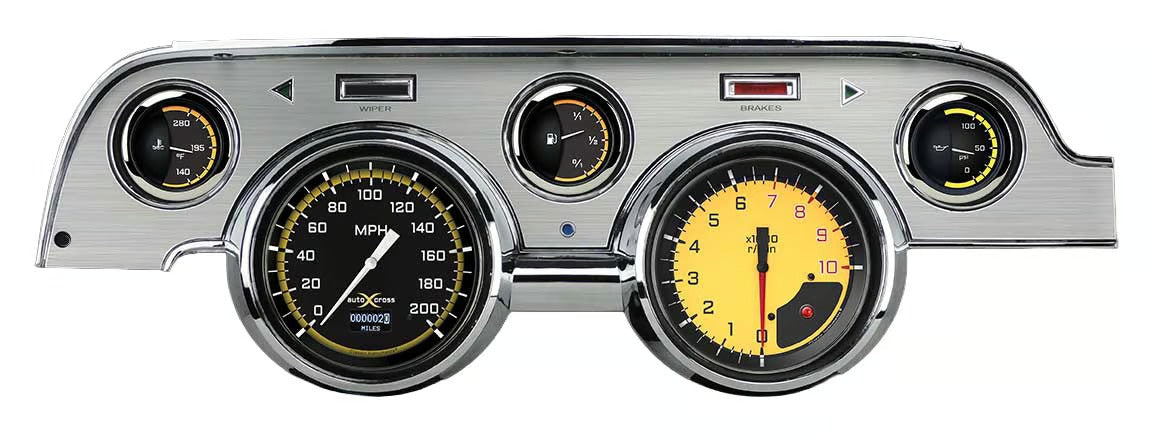

The 1967-68 Mustang Package with our AutoCross Yellow series installed features a 4 5/8" Information Screen Speedometer, a tachometer, and 2 1/8" Fuel, oil, and temp gauges. The cluster is completely assembled and mounted in a brushed aluminum style bezel. The unit is pre-wired and includes sending units, mounting hardware, and a wiring harness constructed of automotive grade TXL wire, machine-crimped terminals, tech-flex sleeving, and Molex main connectors. Equipped with our ZST and works directly with ECM or VSS signal, no need for an additional control box.

Compatible with:

• Ford:
  • 1967-1968 Mustang

Notes:

• Fuel sending unit is not included
• Fuel gauge is calibrated to stock 75-10 OHM

Features:

• Wiring harness constructed of automotive grade TXL wire, machine-crimped terminals, tech-flex sleeving, and Molex main connectors
• 4 5/8" Speedometer and tachometer
• 2 1/8" Fuel, oil, and temp gauges

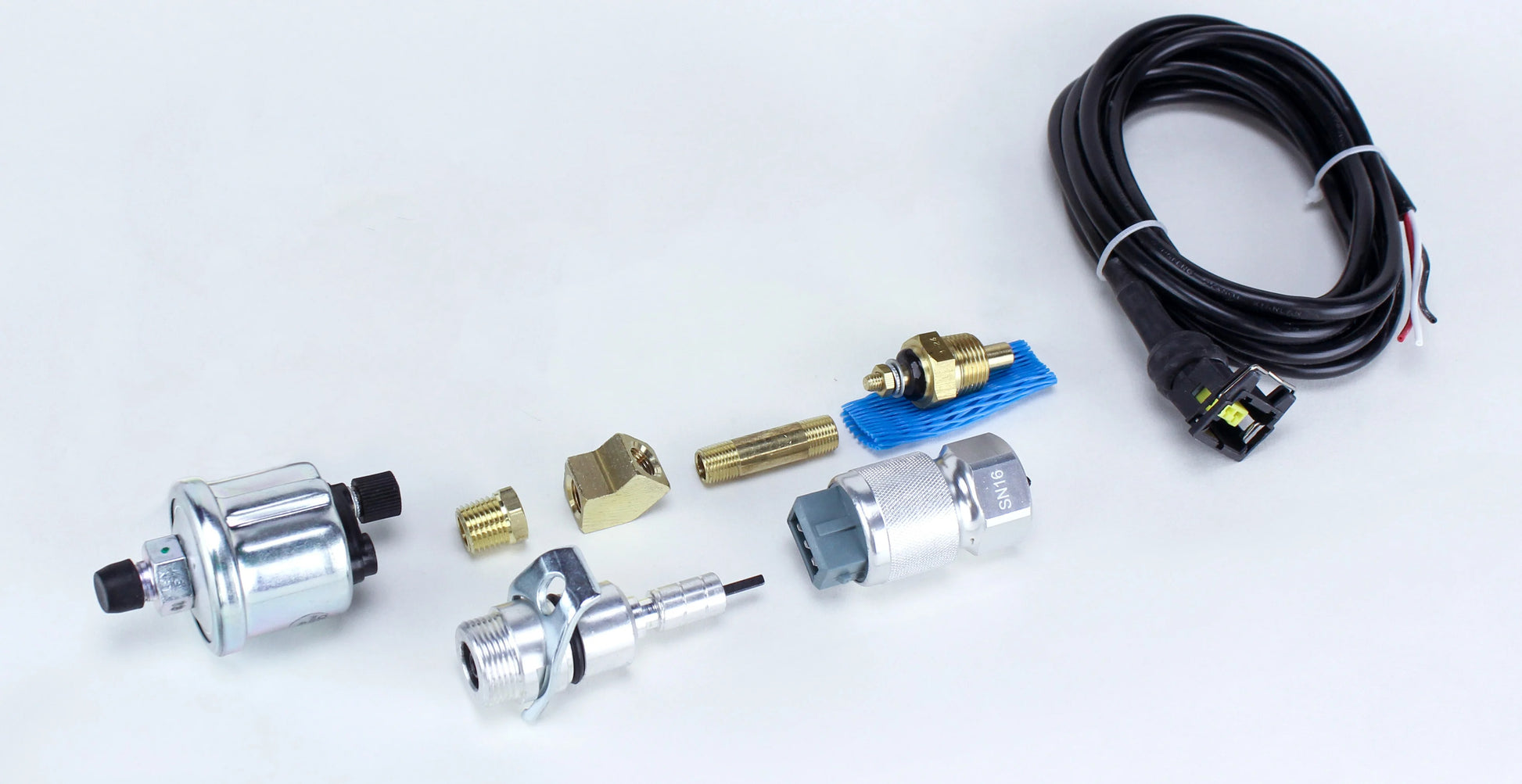

• Pre-wired with all necessary sending units and mounting hardware
• Completely assembled and mounted in brushed aluminum style bezel
• Works directly with ECM or VSS signal, no additional control box needed

Specs:

• Brand: Classic Instruments
• Bulb Type: Incandescent
• Color: Black/Yellow
• Display Type: Analog
• Gauge Series: AutoCross Yellow
• Grade Type: Heavy Duty
• Illuminated: Yes
• Illumination Color: White
• Part Type: Gauge Set

You can view and download the instruction booklet here.
