61-66 FORD TRUCK BLACK

Brand New Classic Instruments Black Series Package for 1961-1966 Ford Truck (Part #FT61B).

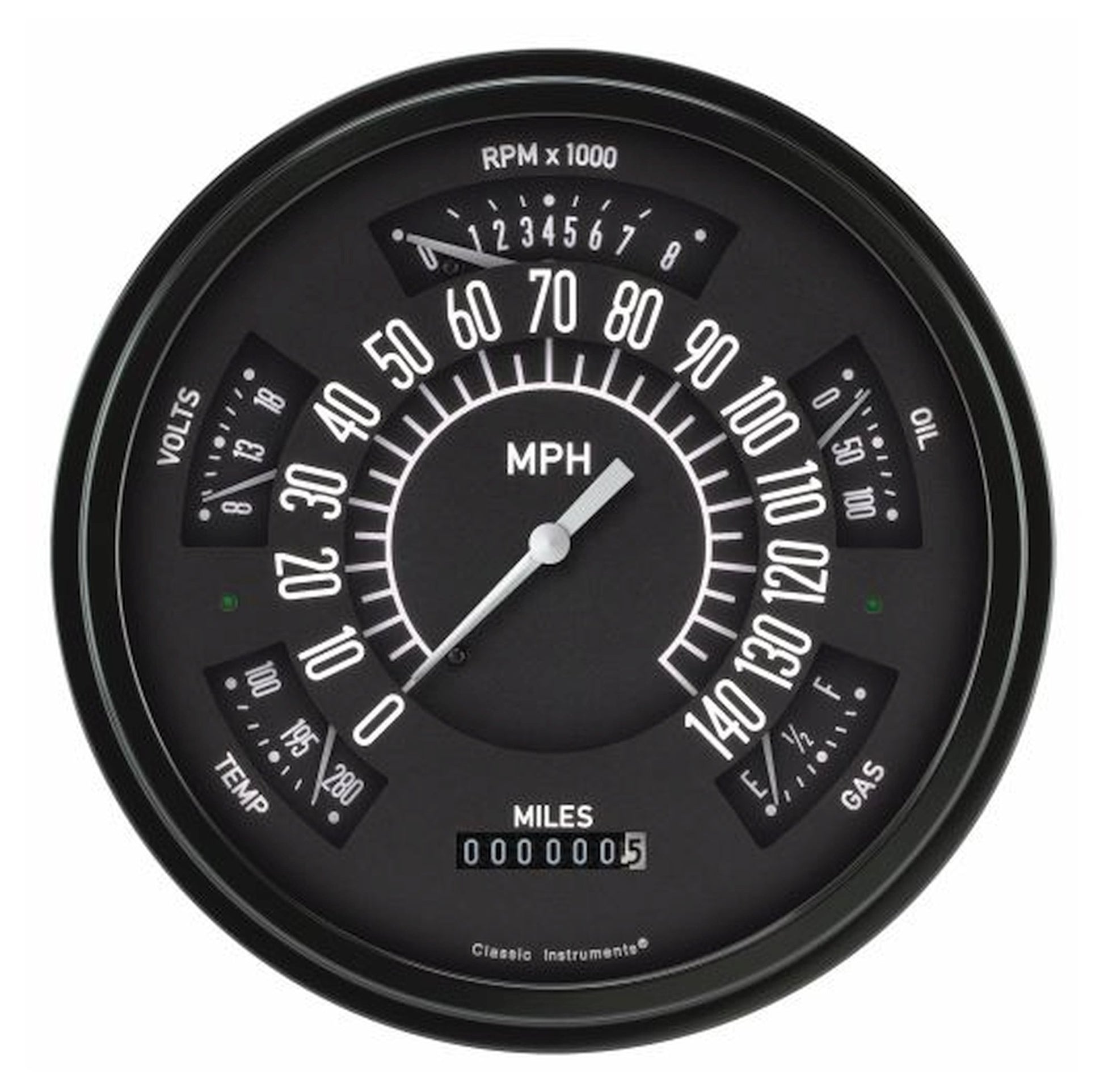

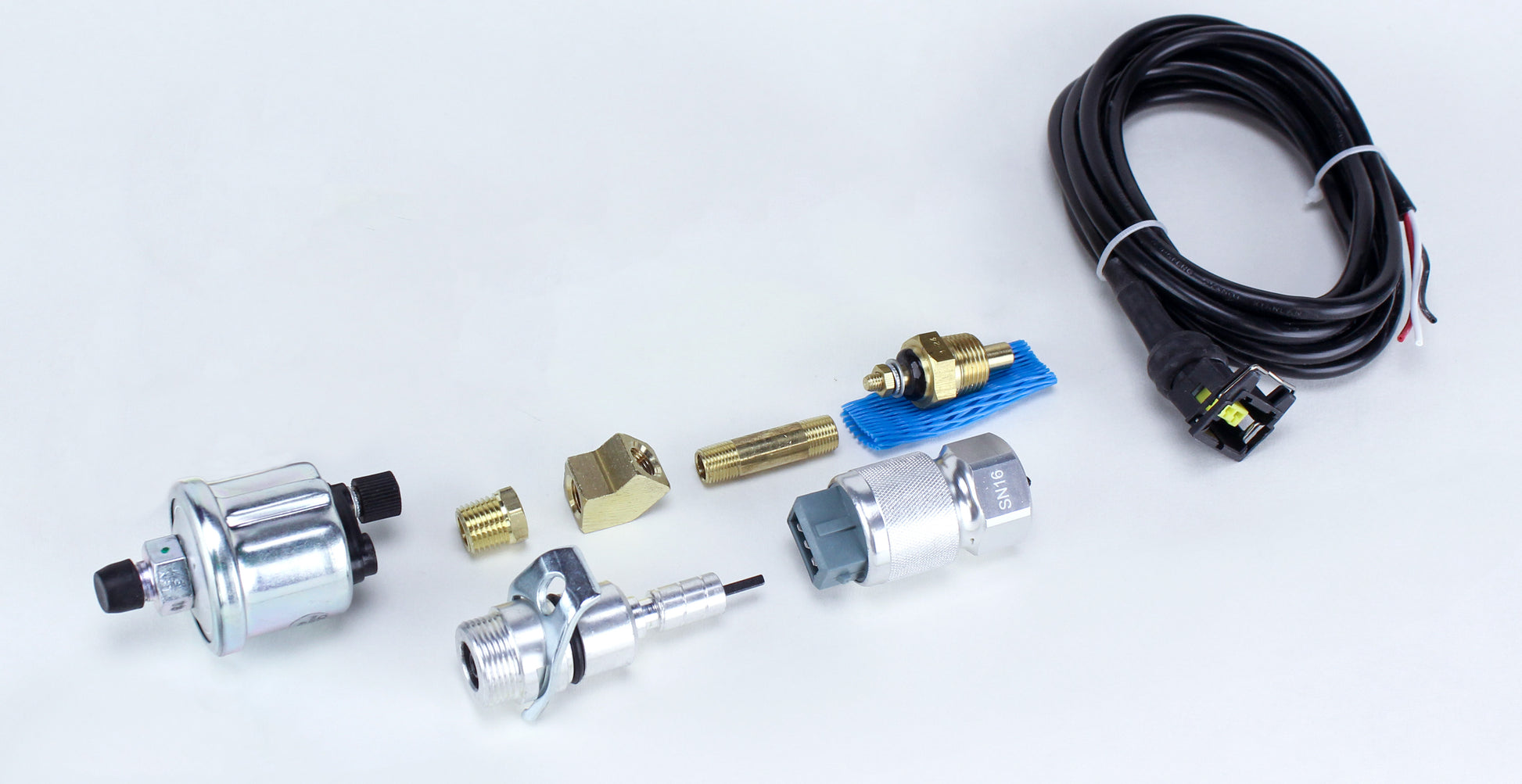

The '61-66 Ford F-100 Package features the speedometer, tachometer, fuel (75-10), temperature, volt, and oil gauges all in one direct fit instrument. Installing the all-electronic cluster is easy with the included mounting hardware, Classic Instruments' Zeus Speedometer Technology for push button calibration, and all the included sending units.

Compatible with:

• Ford:
• 1961-1966 F-100
• 1961-1966 F-250
• 1961-1966 F-350

Notes:

• Fuel sending unit is not included
• Fuel gauge is calibrated to stock 75-10 OHM

Features:

• Zeus Speedometer Technology built-in, molded plastic back housing
• Push button calibration, switch included
• Direct fit into the stock dashboard using factory holes with the included mounting hardware
• Turn signal indicators in the left and right sides of cluster, green LEDs
• Works directly with ECM or VSS signal, no additional control boxes needed
• High beam indicator hidden at the top of the tachometer, red LED Halo
• LED lighting with built-in LED dimmer, and molded "light intensifier" ring for bright, even lighting. Brightness of the LEDs can be adjusted with a potentiometer on the back of the cluster
• ECM signal filter switch built-in

Specs:

• Application: 1961-1966 Ford Truck
• Brand: Classic Instruments
• Bulb Type: Incandescent
• Color: Black
• Display Type: Analog
• Grade Type: Heavy Duty
• Illuminated: Yes
• Illumination Color: White
• Part Type: Gauge Set

You can view and download the instruction booklet here.
