VELOCITY SERIES,WHITE,67-72 CHEVY/GMC TRUCK,LS

Brand New Classic Instruments Velocity Series White Truck Gauge, Compatible with 1967-1972 Chevy & GMC Trucks with LS Sending Units (Part #CT67VSW-LS).

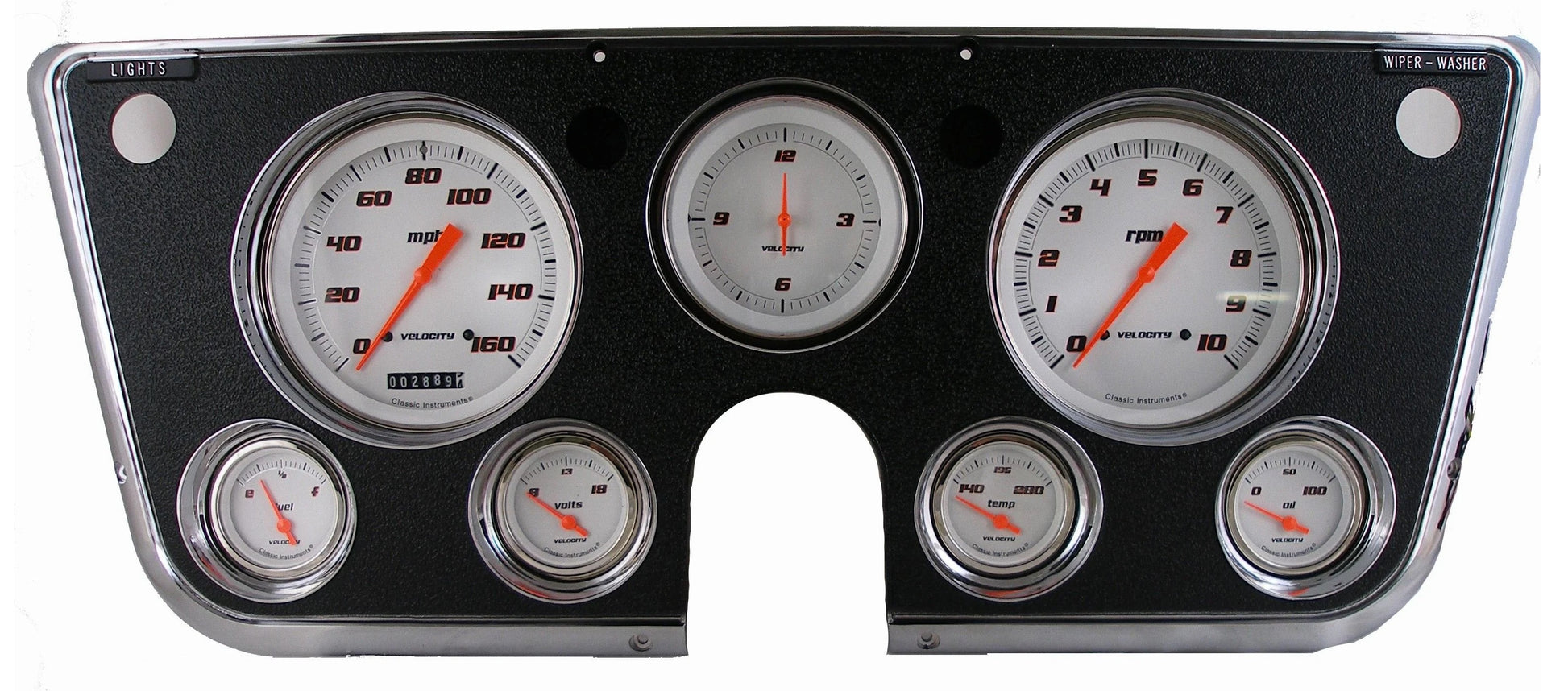

The 1967-72 Chevy Truck Package with our Velocity White Series installed, features a 4 5/8" Speedometer and tachometer, 3 3/8" Clock, and 2 1/8" Fuel (0-90 OHM), Oil, Temp, and Volt gauges. A blue LED high-beam indicator is installed in the speedometer. The set includes pre-wired electrical connections, mounting hardware, all necessary* sending units, and a wiring harness constructed of automotive grade TXL wire, machine-crimped terminals, tech-flex sleeving, and Molex main connectors. It is equipped with our ZST™ and works directly with ECM or VSS signals so no additional control box is needed.

Note: Compatible with LS sending units only. Fuel sending unit not included, fuel gauge is calibrated to stock 0-90 OHM.

Note: Dash Bezel Not Included (uses Original Dash Bezel).

Compatible With:

• Chevrolet:

  • 1969-1972 Blazer

  • 1967-1972 C10 Pickup

  • 1967-1972 C10 Suburban

  • 1967-1972 C20 Pickup

  • 1967-1972 C20 Suburban

  • 1967-1972 C30 Pickup

  • 1967-1972 K10 Pickup

  • 1967-1972 K10 Suburban
• GMC:

  • 1970-1972 Jimmy

  • 1967-1972 C15/C1500 Pickup

  • 1967-1972 C15/C1500 Suburban

  • 1967-1972 C25/C2500 Pickup

  • 1967-1972 C25/C2500 Suburban

  • 1967-1972 C35/C3500 Pickup

  • 1967-1972 K15/K1500 Pickup

  • 1967-1972 K15/K1500 Suburban
  • 1967-1972 K25/K2500 Pickup

  • 1967-1972 K25/K2500 Suburban


Features:

• LED lighting with built-in LED dimmer, and molded “light intensifier” ring for bright, even lighting.
• Brightness of the LEDs can be adjusted with a potentiometer on the back of the cluster

• Turn signal indicators in the left and right sides of cluster, green LEDs

• High beam indicator hidden at the top of the tachometer, red LED HaloTM

• Standard GM sender kit included (t­­emp., fuel, oil, speedometer senders), part no. SNGM

You can view and download the complete assembly instruction booklet here.
