G-STOCK PACKAGE,1967-1972 CHEVY/GMC TRUCK

Brand New Classic Instruments G/Stock Package For 1967-1972 GM Truck (Part #CT67GS).

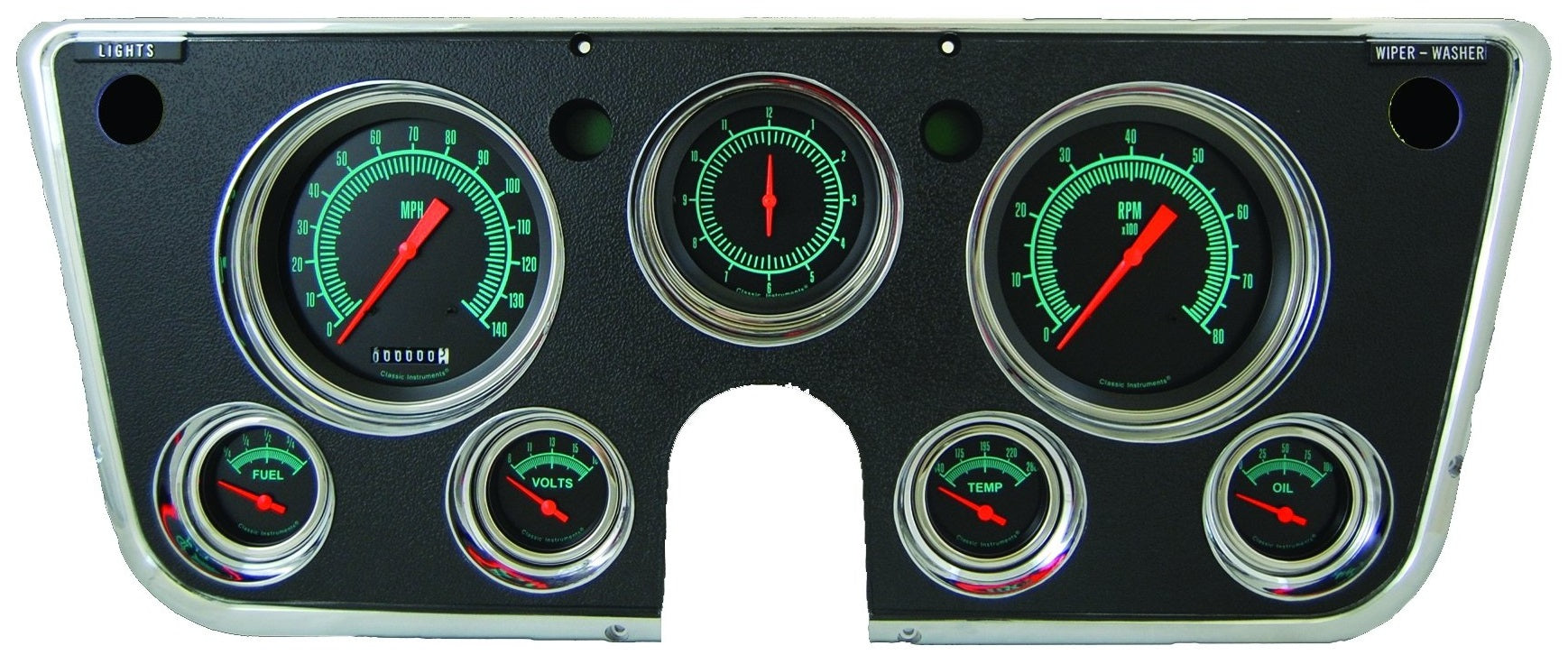

The 1967-72 Chevy Truck Package with our G-Stock Series installed, features a 4 5/8" Speedometer and tachometer, 3 3/8" Clock, and 2 1/8" Fuel (0-90 OHM), Oil, Temp, and Volt gauges. A blue LED high beam indicator is installed in the speedometer. The set includes pre-wired electrical connections, mounting hardware, all necessary sending units, and a wiring harness constructed of automotive grade TXL wire, machine-crimped terminals, tech-flex sleeving, and Molex main connectors. It is equipped with our ZST and works directly with ECM or VSS signals so no additional control box is needed.

Compatible with:

• Chevrolet:
• 1967-1972 C10 Pickup
• 1967-1972 C20 Pickup
• 1967-1972 C30 Pickup
• 1967-1972 C10 Suburban
• 1967-1972 C20 Suburban
• 1967-1972 K10 Pickup
• 1967-1972 K20 Pickup
• 1968-1972 K30 Pickup
• 1967-1972 K10 Suburban
• 1967-1972 K20 Suburban
• 1969-1972 Blazer
• GMC:
  • 1967-1972 C15/C1500 Pickup
  • 1967-1972 C25/C2500 Pickup
  • 1967-1972 C35/C3500 Pickup
  • 1967-1972 C15/C1500 Suburban
  • 1967-1972 C25/C2500 Suburban
  • 1967-1972 K15/K1500 Pickup
  • 1967-1972 K25/K2500 Pickup
  • 1968-1972 K35/K3500 Pickup
  • 1967-1972 K15/K1500 Suburban
  • 1967-1972 K25/K2500 Suburban
  • 1970-1972 Jimmy

Notes:

• Fuel sending unit not included, fuel gauge is calibrated to stock 0-90 ohm.
• Dash bezel not included (uses original dash bezel).

Features:

• High beam indicator hidden at the top of the tachometer, red LED HaloTM

• Standard GM sender kit included (t­­emp., fuel, oil, speedometer senders), part no. SNGM

• LED lighting with built-in LED dimmer, and molded “light intensifier” ring for bright, even lighting. Brightness of the LEDs can be adjusted with a potentiometer on the back of the cluster

• Turn signal indicators in the left and right sides of cluster, green LEDs

You can view and download the instruction booklet here.
