ALL AMERICAN PACKAGE,1967-1972 CHEVY/GMC TRUCK

Brand New Classic Instruments All American Silver Package for 1967-1972 Chevy Truck (Part #CT67AW).

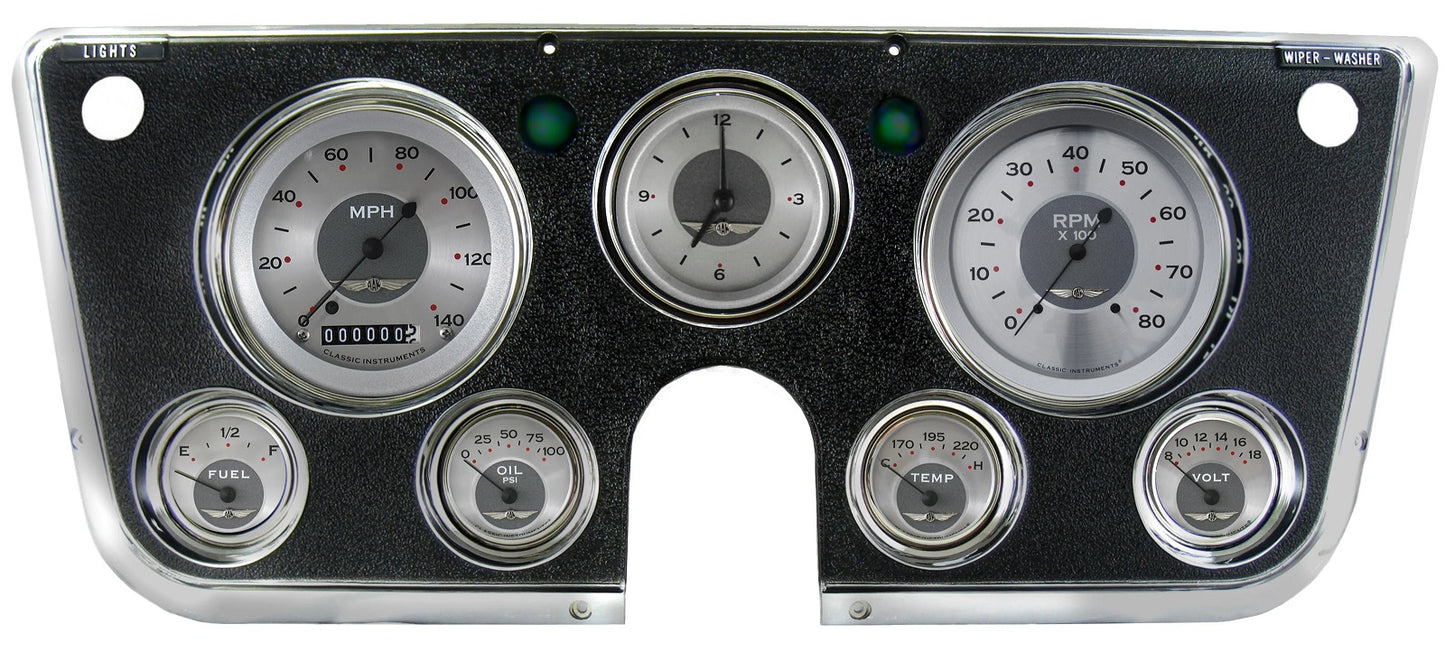

The 1967-72 Chevy Truck Package with our All American Series installed, features a 4 5/8" Speedometer and tachometer, 3 3/8" Clock, and 2 1/8" Fuel (0-90 OHM), Oil, Temp, and Volt gauges. A blue LED high beam indicator is installed in the speedometer. The set includes pre-wired electrical connections, mounting hardware, sending units, and a wiring harness constructed of automotive grade TXL wire, machine-crimped terminals, tech-flex sleeving, and Molex main connectors. It is equipped with our ZST and works directly with ECM or VSS signals so no additional control box is needed.

Compatible With:

• Chevrolet:

  • 1969-1972 Blazer

  • 1967-1972 C10 Pickup

  • 1967-1972 C10 Suburban

  • 1967-1972 C20 Pickup

  • 1967-1972 C20 Suburban

  • 1967-1972 C30 Pickup

  • 1967-1972 K10 Pickup

  • 1967-1972 K10 Suburban
• GMC:

  • 1970-1972 Jimmy

  • 1967-1972 C15/C1500 Pickup

  • 1967-1972 C15/C1500 Suburban

  • 1967-1972 C25/C2500 Pickup

  • 1967-1972 C25/C2500 Suburban

  • 1967-1972 C35/C3500 Pickup

  • 1967-1972 K15/K1500 Pickup

  • 1967-1972 K15/K1500 Suburban
  • 1967-1972 K25/K2500 Pickup

  • 1967-1972 K25/K2500 Suburban

Notes:

• Dash bezel not included, reuse existing dash.
• Fuel sending unit not included.

• Fuel gauge is calibrated to stock 0-90 OHM

Features:

• Direct fit into the stock dashboard using factory holes with the included mounting hardware and a paint-to-match adapter ring

• LED lighting with built-in LED dimmer, and molded “light intensifier” ring for bright, even lighting.
• Brightness of the LEDs can be adjusted with a potentiometer on the back of the cluster

• Turn signal indicators in the left and right sides of cluster, green LEDs

• High beam indicator hidden at the top of the tachometer, red LED HaloTM

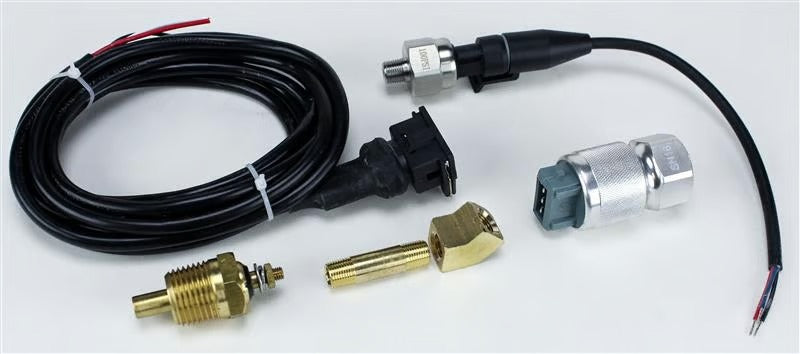

• Standard GM sender kit included (t­­emp., fuel, oil, speedometer senders), part no. SNGM

Specs:

• Application: 1967-1972 Chevy / GMC Truck
• Brand: Classic Instruments
• Color: Silver
• Display Type: Analog
• Grade Type: Heavy Duty
• Illuminated: Yes
• Illumination Color: White
• Part Type: Gauge Set

You can view and download the instruction booklet here.
