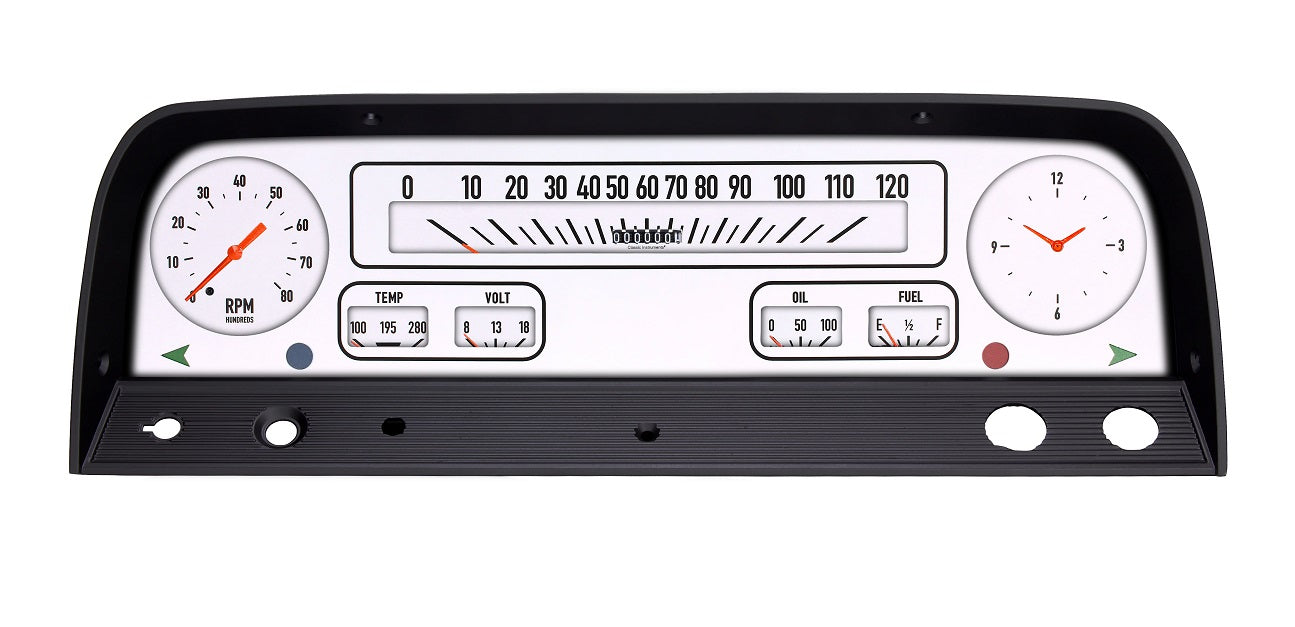

CLASSIC TRUCK PACKAGE,WHITE,1964-1966 CHEVY/GMC TRUCK

Brand New Classic Instruments Classic Truck Package White for 1964-1966 Chevy Truck (Holley Part #CT64W).

The 1964-66 Chevy truck direct-fit cluster features a speedometer, tachometer, fuel, oil, temperature, and volt gauges, and a 12V quartz clock decked out in one of four color schemes: black, tan, white, or Gray. Choose black for a near-stock appearance or select one of the other color options to match your project! The all-electric cluster with easy snap-in wiring harness arrives ready to install directly into the stock dash of 64-66 trucks; no cutting or alterations are necessary. Perhaps the best install feature: the cluster includes Classic Instruments' Zeus Speedometer Technology built right in which means no external control boxes. It is designed to re-use the factory dash, to maintain the original styling of the vehicle, but has been upgraded with bright LED lighting for even illumination and clear nighttime readability; light dimming control is built-in. Everything else needed to install the package is provided in the kit including a scratch-resistant acrylic lens and all necessary sending units. No need to worry about fuel-sending unit compatibility either, the cluster features a fuel-sending unit selector switch to set it for compatibility with the existing/factory fuel-sending unit, no new sending unit necessary.

Compatible With:

• Chevrolet:

• 1964-1966 C10 Pickup
• 1964-1966 C10 Panel
• 1964-1966 C20 Pickup
• 1964-1966 C30 Pickup
• 1964-1966 C30 Panel
• 1964-1966 K10 Pickup
• 1964-1966 K20 Pickup
• 1964-1966 Suburban

Features:

• Direct fit into the stock dashboard using factory holes with the included mounting hardware and a paint-to-match adapter ring
• LED lighting with built-in LED dimmer, and molded “light intensifier” ring for bright, even lighting.
• Brightness of the LEDs can be adjusted with a potentiometer on the back of the cluster
• Turn signal indicators in the left and right sides of cluster, green LEDs
• High beam indicator hidden at the top of the tachometer, red LED HaloTM
• Standard GM kit included (t­­emp., fuel, oil, speedometer), part no. SNGM

You can view and download the assembly instruction booklet here.
