CLASSIC TRUCK PACKAGE,BLACK,1960-1963 CHEVY TRUCK

Brand New Classic Instruments The Classic Truck Package For 1960-1963 Chevy Truck (Part #CT60B).

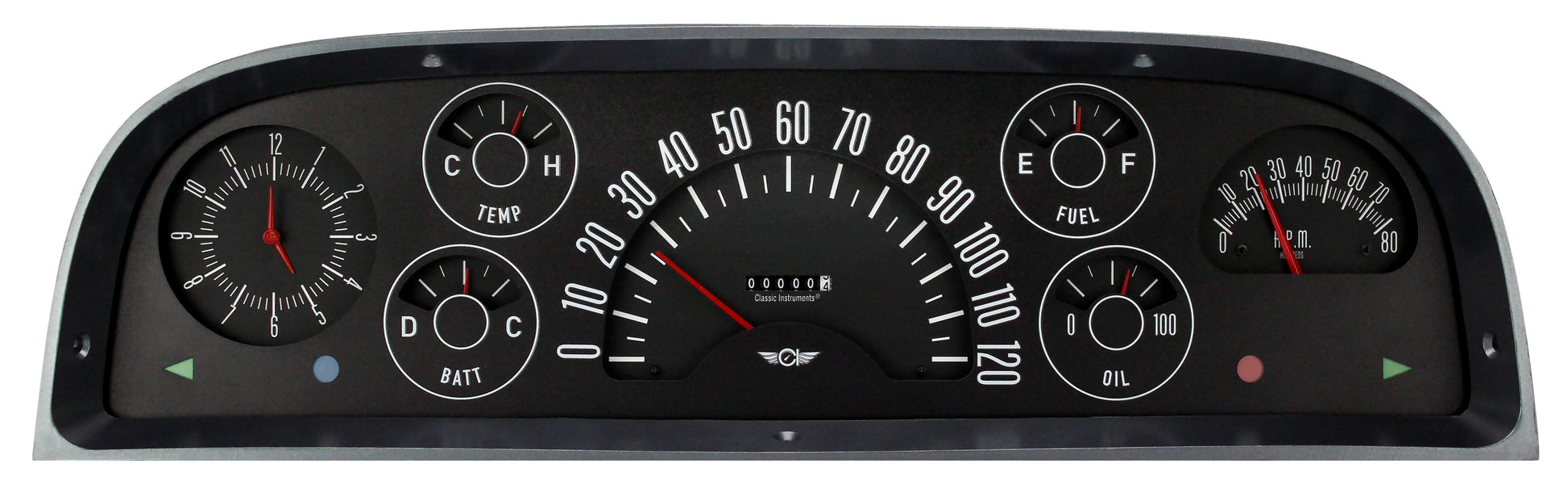

The,1960-63 Chevy truck direct-fit cluster features a speedometer, tachometer, fuel, oil, temperature, and volt gauges, and a 12V quartz clock decked out in a Black or White color scheme. The all-electric cluster with easy snap-in wiring harness arrives ready to install directly into the stock dash of 60-63 trucks, no cutting or alterations necessary. Perhaps the best install feature: the cluster includes Classic Instruments Zeus Speedometer Technology, built right in which means no external control boxes. It is designed to re-use the factory dash bezel, bezel not included, to maintain the original styling of the vehicle, but has been upgraded with bright Halo/backlighting hybrid LED lighting for even illumination and clear nighttime readability, light dimming control is built-in. Everything else needed to install the package is provided in the kit including a scratch-resistant acrylic lens and all necessary sending units. No need to worry about fuel sending unit compatibility either, the cluster features a fuel sending unit selector switch to pair it with the existing/factory fuel sending unit, no new sending unit necessary.

Compatible with:

• Chevrolet:
  • 1960-1963 C10 Pickup
  • 1960-1963 C20 Pickup
  • 1960-1963 C30 Pickup
  • 1960-1963 K10 Pickup
  • 1960-1963 K20 Pickup

Features:

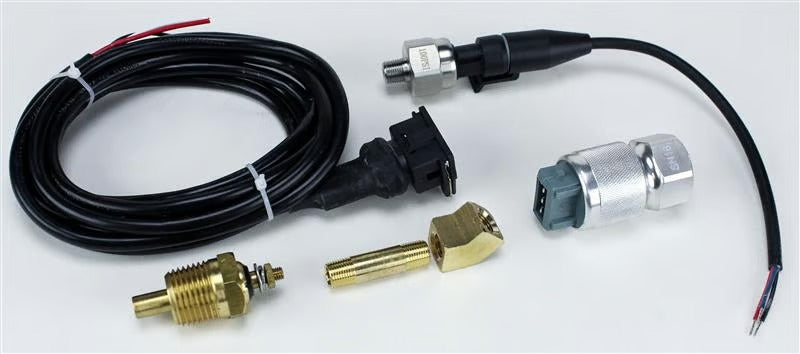

• Standard GM sender kit included (t­­emp., fuel, oil, speedometer senders), part no. SNGM

• Direct fit into the stock dashboard using factory holes with the included mounting hardware and a paint-to-match adapter ring

• Turn signal indicators in the left and right sides of cluster, green LEDs

• High beam indicator hidden at the top of the tachometer, red LED HaloTM

• LED lighting with built-in LED dimmer, and molded “light intensifier” ring for bright, even lighting. Brightness of the LEDs can be adjusted with a potentiometer on the back of the cluster

You can view and download the instruction booklet here.
