CLASSIC WHITE PACKAGE,1947-1953 CHEVY/GMC TRUCK,SPD/QUAD

Brand New Classic Instruments Classic White Truck Package for 1947-1953 Chevy Trucks (Part #CT47CW52).

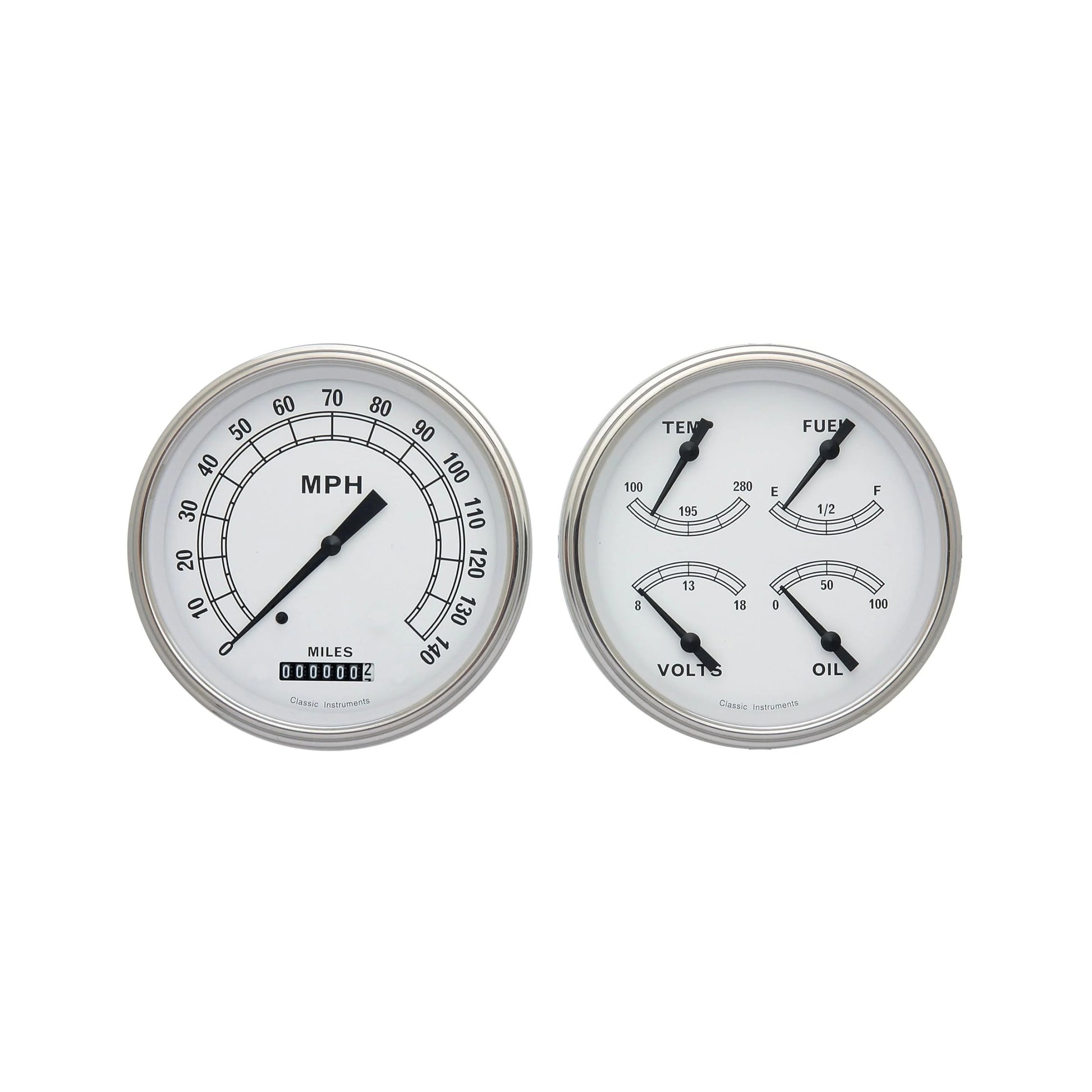

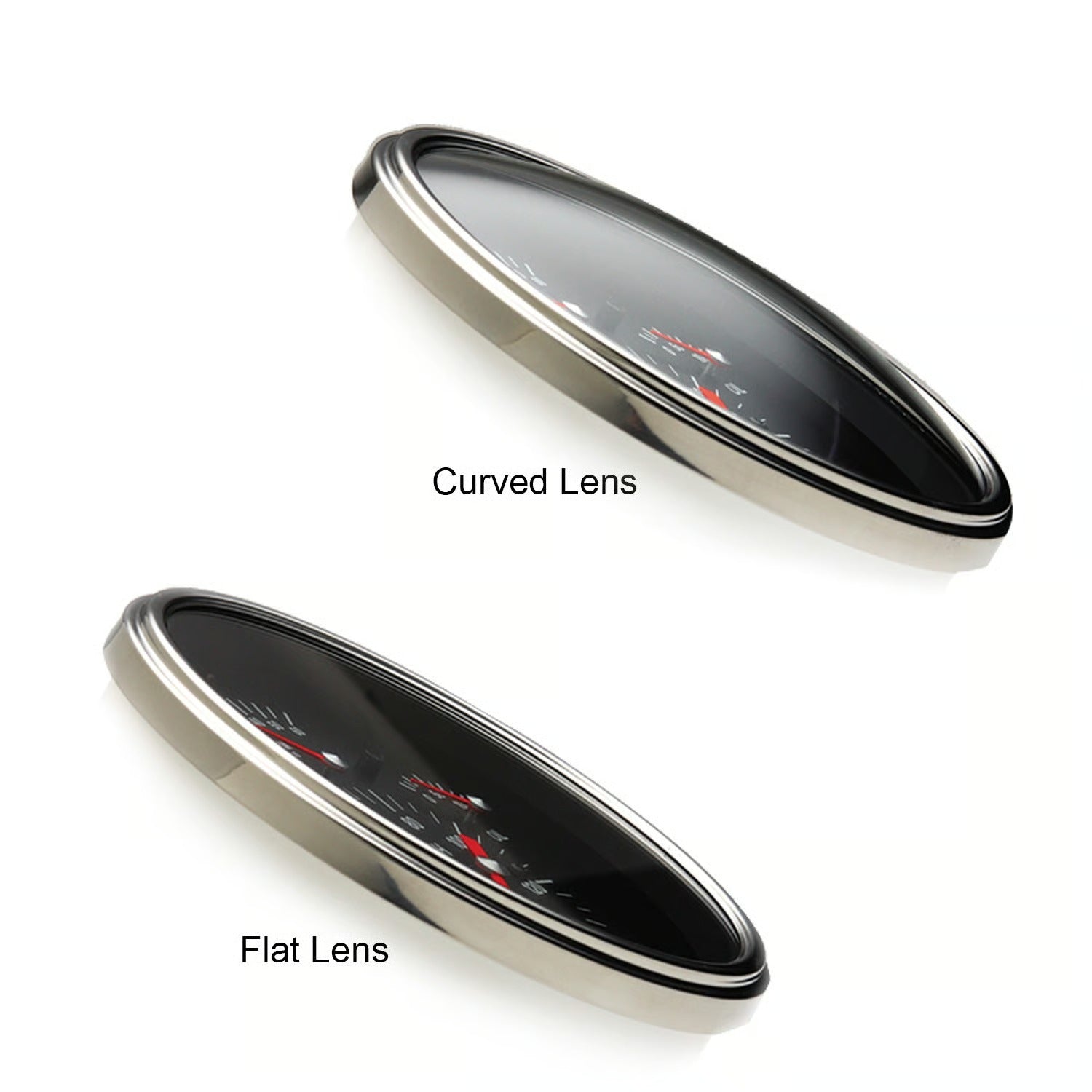

1947-53 Classic White Truck Package features a 4 5/8" Speedometer and Quad (Fuel, Oil, Temp, Volt combination gauge) with stainless low step bezels and flat glass lenses. This package is also available with our 4 5/8” Speedtachular (Speedo/Tach combination gauge) in place of the standard speedometer.

Compatible with:

• Chevrolet:
  • 1947-1953 Truck
  • 1947-1952 Fleetline Truck
  • 1947-1948 Fleetmaster Truck
• GMC:
  • 1947-1953 Truck

Note:

• Dash bezel not included, reuse existing dash.

Features:

• Model specific trim ring and mounting hardware included

• Built-in ECM signal filter switch, on-board filter switch to allow direct connections to ECM speed signals, no additional control boxes needed

• Single-connector wiring harness for quicker setup

• Seamless fit into existing dash/bezel

• All-electric cluster with original styling

• Fuel gauge 240-33 OHM

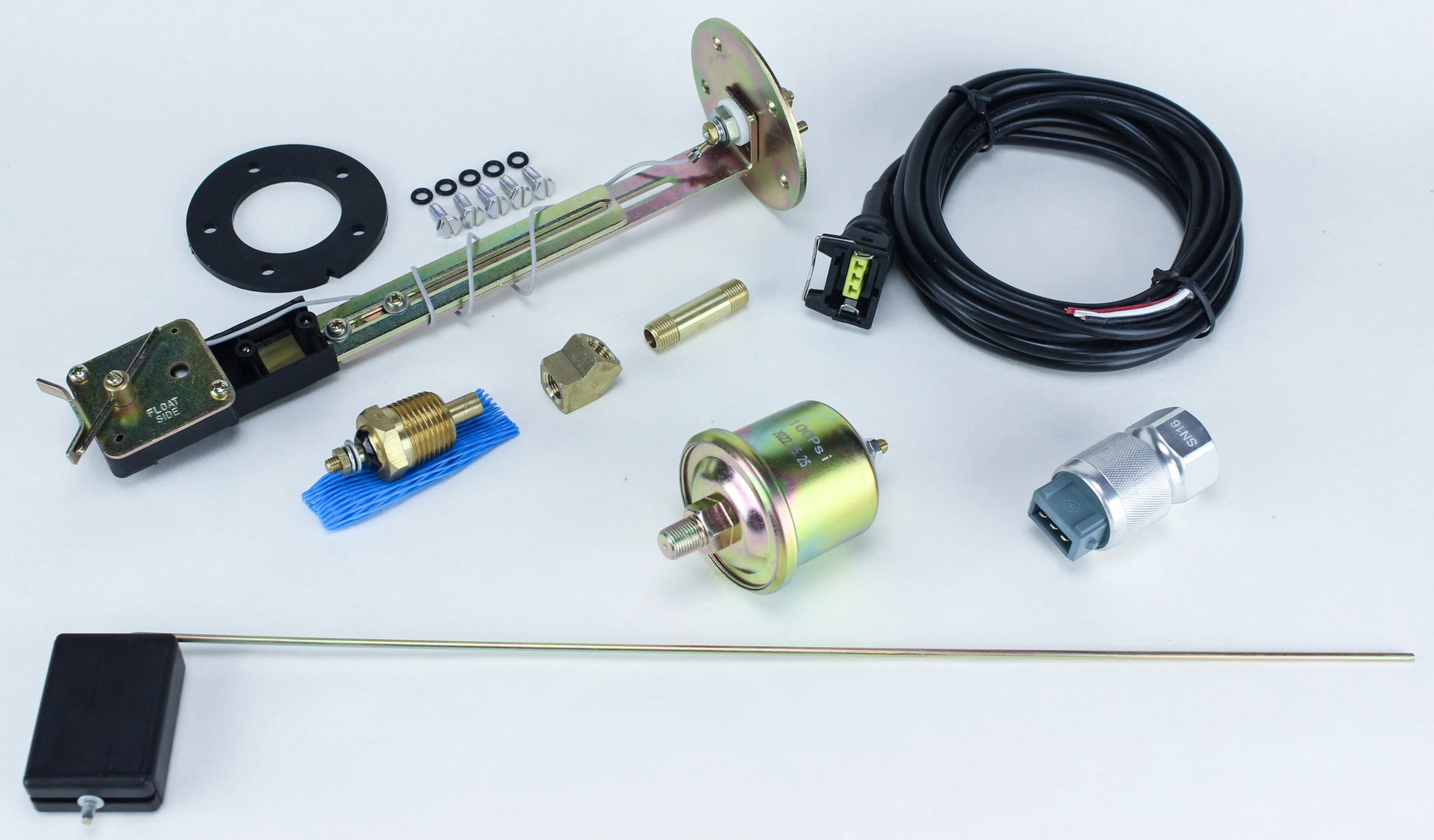

• All necessary sending units included

• Our ZST equipped instruments do not require external control boxes

Specs:

• Application: 1947-1953 Chevy Truck
• Brand: Classic Instruments
• Color: White
• Display Type: Analog
• Grade Type: Heavy Duty
• Illuminated: Yes
• Illumination Color: White
• Part Type: Gauge Set

You can view and download the instruction booklet here.
