CLASSIC LINE,BLACK,1949-50 CHEVY

Brand New Classic Instruments Classic Line Package Black compatible with 1949-1950 Chevy Fleetline, Styleline Deluxe, and Styline Special and 1950 Bel Air (Part #CH49B).

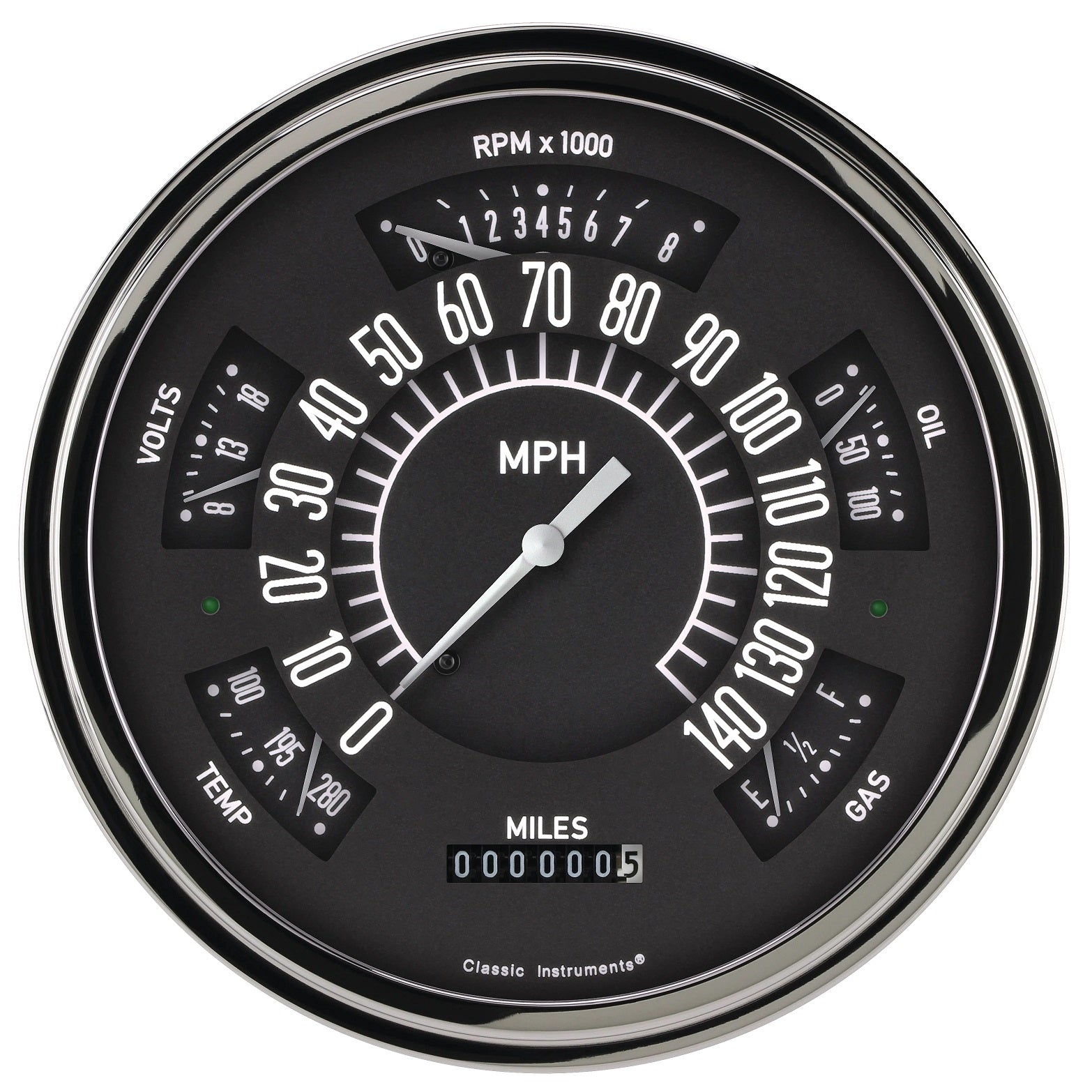

The 1949-1950 Chevy Package features the speedometer, tachometer, fuel, temperature, volt, and oil gauges all in one direct fit instrument. Installing the all-electronic cluster is easy with the included mounting hardware, Classic Instruments' Zeus Speedometer Technology™ for push button calibration, and all the included sending units.

Compatible With:

• Chevy
  • 1950 Bel Air
  • 1949-1950 Fleetline
  • 1949-1950 Styleline Deluxe
  • 1949-1950 Styleline Special

Features:

• Direct fit into the stock dashboard using factory holes with the included mounting hardware and a paint-to-match adapter ring
• LED lighting with built-in LED dimmer, and molded “light intensifier” ring for bright, even lighting.
• Brightness of the LEDs can be adjusted with a potentiometer on the back of the cluster
• Turn signal indicators in the left and right sides of cluster, green LEDs
• High beam indicator hidden at the top of the tachometer, red LED HaloTM
• Zeus Speedometer Technology™ built-in, molded plastic back housing
• Push button calibration, switch included, part no. SNPB
• ECM signal filter switch built-in
• Standard GM sender kit included (t­­emp., fuel, oil, speedometer senders), part no. SNGM.

You can view and download the assembly/instruction booklet here.
