POWER STEERING BOX,12.7:1,C-10
POWER STEERING BOX,12.7:1,C-10
SKU:BUC 800132
Yes, we have this item in stock and ready to ship immediately!
Couldn't load pickup availability

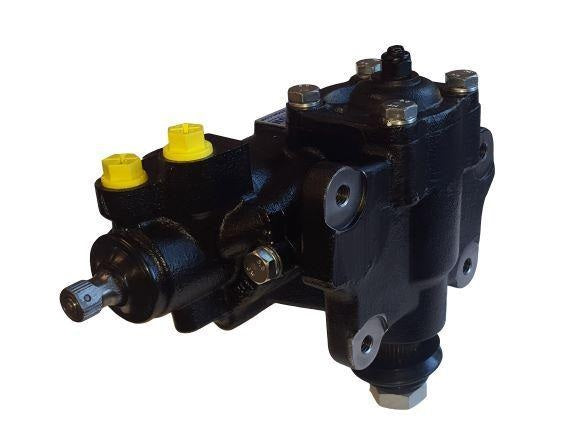

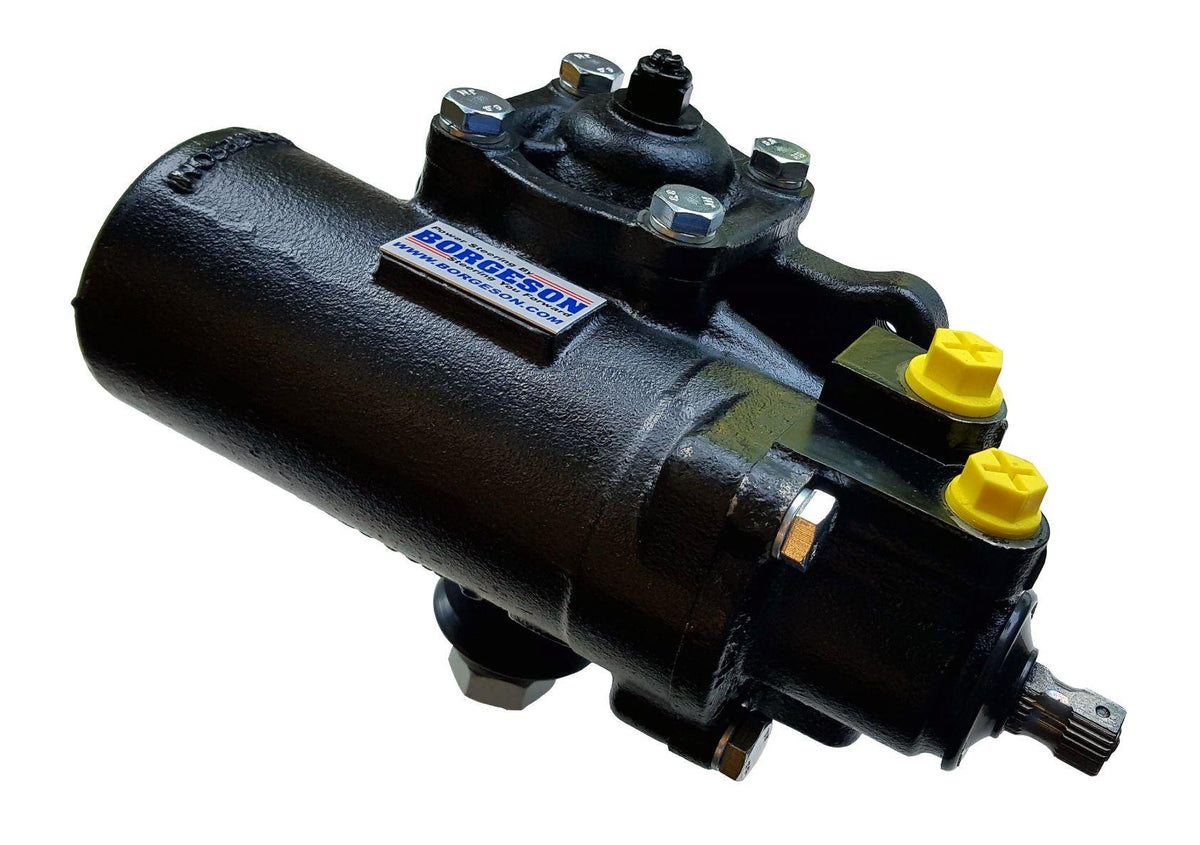

Brand New Borgeson Power Steering Conversion Box for 1968-1991 GM Trucks (Part #800132).
Borgeson Street & Performance Quick Ratio Chevy C10 Power Steering Box. Borgeson Universal now offers an all new modern quick ratio power steering box to replace the Saginaw/Delphi 800 series in 68-91 GM trucks. This all new power steering box has a quick 12.7:1 ratio with firm modern steering feel. The Borgeson Street & Performance power steering box will bolt directly to the stock location and fit to the original power steering pitman arms. Trucks switching from manual steering will require a power steering pitman arm. Steering box includes adapters to be able to use either O-ring or flare style hose connections.
Note: This new Borgeson steering box uses a 3/4”-30 spline input shaft and all pre-1977 trucks will require a new rag joint connector #990012.
Specs:
- Input Shaft: 3/4"-30 Spline
- Pitman Shaft: 1-1/4" GM with 32 Splines and 4 Master Splines
- Pressure Port: M18 X 1.5 O-Ring or 11/16"-18 Flare, if using included flare inserts
- Return Port: M16 X 1.5 O-Ring or 5/8"-18 Flare, if using included flare inserts
- Maximum Pressure: 1450 PSI Maximum Operating Pressure, 1100-1250 Optimal
- Flow Rate: 2.5-3.0 GPM Flow Rate Recommended
- Ratio: 12.7:1
Compatible with:
- Chevrolet:
- 1968-1986 C10 Pickup
- 1968-1986 C10 Suburban
- 1968-1986 C20 Pickup
- 1968-1986 C20 Suburban
- 1968-1986 C30 Pickup
- 1987 R10
- 1987-1988 R10 Suburban
- 1987-1988 R20
- 1987-1988 R20 Suburban
- 1987-1988 R30
- 1989-1991 R1500 Suburban
- 1989 R2500
- 1989-1991 R2500 Suburban
- 1989-1991 R3500
- GMC:
- 1968-1986 C15/C1500 Pickup
- 1968-1986 C15/C1500 Suburban
- 1968-1986 C25/C2500 Pickup
- 1968-1986 C25/C2500 Suburban
- 1968-1986 C35/C3500 Pickup
- 1987 R1500
- 1987-1991 R1500 Suburban
- 1987-1989 R2500
- 1987-1991 R2500 Suburban
- 1987-1991 R3500
