POWER STEERING BOX,12.7:1,GM,67-92 F,64-81 A,68-79 X,78-88 G,82-04 S10
POWER STEERING BOX,12.7:1,GM,67-92 F,64-81 A,68-79 X,78-88 G,82-04 S10
SKU:BUC 800130
Yes, we have this item in stock and ready to ship immediately!
Couldn't load pickup availability

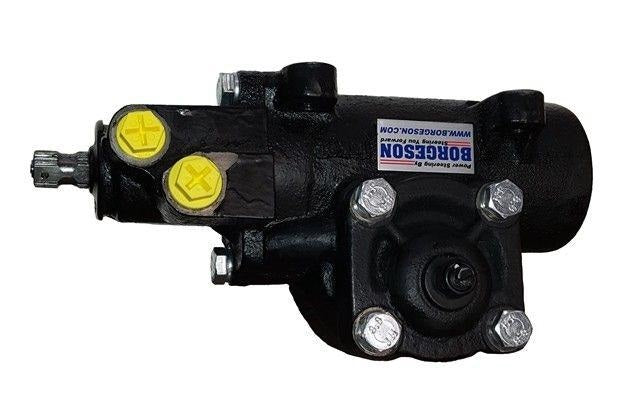

Brand New Borgeson Power Steering Conversion Box for 1964-1992 GM cars (Part #800130).
Borgeson Universal now offers an all new modern quick ratio power steering box to replace the Saginaw/Delphi 800series in most 1965 and up GM muscle cars. This all new power steering box has a quick 12.7:1 ratio with firm modern steering feel. The Borgeson Street & Performance power steering box will bolt directly to the stock location and fit to the original power steering pitman arms. Cars switching from manual steering will require a power steering pitman arm. Steering box includes adapters to be able to use either O-ring or flare style hose connections.
Note: This new Borgeson steering box uses a 3/4”-30 spline input shaft and all pre-1977 cars will require a new rag joint connector #990012.
Specs:
- Input Shaft: 3/4"-30 Spline
- Pitman Shaft: 1-1/4" GM with 32 Splines and 4 Master Splines
- Pressure Port: M18 X 1.5 O-Ring or 11/16"-18 Flare, if using included flare inserts
- Return Port: M16 X 1.5 O-Ring or 5/8"-18 Flare, if using included flare inserts
- Maximum Pressure: 1450 PSI Maximum Operating Pressure, 1100-1250 Optimal
- Flow Rate: 2.5-3.0 GPM Flow Rate Recommended
- Ratio: 12.7:1
Compatible with:
- Buick:
- 1973-1975 Apollo
- 1971-1973 Centurion
- 1973-1981 Century
- 1991-1992 Commercial Chassis
- 1964-1989 Electra
- 1964-1983 Estate Wagon
- 1965-1967 Gran Sport
- 1970-1972 GS
- 1968-1969 GS 350
- 1968-1969 GS 400
- 1970-1972 GS455
- 1964-1990 LeSabre
- 1973-1987 Regal
- 1964-1978 Riviera
- 1991-1992 Roadmaster
- 1975-1980 Skyhawk
- 1964-1979 Skylark
- 1964-1969 Special
- 1964-1972 Sportwagon
- 1964-1970 Wildcat
- Cadillac:
- 1987-1992 Brougham
- 1965-1976 Calais
- 1964-1984 Commercial Chassis
- 1964-1984 DeVille
- 1964-1974 Eldorado
- 1965-1986 Fleetwood
- 1964 Series 60 Fleetwood
- 1964 Series 62
- 1964 Series 75 Fleetwood
- 1976-1979 Seville
- Chevrolet:
- 1965-1975 Bel Air
- 1965-1972 Biscayne
- 1969-1972 Brookwood
- 1967-1992 Camaro
- 1966-1992 Caprice
- 1964-1973 Chevelle
- 1968 Chevy II
- 1969-1970 Estate
- 1965-1985 Impala
- 1969-1972 Kingswood
- 1973-1976 Laguna
- 1964-1983 Malibu
- 1970-1988 Monte Carlo
- 1975-1980 Monza
- 1969-1979 Nova
- 1982-2002 S10
- 1969-1972 Townsman
- 1971-1977 Vega
- GMC:
- 1982-1990 S15
- Jeep:
- 1987-2002 Wrangler
- Oldsmobile:
- 1964-1971 442
- 1964-1984 98
- 1971-1992 Custom Cruiser
- 1964-1981 Cutlass
- 1978-1984 Cutlass Calais
- 1980-1983 Cutlass Cruiser
- 1975-1987 Cutlass Salon
- 1967-1988 Cutlass Supreme
- 1976 Cutlass Tiara
- 1967-1968 Delmont 88
- 1965-1985 Delta 88
- 1964-1966 Dynamic
- 1964-1972 F85
- 1964 Fiesta
- 1964-1966 Jetstar 88
- 1964-1965 Jetstar I
- 1973-1979 Omega
- 1964-1980 Starfire
- 1964 Super 88
- 1966-1974 Toronado
- 1964-1975 Vista Cruiser
- Pontiac:
- 1968-1971 Acadian
- 1975-1977 Astre
- 1964-1986 Bonneville
- 1964-1981 Catalina
- 1967-1970 Executive
- 1967-1992 Firebird
- 1973-1980 Grand Am
- 1975-1981 Grand LeMans
- 1964-1987 Grand Prix
- 1971-1978 Grand Safari
- 1971-1975 Grandville
- 1964-1973 GTO
- 1964-1981 LeMans
- 1983-1986 Parisienne
- 1977-1979 Phoenix
- 1987-1989 Safari
- 1964-1966 Star Chief
- 1976-1980 Sunbird
- 1964-1970 Tempest
- 1971-1977 Ventura
