POWER STEERING BOX,14:1,58-64 CHEVY

POWER STEERING BOX,14:1,58-64 CHEVY

BUC 800106

$409.00
$409.00

Yes, we have this item in stock and ready to ship immediately!
View full details

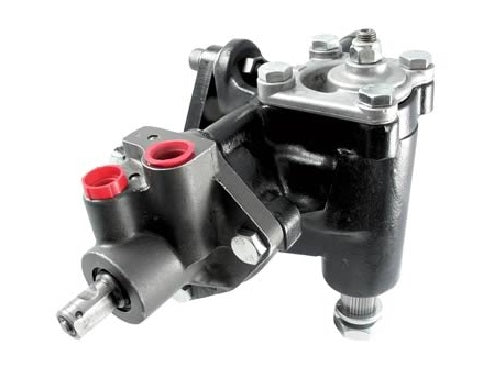

Remanufactured Borgeson Power Steering Conversion Box for 1958-1964 Chevy (Part #800106).

Power steering conversion box for 1958-1964 Chevy full size cars. Remanufactured Delphi 600 series power steering box with a 17MM Double-D input shaft and a 14:1 ratio.

Specs:

  • Input Shaft: 17mm DD, 17mm Round shaft with two flat sides
  • Pitman Shaft: 1-1/8" GM with 32 Splines and 4 Master Splines
  • Pressure Port: M18 X 1.5 O-Ring or 11/16"-18 Flare, if using included flare inserts
  • Return Port: M16 X 1.5 O-Ring or 5/8"-18 Flare, if using included flare inserts
  • Maximum Pressure: 1450 PSI Maximum Operating Pressure, 1100-1250 Optimal
  • Flow Rate: 2.5-3.0 GPM Recommended
  • Ratio: 14:1

Compatible with:

  • Chevrolet:
    • 1958-1964 Biscayne
    • 1958-1964 Bel Air
    • 1958-1961 Brookwood
    • 1958 Del Ray
    • 1958-1964 Impala
    • 1959-1960 El Camino

You can view and download the instruction booklet here.
