SBC SWP,V-BELT LOW BRACKET KIT,POLISHED,ALTERNATOR

BRAND NEW POLISHED ALTERNATOR BRACKET FOR SBC SHORT WATER PUMPS. THIS BRACKET IS PRODUCED BY BILLET SPECIALTIES INC. (PART #FM0105PC).

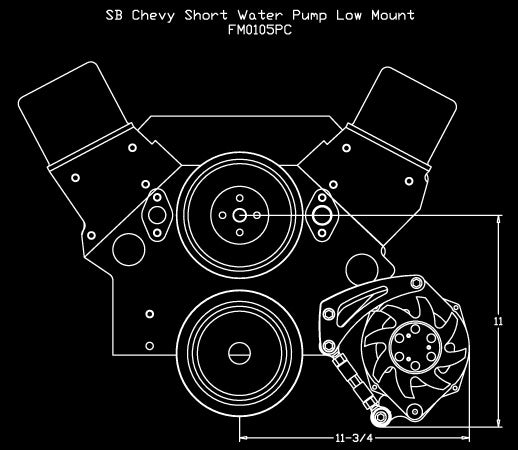

THIS BRACKET MOUNTS THE ALTERNATOR ON THE LOW DRIVERS SIDE OF THE ENGINE. YOU CAN SEE WHERE IT MOUNTS THE ALTERNATOR IN THE PICTURE AND DIAGRAM AT THE BOTTOM.

THIS BRACKET IS FOR USE WITH:

• SBC SHORT WATER PUMPS
• GM 10SI OR 12SI ALTERNATORS
  • THESE ALTERNATORS WERE POPULAR ON NUMEROUS GM VEHICLES FROM 1962-1994
  • THEY HAVE A 2 BOLT MOUNTING PATTERN (ONE AT 12 O CLOCK AND ONE AT 6 O CLOCK) THAT MEASURE 168MM (OR 6.61") CENTER-TO-CENTER; SEE THE DIAGRAM BELOW
  • WE HAVE A POLISHED VERSION OF THIS ALTERNATOR AVAILABLE. EVEN IF YOU DO NOT PURCHASE THAT ALTERNATOR, THE DESCRIPTION LISTS ALL OF THE MANY GM VEHICLES THAT THIS MODEL WAS USED ON.
• V-GROOVE PULLEYS

GENUINE BILLET SPECIALTIES STYLE, QUALITY, FIT AND FINISH ARE ENGINEERED INTO OUR FM INDEPENDENT BRACKETS. ALL BRACKETS ARE MACHINED FROM 6061-T6 BILLET ALUMINUM & POLISHED TO A MIRROR FINISH. DESIGNED TO BOLT RIGHT ON AND ALIGN CORRECTLY. KITS INCLUDE: STAINLESS STEEL HARDWARE, POLISHED STAINLESS TURNBUCKLES AND HIGH QUALITY ROD ENDS.

YOU CAN VIEW AND DOWNLOAD THE INSTRUCTIONS FOR THIS BRACKET HERE.

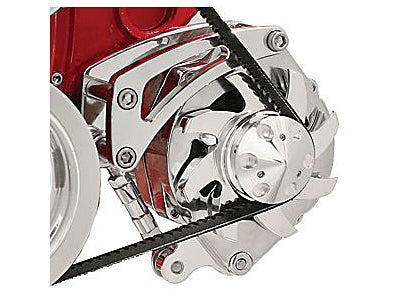

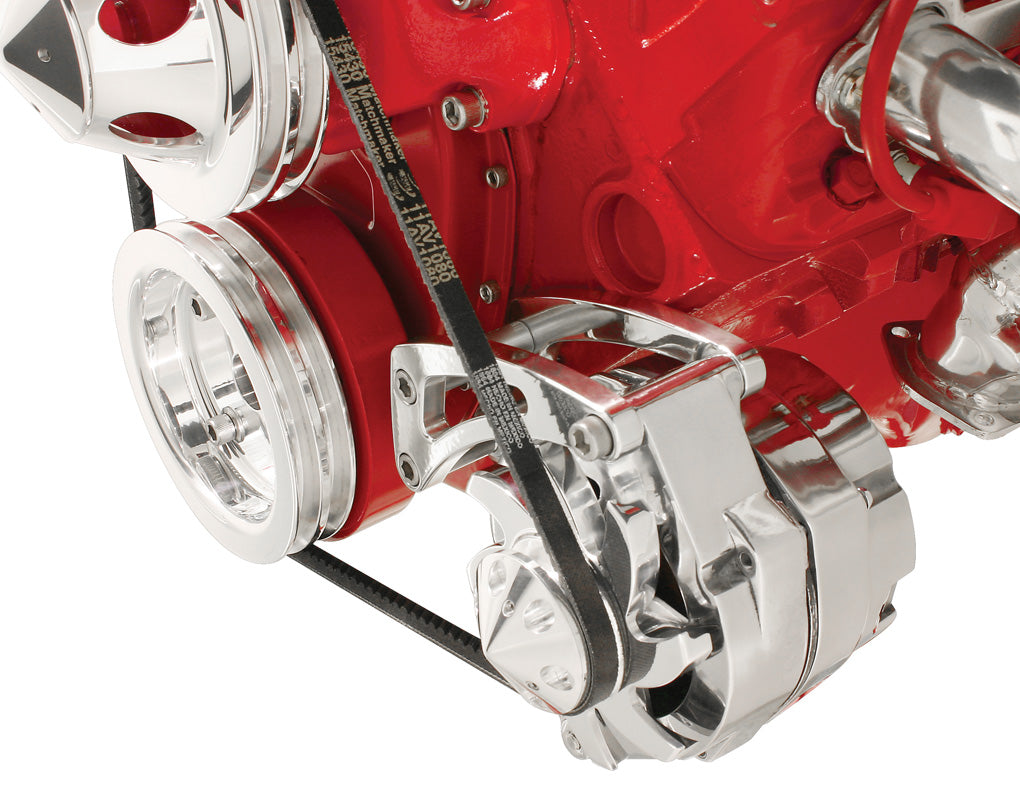

THESE PICTURES SHOW WHERE THE BRACKET MOUNTS THE ALTERNATOR (THIS LISTING ONLY INCLUDES THE BRACKET KIT):
