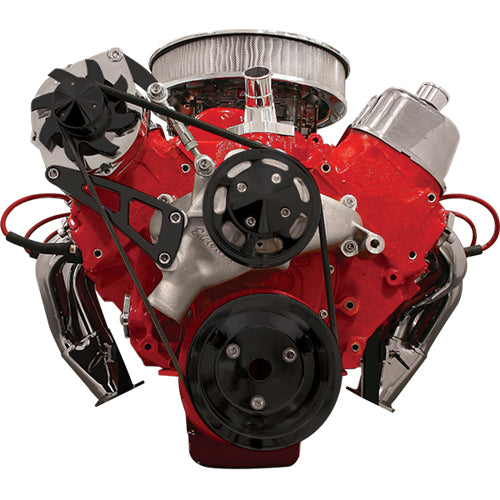

BBC,SERPENTINE CONVERSION,BLACK PULLEYS,TOP MOUNT ALTERNATOR BRACKET

BRAND NEW SERPENTINE BLACK ANODIZED CONVERSION KIT WITH PULLEYS & BRACKETS FOR BIG BLOCK CHEVYS. THIS KIT IS PRODUCED BY BILLET SPECIALTIES INC. (PART #BLKFM2210).

THIS KIT MOUNTS THE ALTERNATOR ON THE TOP PASSENGERS SIDE. WE DO HAVE THIS SAME KIT AVAILABLE HERE THAT MOUNTS THE ALTERNATOR IN THE MIDDLE OF THE PASSENGERS SIDE.

THESE CONVERSION KITS DONT INCLUDE THE ACTUAL ALTERNATOR, WATER PUMP OR BELT. SEE THE CONTENTS BELOW.

THIS KIT IS FOR USE WITH:

• LONG WATER PUMPS
• GM 10SI OR 12SI ALTERNATORS
  • THESE ALTERNATORS WERE POPULAR ON NUMEROUS GM VEHICLES FROM 1962-1994

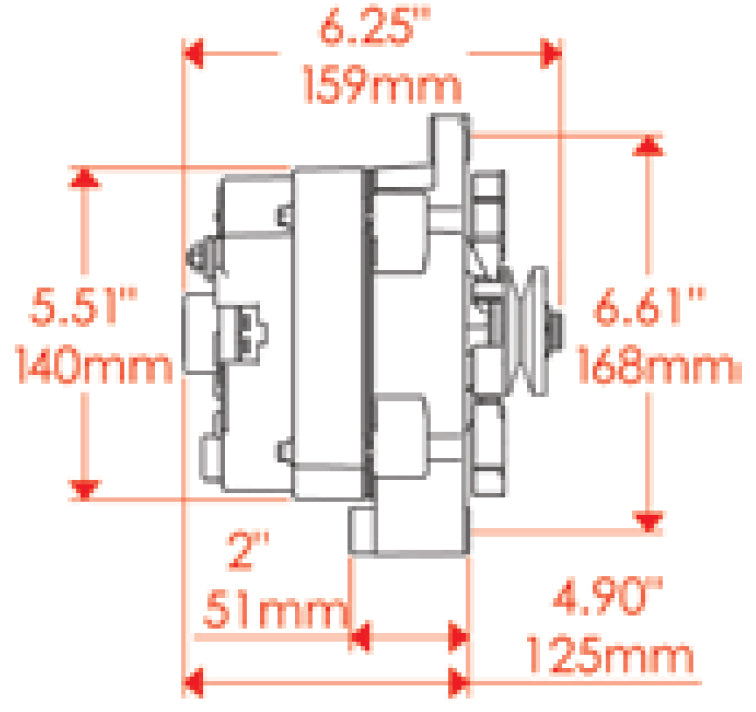

  • THEY HAVE A 2 BOLT MOUNTING PATTERN (ONE AT 12 OCLOCK AND ONE AT 6 OCLOCK) THAT MEASURE 168MM (OR 6.61") CENTER-TO-CENTER; SEE THE DIAGRAM BELOW

GENUINE BILLET SPECIALTIES STYLE, QUALITY, FIT AND FINISH ARE ENGINEERED INTO THESE SERPENTINE CONVERSION KITS. ALL BRACKETS AND PULLEYS ARE MACHINED FROM 6061-T6 BILLET ALUMINUM WITH A BLACK ANODIZED FINISH. DESIGNED TO BOLT RIGHT ON AND ALIGN CORRECTLY. KITS INCLUDE: STAINLESS STEEL HARDWARE, POLISHED STAINLESS TURNBUCKLES AND HIGH QUALITY ROD ENDS.

THIS SET INCLUDES:

• ALTERNATOR BRACKET
  • MOUNTS ALTERNATOR ON TOP PASSENGERS SIDE
  • BLACK ANODIZED
• ALTERNATOR PULLEY
  • INCLUDES FAN & NOSE CONE
  • BLACK ANODIZED
• WATER PUMP PULLEY
  • INCLUDES NOSE CONE
  • BLACK ANODIZED
• CRANK PULLEY
  • BLACK ANODIZED
• STAINLESS STEEL HARDWARE
• COMPREHENSIVE INSTALLATION INSTRUCTIONS
• BILLET SPECIALTIES DOESNT INCLUDE THE BELT WITH THESE KITS; THEY RECOMMEND USING A SERPENTINE 6 RIB BELT, 46" LONG (GOODYEAR #4060460 OR DAYCO #5060460)

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET HERE.
