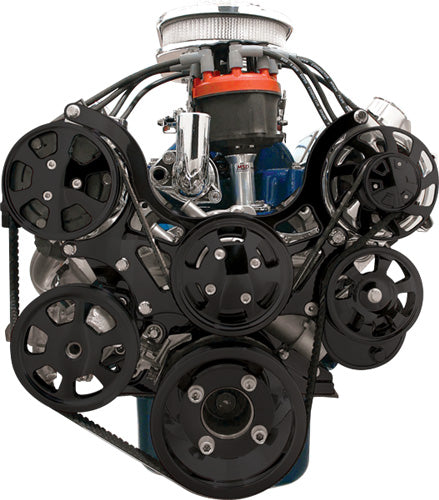

SBF,SERPENTINE KIT,BLACK,AC/ALT/PS/WP

• BILLET SPECIALTIES TRU TRAC SERPENTINE SYSTEMS ARE THE MOST COMPLETE SYSTEMS ON THE MARKET! THE EXCLUSIVE DESIGN FEATURES A 100% PRECISION MACHINED BILLET ALUMINUM TIMING COVER THAT SUPPORTS ALL COMPONENTS. THERE IS NO NEED TO TAP INTO THE BLOCK. THE TRU TRAC SERPENTINE SYSTEM FITS 289, 302, AND 351W MOTORS. THE TRU TRAC FOR SMALL BLOCK FORD FITS IN THE TIGHTEST ENGINE BAYS. MAKE SURE TO CHECK THE DIAGRAM BELOW TO ENSURE THAT EVERYTHING WILL FIT AND CLEAR IN YOUR APPLICATION. PERFECT FOR MUSCLE CARS AND STREET RODS! THE TRU TRAC OE STYLING GIVES YOUR MOTOR A CLEAN, PROFESSIONAL LOOK. QUALITY IS ABUNDANT IN EVERY ASPECT OF EACH TRU TRAC SERPENTINE SYSTEM. EVERY BRACKET AND PULLEY IS MACHINED FROM 6061-T6 BILLET ALUMINUM FOR EXCEPTIONAL STRENGTH AND RIGIDITY. EACH STAINLESS STEEL FASTENER FEATURES A 12-POINT HEAD FOR OPTIMUM CONTACT AND AN AGGRESSIVE FINISHED LOOK. THE EXCLUSIVE BILLET TENSIONER ELIMINATES THE NEED FOR CONSTANT RE-ADJUSTMENT.

• THESE KITS WILL WORK WITH 289, 302, & 351W FORDS. THEY DO REQUIRE THE USE OF A 4-BOLT, 6.4" DIAMETER CRANK DAMPER IS REQUIRED, AND THE USE OF AN ELECTRIC FUEL PUMP. TRU TRAC SYSTEMS ARE NOT DESIGNED FOR USE WITH HYDROBOOST BRAKE SYSTEMS.

THIS SET INCLUDES:

• BILLET SPECIALTIES TIMING COVER
  • THE HEART OF THESE FORD TRU-TRAC SYSTEMS IS THIS EXCLUSIVE TIMING COVER, WHICH SUPPORTS ALL THE COMPONENTS WITH ROCK-SOLID STABILITY
  • ONLY THE TRU-TRAC SYSTEM OFFERS A SERPENTINE KIT FEATURING THIS DEGREE OF INNOVATION AND QUALITY
  • THIS KIT DOES NOT INCLUDE THE BILLET DIPSTICK FOR FRONT SUMP OIL PANS USING THIS TIMING COVER. WE DO HAVE THAT AVAILABLE.
• SANDEN SD-7 AIR CONDITIONER COMPRESSOR
  • POLISHED COMPRESSOR
  • INCLUDES BLACK BILLET COMPRESSOR CLUTCH COVER
  • INCLUDES PATENTED BLACK BILLET COMPRESSOR MANIFOLD
• POWER STEERING PUMP
  • NATURAL FINISH
  • INCLUDES AN FITTINGS
  • INCLUDES BLACK BILLET ALUMINUM POWER STEERING PUMP PULLEY
  • THIS KIT DOES NOT INCLUDE THE POWER STEERING RESERVOIR OR THE HOSE KIT. WE HAVE THE RESERVOIR AVAILABLE AND THE HOSE KIT AVAILABLE AS WELL.
• POWERMASTER ALTERNATOR
  • POLISHED
  • 140 AMP
  • 1-WIRE
  • INCLUDES BLACK BILLET ALUMINUM 1 PIECE ALTERNATOR FAN & PULLEY
• FORD RACING WATER PUMP
  • NATURAL FINISH
  • REVERSE ROTATION
• WATER PUMP PULLEY
  • BLACK
  • BILLET ALUMINUM
• BRIDGE BRACKET
  • BLACK
  • BILLET ALUMINUM
• BELT TENSIONER
  • BLACK
  • BILLET ALUMINUM
  • EXCLUSIVE DESIGN SPECIFICALLY ENGINEERED FOR THE TRU TRAC SYSTEMS
• TENSIONER PULLEY
  • BLACK
  • BILLET ALUMINUM
• CRANKSHAFT PULLEY
  • BLACK
  • BILLET ALUMINUM
• ARP 12-POINT STAINLESS STEEL FASTENERS
• GOODYEAR GATORBACK SERPENTINE BELT
• COMPREHENSIVE INSTALLATION MANUAL

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET HERE.

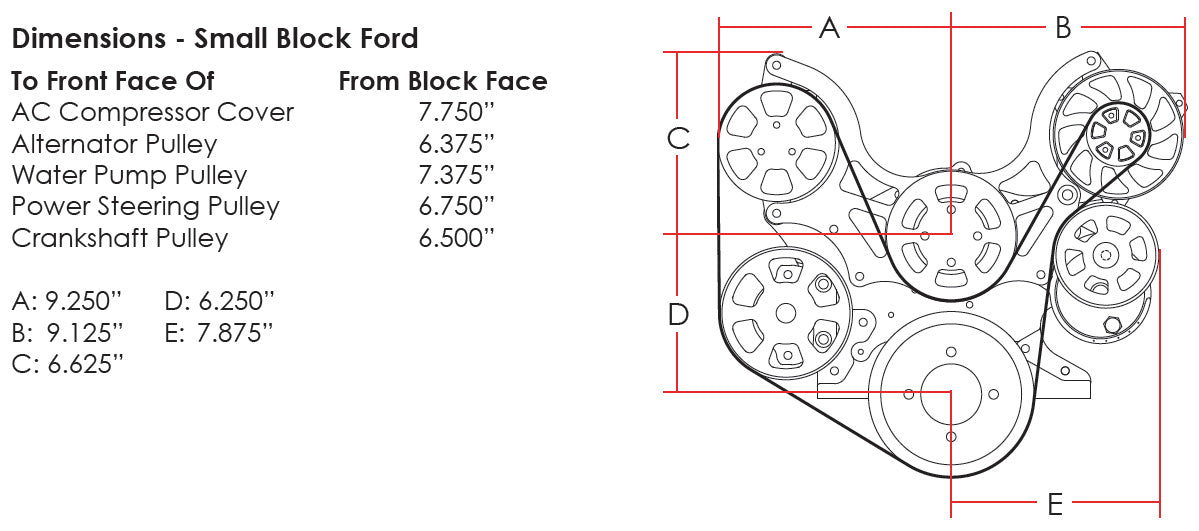

YOU CAN VIEW AND DOWNLOAD THE DIAGRAM HERE.
