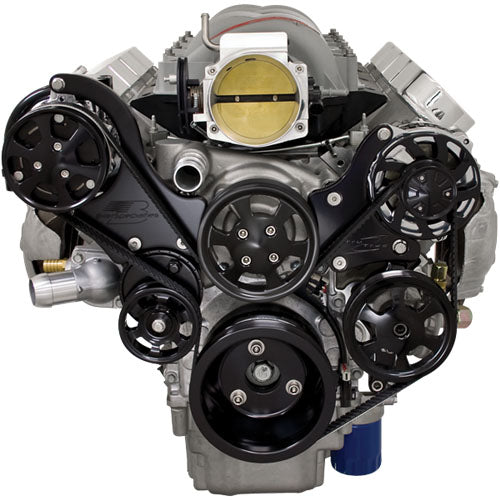

LS1236,SERPENTINE TOP KIT,BLACK,AC/ALT/PS/WP

• THESE KITS FIT CHEVY LS1, LS2, LS3, LS6, AND LS7 ENGINES.

• BILLET SPECIALTIES TRU TRAC SERPENTINE SYSTEMS ARE THE MOST COMPLETE SYSTEMS ON THE MARKET! QUALITY IS ABUNDANT IN EVERY ASPECT OF EACH TRU TRAC SERPENTINE SYSTEM. EVERY BRACKET AND PULLEY IS MACHINED FROM 6061-T6 BILLET ALUMINUM FOR EXCEPTIONAL STRENGTH AND RIGIDITY. EACH POLISHED STAINLESS STEEL FASTENER FEATURES A 12-POINT HEAD FOR OPTIMUM CONTACT AND AN AGGRESSIVE FINISHED LOOK. THE EXCLUSIVE BILLET TENSIONER ELIMINATES THE NEED FOR CONSTANT RE-ADJUSTMENT.
• THE LS PLATFORM IS RASING THE BAR IN MUSCLE CAR PERFORMANCE AND KEEPING PACE WITH THIS NEW STANDARD IS BILLET SPECIALTIES TOP MOUNT LS TRU TRAC. THE TOP MOUNT LS KIT IS ENGINEERED TO CLEAR CROSS MEMBERS AND STEERING BOXES IN MOST MUSCLE CARS WHILE KEEPING A TIGHT PROFILE TO THE ENGINE BLOCK. THIS ALL IN ONE BOX KIT INCLUDES A CRANK DAMPER FROM ATI AND THE ALL NEW EDELBROCK LS WATER PUMP.

• TRU TRAC SYSTEMS ARE NOT DESIGNED FOR USE WITH HYDROBOOST BRAKE SYSTEMS.

THIS SET INCLUDES:

• SANDEN SD-7 AIR CONDITIONER COMPRESSOR
  • POLISHED
  • INCLUDES BLACK BILLET COMPRESSOR CLUTCH COVER
  • INCLUDES PATENTED BLACK BILLET COMPRESSOR MANIFOLD
• POWER STEERING PUMP
  • NATURAL FINISH
  • INCLUDES AN FITTINGS
  • INCLUDES BLACK BILLET ALUMINUM POWER STEERING PUMP PULLEY
  • THIS KIT DOES NOT INCLUDE THE POWER STEERING RESERVOIR OR THE HOSE KIT. WE HAVE THE RESERVOIR AVAILABLE AND THE HOSE KIT AVAILABLE
• POWERMASTER ALTERNATOR
  • POLISHED
  • 140 AMP
  • 1-WIRE
  • INCLUDES BLACK BILLET ALUMINUM 1 PIECE ALTERNATOR FAN & PULLEY
• EDELBROCK LS WATER PUMP
  • NATURAL FINISH
• WATER PUMP PULLEY
  • BLACK
  • BILLET ALUMINUM
• BRIDGE BRACKET
  • BLACK
  • BILLET ALUMINUM
• BELT TENSIONER
  • BLACK
  • BILLET ALUMINUM
  • EXCLUSIVE DESIGN SPECIFICALLY ENGINEERED FOR THE TRU TRAC SYSTEMS
• TENSIONER PULLEY
  • BLACK
  • BILLET ALUMINUM
• ATI SUPER DAMPER FOR LS ENGINES
• CRANKSHAFT PULLEY
  • BLACK
  • BILLET ALUMINUM
• POLISHED ARP 12-POINT STAINLESS STEEL FASTENERS
• GOODYEAR GATORBACK SERPENTINE BELT
• COMPREHENSIVE INSTALLATION MANUAL

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET HERE.

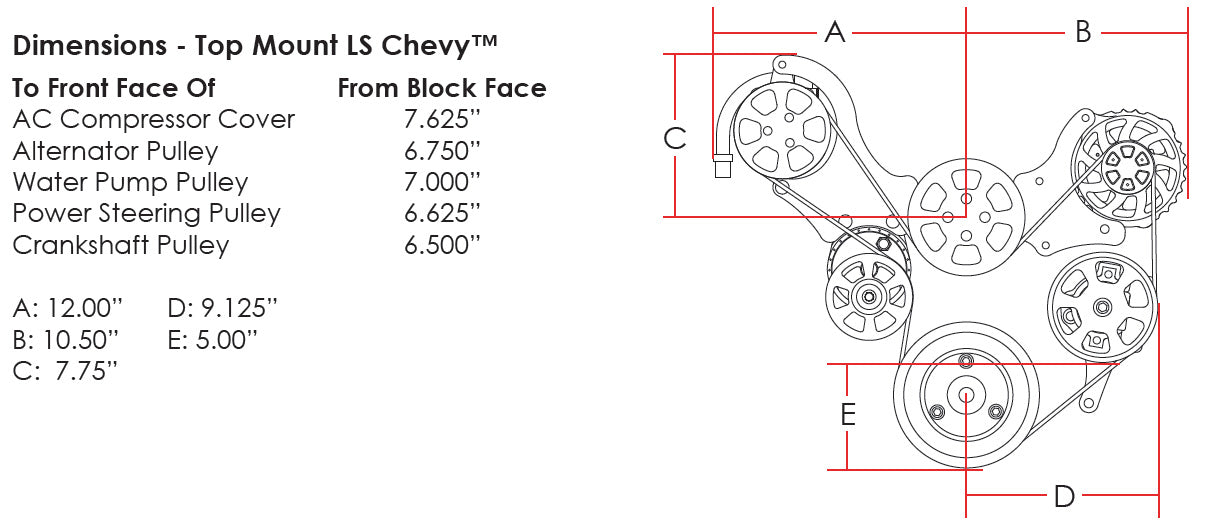

IT IS A GOOD IDEA TO TAKE A LOOK AT THE DIAGRAM BELOW TO MAKE SURE THIS KIT WILL FIT AND CLEAR IN YOUR APPLICATION.

YOU CAN VIEW AND DOWNLOAD THE DIAGRAM HERE.
