BBC,SWP,PS BRACKET & V-GROOVE PULLEY,POL

BRAND NEW POLISHED POWER STEERING PUMP BRACKET V-BELT PULLEY FOR GM TYPE II PS PUMPS AND BBC SHORT WATER PUMPS. THIS IS PRODUCED BY BILLET SPECIALTIES INC. (PART #12320).

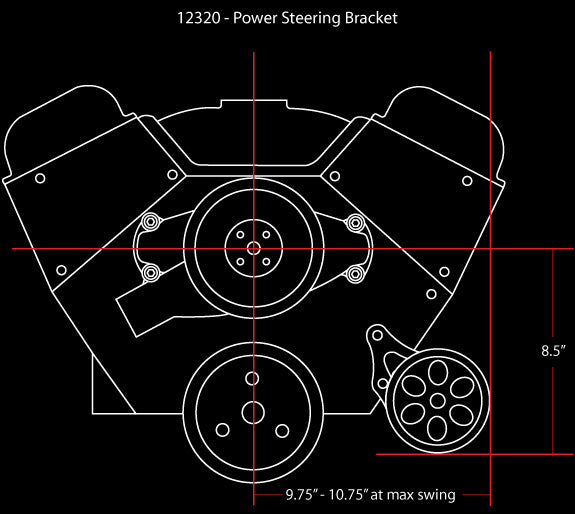

THIS BRACKET MOUNTS THE POWER STEERING PUMP LOW ON THE DRIVERS SIDE OF THE ENGINE. YOU CAN SEE WHERE IT MOUNTS THE PUMP IN THE DIAGRAM AT THE BOTTOM.

THIS SET IS FOR USE WITH:

• BIG BLOCK CHEVY STANDARD HEADS
• BBC SHORT WATER PUMPS
• GM TYPE II REMOTE POWER STEERING PUMPS
• V-GROOVE PULLEYS

BILLET SPECIALTIES BRACKETS ARE CNC MACHINED FROM 6061-T6 BILLET ALUMINUM AND POLISHED TO A MIRROR FINISH.

YOU CAN VIEW AND DOWNLOAD THE INSTRUCTIONS HERE.

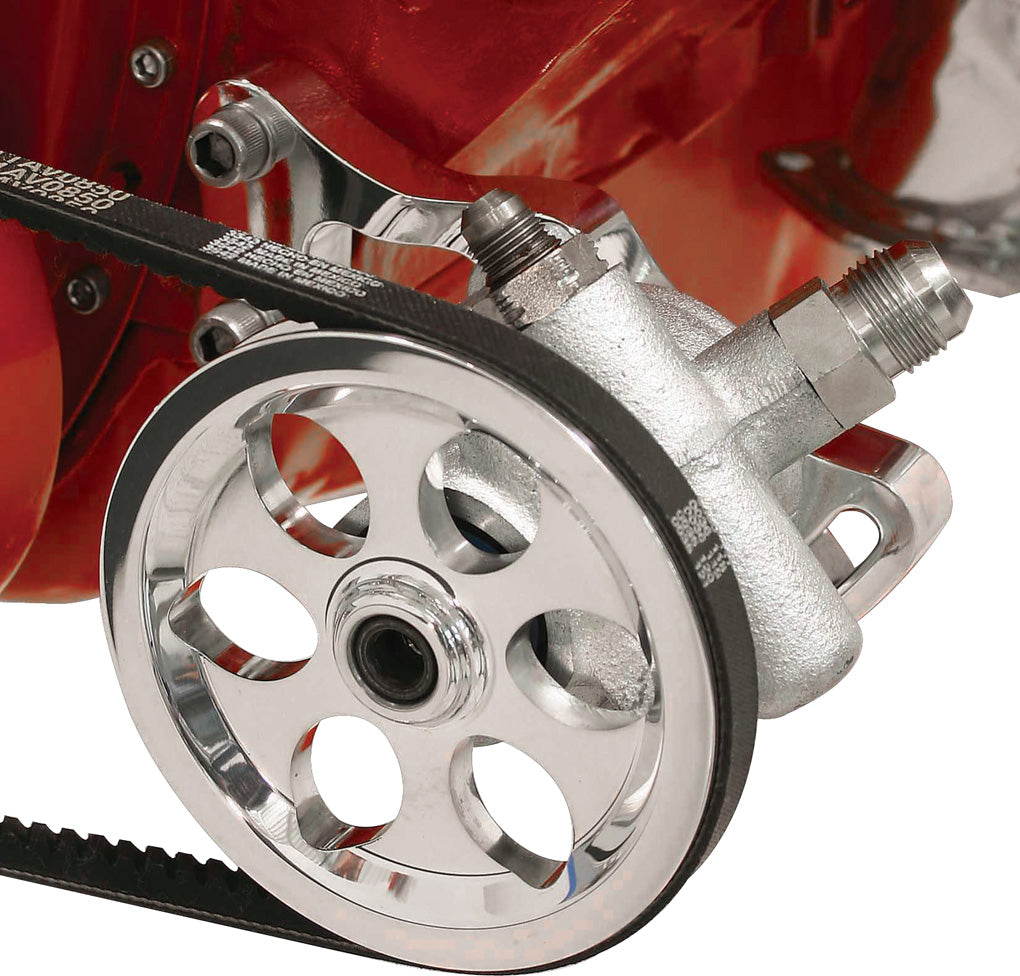

THE BRACKET AND PULLEY SET (THESE ARE THE ITEMS INCLUDED IN THIS ITEM):
