SBC SWP,V-BELT SIDE BRACKET KIT,POL,AC

BRAND NEW POLISHED INDEPENDENT AIR CONDITIONER COMPRESSOR BRACKET FOR SBC SHORT WATER PUMPS. THIS BRACKET IS PRODUCED BY BILLET SPECIALTIES INC. (PART #10421).

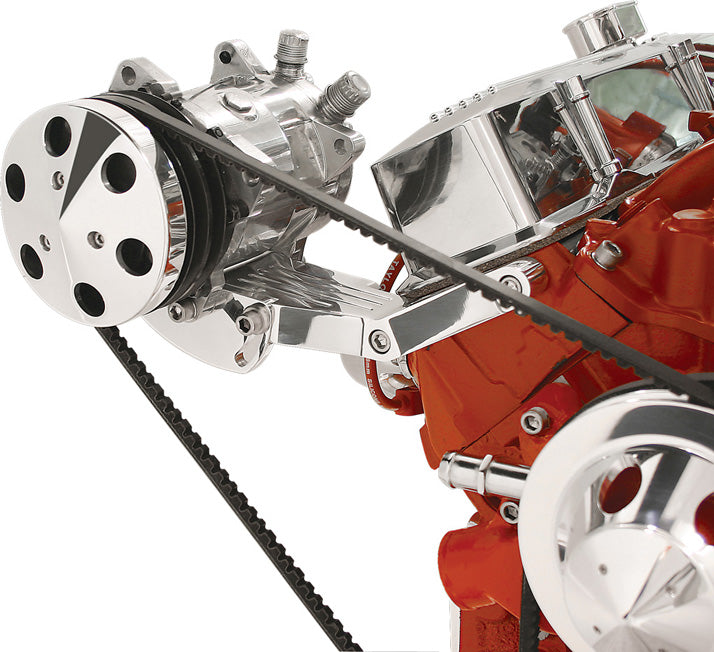

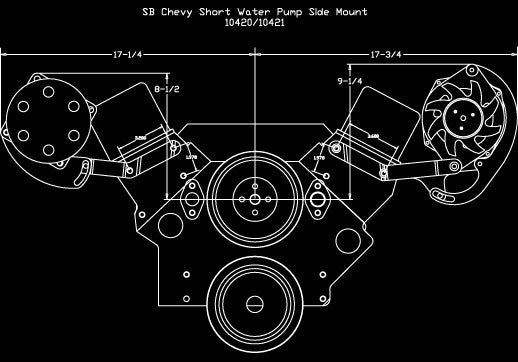

THIS BRACKET MOUNTS THE AC COMPRESSOR ON THE PASSENGER SIDE OF THE ENGINE AND POSITIONS IT OUTSIDE OF THE PASSENGER SIDE VALVE COVER. YOU CAN SEE WHERE IT MOUNTS THE COMPRESSOR IN THE PICTURE AND DIAGRAM AT THE BOTTOM.

THIS BRACKET IS FOR USE WITH:

• SMALL BLOCK CHEVY STANDARD HEADS
• SBC SHORT WATER PUMPS
• SANDEN 508 AC COMPRESSORS
• V-GROOVE PULLEYS

DESIGNED FOR USE WITH THE POPULAR SANDEN 508 AC COMPRESSOR, BILLET SPECIALTIES INDEPENDENT COMPRESSOR BRACKETS ARE CNC MACHINED FROM 6061-T6 BILLET ALUMINUM AND POLISHED TO A MIRROR FINISH. THEY ARE INDEPENDENTLY ADJUSTABLE WITHOUT STABILIZER BARS FOR A CLEAN LOOK. MULTI-POINT FASTENING ENSURES STABILITY AND BELT TENSION.

YOU CAN VIEW AND DOWNLOAD THE INSTRUCTIONS FOR THIS BRACKET HERE.
