REMASTER 2-BOLT MASTER CYLINDER KIT,GM/FORD,1-1/8" BORE,LEFT PORTS,BLACK

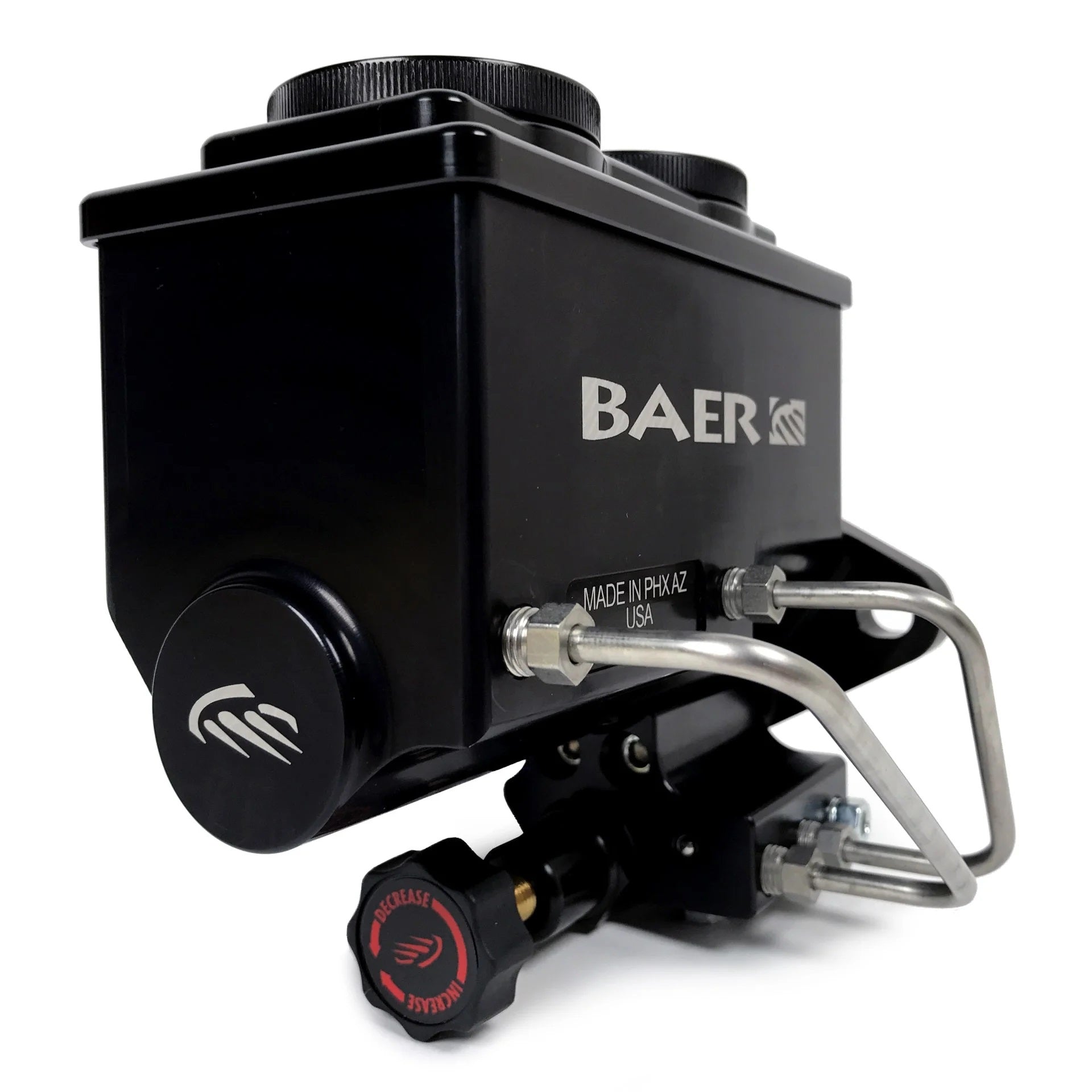

Brand New Baer Brakes ReMaster 2-Bolt GM/Ford Black Master Cylinder & Proportioning Valve Kit, 1-1/8" Bore, Left Side Mount (Part #6805205)

For larger calipers or boosted systems needing more volume, the 1-1/8" left-port ReMaster combo includes the black billet master, black adjustable proportioning valve, and pre-bent hardlines with 3/8" inverted flares. Expect a clean look, straightforward installation, and precise rear-bias tuning to match your tire and brake hardware setup.

Features:

• 2-Bolt GM/Ford Firewall Mounting Bracket

• Fully machined 6061 T6 billet aluminum construction

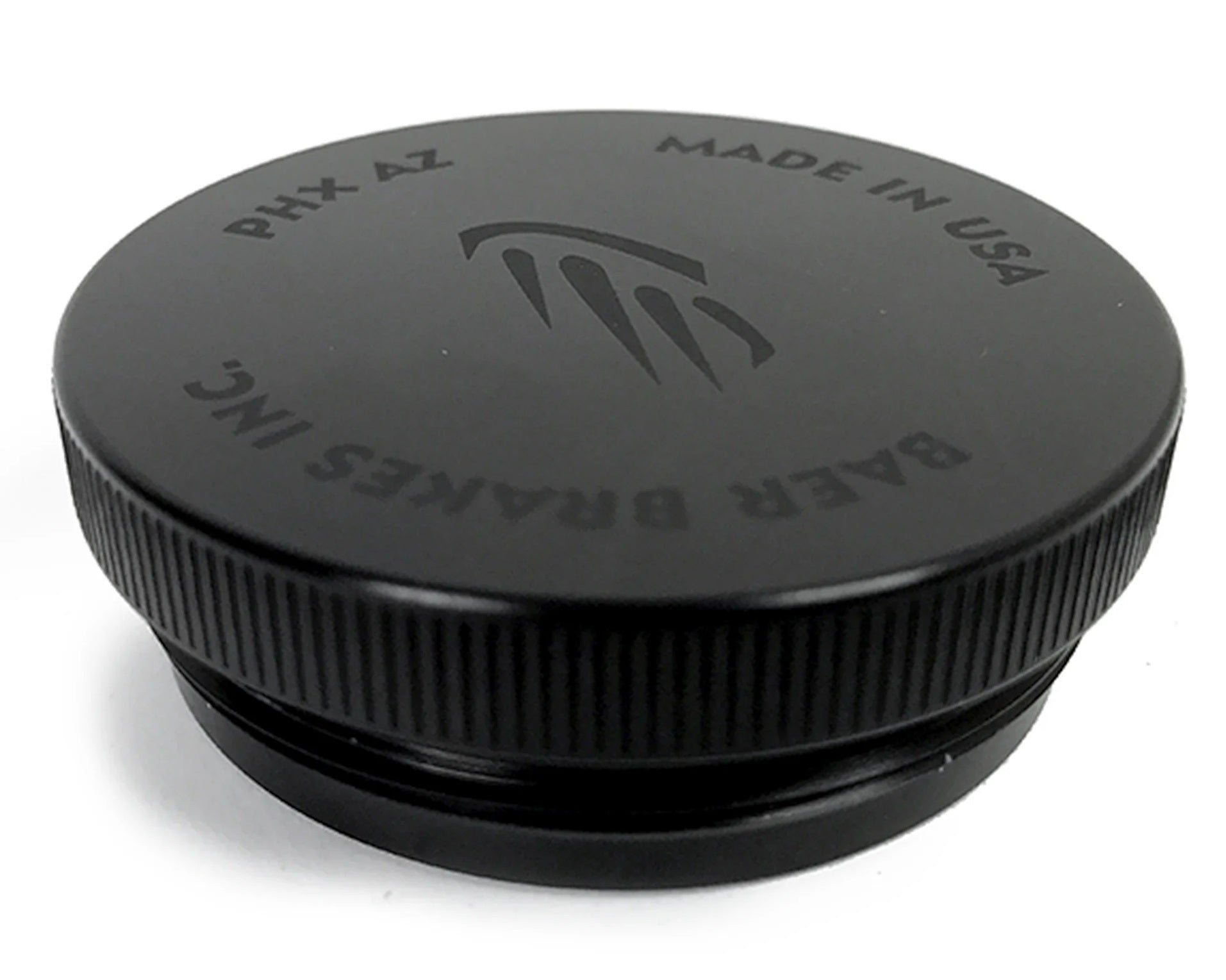

• Machined and knurled screw-on caps for easy access to fill without spillage

• Prop valve features integrated mounting block for easy installation beneath ReMaster Master Cylinders

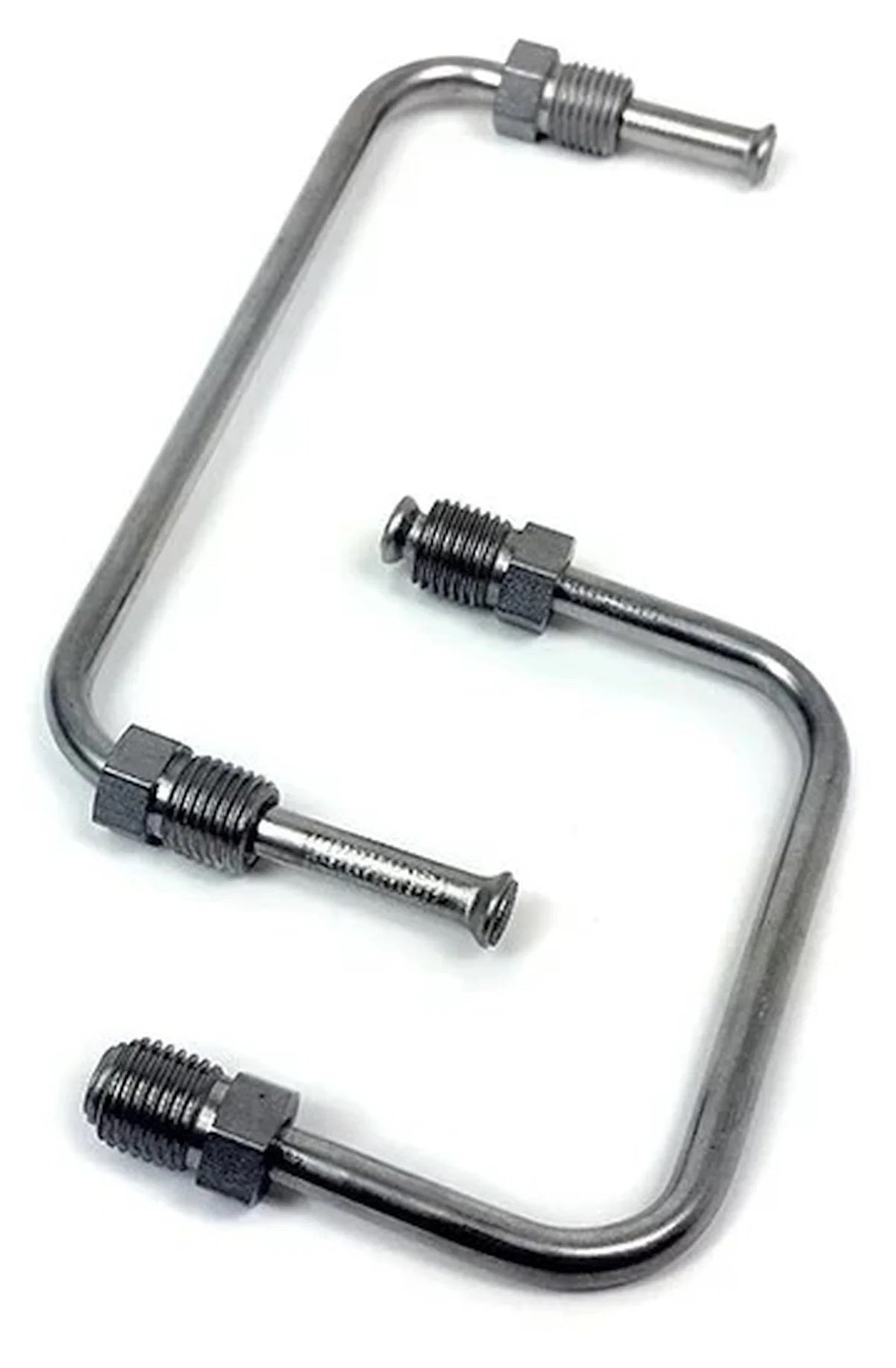

• 3/16" Pre-Bent Hardlines with 3/8-24 IFF fittings

• Made in the USA

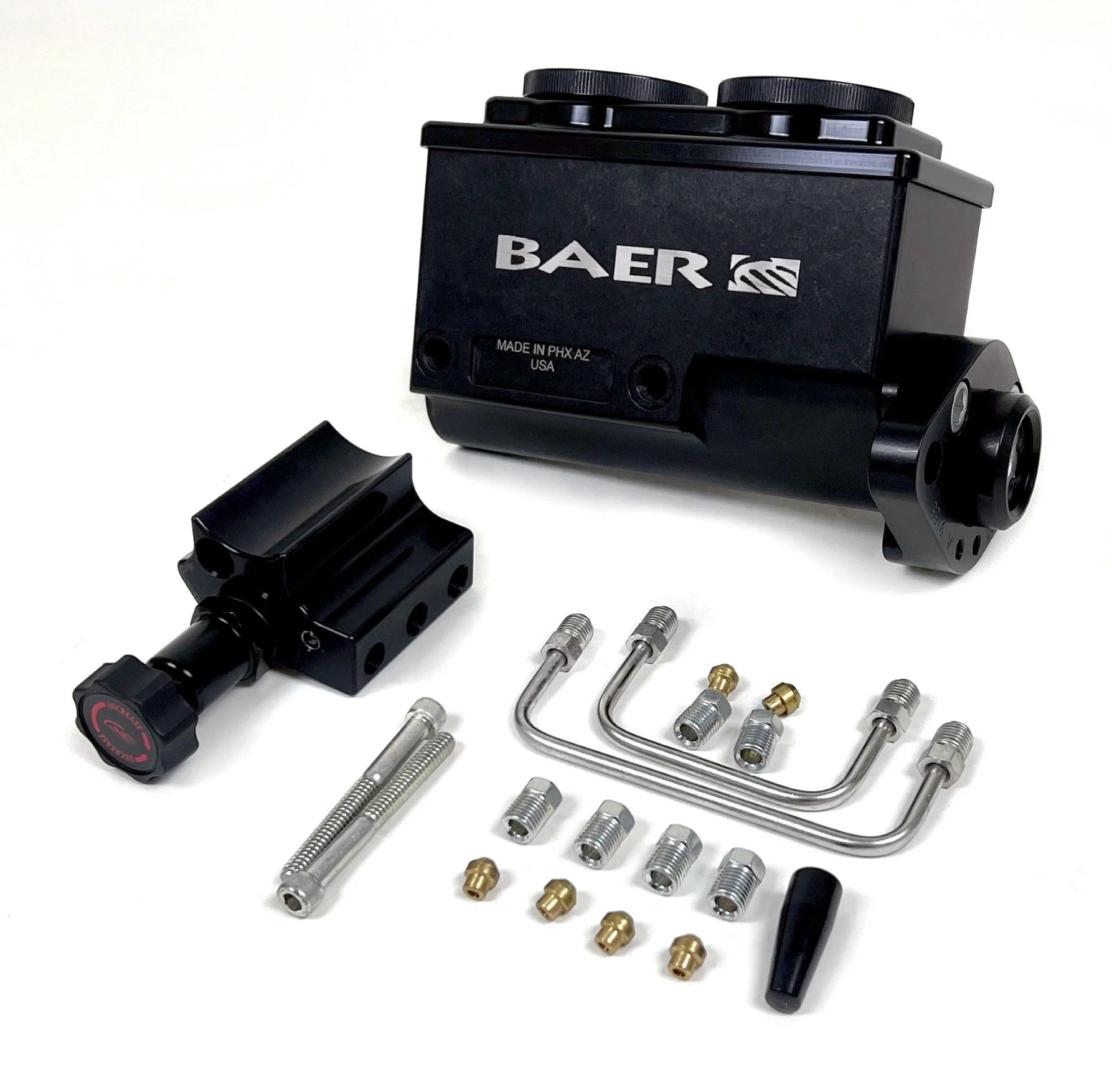

Includes:

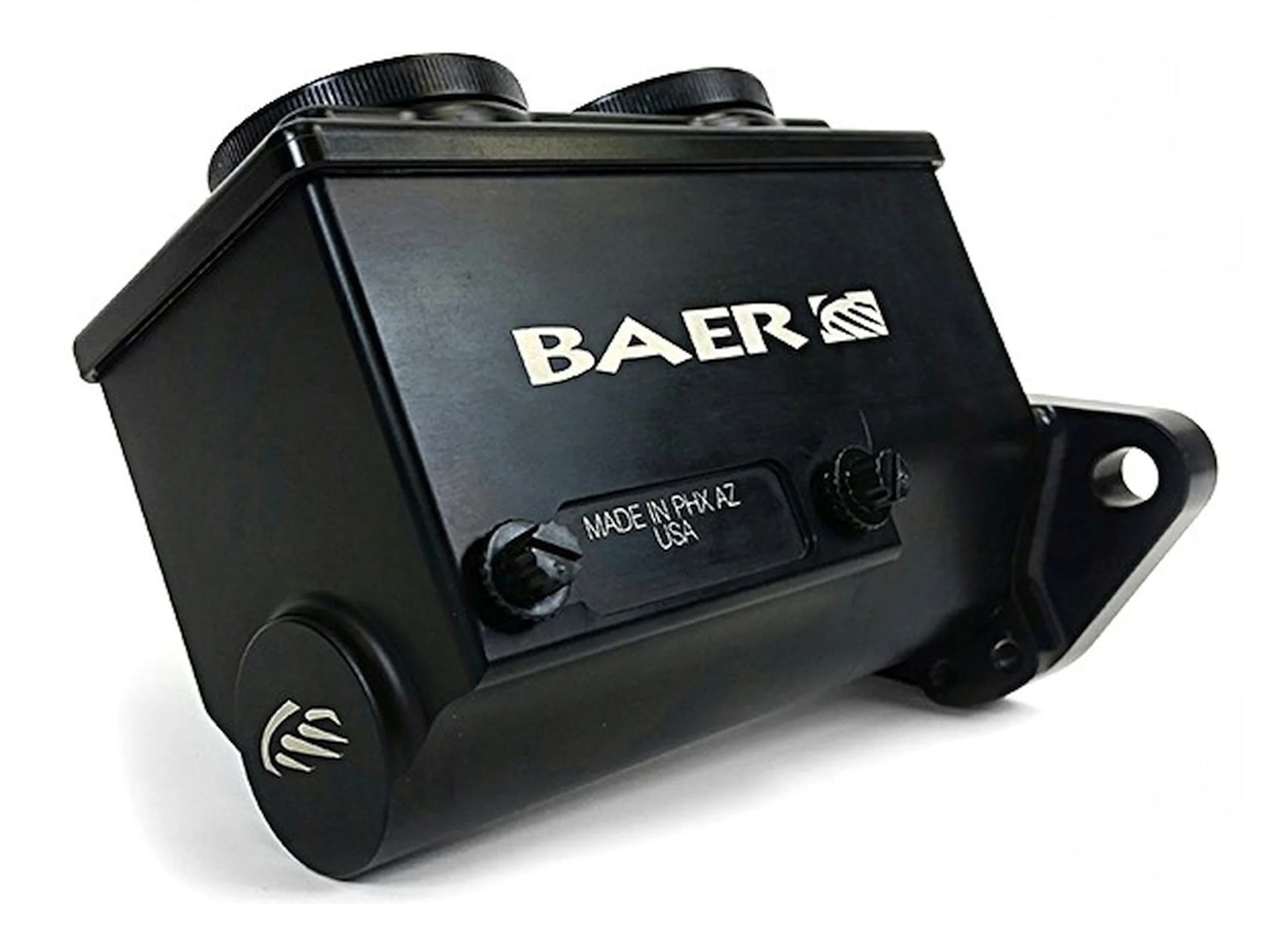

• Master Cylinder Assembly

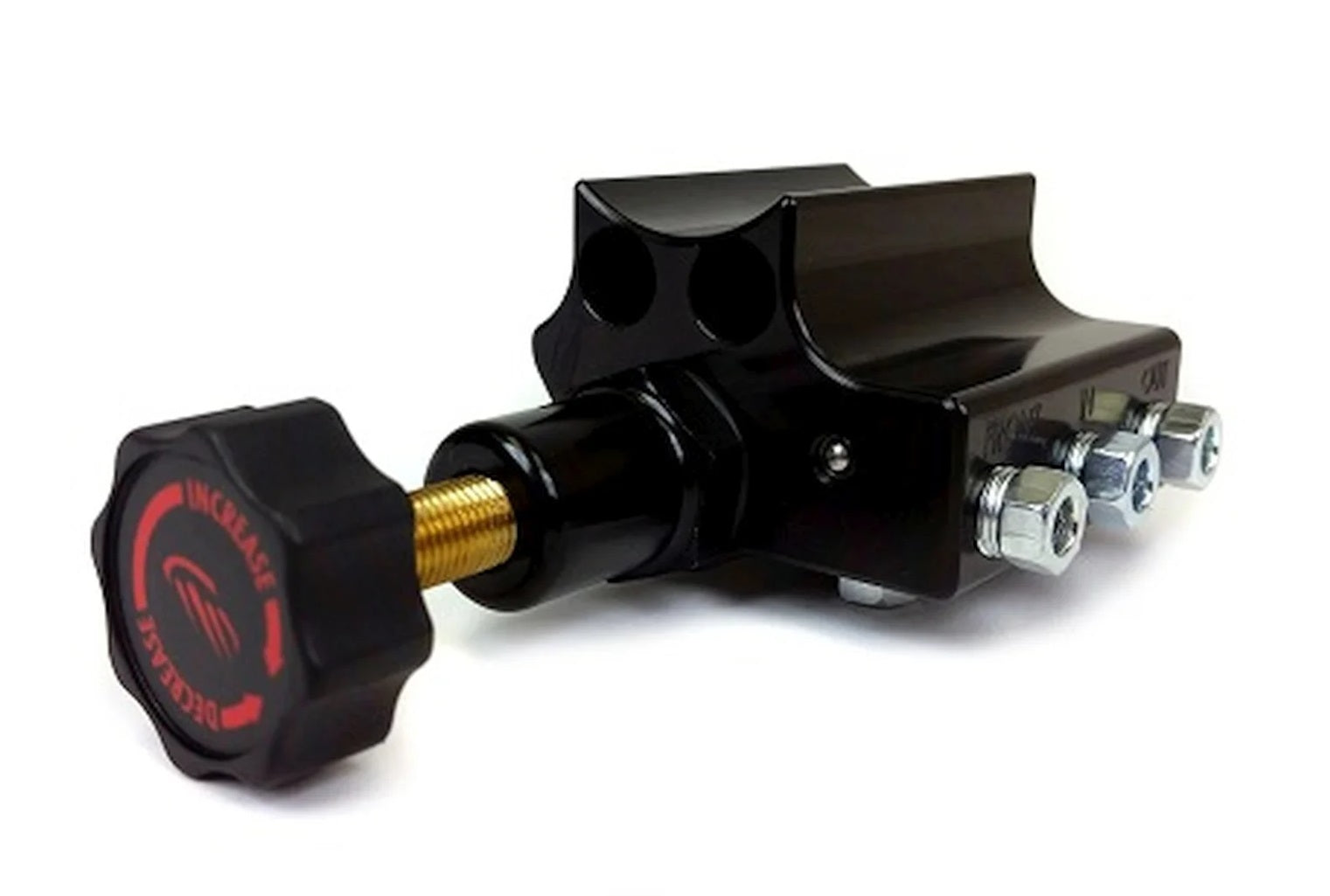

• Adjustable Proportioning Valve
• Pre-bent Hardlines with 3/8" Inverted Flare Fittings

Specs:

• Adjustment Style: Knob

• Bore Size: 1.125"

• Brake Booster Included: No

• Brake Pressure Switch(s) Included: No

• Brand: Baer Brakes

• Connector For Warning Light: No

• Fittings Included: Yes
• Master Cylinder Cap Included: Yes

• Master Cylinder Material: 6061 T6 billet aluminum

• Master Cylinder Outlet Port Quantity: 2

• Master Cylinder & Proportioning Valve Inlet/Outlet Port Size: 3/8-24

• Master Cylinder Port Exit: Left Side

• Mounting Bracket Included: No

• Mounting Hardware Included: No

• Mounting Hole Quantity: 2 holes
• Proportioning Mounting Block Hardware Included: Yes

• Proportioning Mounting Block Hole Quantity: 2

• Proportioning Mounting Block Included: Integrated
• Proportioning Valve Finish: Black Anodized

• Proportioning Valve Type: Adjustable

• Proportioning Valve Inlet Port Quantity: 2

• Removable Seats: Yes

• Reservoir Included: Yes
• Reservoir Style: Integral

• Reservoir Type: Dual
• Universal Or Specific Fit: Universal


You can view and download the instruction booklet here.
