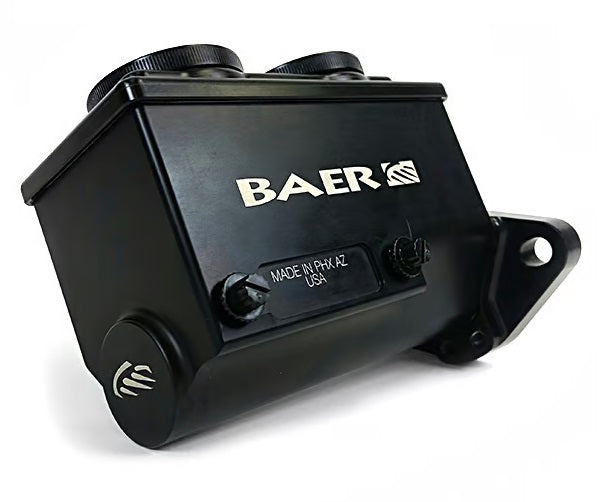

REMASTER MASTER CYLINDER,1 1/8" BORE,LEFT PORT

Brand New Baer Brakes Remaster Master Cylinder - 1 1/8" Bore (Part #6801274LP).

This Remaster master cylinder features a small, compact, 1-piece body machined out of 6061 T6 billet aluminum with a 1-1/8" bore, left side ports and a 2-bolt mounting flange fitting many Ford and GM applications. The billet top is attached with 6 allen screws and has two large billet aluminum, knurled screw-on caps making for easy filling without spillage. The unique outlet port design allows for either inverted flare (w/included removable seats) or banjo style, straight fittings. The Remaster is compatible on most long and short, w/included bullet, boosters or manual brake applications. Optional proportioning valves also available, see below.

A proportioning valve is recommended on 4 wheel disc brake applications without ABS and Baer has two style valves to choose from. The Remaster specific valve has a one-piece body with integral mount designed to locate the valve directly under the Remaster.

Features:

• Left side ports
• Hard Anodized Black Body
• Hard Anodized Black Lid and Caps

Specs:

• Brand: Baer Brakes

• Finish: Hard Anodized Black
• Bore Size: 1-1/8"
• Area: 0.97"
• Stroke: 1.3"
• Volume Ratio: 2:1
• Reservoir Size: 7oz, Fill to 75% or 5.25oz
• Port Size: 3/8-24 Inverted flare w/inserts or straight w/o inserts
• Port Exit: Left side
• Flange Type: 2 Bolt GM/Ford
• Master Cylinder Cap Included: Yes
• Material: 6061-T6 Aluminum
• Mounting Hardware Included: No
• Mounting Hole Quantity: 2
• Reservoir Included: Yes
