DISC BRAKES,FRONT,13",T4,60-87 C10 2WD,CPP 2.5" DROP,5X5",SILVER

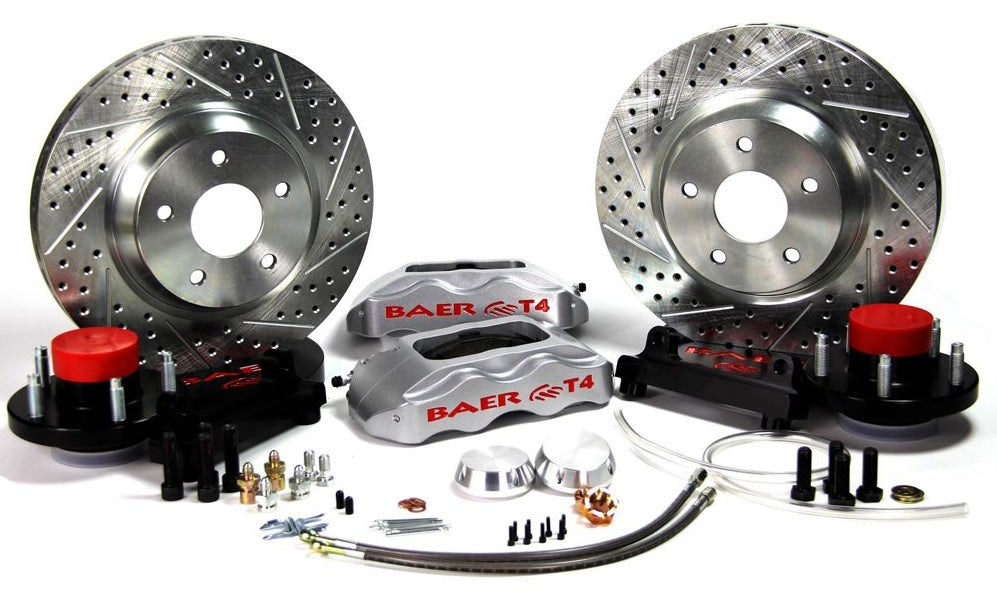

Brand New Baer Brakes 13" Silver Track4 Drilled Front Brake Kit (Part #4301512S).

This system features the 4-piston, T4 caliper mounted to a 13", 1 piece slot, drill, zinc plated rotor. The T4 caliper has D.O.T compliant dust and weather seals and uses the popular D0749 pad type. Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease and billet dust caps. All mounting brackets, stainless braided hoses and hardware are also included. The 13" Track4 is designed to fit most 17" or larger wheels.

Notes: Fits CPP 2.5" modular drop spindles: CP30106-1 (1960-1962 C10), CP30106-2 (1963-1970 C10), CP30106-3 (1971-1972 C10) or CP30106-4 (1973-1987 C10).

Compatible with:

• Chevrolet:
  • 1960-1987 C10 1/2 Trucks (2WD, 5 Lug) with CPP 2.5" modular drop spindles
• GMC:
  • 1960-1987 C15 1/2 Ton Trucks (2WD, 5 Lug) with CPP 2.5" modular drop spindles

Specs:

• Placement: Front
• Brand: Baer Brakes
• Rotor Size: 13" x 1.1"
• Rotor Type: 1-Piece
• Caliper: T4
• Piston Count: 4-piston
• Caliper Color: Silver
• Minimum Wheel Size: 17"

• Wheel Lug/Bolt Pattern: 5x5
• Wheel Stud Size: 1/2-20 x 2.25

You can view and download the complete assembly instruction booklet here.
