DISC BRAKES,FRONT,14",PRO+,60-87 C10 2WD 5 LUG,RED

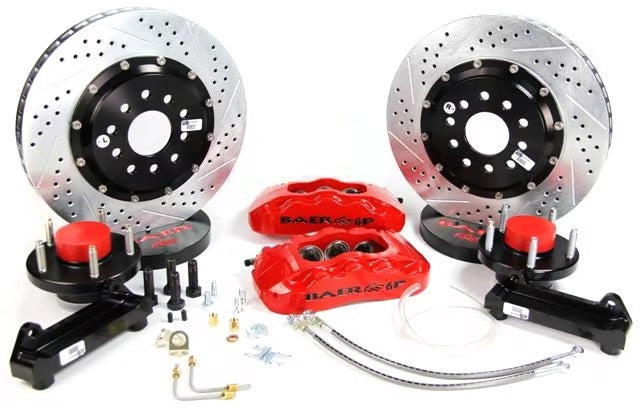

Brand New Baer Brakes 14" Front Pro+ Brake System (Part #4301388R).

This system was designed for the CPP 2.5" modular drop spindles and features the 6-piston, 6P caliper mounted to a 14", 2 piece slot, drill, zinc plated rotor. The 6P caliper has D.O.T compliant dust and weather seals and uses the popular D0731 pad type. Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease and billet dust caps. Rotors are pre-assembled with NAS high grade stainless hardware. All mounting brackets, stainless braided hoses and hardware are also included. The 14" Pro+ is designed to fit most 18" or larger wheels.

Notes: System has 5 lug, 5x5" bolt pattern, Designed to be used with CPP 2.5" modular drop spindles: CP30106-1 (1960-1962 C10) | CP30106-2 (1963-1970 C10) | CP30106-3 (1971-1972 C10) | CP30106-4 (1973-1987 C10)

Compatible with:

• Chevrolet:
  • 1960-1986 C10 (2WD, 5 Lug) with CPP 2.5" modular drop spindles
• GMC:
  • 1960-1986 C15 (2WD, 5 Lug) with CPP 2.5" modular drop spindles

Includes:

• Calipers
• Brake Pads
• Rotor & Hat Assemblies
• Billet Aluminum Hubs W/premium Bearings
• Billet Dust Caps
• Brackets
• Stainless Braided Brake Hoses
• Mounting Hardware

Features:

• 2 piece slotted and drilled zinc plated rotors
• Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease and billet dust caps
• All mounting brackets, stainless braided hoses and hardware are included
• Forged billet aluminum 6 piston calipers

Specs:

• Brand: Baer Brakes
• Rotor Size: 14" x 1.15"
• Rotor Type: 2-Piece
• Caliper: 6P
• Piston Count: 6-piston
• Mount Type: Radial
• Caliper Color: Red
• Minimum Wheel Size: 18"
