DISC BRAKES,REAR,13",SS4+,FORD 9" TORINO,LATE BIG,5X5",SILVER

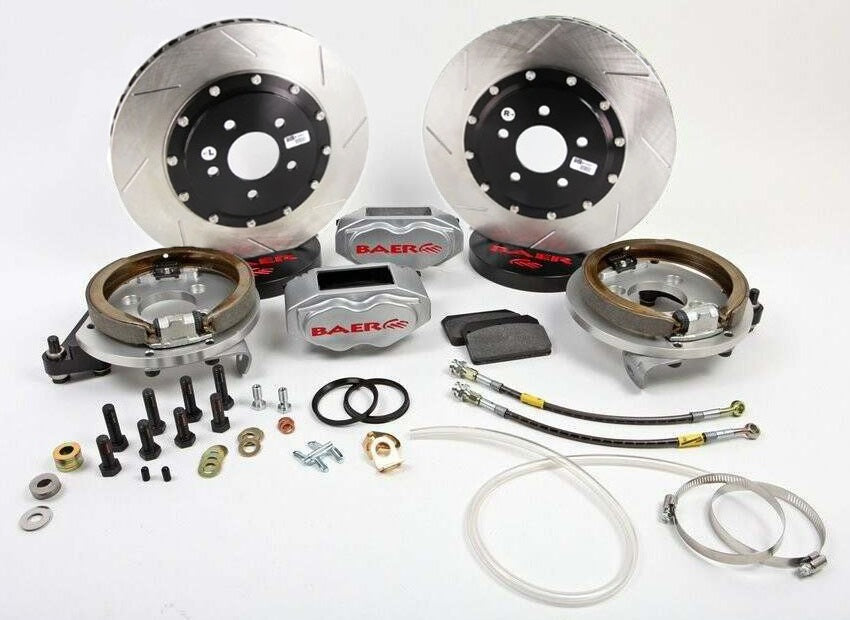

Brand New Baer Brakes 13" Silver SS4+ Slotted Rear Brake Kit (Part #4262265S-1).

This system features the 4-piston, S4 caliper mounted to a 13", 2 piece slot only rotor. The S4 caliper has D.O.T compliant dust and weather seals and uses the popular DR1-C pad type. Rotors are pre-assembled with NAS high grade stainless hardware. Baer’s unique backing plate not only acts as a caliper mount, but also houses a modern 1-piece park brake shoe assembly. Stainless braided hoses and hardware are also included. The 13" SS4+ fits most 17” or larger wheels.

Compatible with:

• Ford:

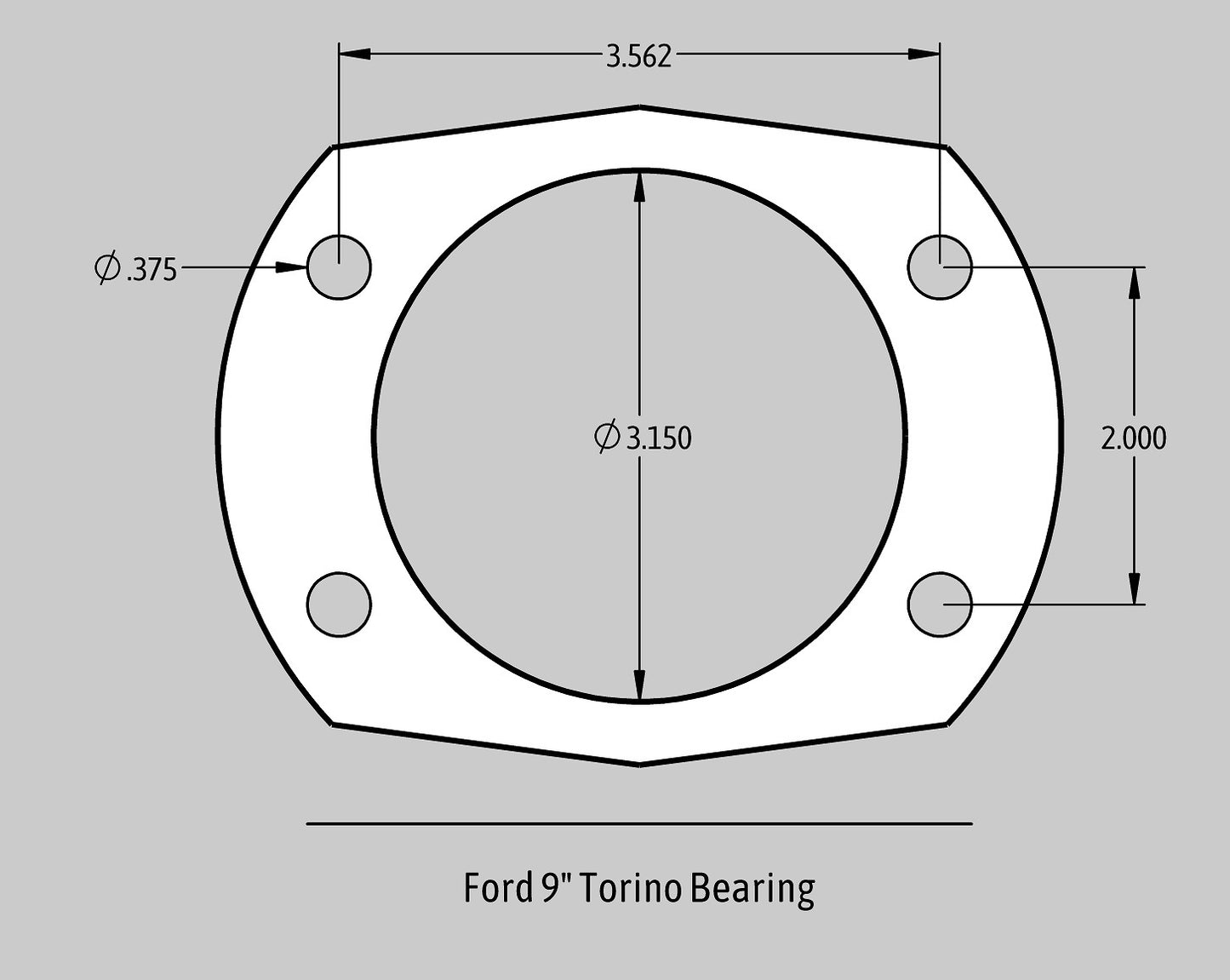

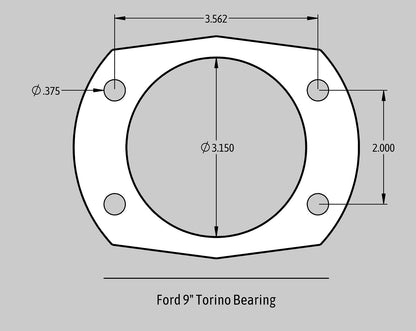

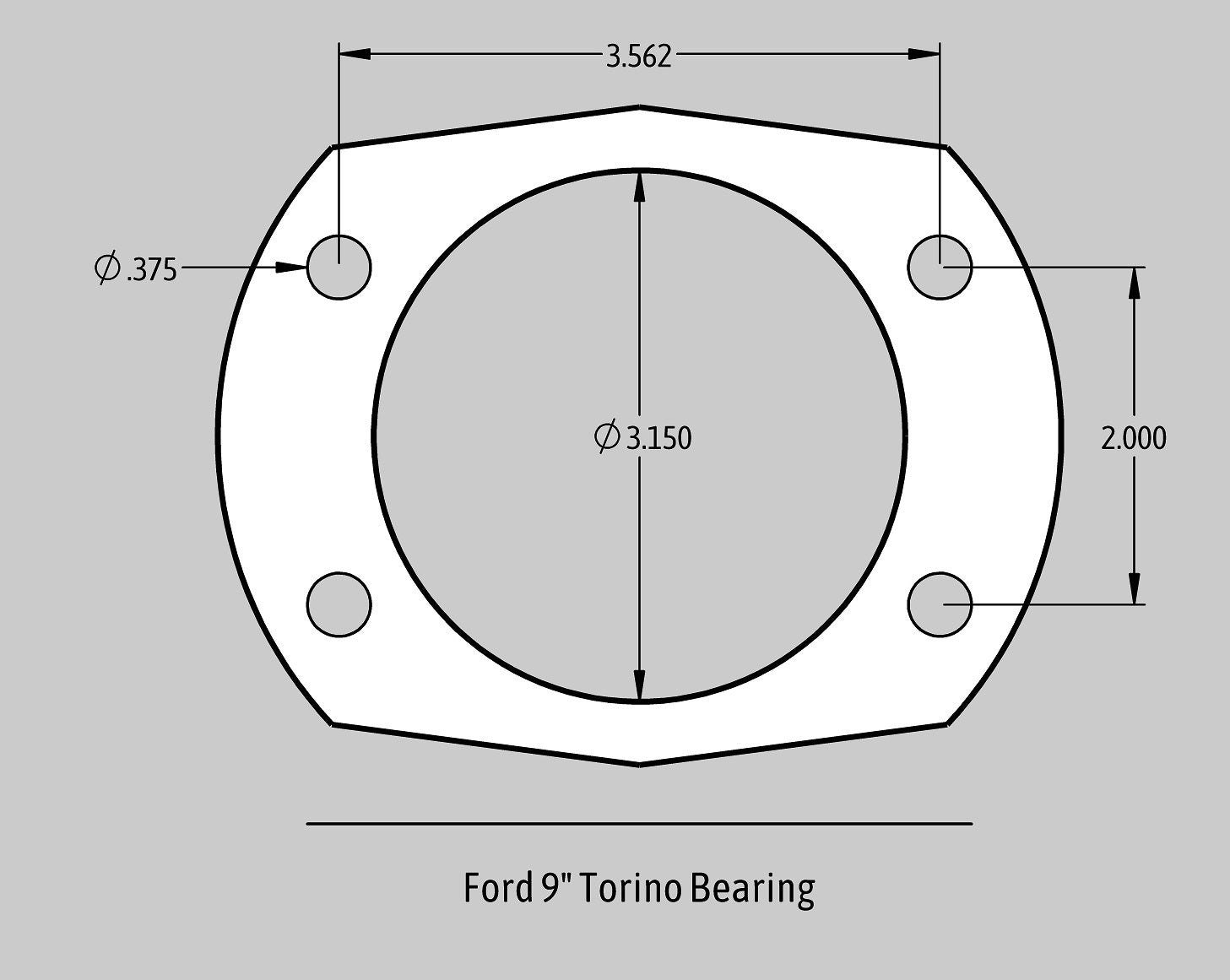

  • Torino 9" (Late Big) with Bearing Housing Ends

Features:

• 2-Piece, 4-Piston, S4 Caliper Manufactured in Phoenix, AZ

• CNC Machined from US Sourced Forged or Billet Aluminum

• Powder Coated Finish

• Hard Anodized Aluminum Pistons
• Stainless Steel Abutments and Noise Suppression Clips

• Dual Seals, Dust/Weather & Pressure Resistant

• 2-Piece Slot Only Rotor w/Billet Aluminum Hat

Specs:

• Placement: Rear
• Rotor Size: 13" x 0.81"
• Rotor Type: 1-Piece
• Caliper: S4
• Piston Count: 4-piston
• Caliper Color: Silver
• Minimum Wheel Size: 17"

• Wheel Lug/Bolt Pattern: 5x5

You can view and download the complete assembly instruction booklet here.
