MAGNUM GRIP BANDIT SHIFTER,GATED,AUTO,UN

BRAND NEW B&M AUTOMATIC GATED SHIFTER, MAGNUM GRIP STREET BANDIT, POLISHED ALUMINUM, COMPATIBLE WITH 2,3 & 4 SPEED TRANSMISSIONS

THE MAGNUM GRIP STREET BANDIT COMES SET UP FOR 3-SPEED TRANSMISSIONS, FEATURES A 7 LB. BLOCK OF 6061-T6 ALUMINUM, CNC MACHINED CONSTRUCTION, ERGONOMICALLY SHAPED MAGNUM GRIP SHIFT HANDLE WITH REPLACEABLE SIDE GRIP PLATES, POLISHED & MATTE FINISH, TRIGGER ACTIVATED REVERSE GATE RELEASE FUNCTION (DOES NOT HAVE REVERSE LOCKOUT TO MEET NHRA/IHRA SAFETY RULES.)

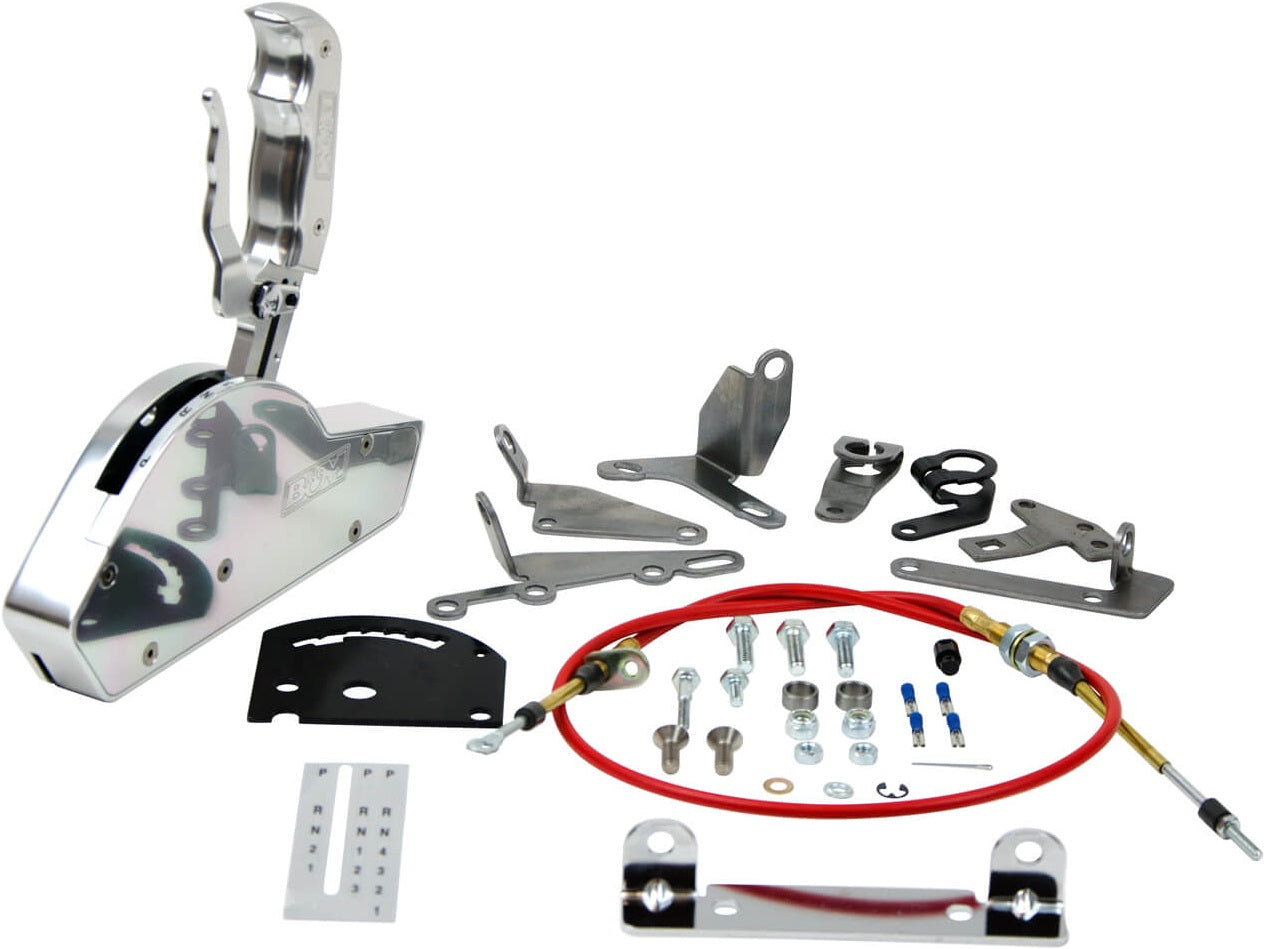

COMPATIBLE WITH FORWARD OR REVERSE PATTERN VALVE BODIES & CAPABLE OF CONTROLLING 2, 3 & 4-SPEED AUTO TRANSMISSIONS B REPLACING THE HARDENED STEEL GATE PLATE & APPLICABLE BRACKETS/LEVERS. INCLUDES 4 FT. SUPER DUTY SHIFT CABLE, REAR CABLE EXIT, CHROME SHIFTER BRACKET, BACK UP LIGHT SWITCH, NEUTRAL SAFETY SWITCH, CABLE BRACKETS & LEVERS FOR MOST 3-SPEED AUTO TRANSMISSIONS. COMES WITH INSTRUCTIONS FOR EASY INSTALL.

NOTE: FITS GM TH400, 350, 250, 200, 700R4/4L60, 4L60E, 4L65E, 4L80E AUTO TRANSMISSIONS (WILL HAVE TO MODIFY CABLE BRACKET FOR USE WITH A PRNDL SWITCH.) FORD C4, C5, C6 & CHRYSLER 1966 & LATER TORQUEFLITE A727 (36RH/37RH), A518 (46RH/46RE), A618 (47RH/47RE/48RE), A904 (30RH), A999 (32RH), A500 (40RH/42RH/40RE/42RE/44RE) AUTO TRANSMISSIONS. WILL OPERATE OTHER 4-SPEED AUTO TRANSMISSIONS, BUT YOU WILL NEED TO FABRICATE CABLE BRACKET.

FEATURES:

• REPLACEABLE GATE PLATES FOR MOST POPULAR AUTO TRANSMISSIONS
• FORWARD & REVERSE SHIFT PATTERN COMPATIBLE

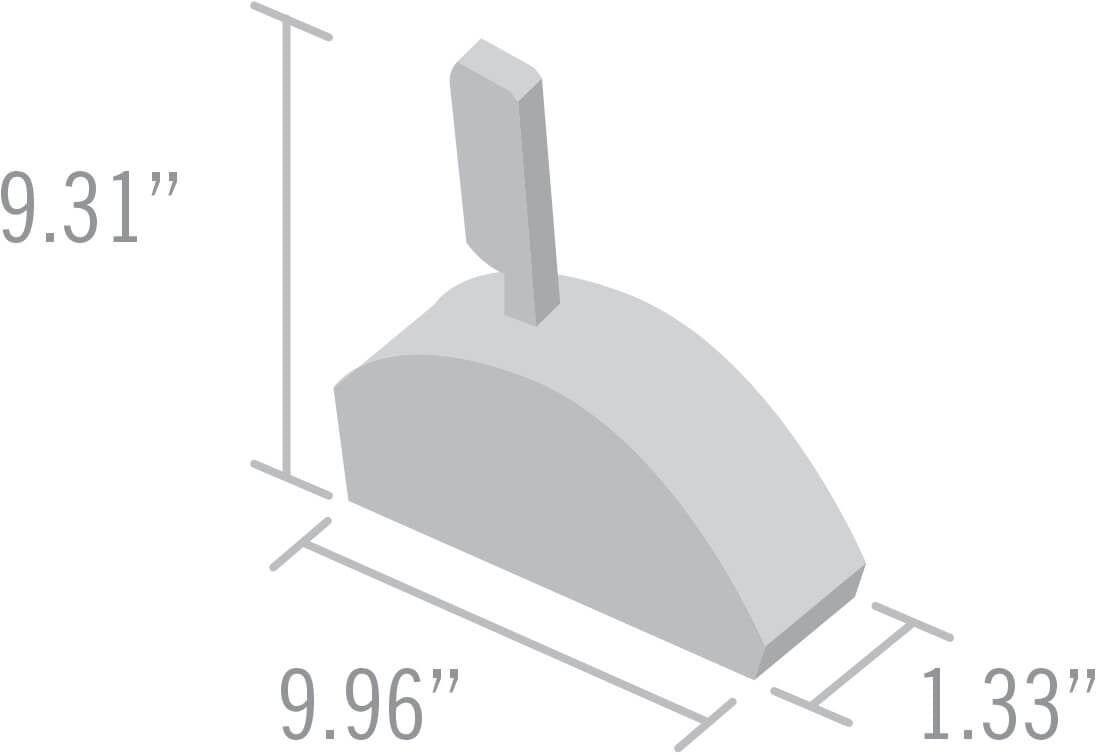

• OVERALL DIMENSIONS - 10"L X 1.33"W X 9.31"H
• CNC MACHINED ALUMINUM CONSTRUCTION
• NARROW STYLED ALUMINUM HOUSING
• IDEAL FOR HIGH-TECH STREET RODS
• INCLUDES NEUTRAL SAFETY SWITCH
• COMPACT & LIGHTWEIGHT DESIGN
• REAR CABLE EXIT DESIGN

SPECS:

• APPLICATION: UNIVERSAL
• BACKUP LIGHT SWITCH: YES
• CABLE & COVER INCLUDED: YES
• FINISH: POLISHED ALUMINUM
• INSTRUCTIONS INCLUDED: YES
• LIGHTED INDICATOR: NO
• MECHANISM TYPE: GATED
• NEUTRAL SAFETY SWITCH: YES
• NHRA/IHRA APPROVED: NO
• PRODUCT TYPE: SHIFTER
• SHIFT LEVER LENGTH: 9.31"
• TRANSMISSION TYPE: AUTO

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS SHIFTER HERE.
