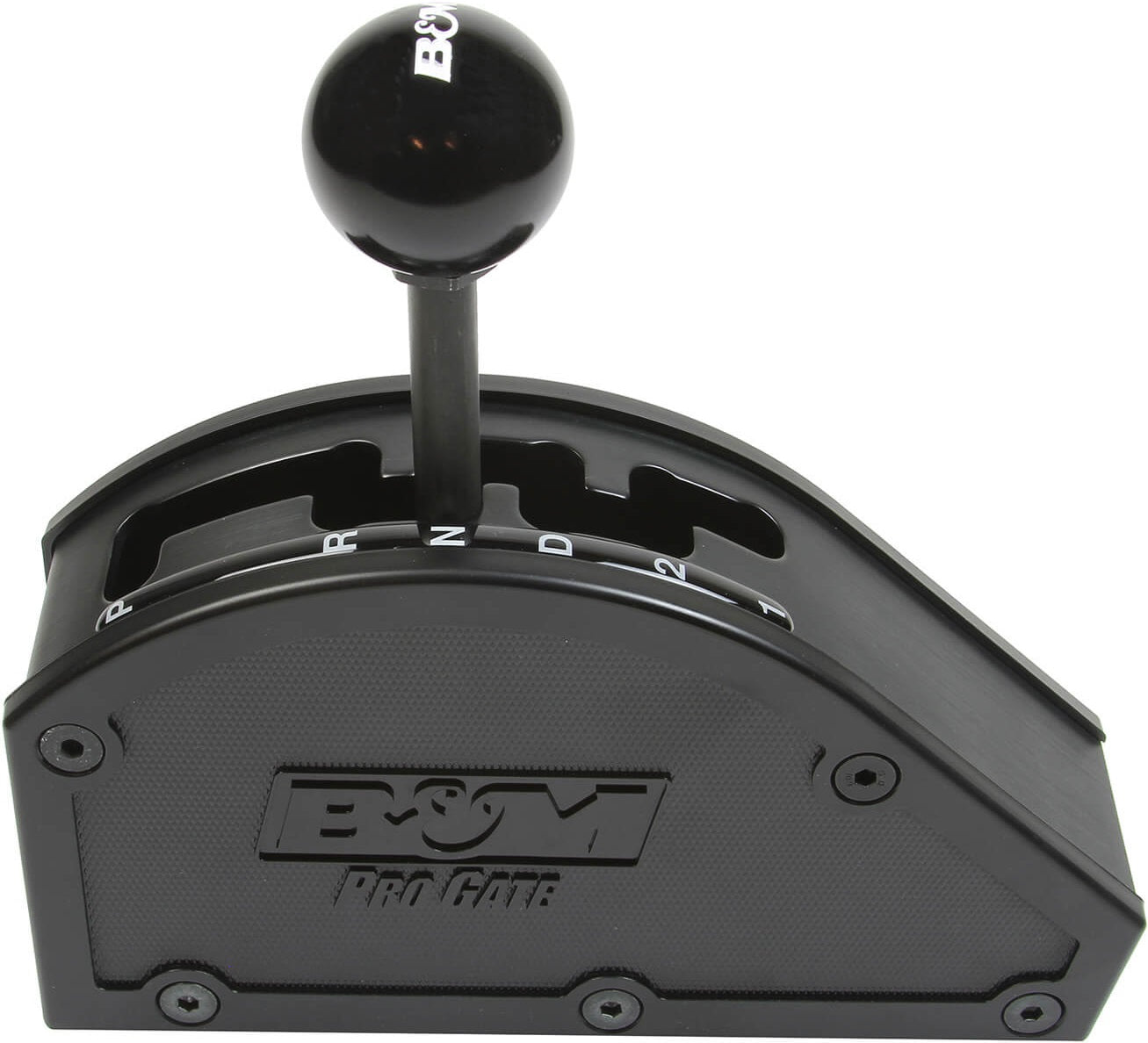

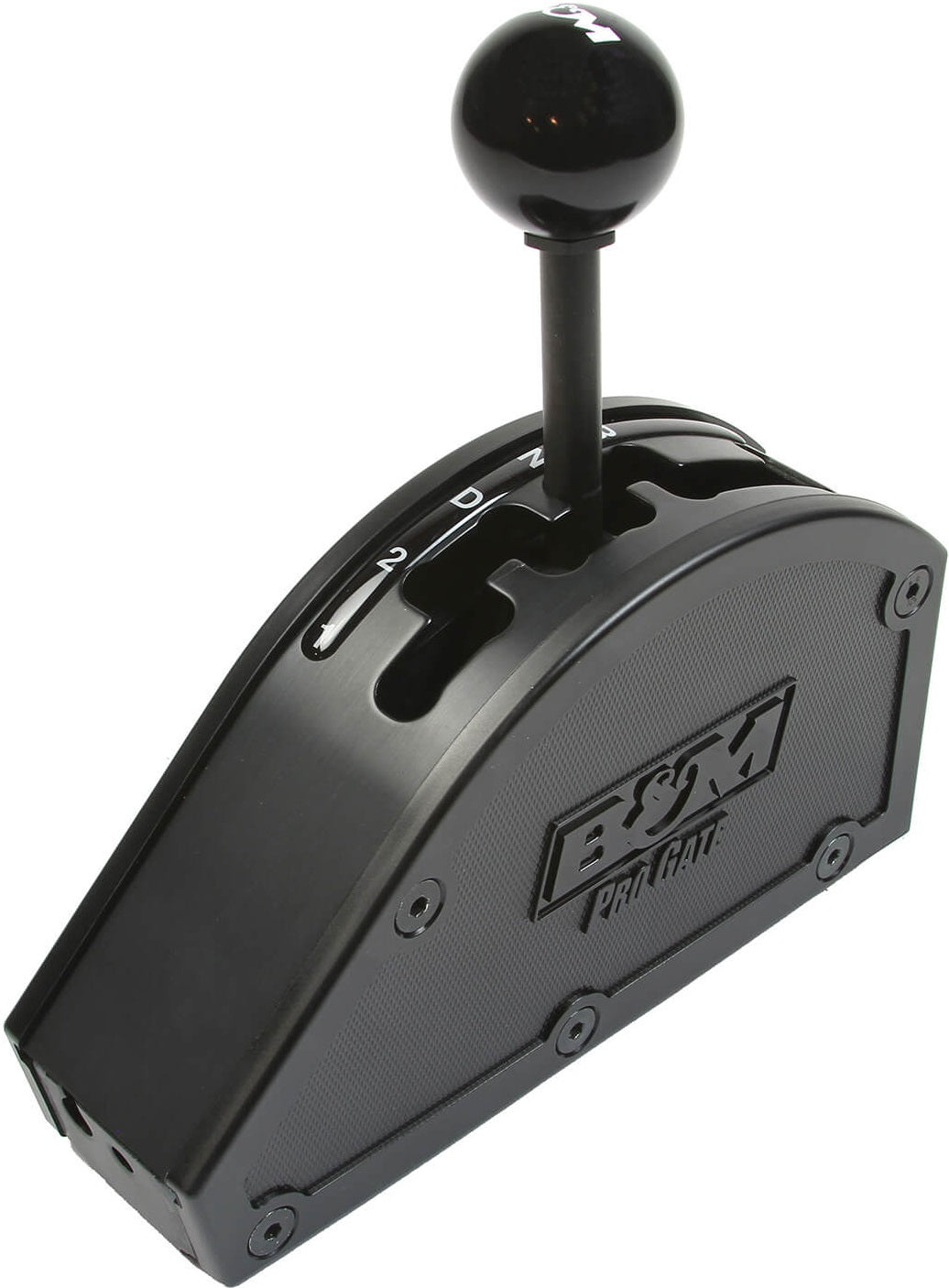

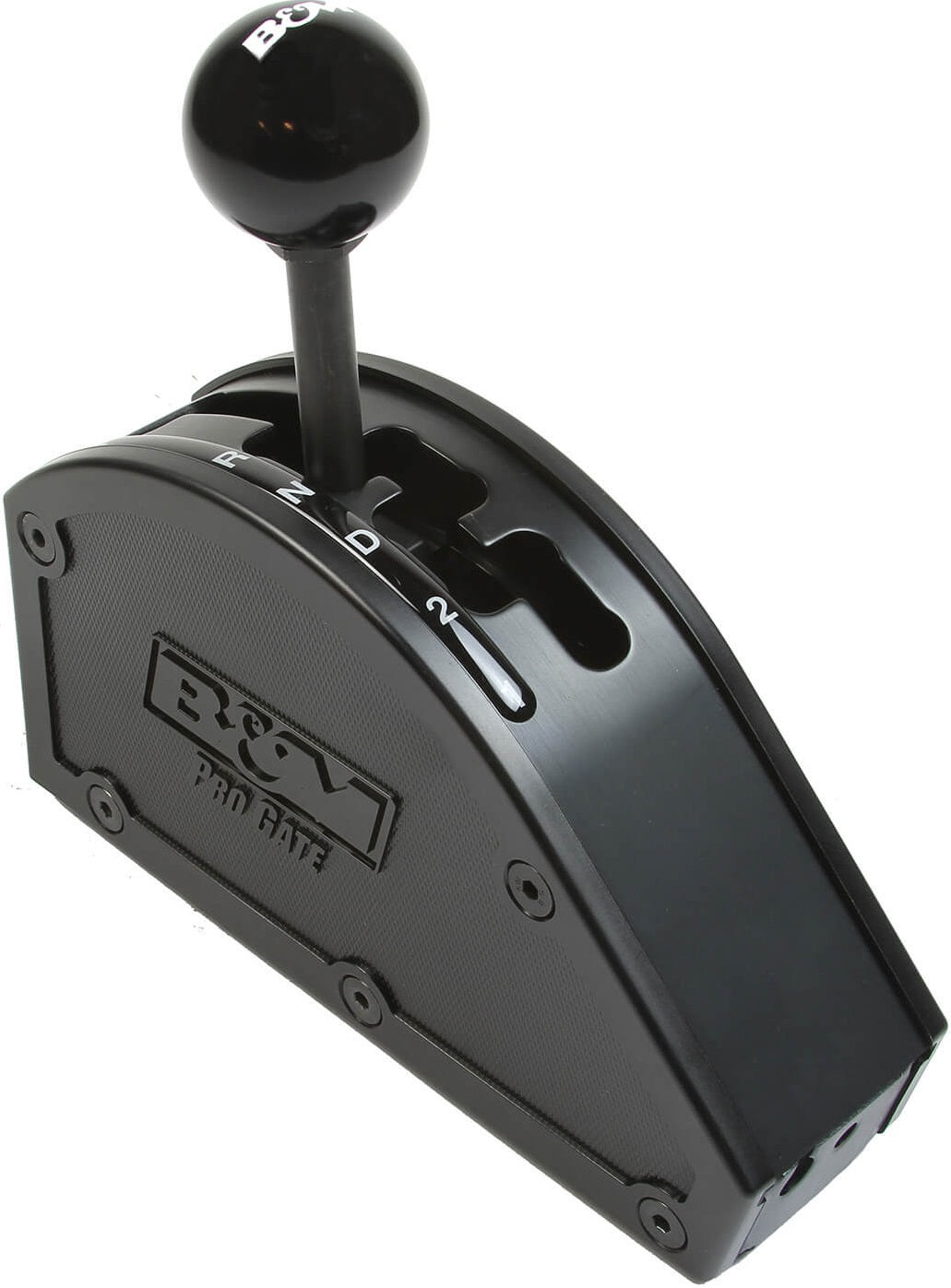

SHIFTER,PRO GATE,GM 3 SPD AUTO,REAR EXIT

BRAND NEW B&M AUTOMATIC SHIFTER, PRO GATE, BLACK KNOB, REAR EXIT CABLE, COMPATIBLE WITH GM 3-SPEED TRANSMISSIONS

B&M PRO GATE SHIFTER IS AN EXTERNALLY GATED RACE SHIFTER FOR GM 3-SPEED AUTO TRANSMISSIONS. THE COMPACT & LIGHTWEIGHT DESIGN FEATURES A 10-GAUGE BLACK OXIDE COATED 304 STAINLESS STEEL BASE WITH A HEAVY-DUTY 303 STAINLESS STEEL SHIFT PIN. THE 1016 STEEL SHIFT STICK INCLUDES A BLACK B&M LOGO SHIFT KNOB WHILE THE EXTERNAL GATE PLATE IS CONSTRUCTED FROM BLACK 11-GAUGE 304 STAINLESS STEEL.

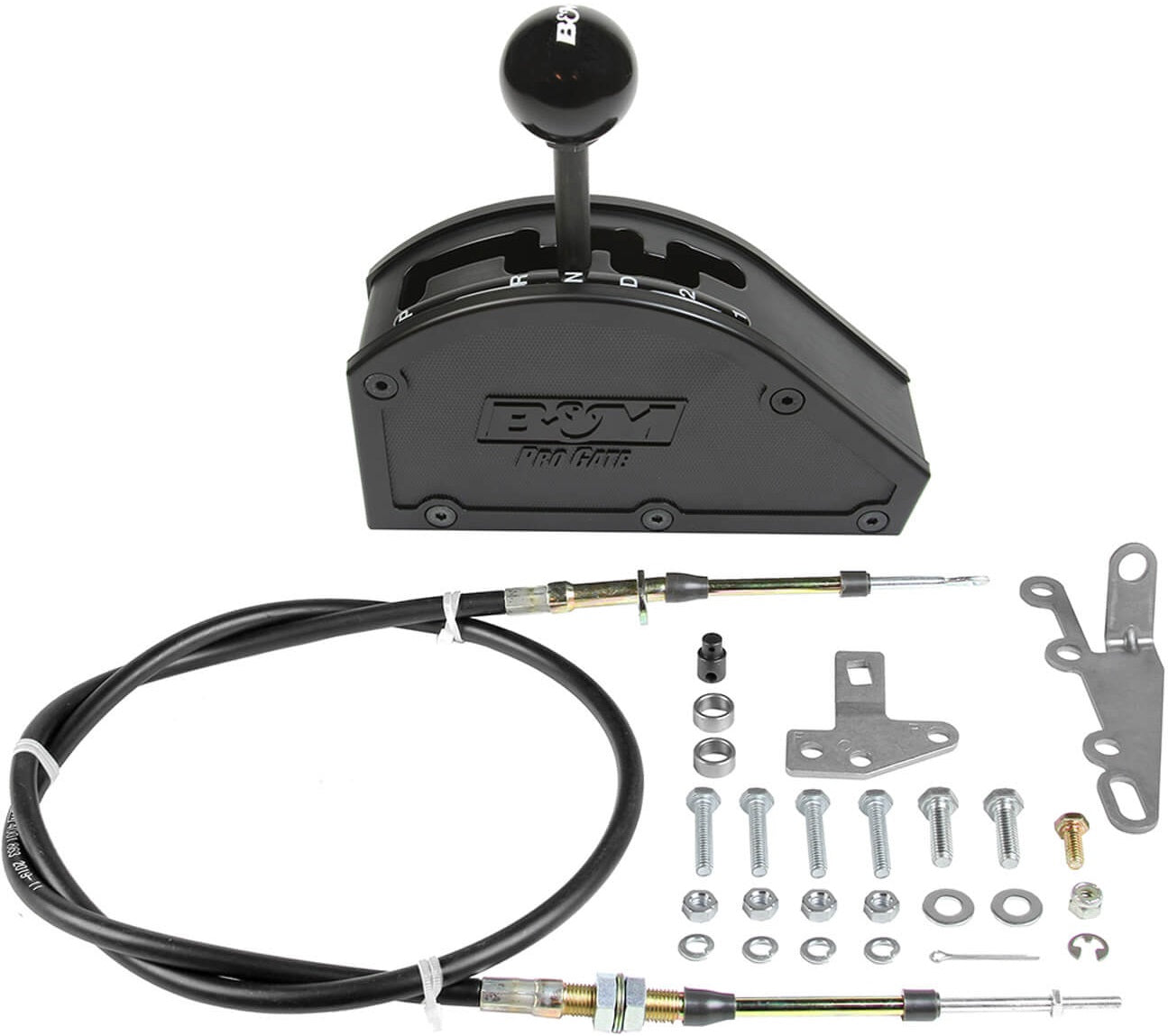

THE 3-SPEED GATED FORWARD SHIFT PATTERN FEATURES A STAGGERED SHIFT PATTERN WITH POSITIVE STOPS BETWEEN EACH GEAR. THICK INJECTION-MOLDED NYLON SIDE COVERS FEATURE A KNURLED TEXTURE WITH THE B&M PRO GATE LOGO ON BOTH SIDES. COVERS ARE REMOVABLE FOR ACCESS TO THE SHIFTER SUB-ASSEMBLY & WILL NOT GUM UP WITH DIRT AFFECTING SHIFT PERFORMANCE. REAR EXIT CABLE DESIGN INCLUDES A BLACK 5-FT SUPER DUTY RACE SHIFTER CABLE ALONG WITH CABLE BRACKET, SHIFT LEVER & ALL NECESSARY HARDWARE FOR AN EASY INSTALLATION.

NOTE: COMPATIBLE WITH ALL GM 3-SPEED AUTOMATIC TRANSMISSIONS.

FEATURES:

• HEAVY 10-GAUGE 304 STAINLESS STEEL SHIFTER BASE PROVIDES ULTIMATE STRENGTH & STABILITY
• HIGH IMPACT INJECTION MOLDED NYLON SIDE COVERS
• 5-FT SUPER DUTY RACE SHIFT CABLE
• 304 STAINLESS STEEL EXTERNAL GATE PLATE PROVIDES DURABILITY & SHORT POSITIVE GATED SHIFTS
• RUGGED CONSTRUCTION & DURABLE BLACK OXIDE COATING PROVIDE LOW MAINTENANCE
• REAR EXIT CABLE MODEL
• FORWARD SHIFT PATTERN

SPECS:

• APPLICATION: UNIVERSAL
• AUTOMOTIVE ITEM GRADE: HIGH PERFORMANCE
• BACKUP LIGHT SWITCH: NO
• FINISH: SMOOTH, TEXTURED
• HOUSING MOUNT HOLE QUANTITY: 4
• MATERIAL: 304SS, ALUMINUM, NYLON
• OVERALL DIMENSION: 9.10LX 9.50H X 2.60W
• PRODUCT TYPE: AUTOMATIC TRANSMISSION SHIFTER
• REVERSE LOCKOUT/SAFETY LOCK: NO
• ROD DIAMETER: 0.5"
• ROD LENGTH: 4.75"
• SHIFTER KNOB COLOR: BLACK
• THREAD SIZE: 1/2-20
• OVERDRIVE SWITCH: NO

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS SHIFTER HERE.
