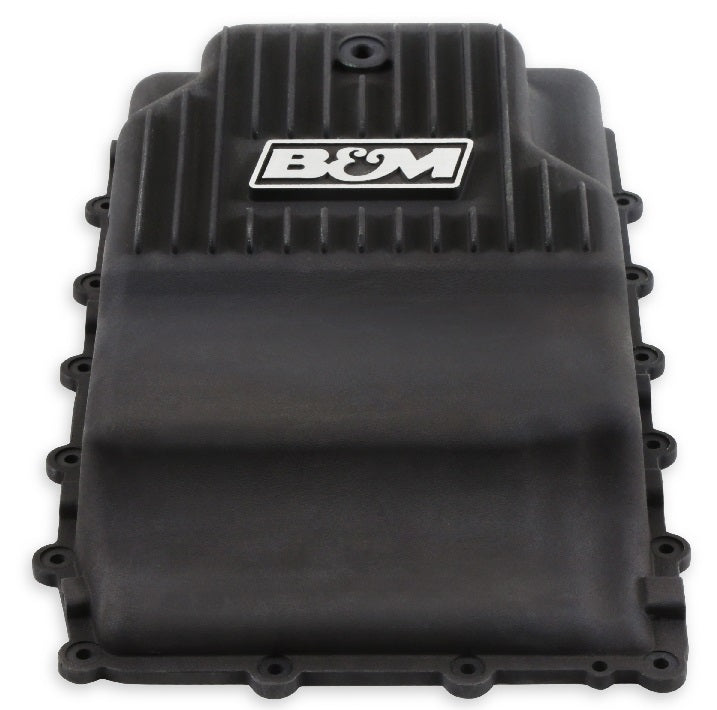

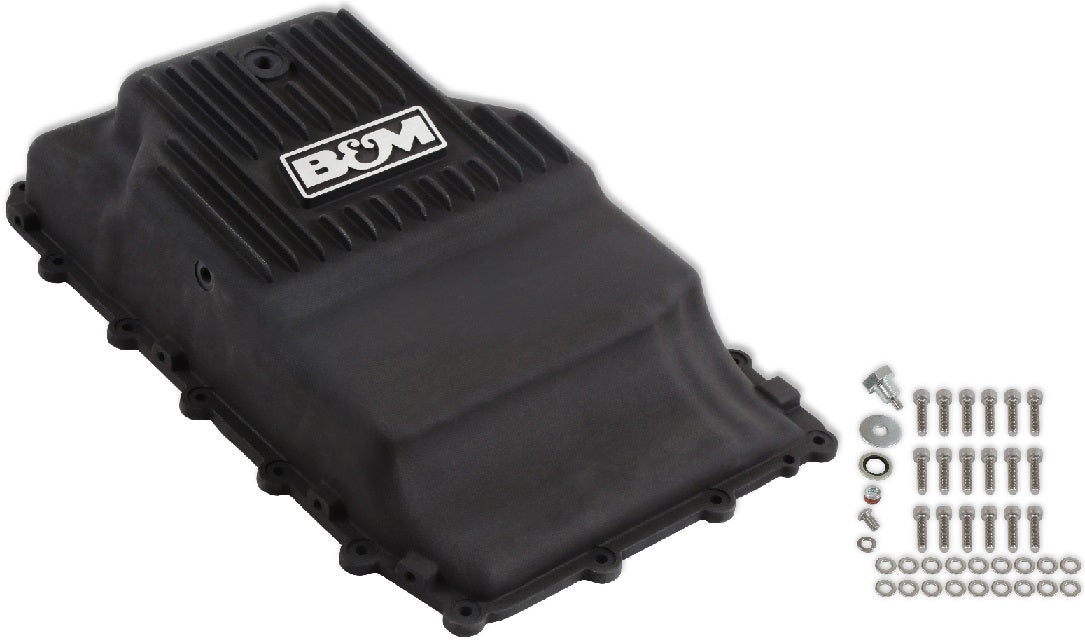

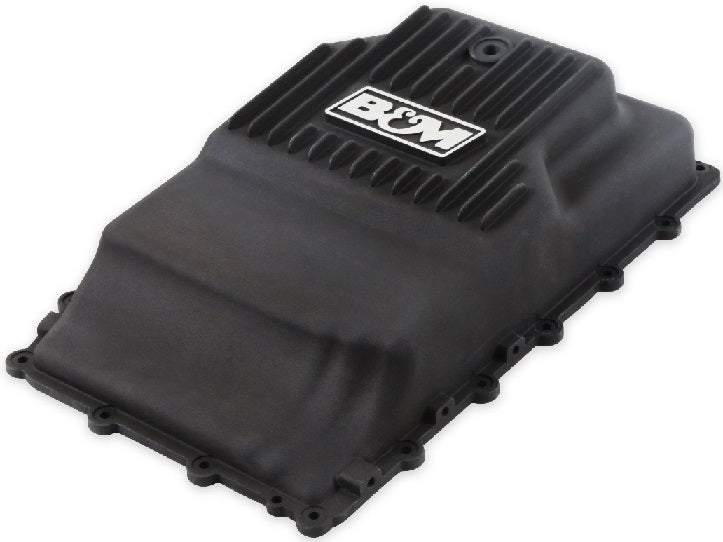

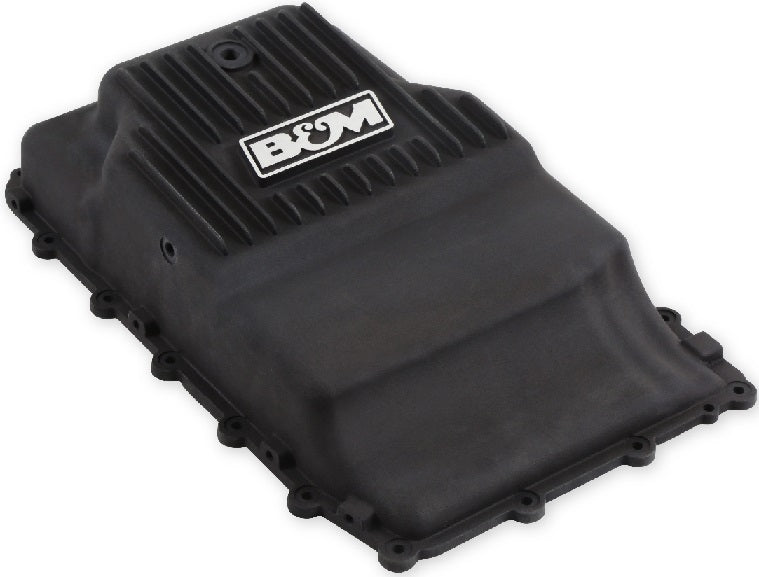

HI-TEK DEEP TRANS PAN,17-24 FORD,10R80,10R60,ALUM,BLACK

BRAND NEW B&M HI-TEK HEAVY DUTY DEEP TRANSMISSION PAN, BLACK ANODIZED FINISH, COMPATIBLE WITH FORD & LINCOLN 10R80 OR 10R60 TRANSMISSIONS

OUR HI-TEK DEEP TRANSMISSION PANS ARE CONSTRUCTED FROM A356-T6 ALUMINUM AND ARE CAST WITH THICK INTERNAL AND EXTERNAL FINS, ADDING ADDITIONAL STRENGTH AND INCREASED COOLING PROPERTIES. THE DEEP PAN DESIGN INCREASES FLUID CAPACITY BY 2 QUARTS OVER THE STOCK O.E. PAN. ALL THESE FEATURES COMBINED HELP DISSIPATE HEAT QUICKER NETTING LOWER TRANSMISSION AND FLUID TEMPERATURES AND PROLONGING THE LIFE OF YOUR TRANSMISSION, TRANSMISSION FLUID, AND CORRESPONDING COMPONENTS.

OTHER FEATURES OF THIS POPULAR PAN INCLUDE A DRAIN PORT WITH A MAGNETIC DRAIN PLUG FOR CLEAN AND EASY SERVICING. ALSO INCLUDES A 1/8-INCH NPT TEMPERATURE SENSOR PORT FOR EASILY ADDING A TEMP GAUGE FOR MONITORING TRANSMISSION TEMPERATURES WHILE DAILY DRIVING, TOWING, OR RACING. INCLUDES DETAILED INSTRUCTIONS WITH ALL NECESSARY HARDWARE FOR AN EASY AT-HOME INSTALLATION.

NOTE: PAN IS 4 5/8" DEEP AND WHILE IT WILL PHYSICALLY FIT CAR APPLICATIONS, IT WILL SIT ABOUT FLUSH WITH THE BELLHOUSING DEPTH WISE AND COULD CAUSE ISSUES WITH ROAD DEBRIS AND OTHER HAZARDS (SPEED BUMPS, ETC.), ESPECIALLY ON LOWERED VEHICLES.

NOTE: 10R80 TRANSMISSIONS DO NOT COME WITH A DIPSTICK FROM THE FACTORY TO CHECK THE FLUID LEVEL. B&M OFFERS AN OPTIONAL LOCKING DIPSTICK PART #22200 TO MEASURE TRANSMISSION FLUID LEVEL.

COMPATIBLE WITH:

• FORD:
• 2017-2023 F-150
• 2017-2023 EXPEDITION
• 2021-2023 BRONCO
• 2020-2023 EXPLORER
• 2019-2023 RANGER
• LINCOLN:
• 2018-2023 NAVIGATOR
• 2020-2023 AVIATOR

FEATURES:

• DRAIN PORT WITH MAGNETIC DRAIN PLUG FOR EASY SERVICING
• DURABLE A356 ALUMINUM CONSTRUCTION
• FEATURES A TEMPERATURE SENSOR PORT
• INCLUDES FILTER EXTENSION
• ADDITIONAL 2-QUART FLUID CAPACITY
• OVER 65 YEARS OF B&M EXPERIENCE AND QUALITY
• INCREASED COOLING PROPERTIES
• HARDWARE INCLUDED
• EASY INSTALLATION

SPECS:

• ADDITIONAL FLUID CAPACITY: 2 QUARTS
• BOLT COUNT: 21
• BOLT/STUDS INCLUDED: YES
• BRAND: B&M
• COLOR/FINISH: BLACK ANODIZED
• DRAIN PLUG INCLUDED: YES
• DRAIN PLUG TYPE: MAGNETIC
• FILLER PLUG INCLUDED: NO
• GASKET INCLUDED: NO
• PRODUCT TYPE: AUTOMATIC TRANSMISSION PANS
• TEMP SENSOR PORT: YES
• TRANSMISSION: 10R80

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS TRANSMISSION PAN HERE.
