CONVERTER,GM84-96,700R4/4L60/4L60E,18-22

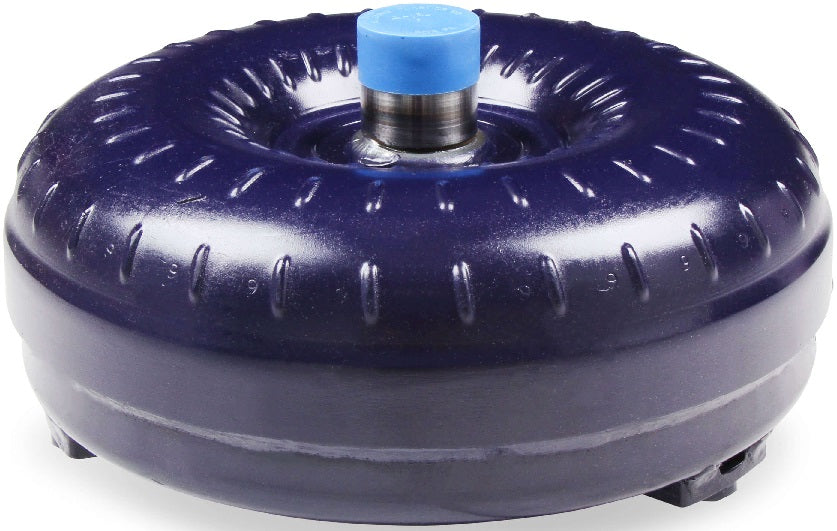

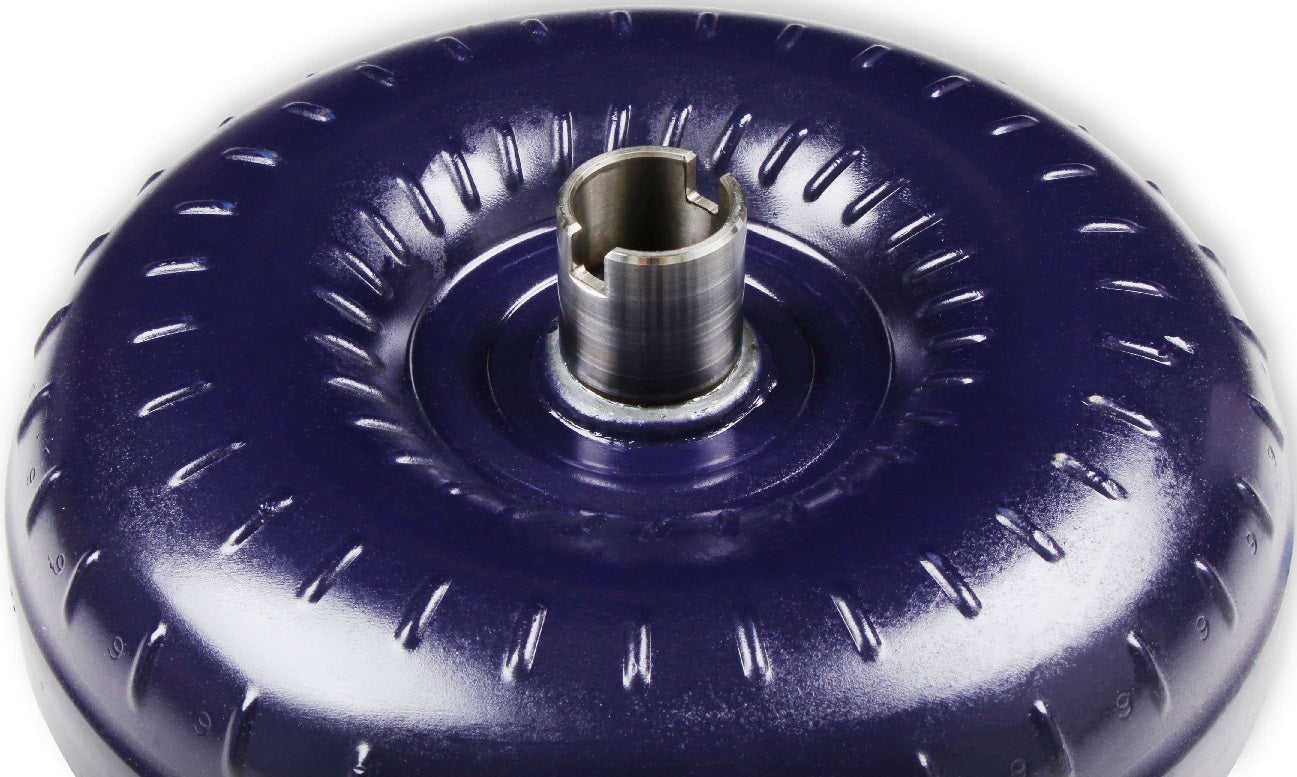

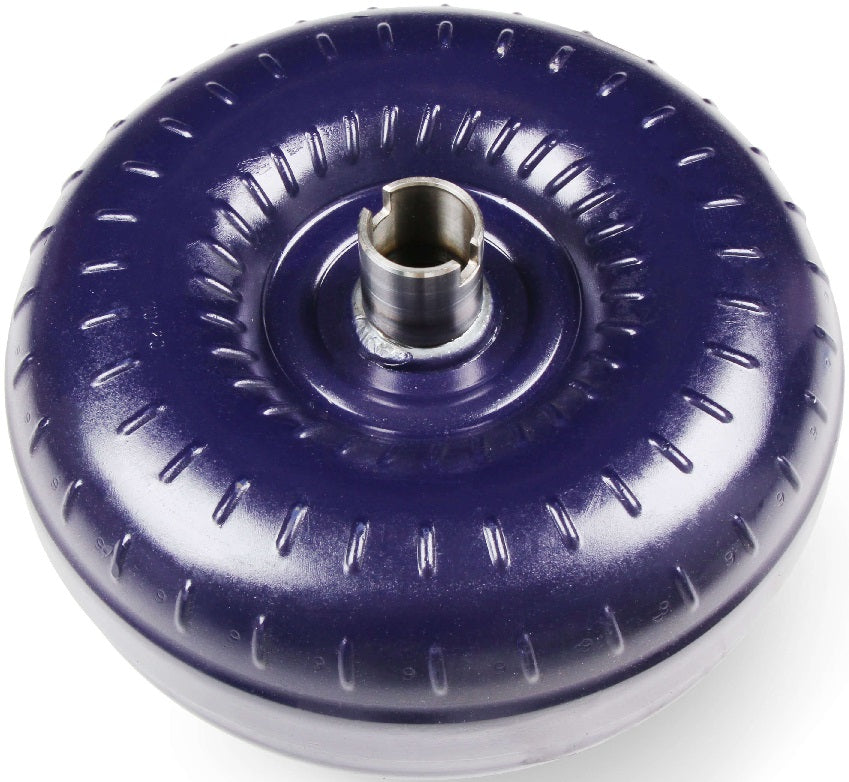

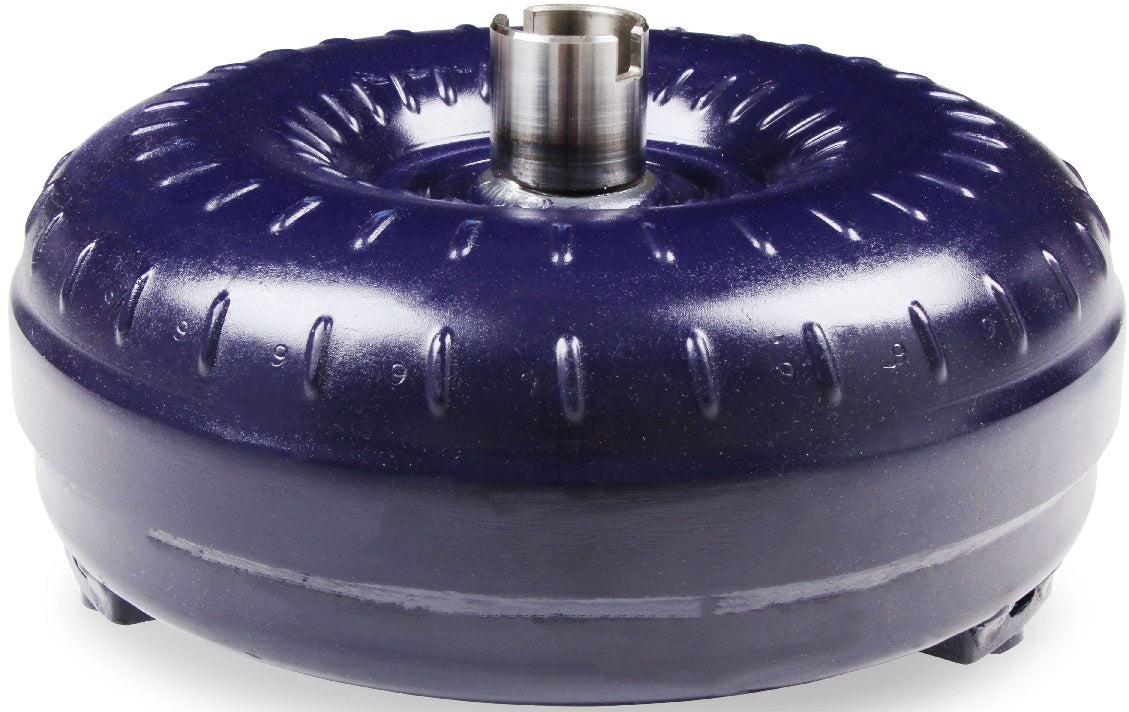

BRAND NEW B&M TORK MASTER 2000 TORQUE CONVERTER, 30 SPLINE INPUT, 10.75" BOLT CIRCLE, COMPATIBLE WITH 1984-1996 GM TH700R4/4L60/4L60E TRANSMISSIONS

TORK MASTER 2000 FITS 1984-1993 GM TH700R4/4L60 WITH 30 SPLINE INPUT & 1993-1996 4L60E WITH 30 SPLINE INPUT & 1997-2004 CORVETTE TRANSMISSIONS. THESE CONVERTERS PERFORM BEST WHEN PAIRED WITH STOCK TO MODIFIED ENGINES UP TO 350HP/350 FT LBS OF TORQUE & LIGHTER WEIGHT APPLICATIONS, LIKE STREET RODS.

TORK MASTER WILL PROVIDE NOTICEABLY QUICKER LAUNCHES & HARDER ACCELERATION WHILE MAINTAINING NORMAL DAILY DRIVING QUALITIES. UPGRADES LIKE A NEW PRECISION ALLOY STEEL PUMP DRIVE TUBE, NEEDLE THRUST BEARING WHEN FACTORY EQUIPPED, NEW THRUST WASHER BETWEEN TURBINE & COVER WHEN REQUIRED & PRESSURE TESTED/FULLY BALANCED.

NOTE: HIGHER STALL CONVERTERS CAN GENERATE MORE HEAT, IT IS RECOMMENDED TO ADD A TRANSMISSION COOLER. NOT RECOMMENDED FOR BIG BLOCK, SUPERCHARGED, PLATE-TYPE NITROUS OXIDE OR TRANS-BRAKE APPLICATIONS. PRODUCT IMAGES SHOWN ARE FOR ILLUSTRATION PURPOSES ONLY & MAY NOT BE AN EXACT REPRESENTATION OF THE PRODUCT.

NOTE: COMPATIBLE WITH 1993-1996 GM TH700R4 AUTO TRANSMISSION & ACCEPTS A 30 SPLINED SHAFT. ALSO COMPATIBLE WITH 1984-1993 4L60E AUTO TRANSMISSION & ACCEPTS A 30 SPLINED SHAFT.

FEATURES:

• NEW NEEDLE THRUST BEARING WHEN FACTORY EQUIPPED
• QUICKER LAUNCHES & HARDER ACCELERATION
• NEW PRECISION ALLOY STEEL PUMP TUBE
• FULLY BALANCED & PRESSURE TESTED

SPECS:

• ADDITIONAL CONTENTS: NEW NEEDLE BEARING & THRUST WASHER
• FLEXPLATE CHANGE NEEDED: NO
• FURNACE BRAZED: NO
• INDICATOR LIGHT: NO
• INPUT SHAFT SPLINE COUNT: 30
• LOCKUP: YES
• MATERIAL: STEEL
• PRODUCT TYPE: AUTO TRANSMISSION TORQUE CONVERTER
• STALL TORQUE RATIO: 1900-2100 RPM STALL
• TRANSMISSION: 4L60 | 4L60E | 700R4

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS TORQUE CONVERTER HERE.
