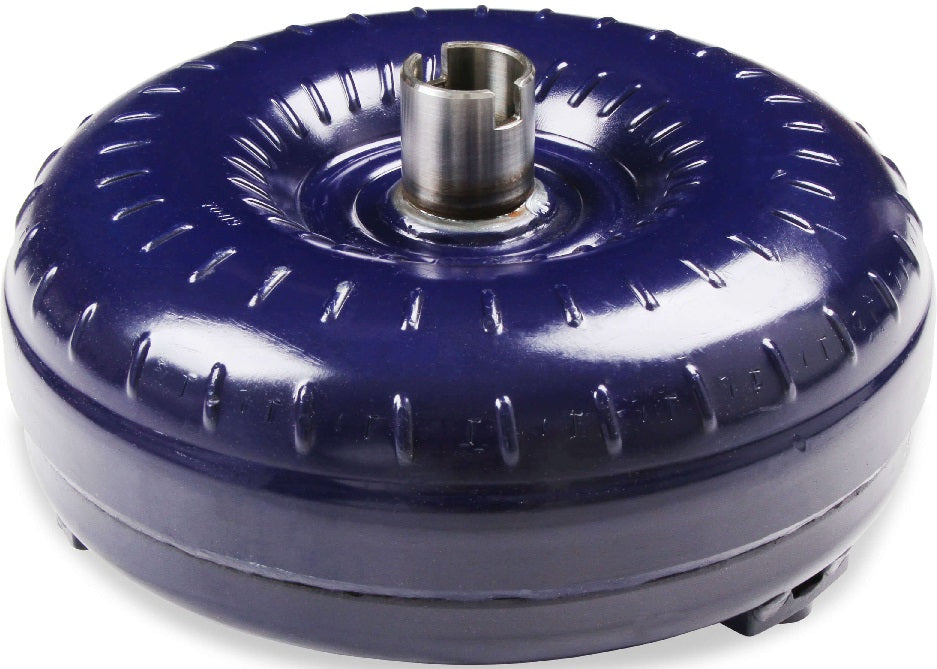

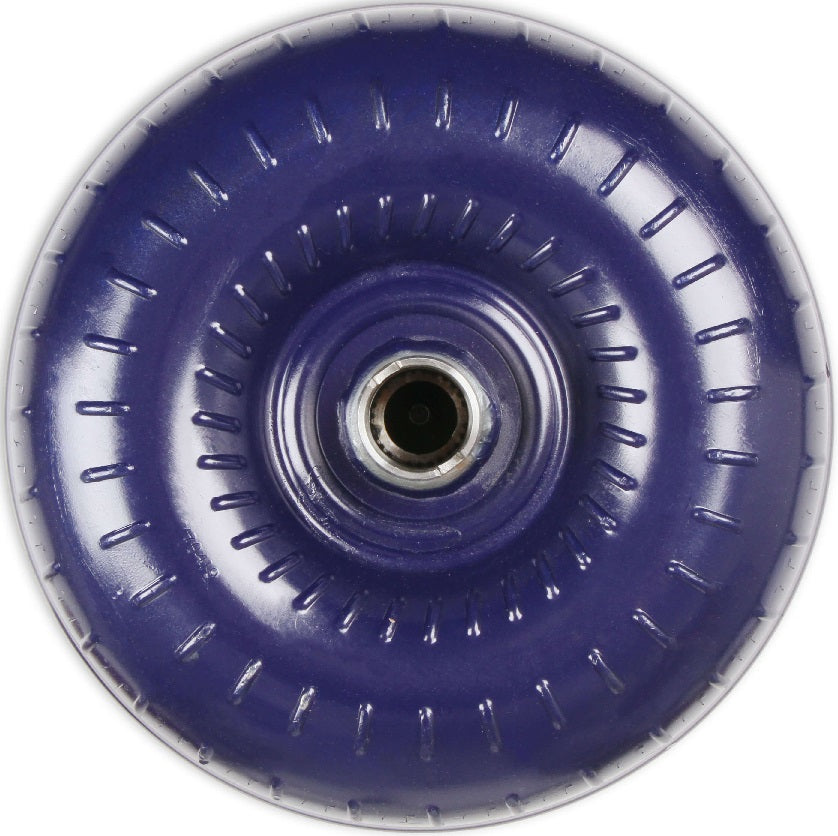

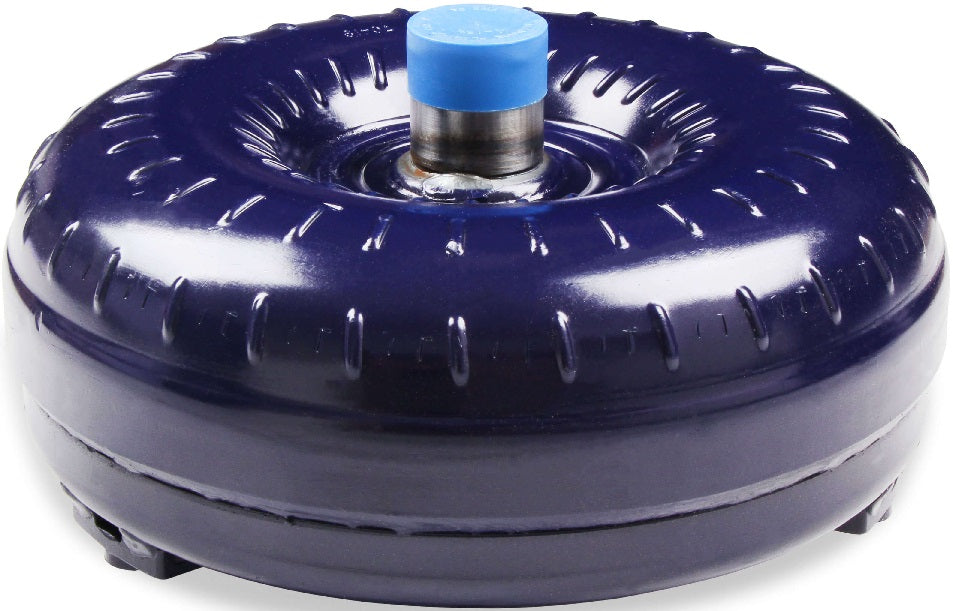

CONVERTER,GM84-93,700R4/4L60,22-26

BRAND NEW B&M HOLESHOT 2400 TORQUE CONVERTER, 30 SPLINE INPUT, 10.75" BOLT CIRCLE, COMPATIBLE WITH 1984-93 GM 700R4/4L60 & 1993-97 4L60E TRANSMISSIONS

HOLESHOT 2400 IS COMPATIBLE WITH 1984-93 GM 700R4/4L60 & 1993-97 4L60E WITH 30 SPLINE INPUT & 1997-04 CORVETTE TRANSMISSIONS. THIS CONVERTER RETAINS THE LOCKUP FEATURE. HOLESHOT TORQUE CONVERTERS ARE FOR SERIOUS-MINDED PERFORMANCE ENTHUSIASTS & OFFER ADDITIONAL STRENGTH & DURABILITY FEATURES NOT FOUND IN OUR TORK MASTER OR TRAVELER SERIES OF CONVERTERS.

HOLESHOT 2400 CONVERTER IS FOR VEHICLES WITH SOME PERFORMANCE ENGINE MODIFICATIONS, PARTICULARLY BIG CAMS THAT TEND TO REDUCE LOW-END POWER & TORQUE. THE HIGHER STALL SPEED OF THIS CONVERTER WILL LAUNCH THE CAR IN A HIGHER RPM RANGE WHERE MORE TORQUE IS READILY AVAILABLE, RESULTING IN QUICKER ACCELERATION. FEATURES FURNACE BRAZED IMPELLER FINS & TURBINE, NEW PRECISION ALLOY IMPELLER HUB & NEW HEAVY DUTY NEEDLE BEARINGS. FULLY BALANCED & PRESSURE TESTED.

NOTE: COMPATIBLE WITH 1993-1996 GM 4L60E & 1984-1993 TH700R4 AUTO TRANSMISSION & ACCEPTS A 30 SPLINED SHAFT.

NOTE: HIGHER STALL CONVERTERS CAN GENERATE MORE HEAT, SO WE HIGHLY RECOMMEND ADDING A TRANSMISSION COOLER. NOT RECOMMENDED FOR SUPERCHARGED, PLATE-TYPE NITROUS OXIDE OR TRANS-BRAKE APPLICATIONS. THE PRODUCT IMAGES SHOWN ARE FOR ILLUSTRATION PURPOSES ONLY & MAY NOT BE AN EXACT REPRESENTATION OF THE PRODUCT.

NOTE: NOT RECOMMENDED FOR SUPERCHARGED, PLATE-TYPE NITROUS OXIDE OR TRANS-BRAKE APPLICATIONS. THE PRODUCT IMAGES SHOWN ARE FOR ILLUSTRATION PURPOSES ONLY & MAY NOT BE AN EXACT REPRESENTATION OF THE PRODUCT. RETAINS LOCK-UP.

NOTE: STALL SPEED LISTINGS ARE BASED ON ENGINES PRODUCING 230LB. FT. OF TORQUE AT 2,500 RPM. MORE TORQUE AT 2,500 RPM WILL GIVE YOU MORE STALL SPEED, LESS TORQUE AT 2,500 RPM WILL GIVE YOU LESS STALL SPEED THAN THE STALL SPEED RATINGS INDICATED. HIGHER STALL CONVERTERS CAN GENERATE MORE HEAT, SO WE HIGHLY RECOMMEND ADDING A TRANSMISSION COOLER.

FEATURES:

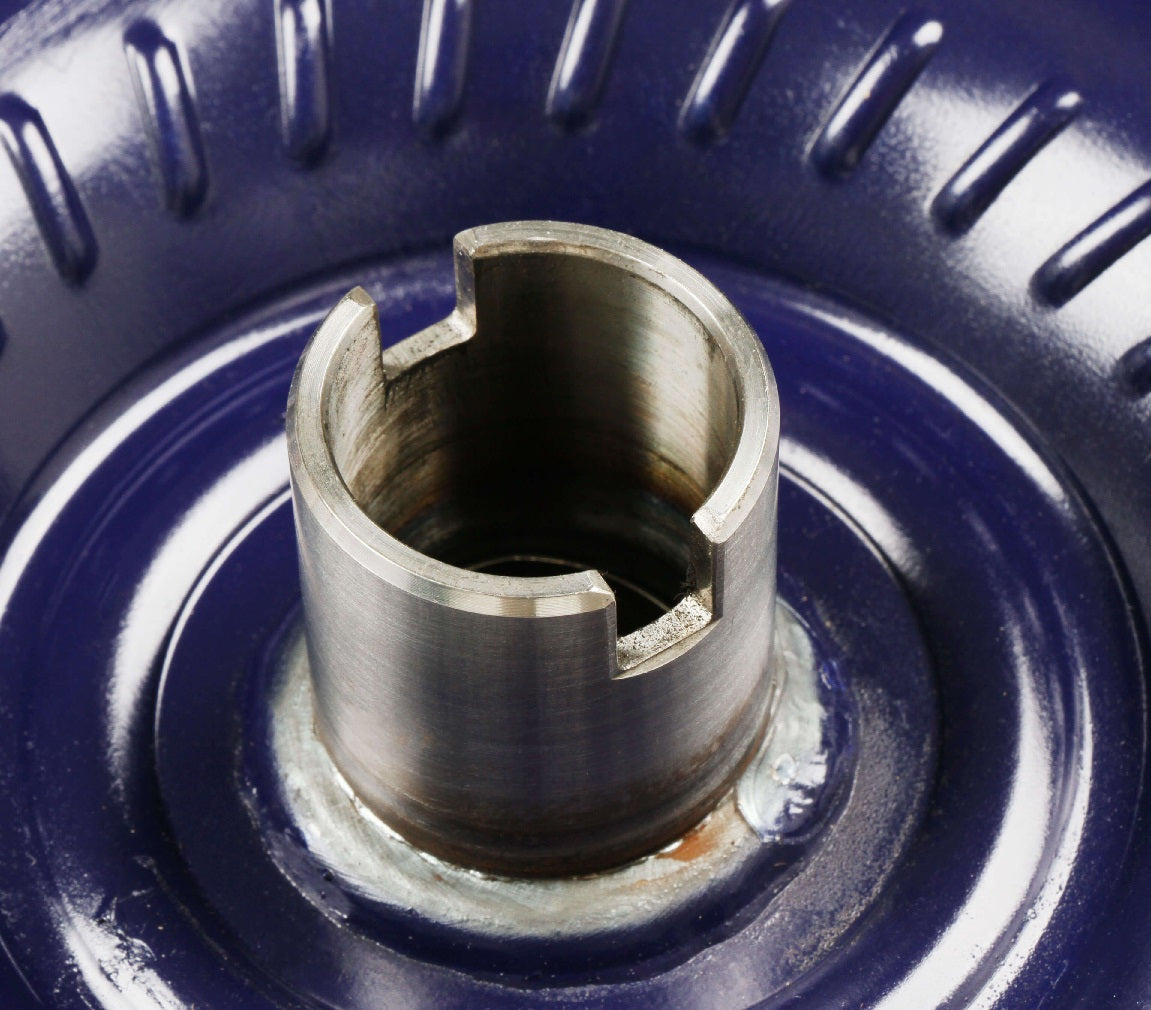

• NEW PRECISION ALLOY STEEL PUMP TUBE
• FULLY BALANCED & PRESSURE TESTED
• COPPER FURNACE BRAZED IMPELLER & TURBINE

SPECS:

• ADDITIONAL CONTENTS: NEW NEEDLE BEARINGS
• FURNACE BRAZED: YES
• INDICATOR LIGHT: NO
• INPUT SHAFT SPLINE COUNT: 30
• MATERIAL: STEEL
• PRODUCT TYPE: AUTO TRANSMISSION TORQUE CONVERTER
• STALL TORQUE RATIO: 2300-2500 RPM STALL
• TRANSMISSION: 4L60 | 4L60E | 700R4

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS TORQUE CONVERTER HERE.
