CONVERTER,GM84-96,700R4/4L60/4L60E,22-26

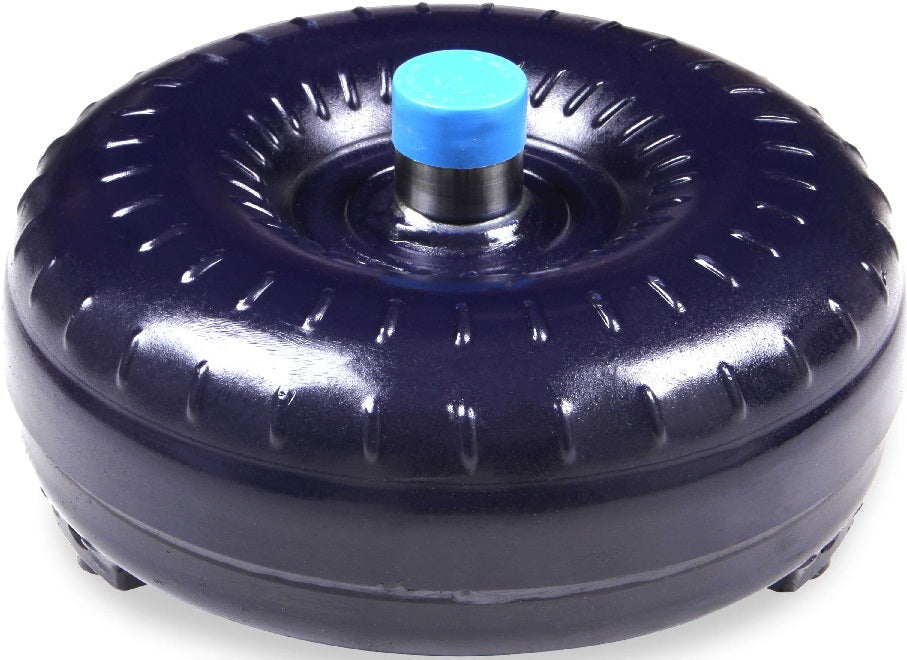

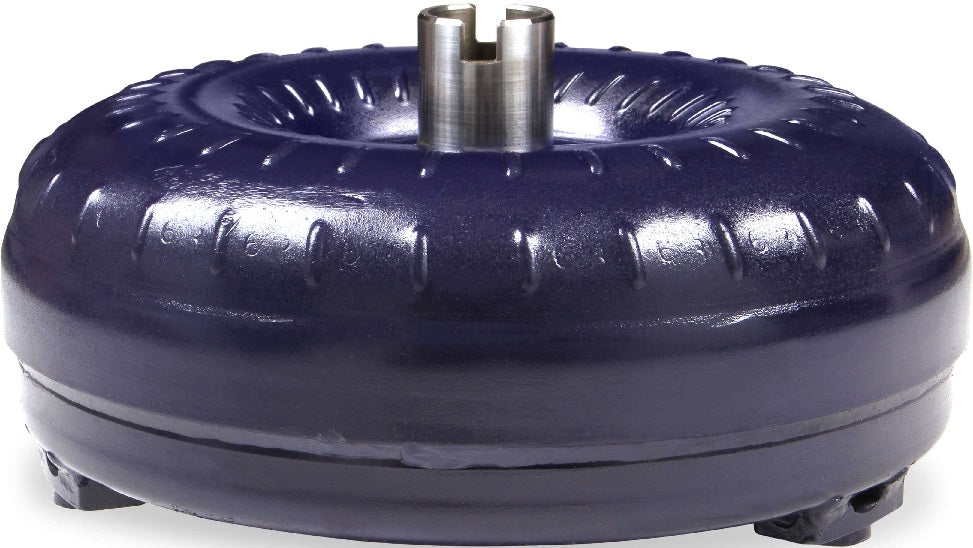

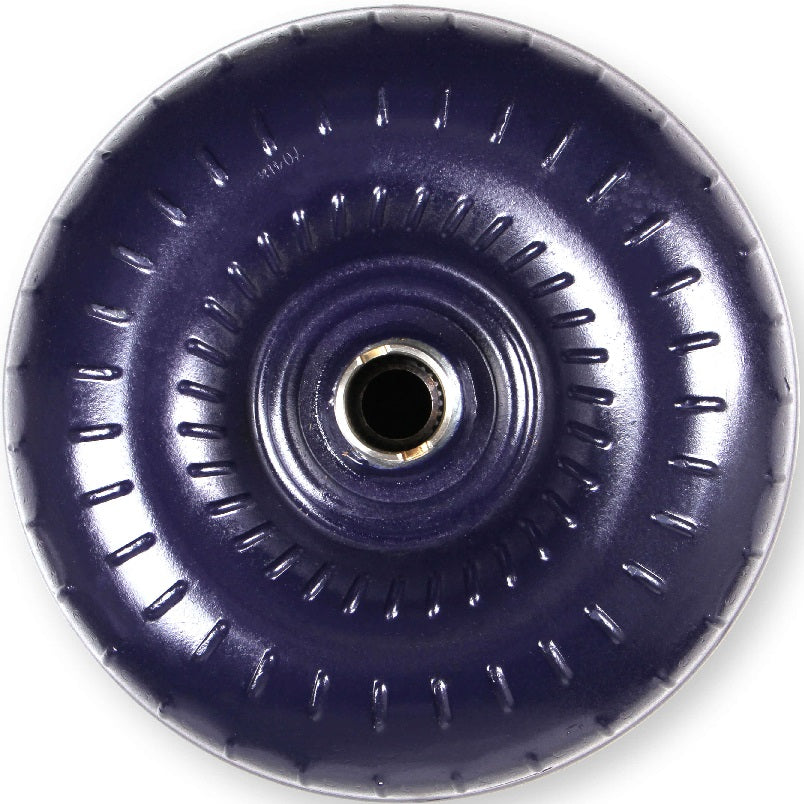

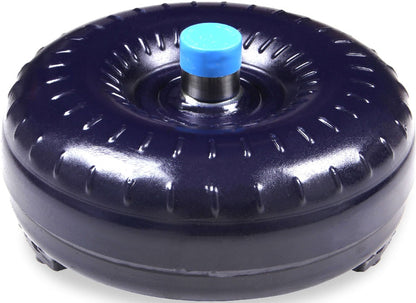

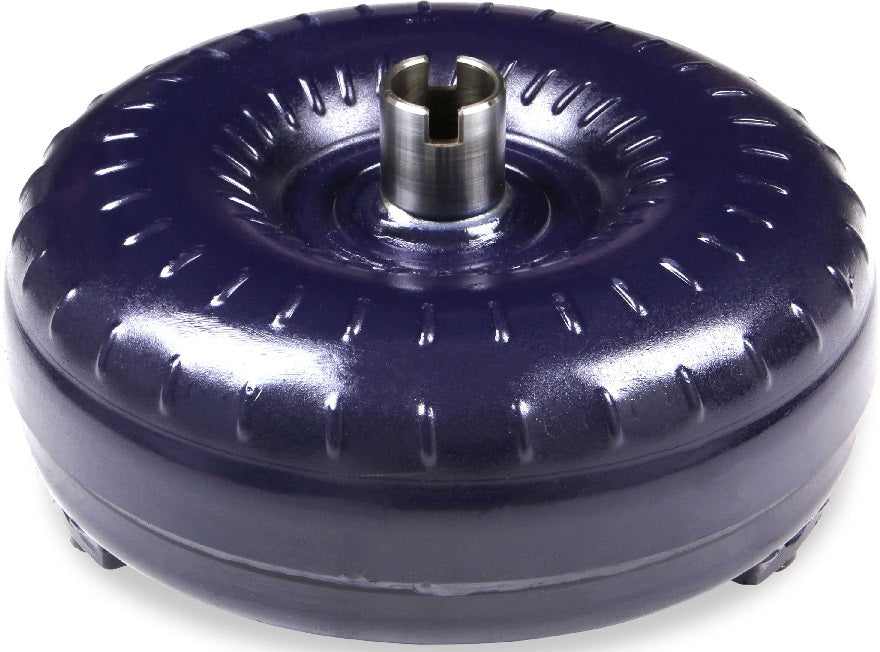

BRAND NEW B&M TORK MASTER 2400 TORQUE CONVERTER, 30 SPLINE INPUT, 10.75" BOLT CIRCLE, COMPATIBLE WITH 1984-1996 GM 700R4/4L60/4L60E TRANSMISSIONS

TORK MASTER 2400 IS COMPATIBLE WITH 1984-1993 GM 700R4/4L60 WITH 30 SPLINE INPUT, 1993-1996 4L60E WITH 30 SPLINE INPUT AND 1997-04 CORVETTE TRANSMISSIONS. THIS CONVERTER RETAINS THE LOCK-UP FEATURE.THESE CONVERTERS PERFORM BEST WHEN PAIRED WITH STOCK TO MODIFIED ENGINES UP TO 350HP/350 FT LBS OF TORQUE & LIGHTER WEIGHT APPLICATIONS, LIKE STREET RODS.

HIGHER STALL SPEED OF THIS CONVERTER WILL LAUNCH IN A HIGHER RPM RANGE WHERE MORE TORQUE IS READILY AVAILABLE GIVING QUICKER ACCELERATION. FEATURES INCLUDE FURNACE BRAZED IMPELLER FINS & TURBINE, NEW PRECISION ALLOY IMPELLER HUB & NEW HEAVY DUTY NEEDLE BEARINGS. FULLY BALANCED & PRESSURE TESTED BY EXPERT TECHNICIANS. IF YOUR VEHICLE IS EQUIPPED WITH A PLATE TYPE NITROUS SYSTEM OR SUPERCHARGER, REFER TO THE NITROUS HOLESHOT LINE OF CONVERTERS.

NOTE: COMPATIBLE WITH 1993-1996 GM 4L60E & 1984-1993 TH700R4 AUTO TRANSMISSION & ACCEPTS A 30 SPLINED SHAFT.

NOTE: HIGHER STALL CONVERTERS CAN GENERATE MORE HEAT, SO WE HIGHLY RECOMMEND ADDING A TRANSMISSION COOLER. NOT RECOMMENDED FOR SUPERCHARGED, PLATE-TYPE NITROUS OXIDE OR TRANS-BRAKE APPLICATIONS. THE PRODUCT IMAGES SHOWN ARE FOR ILLUSTRATION PURPOSES ONLY & MAY NOT BE AN EXACT REPRESENTATION OF THE PRODUCT.

FEATURES:

• NEW NEEDLE THRUST BEARING WHEN FACTORY EQUIPPED
• QUICKER LAUNCHES & HARDER ACCELERATION
• NEW PRECISION ALLOY STEEL PUMP TUBE
• FULLY BALANCED & PRESSURE TESTED

SPECS:

• ADDITIONAL CONTENTS: NEW NEEDLE BEARING & THRUST WASHER
• INDICATOR LIGHT: NO
• INPUT SHAFT SPLINE COUNT: 30
• MATERIAL: STEEL
• PRODUCT TYPE: AUTO TRANSMISSION TORQUE CONVERTER
• STALL TORQUE RATIO: 2300-2500 RPM STALL
• TRANSMISSION: 4L60 | 4L60E | 700R4

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS TORQUE CONVERTER HERE.
