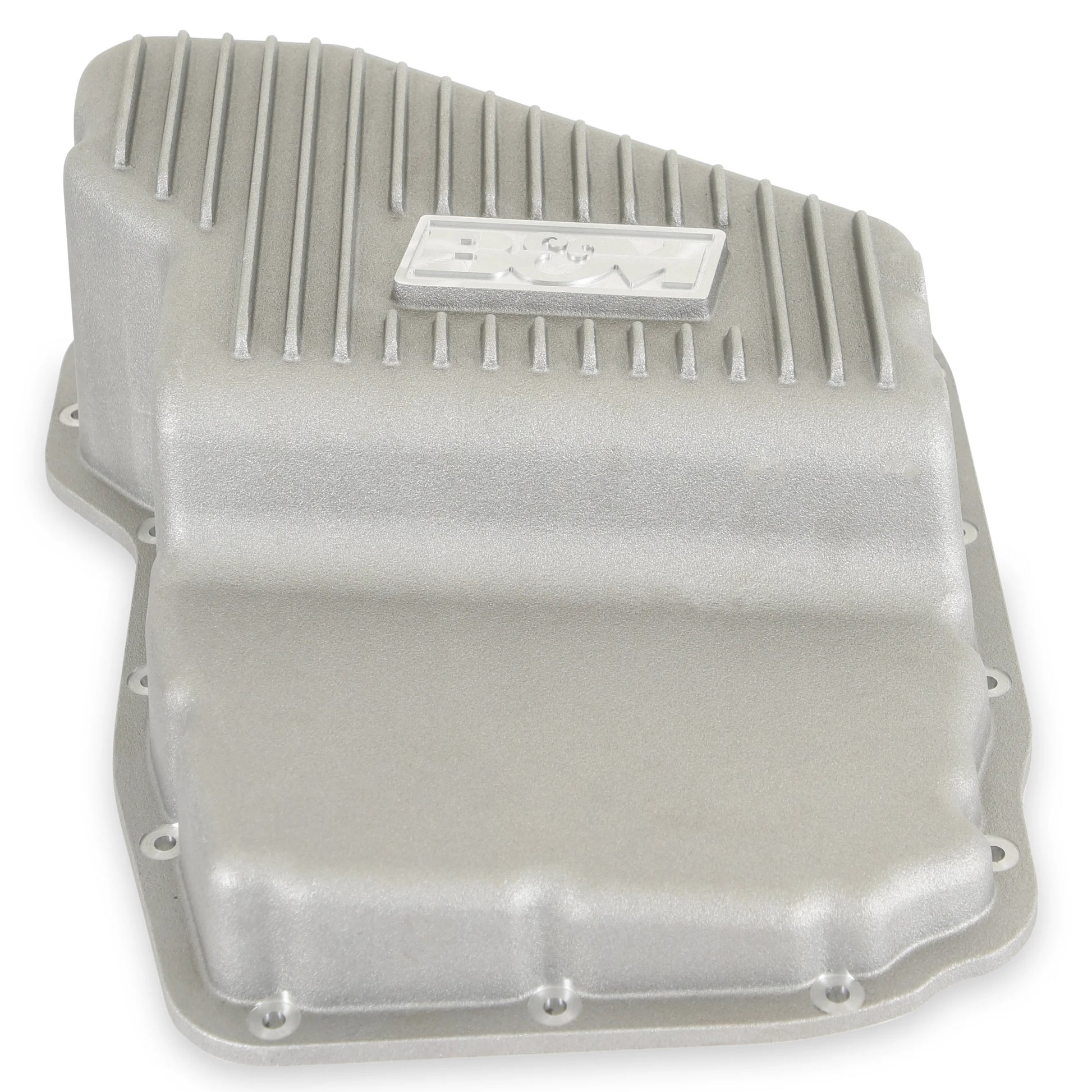

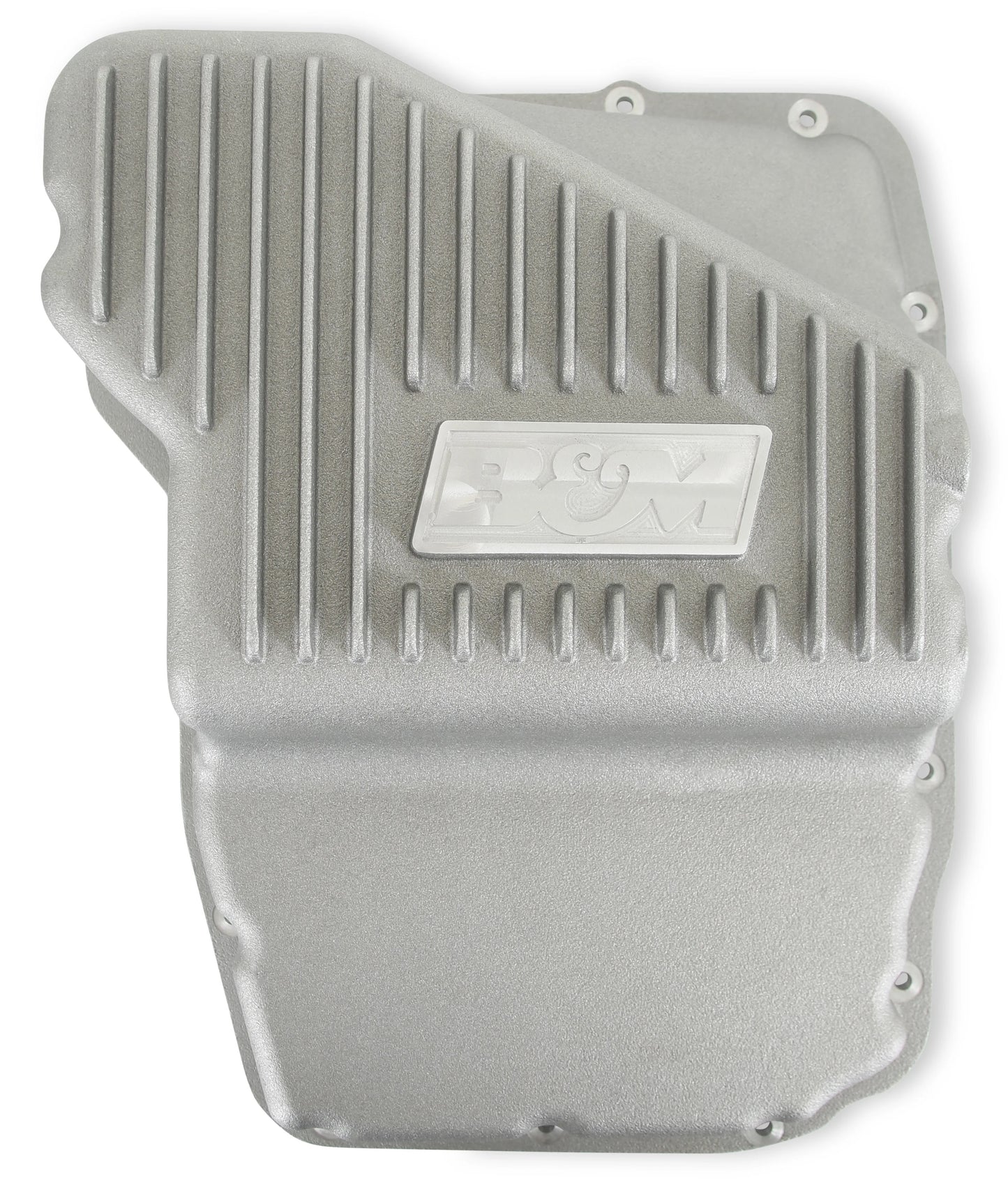

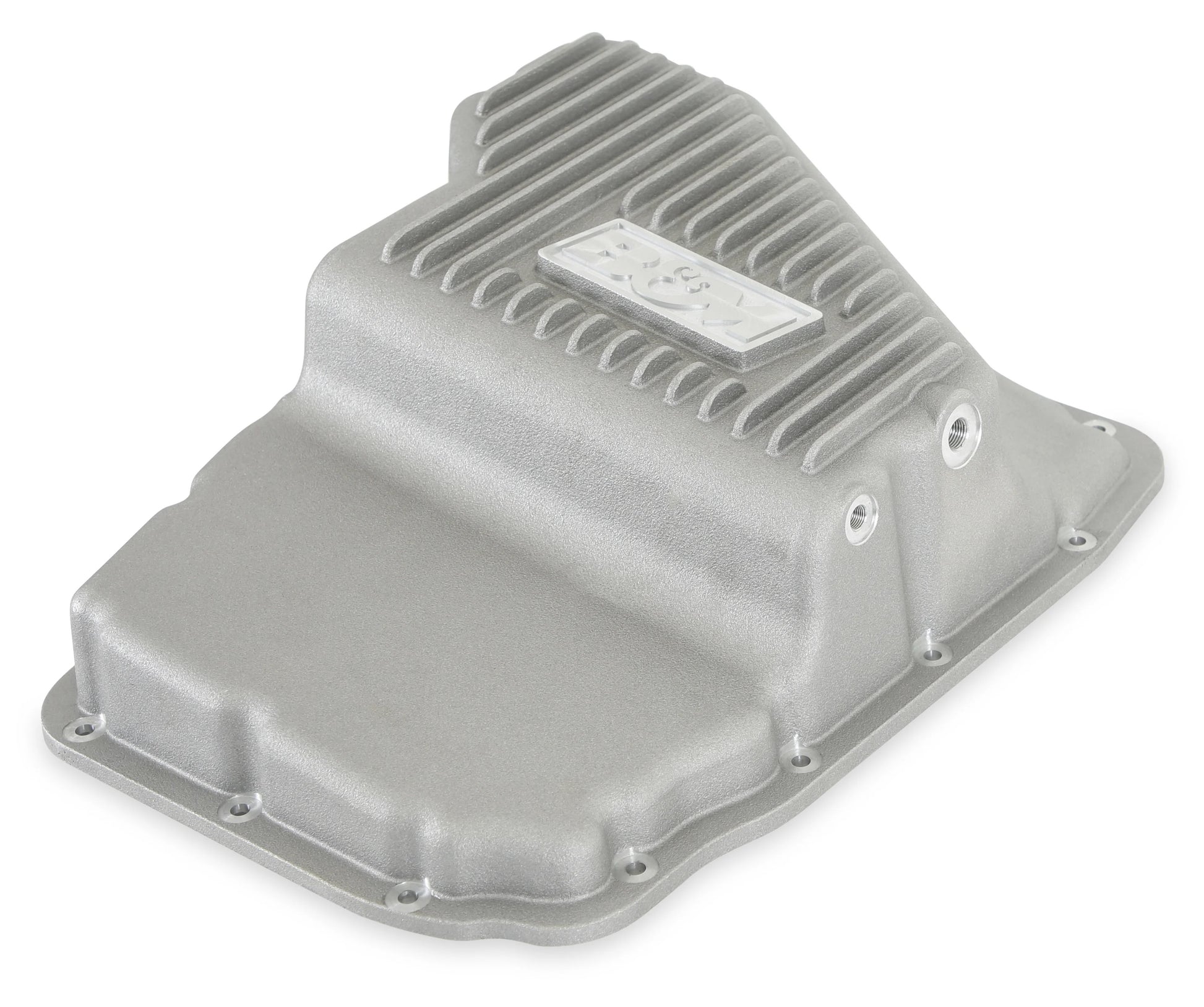

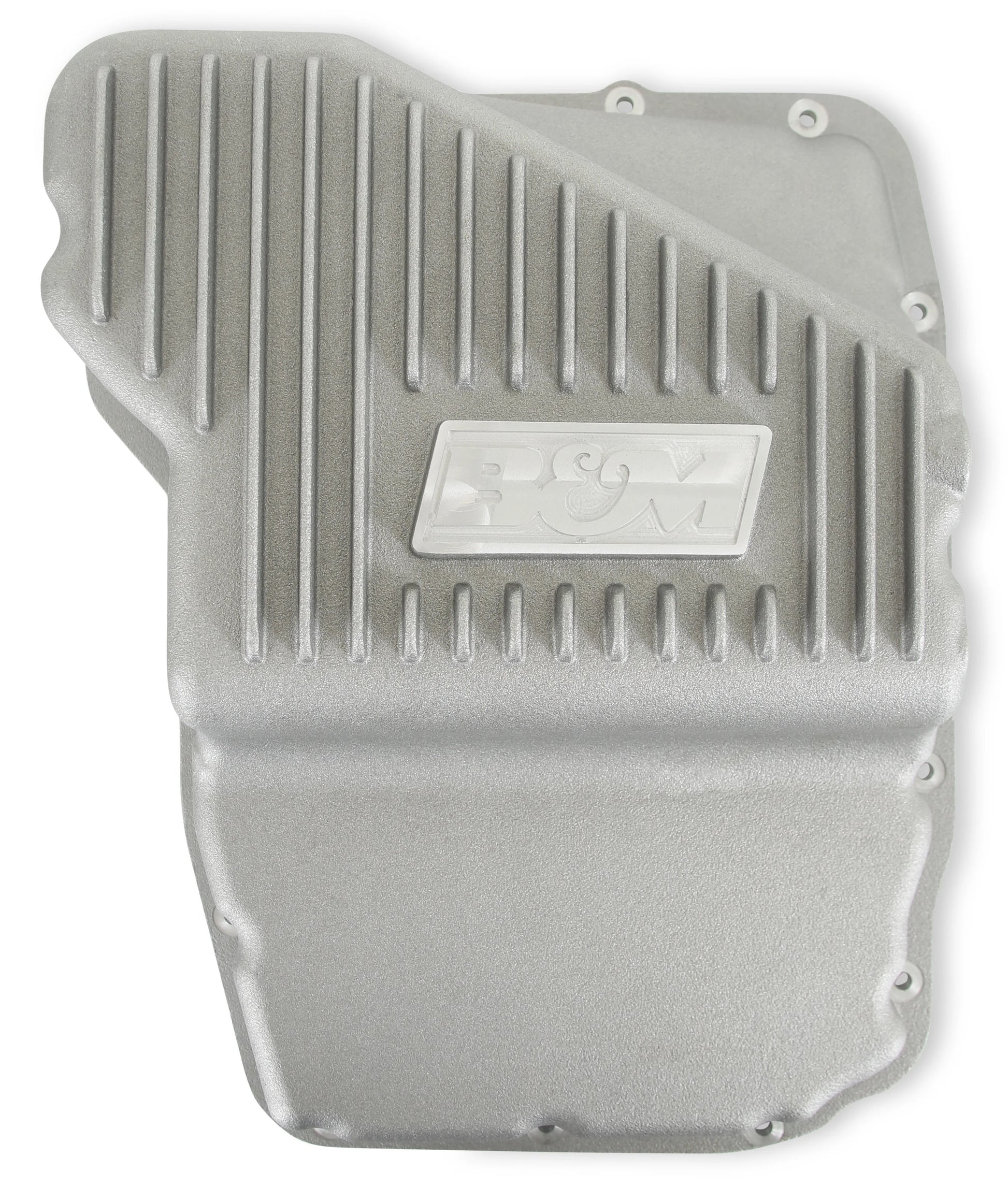

HI-TEK TRANSMISSION PAN,ALUMINUM,03-24 MOPAR SUV/TRUCK,545RFE/66RFE

Brand New B&M Hi-Tek Aluminum Deep Transmission Pan for 2003-2024 Mopar SUV and Trucks Equipped with 545RFE or 66RFE Automatic Transmission (Part #70402).

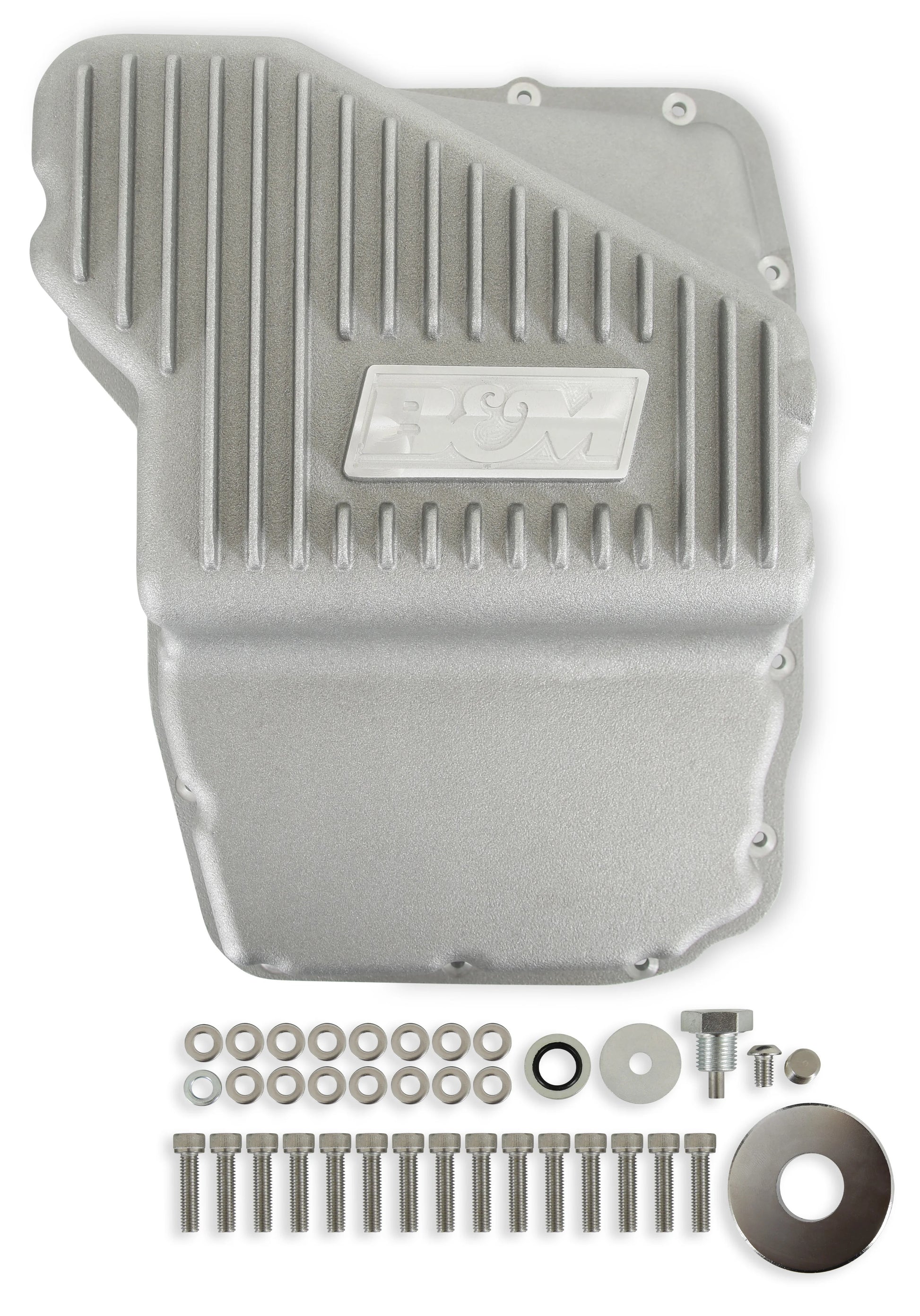

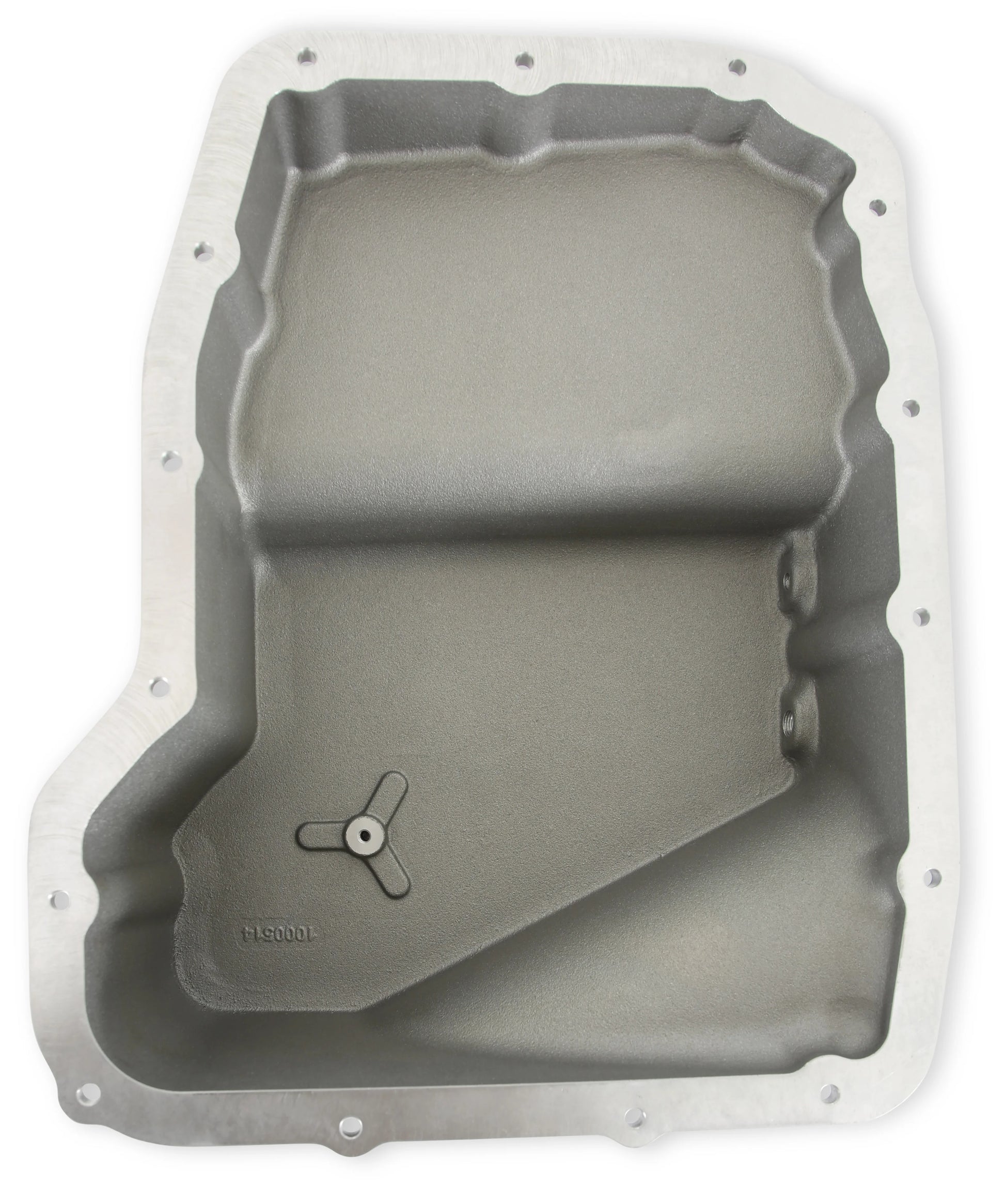

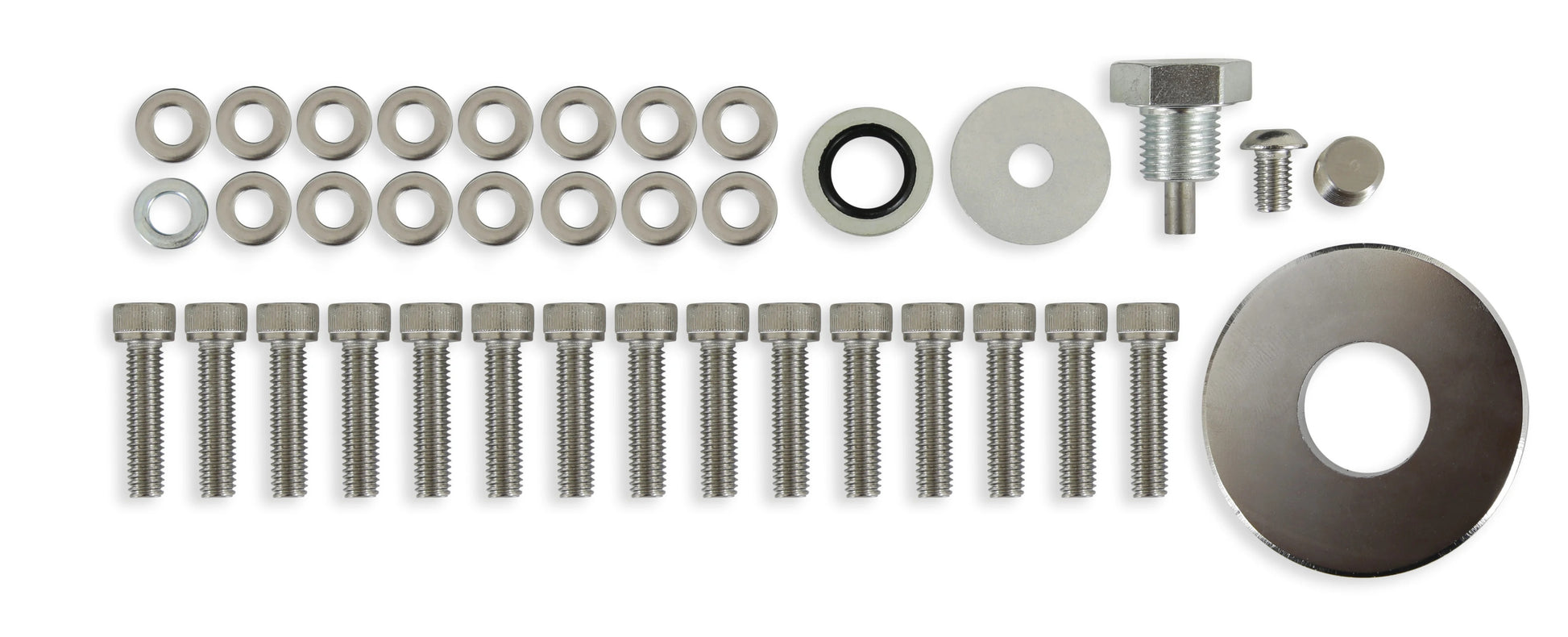

Hi-Tek deep transmission pans are constructed from A356-T6 aluminum and are cast with thick internal and external fins, adding additional strength and increased cooling properties. The deep pan design increases fluid capacity by 2 quarts over the stock O.E. pan. All these features combined help dissipate heat quicker netting lower transmission and fluid temperatures and prolonging the life of your transmission, transmission fluid, and corresponding components. Other features of this popular pan include a drain port with a magnetic drain plug for clean and easy servicing. Also includes a 1/8-inch NPT temperature sensor port for easily adding a temp gauge for monitoring transmission temperatures while daily driving, towing, or racing. Includes detailed instructions with all necessary hardware required for a DIY installation.

Features:

• Adds 2 additional quarts of fluid capacity

• Internal and external fins design increases cooling performance

• Drain port and magnetic drain plug included to corral ferrous metal particles

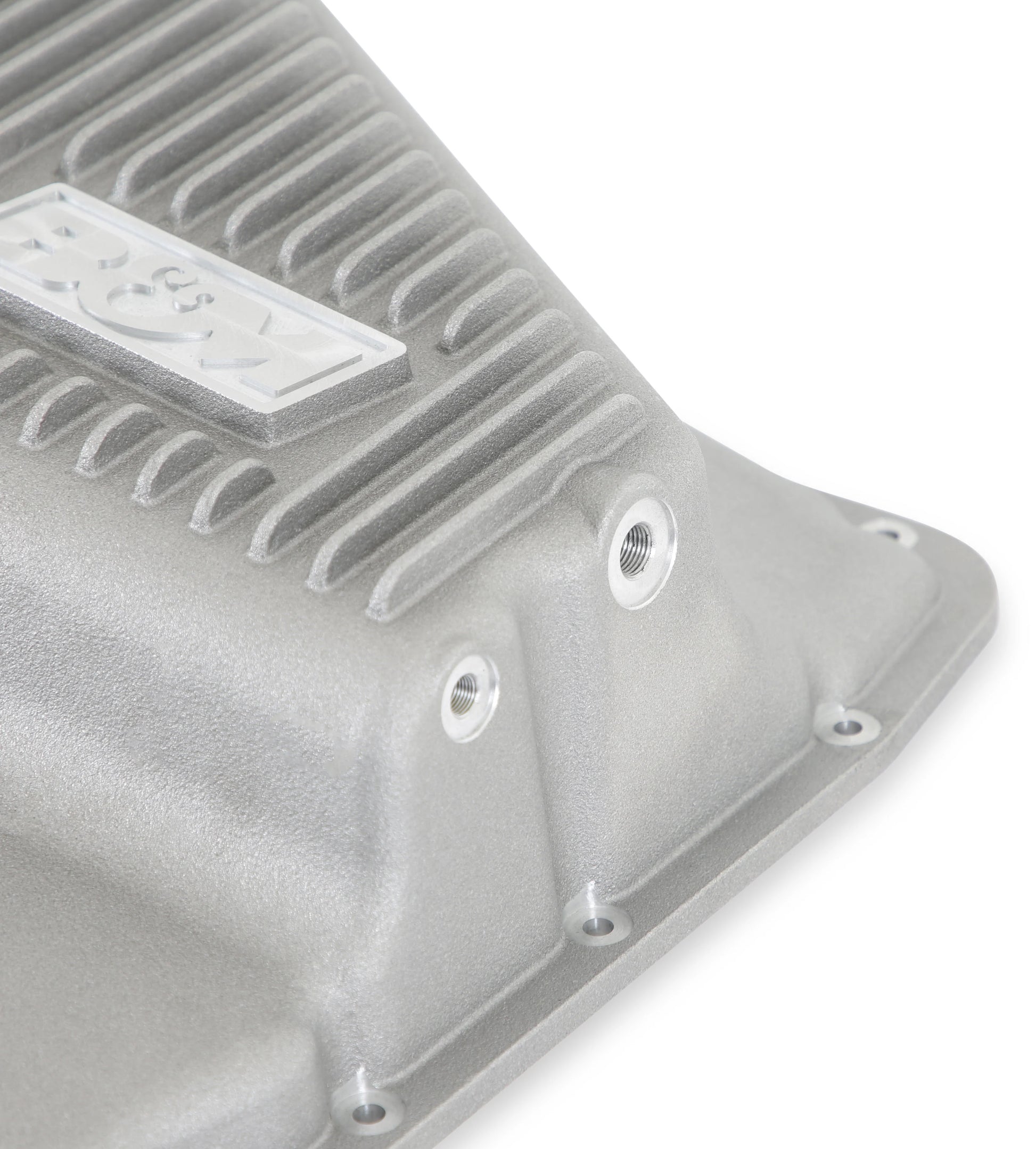

• Includes temperature sensor port

Specs:

• Brand: B&M

• Capacity: 15 QT
• Color: Aluminum
• Drain Plug Kit: Yes

• Drain Plug Type: Magnetic
• Material: Cast Aluminum

• Mounting Hardware Included: Yes

• Oil Pan Gaskets Included: No

• Product Type: Automatic Transmission Pan

• Style: Deep
• Temp Sensor Port: Yes

• Temperature Sensor Bung: Yes
• Transmission: 66RFE, MOPAR 545RFE

• Transmission Filter Included: No

• Transmission Type: Automatic

You can view and download the instruction booklet here.
