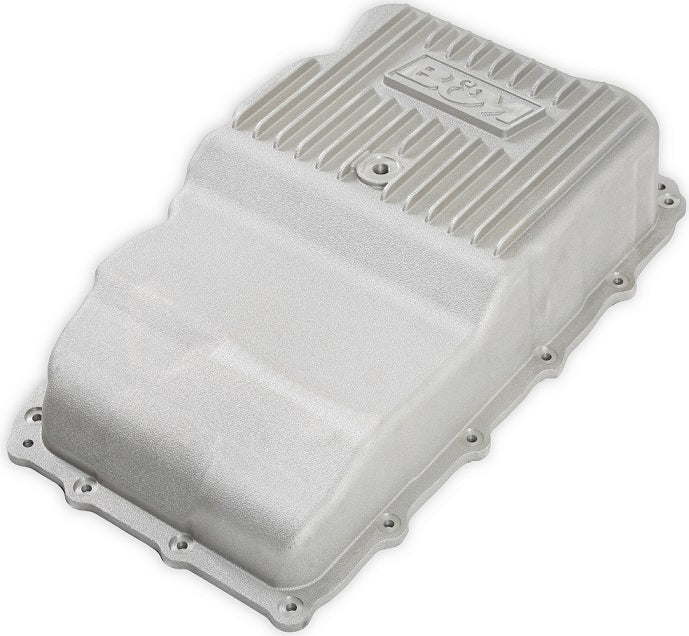

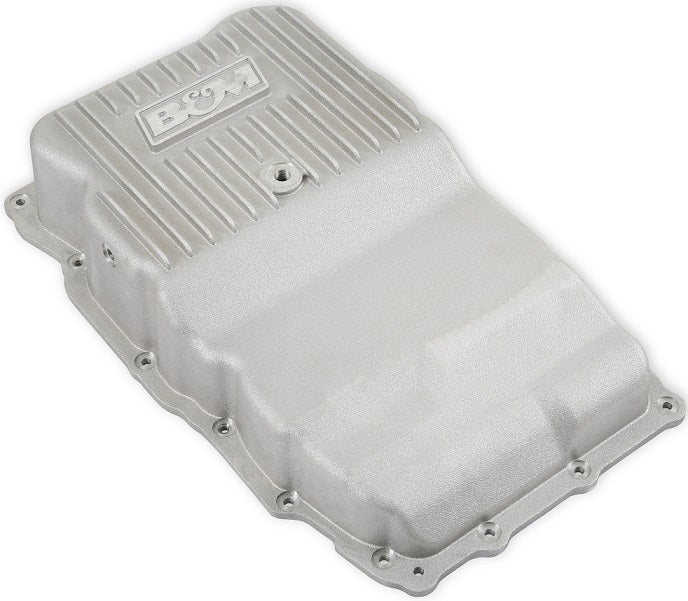

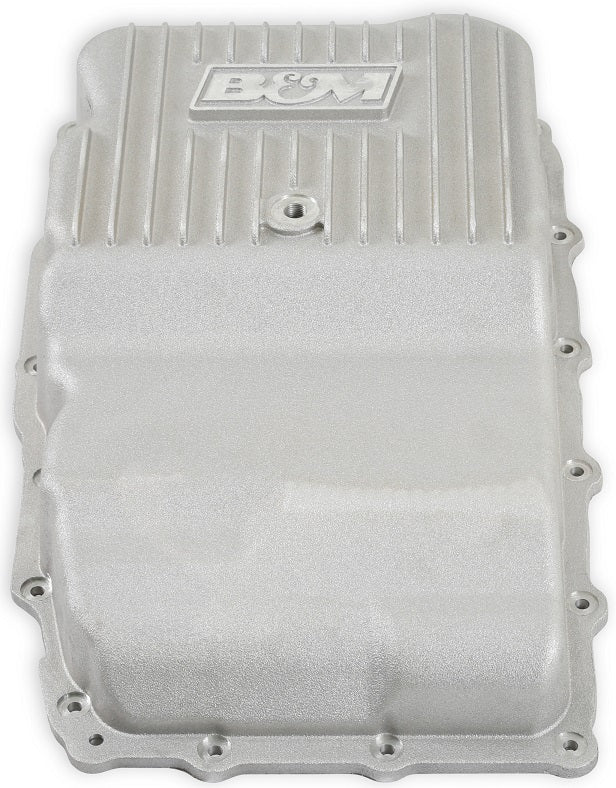

HI-TEK DEEP TRANSMISSION PAN,17-23 GM TRUCKS & SUV,10L80

BRAND NEW B&M HI-TEK HEAVY DUTY DEEP TRANSMISSION PAN, NATURAL ALUMINUM FINISH, COMPATIBLE WITH 2017-2023 GM 10L80 TRANSMISSIONS

OUR HI-TEK DEEP TRANSMISSION PANS ARE CONSTRUCTED FROM A356-T6 ALUMINUM AND ARE CAST WITH THICK INTERNAL AND EXTERNAL FINS, ADDING ADDITIONAL STRENGTH AND INCREASED COOLING PROPERTIES. THE DEEP PAN DESIGN INCREASES FLUID CAPACITY BY 2 QUARTS OVER THE STOCK O.E. PAN. ALL THESE FEATURES COMBINED HELP DISSIPATE HEAT QUICKER NETTING LOWER TRANSMISSION AND FLUID TEMPERATURES AND PROLONGING THE LIFE OF YOUR TRANSMISSION, TRANSMISSION FLUID, AND CORRESPONDING COMPONENTS.

OTHER FEATURES OF THIS POPULAR PAN INCLUDE A DRAIN PORT WITH A MAGNETIC DRAIN PLUG FOR CLEAN AND EASY SERVICING. ALSO INCLUDES A 1/8-INCH NPT TEMPERATURE SENSOR PORT FOR EASILY ADDING A TEMP GAUGE FOR MONITORING TRANSMISSION TEMPERATURES WHILE DAILY DRIVING, TOWING, OR RACING. INCLUDES DETAILED INSTRUCTIONS WITH ALL NECESSARY HARDWARE FOR AN EASY AT-HOME INSTALLATION.

NOTE: THE PAN IS DEEPER THAN THE FACTORY PAN AND WHILE IT WILL PHYSICALLY FIT CAR APPLICATIONS, INSTALLATION OF THIS PAN COULD CAUSE ISSUES WITH ROAD DEBRIS AND OTHER HAZARDS (SPEED BUMPS, ETC.), ESPECIALLY ON LOWERED VEHICLES

NOTE: 10R80 TRANSMISSIONS DO NOT COME WITH A DIPSTICK FROM THE FACTORY TO CHECK THE FLUID LEVEL. B&M OFFERS AN OPTIONAL LOCKING DIPSTICK PART #22200 TO MEASURE TRANSMISSION FLUID LEVEL.

COMPATIBLE WITH:

• CHEVROLET:
• 2019-2022 SILVERADO 1500
• 2022 SILVERADO 1500 LTD
• 2019-2023 SUBURBAN
• 2018-2023 TAHOE
• 2019-2022 CHEYENNE
• GMC:
• 2019-2022 SIERRA
• 2019-2023 SIERRA 1500
• 2022 SIERRA 1500 LTD
• 2018-2022 YUKON
• 2018-2023 YUKON XL
• CADILLAC:
• 2018-2023 ESCALADE
• 2018-2023 ESCALADE ESV

FEATURES:

• DRAIN PORT WITH MAGNETIC DRAIN PLUG FOR EASY SERVICING
• DURABLE A356 ALUMINUM CONSTRUCTION
• FEATURES A TEMPERATURE SENSOR PORT
• CUSTOM B&M LOGO CAST INTO THE PAN
• ADDITIONAL 2-QUART FLUID CAPACITY
• OVER 65 YEARS OF B&M EXPERIENCE & QUALITY
• FINNED DESIGN FOR INCREASED STRENGTH & COOLING

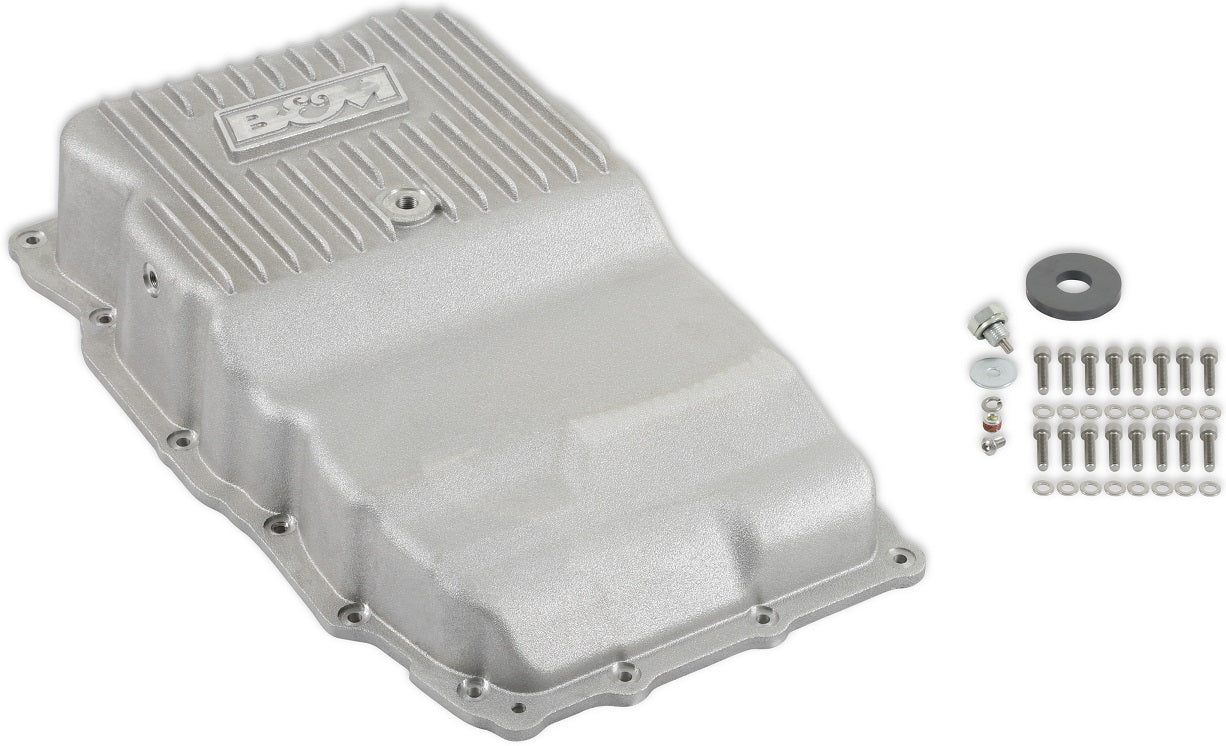

• HARDWARE INCLUDED
• EASY INSTALLATION

SPECS:

• ADDITIONAL FLUID CAPACITY: 2 QUARTS
• BOLT COUNT: 16
• BOLT/STUDS INCLUDED: YES
• BRAND: B&M
• COLOR/FINISH: NATURAL
• DRAIN PLUG INCLUDED: YES
• DRAIN PLUG TYPE: MAGNETIC
• FILLER PLUG INCLUDED: NO
• GASKET INCLUDED: NO
• PRODUCT TYPE: AUTOMATIC TRANSMISSION PANS
• TEMP SENSOR PORT: YES
• TRANSMISSION: 10L80

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS TRANSMISSION PAN HERE.
