HI TEK COOLING SYSTEM,MEDIUM

BRAND NEW HOLLEY B&M HI-TEK SUPERCOOLER AUTOMATIC TRANSMISSION FAN, MEDIUM, BLACK, 12 VOLT HIGH FLOW 350 CFM, 1/2" NPT INLET & OUTLET

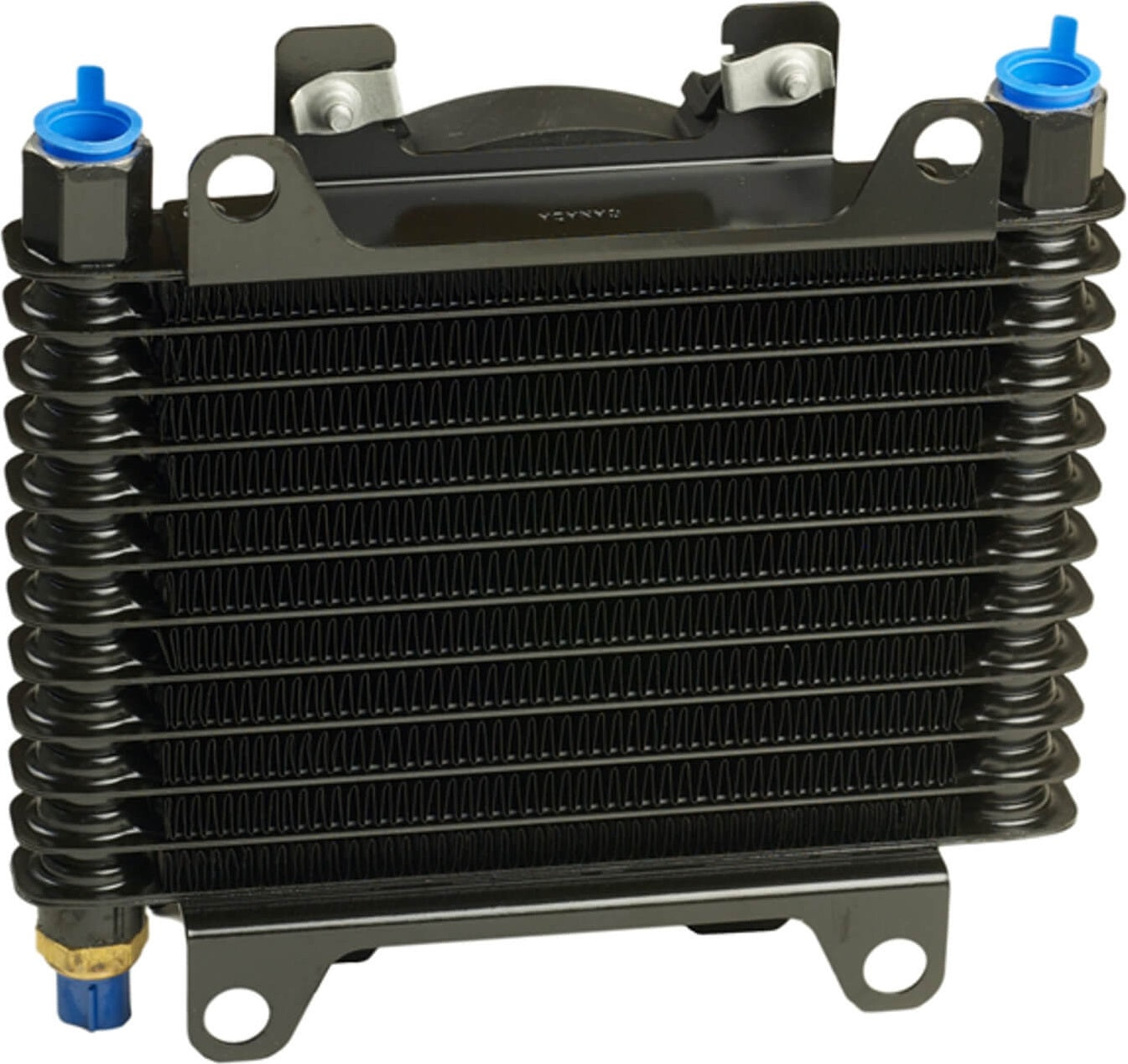

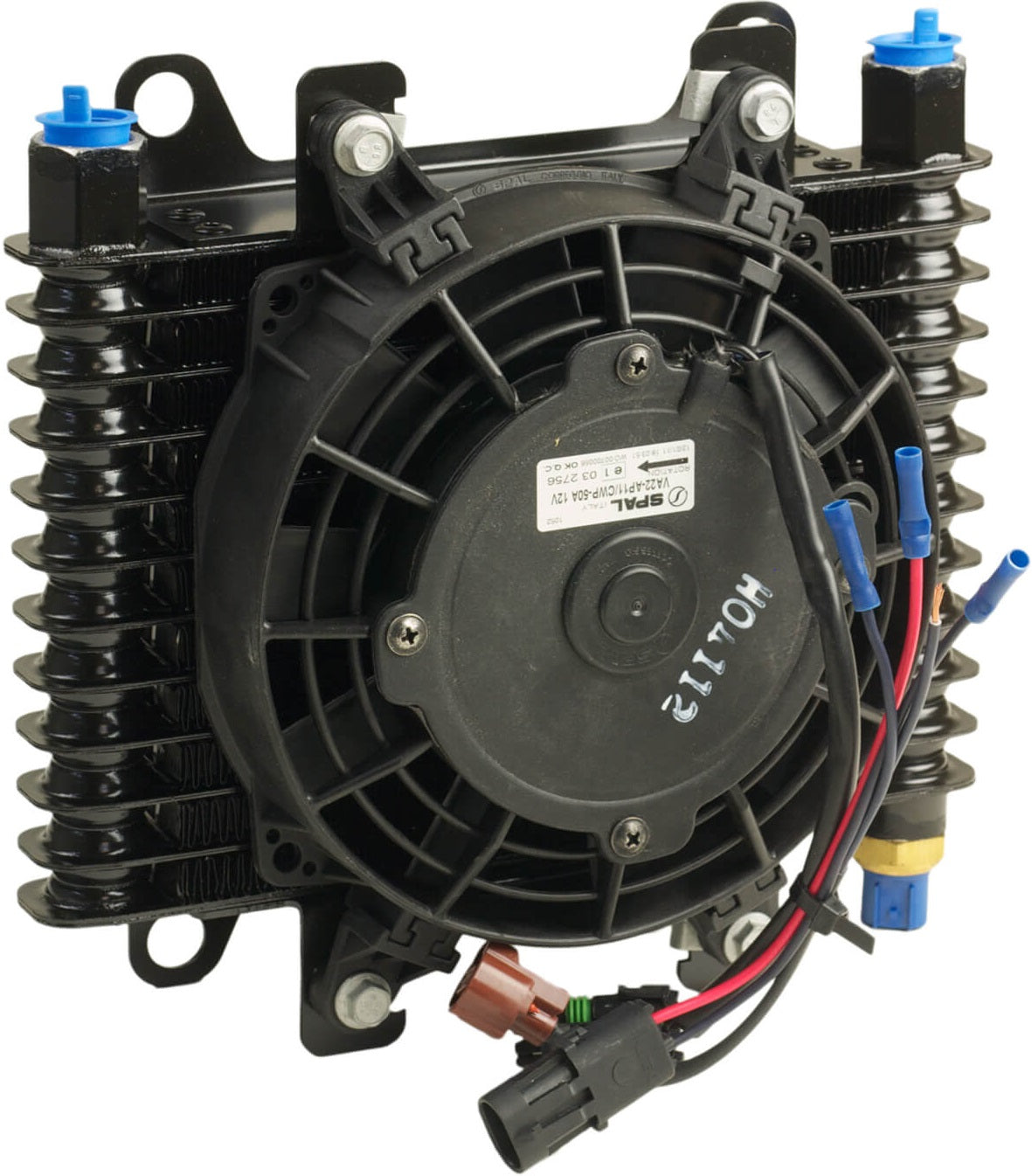

THIS B&M HI-TEK SUPERCOOLER FEATURES A FIN & PLATE DESIGN, IS FITTED WITH A HIGH QUALITY 12-VOLT ELECTRIC FAN FOR MAXIMUM COOLING EFFICIENCY & CAN BE MOUNTED IN TIGHT SPACES. THE COOLER FEATURES BUILT-IN ATTACHMENT POINTS, MAKING MOUNTING THE FAN A BREEZE & THE COOLER IS SUITABLE FOR MANY FLUIDS INCLUDING TRANSMISSION FLUIDS, ENGINE OILS, DIFFERENTIAL OIL & POWER STEERING FLUID.

THE 12-VOLT HIGH CAPACITY 6-AMP SUCTION FAN CRANKS OUT 350 CFM & INCLUDES A REPLACEABLE THERMAL FAN SWITCH SET TO TURN THE FAN ONCE THE TEMP HITS 175 DEGREES. SUPERCOOLERS ARE PRESSURE TESTED TO 200 PSI.

NOTE: ADD B&M EASY MOUNT KIT PART #80278 TO COMPLETE YOUR INSTALLATION.

FEATURES:

• INCLUDES 12-VOLT HIGH FLOW 350 CFM FAN
• FIN & PLATE COOLER CONSTRUCTION
• PRESSURE TESTED TO 200 PSI
• INCLUDES THERMAL SWITCH
• HIGH EFFICIENCY COOLER
• DIMENSIONS: 10" X 7-1/2" X 4"
• 7" DIAMETER FAN
• 6 AMP CAPACITY

SPECS:

• COLOR: BLACK
• CORE DESIGN/TYPE: TUBE & FIN
• CORE MATERIAL: ALUMINUM
• DEPTH: 4"
• HEIGHT: 7.5"
• INLET & ATTACHMENT TYPE: FEMALE THREADS
• INLET & OUTLET SIZE: 1/2" NPT
• LOW TEMPERATURE BYPASS: NO
• MATERIAL: ALUMINUM
• PRODUCT TYPE: AUTO TRANSMISSION OIL COOLER
• ROW QUANTITY: 10
• WIDTH: 10"

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS TRANSMISSION COOLER HERE.
