HI TEK COOLING SYSTEM,LARGE

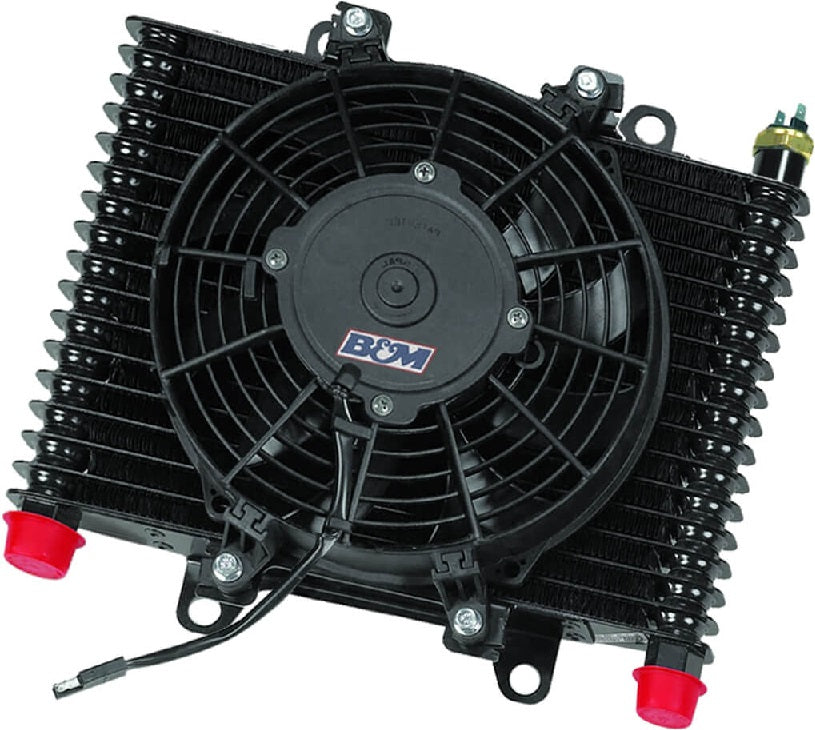

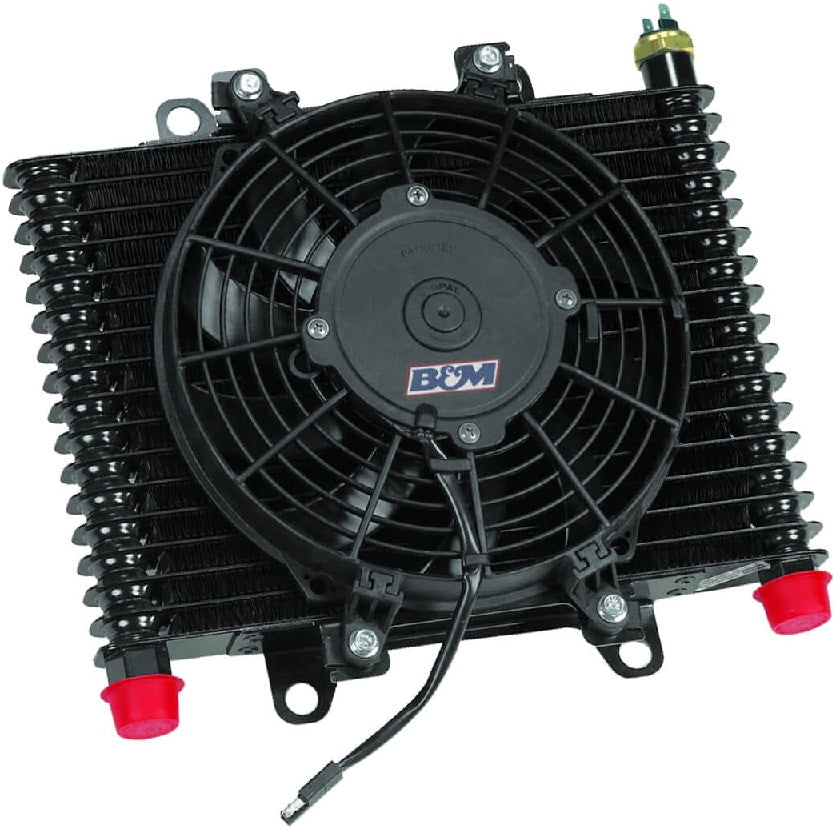

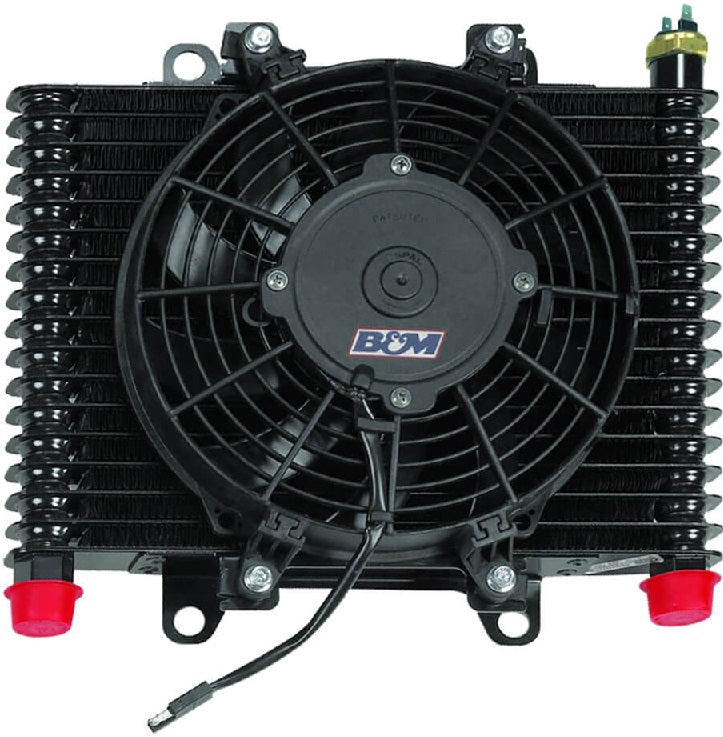

BRAND NEW B&M HI-TEK SUPERCOOLER LARGE AUTOMATIC TRANSMISSION OIL COOLER WITH 590 CFM FAN, BLACK, TUBE & FIN CORE TYPE

THIS B&M HI-TEK SUPERCOOLER FEATURES A FIN AND PLATE DESIGN, IS FITTED WITH A HIGH QUALITY 12-VOLT ELECTRIC FAN FOR MAXIMUM COOLING EFFICIENCY AND CAN BE MOUNTED IN TIGHT SPACES. THE COOLER FEATURES BUILT-IN ATTACHMENT POINTS, MAKING MOUNTING THE FAN A BREEZE AND THE COOLER IS SUITABLE FOR MANY FLUIDS INCLUDING TRANSMISSION FLUIDS, ENGINE OILS, DIFFERENTIAL OIL, AND POWER STEERING FLUID.

THE 12-VOLT HIGH CAPACITY 6-AMP SUCTION FAN CRANKS OUT 590CFM AND INCLUDES A REPLACEABLE THERMAL FAN SWITCH SET TO TURN THE FAN ONCE THE TEMP HITS 175 DEGREES. SUPERCOOLERS ARE PRESSURE TESTED TO 200 PSI. 1/2-INCH NPT INLET AND OUTLET. 13.5-INCHES X 9-INCHES X 3.5-INCHES WITH A 9.5" DIAMETER FAN.

NOTE: 13.5" X 9" X 3.5" WITH A 9.5" DIAMETER FAN, 12-VOLT / 6-AMP.

FEATURES:

• INCLUDES 12-VOLT HIGH FLOW 590 CFM FAN
• FIN AND PLATE COOLER CONSTRUCTION
• PRESSURE TESTED TO 200 PSI
• INCLUDES THERMAL SWITCH
• HIGH EFFICIENCY COOLER

SPECS:

• BRAND: B&M
• COLOR: BLACK
• CORE DESIGN/TYPE: TUBE AND FIN
• CORE MATERIAL: ALUMINUM
• DEPTH (IN): 3.25
• DESIGN TYPE: TUBE AND FIN
• EMISSION CODE: 5
• HEIGHT (IN): 12
• INLET ATTACHMENT TYPE: FEMALE THREADS
• INLET SIZE: 1/2" NPT
• LOW TEMPERATURE BYPASS: NO
• MATERIAL: ALUMINUM
• OUTLET ATTACHMENT TYPE: FEMALE THREADS
• OUTLET SIZE: 1/2" NPT
• PRODUCT TYPE: AUTO TRANSMISSION OIL COOLER
• ROW QUANTITY: 15
• WIDTH (IN): 13.5
• CALIFORNIA PROPOSITION 65 CHEMICAL NAME: CHROMIUM (HEXAVALENT COMPOUNDS), LEAD
• CALIFORNIA PROPOSITION 65 REQUIRED: YES

YOU CAN VIEW AND DOWNLOAD THE INSTRUCTIONS FOR THIS TRANSMISSION OIL COOLER HERE.
