HI-TEK DEEP TRANSMISSION PAN,ALUMINUM,GM TH700R4/4L60/4L60E/4L65E

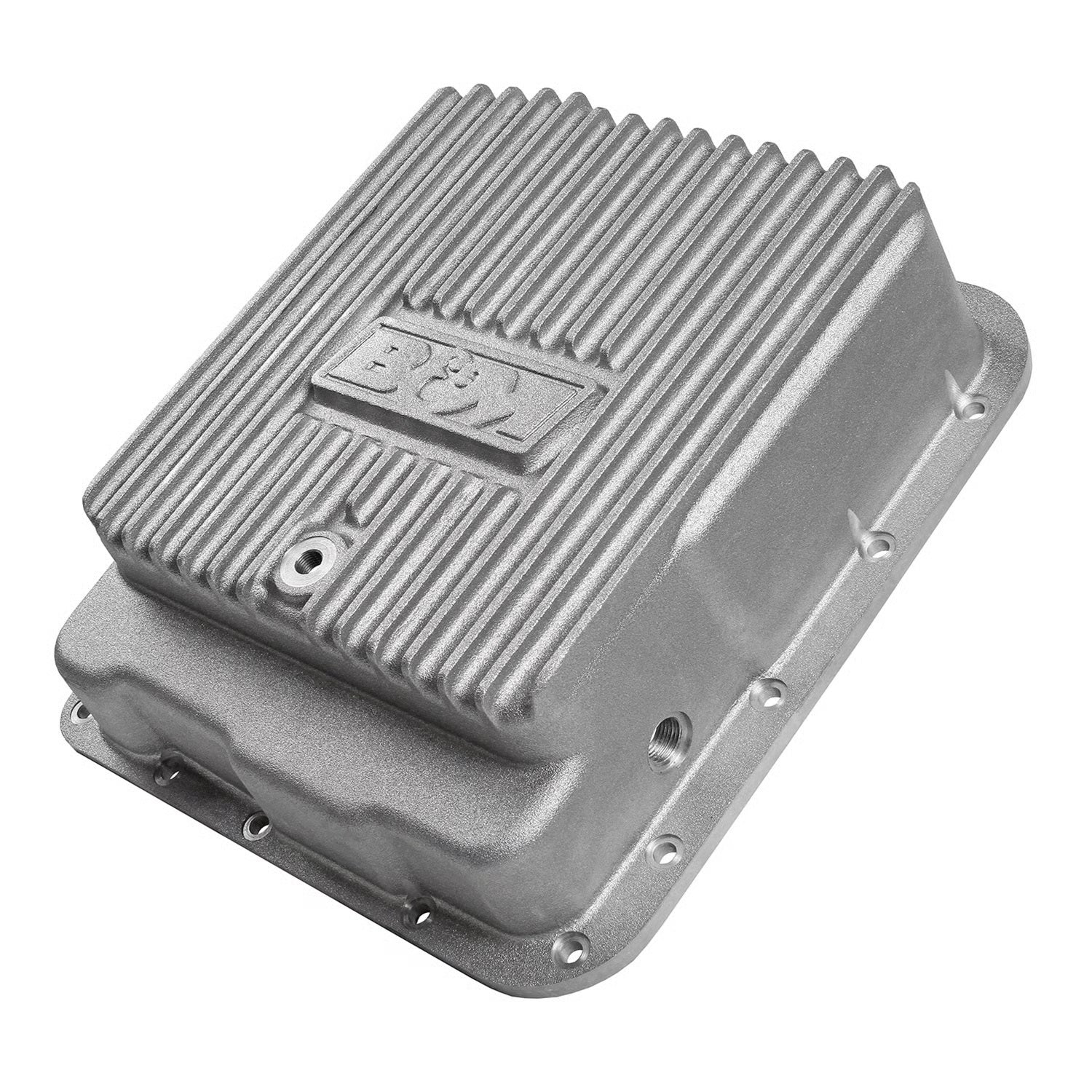

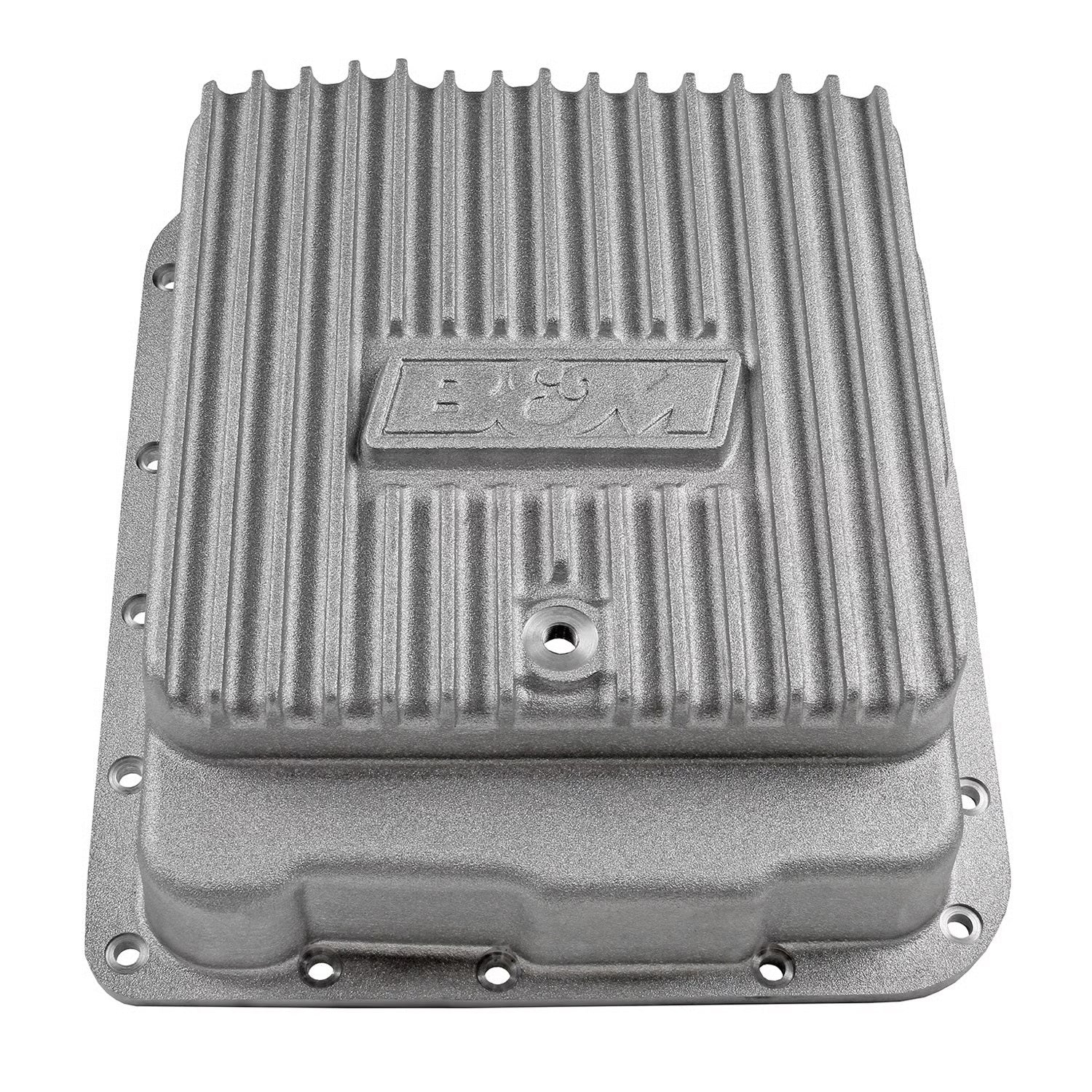

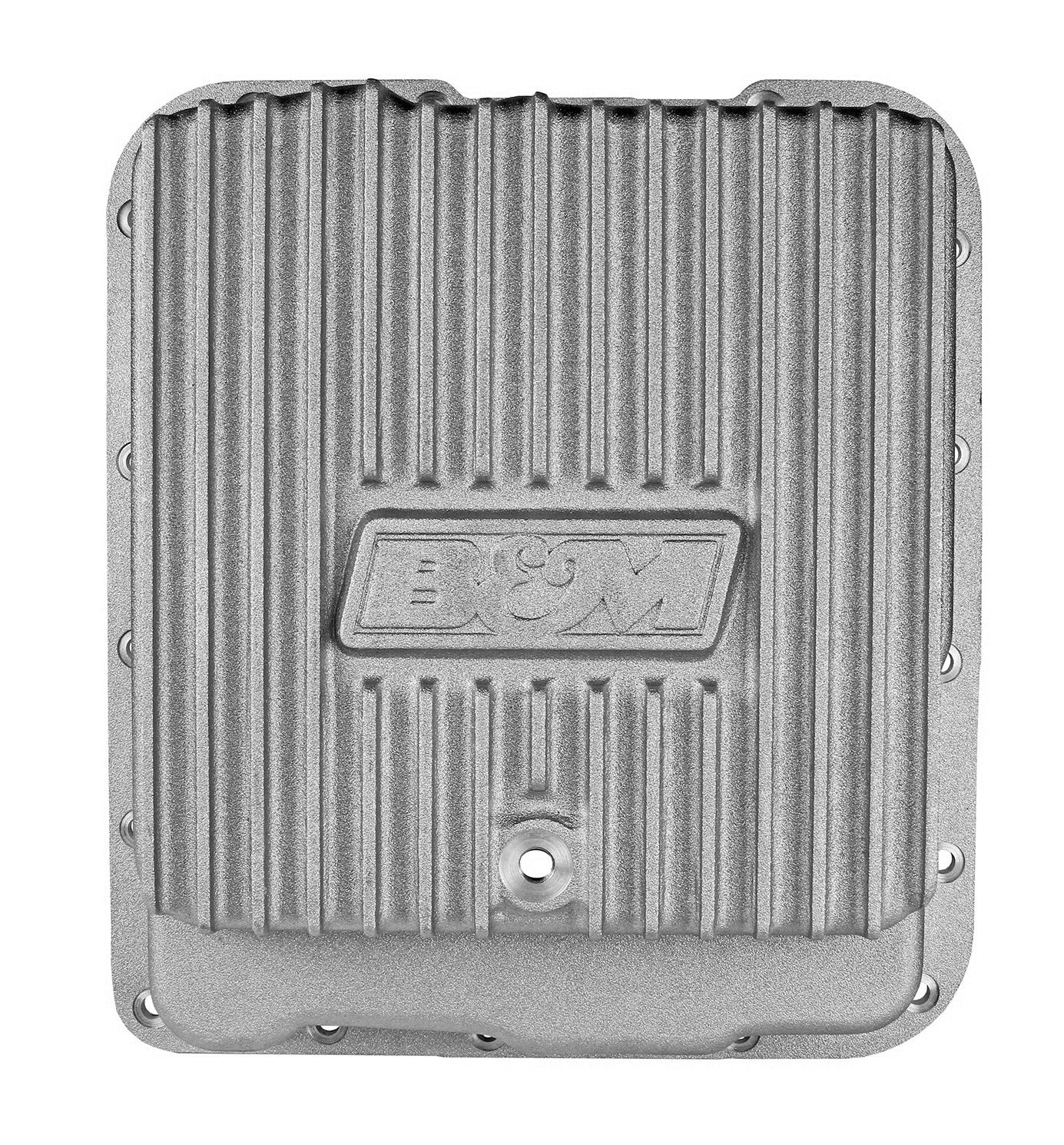

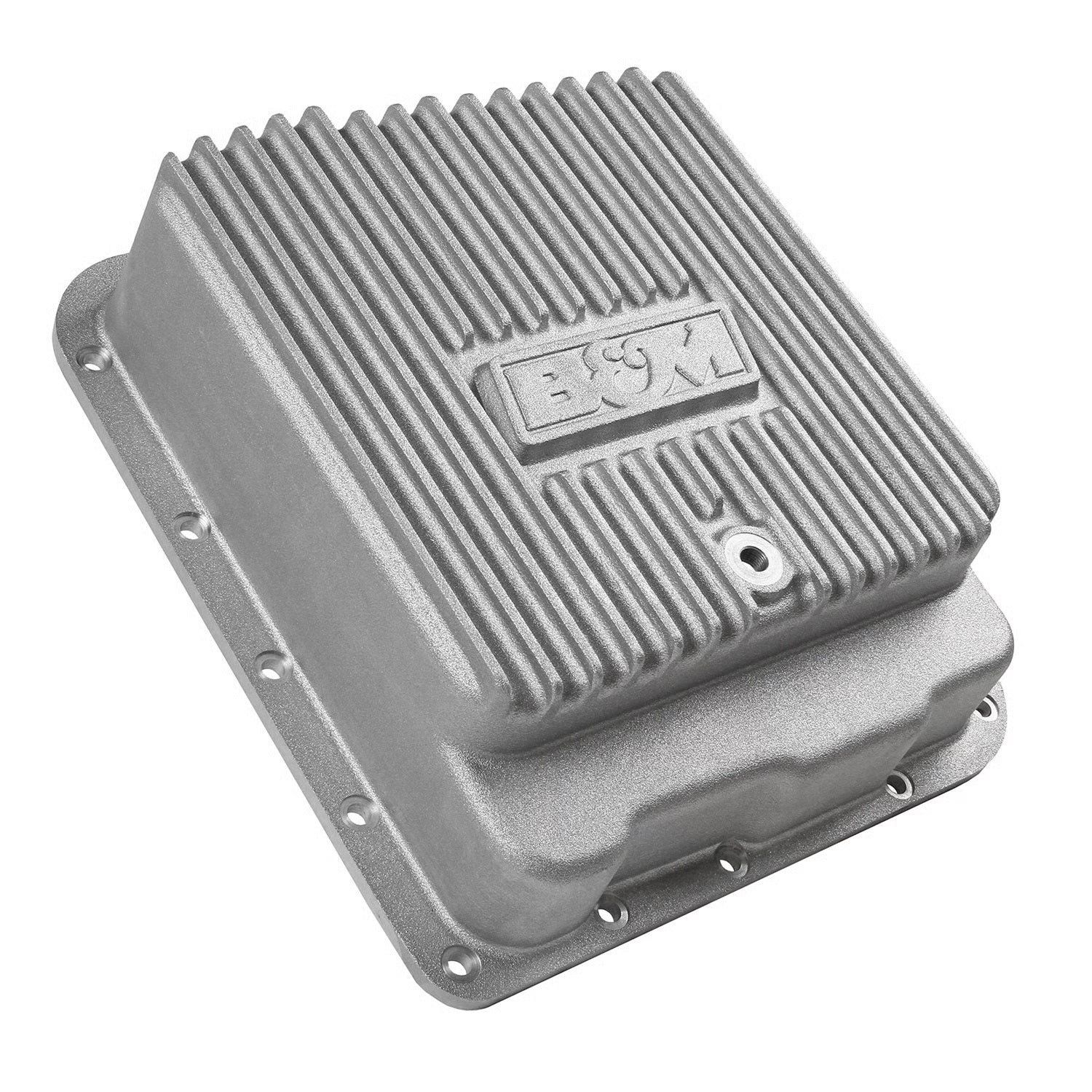

Brand New B&M Hi-Tek Aluminum Deep Transmission Pan for GM TH700R4, 4L60, 4L60E & 4L65E Automatic Transmissions (Part #70260).

Our Hi-Tek deep transmission pans are constructed from A356-T6 aluminum and are cast with thick external fins adding additional strength and increased cooling properties. The deep pan design increases fluid capacity by 3-quarts over the stock O.E. steel pan. All these features combined help dissipate heat quicker netting lower transmission and fluid temperatures prolonging the life of your transmission, transmission fluid and corresponding components. Other features for this popular pan include filter extension, pan gasket (not pictured), drain port with magnetic drain plug for clean and easy servicing.  Includes detailed instructions with all necessary hardware for an easy at home installation.

Notes:

• Fits various vehicles with TH700-R4, 4L60, 4L60E & 4L65E Transmissions.
• Increases Fluid Capacity by 3-quarts.

Features:

• Drain Port with Magnetic Drain Plug for Easy Servicing

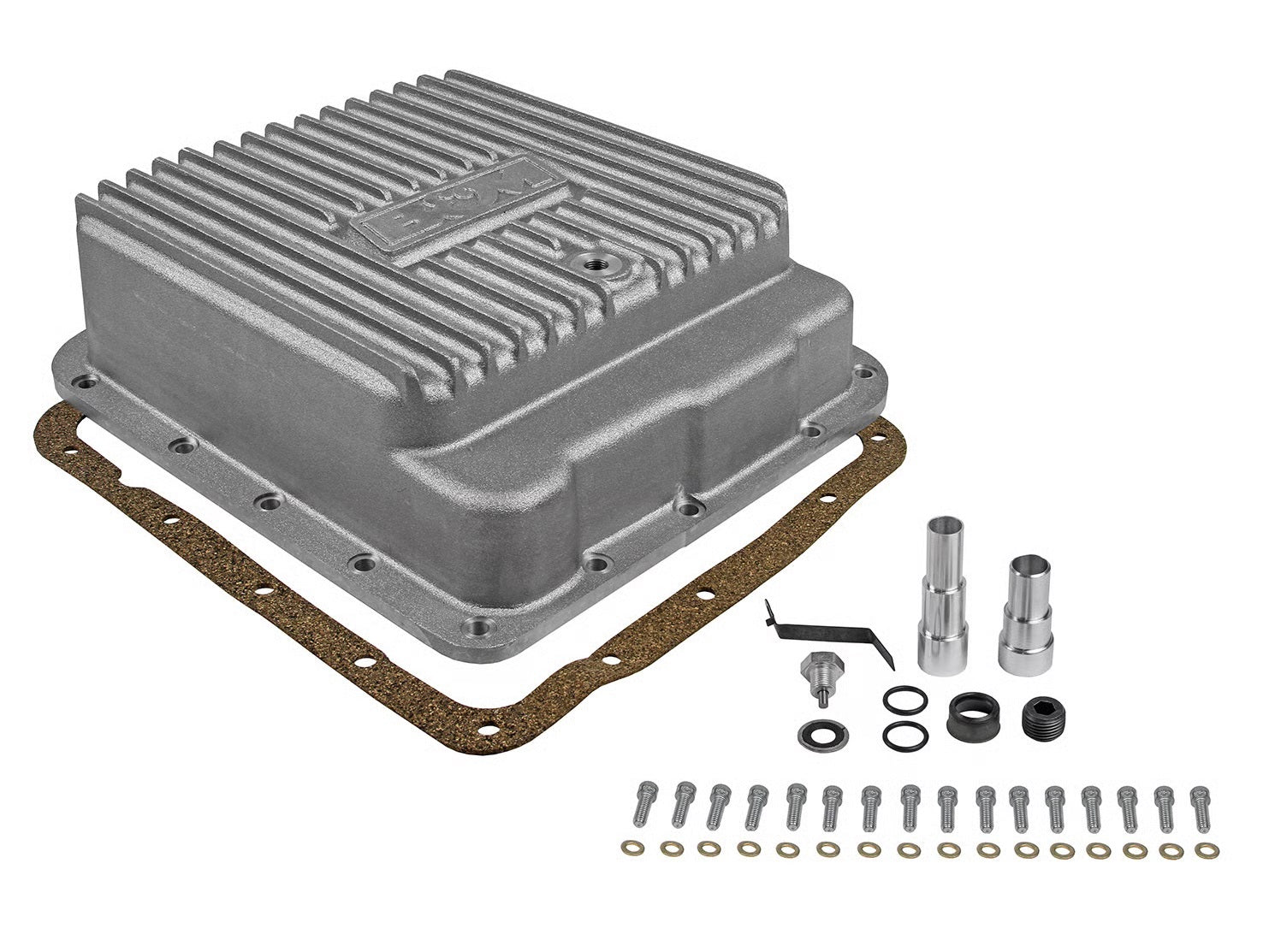

• Includes Pan Gasket & Filter Extension

• Additional 3-quart Fluid Capacity

• Includes all Necessary Hardware

• Improved Cooling Properties

• B&M Quality

Specs:

• Brand: B&M

• Capacity: 15 QT
• Color: Aluminum
• Filter Extension Included: Yes

• Filter Included: No

• Gasket Included: Yes

• Material: Cast Aluminum

• Mounting Hardware Included: Yes

• Oil Pan Gaskets Included: Yes

• Product Type: Automatic Transmission Pan

• Style: Deep
• Temperature Sensor Bung: No
• Transmission: 4L60, 4L60E, 4L65E, TH700R4

• Transmission Filter Included: No

• Transmission Type: Automatic

You can view and download the instruction booklet here.
