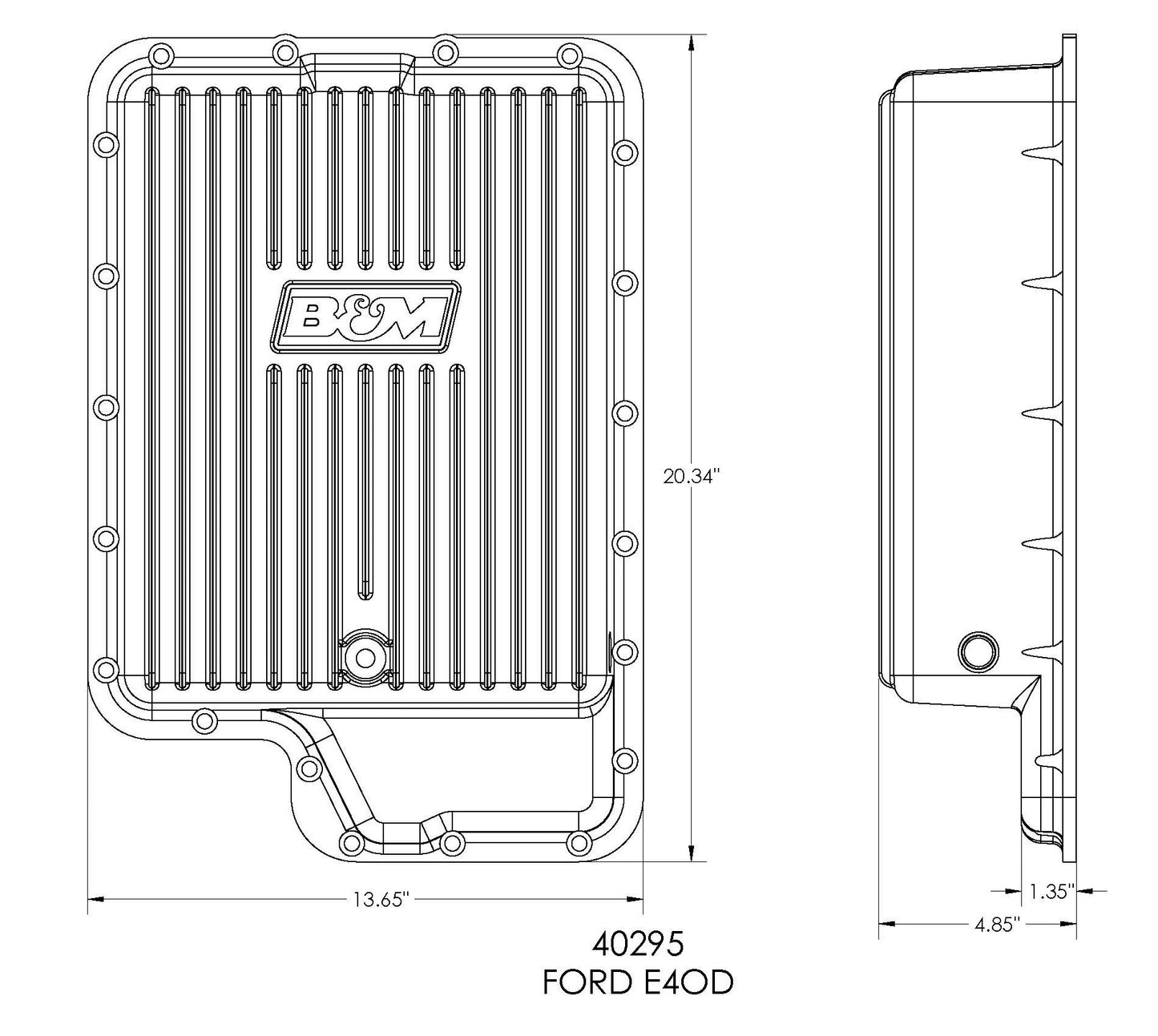

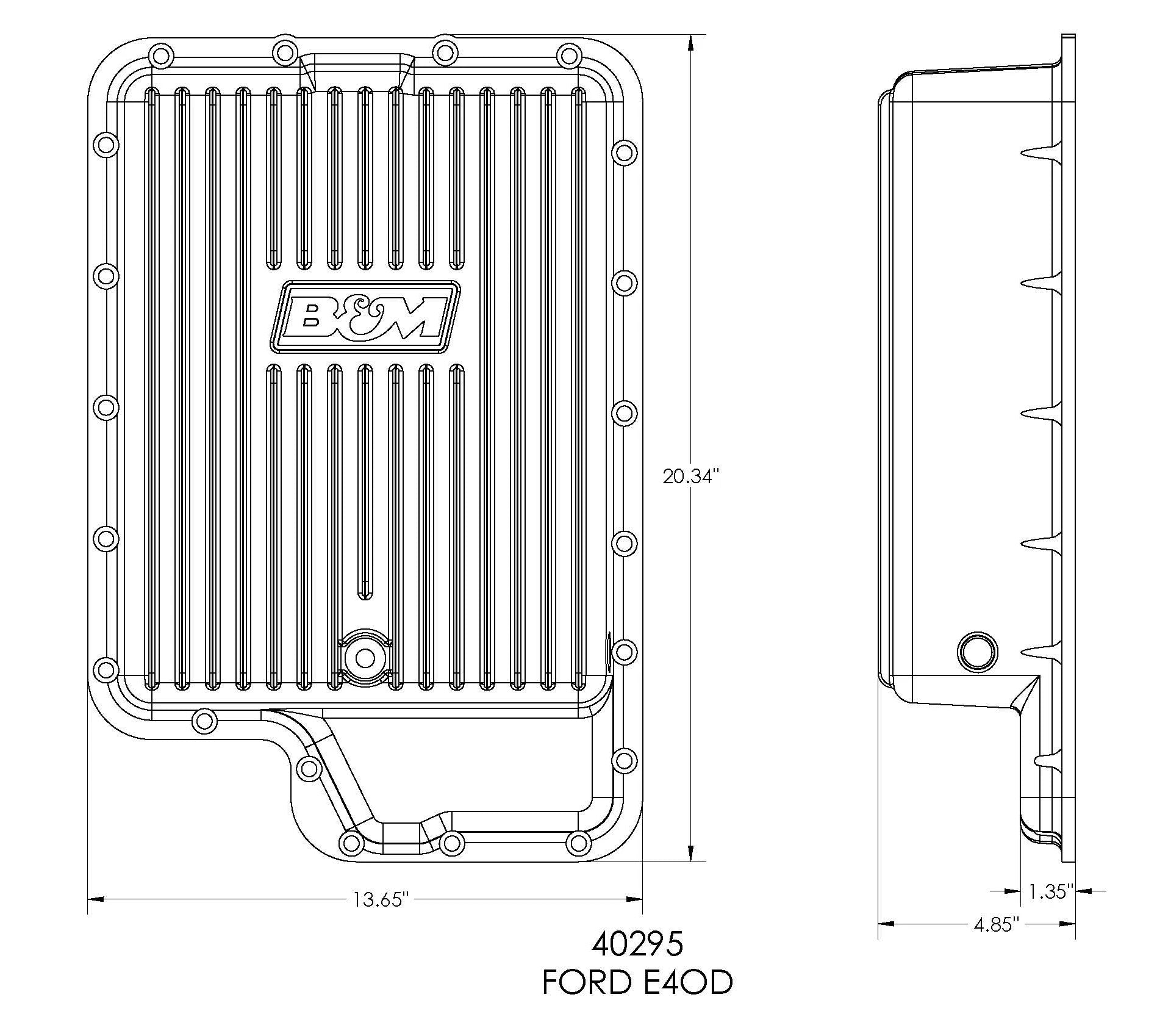

HI-TEK DEEP TRANSMISSION PAN,ALUMINUM,FORD E4OD/4R100

Brand New B&M Hi-Tek Aluminum Deep Transmission Pan for Ford Ford E4OD & 4R100 Automatic Transmissions (Part #40295).

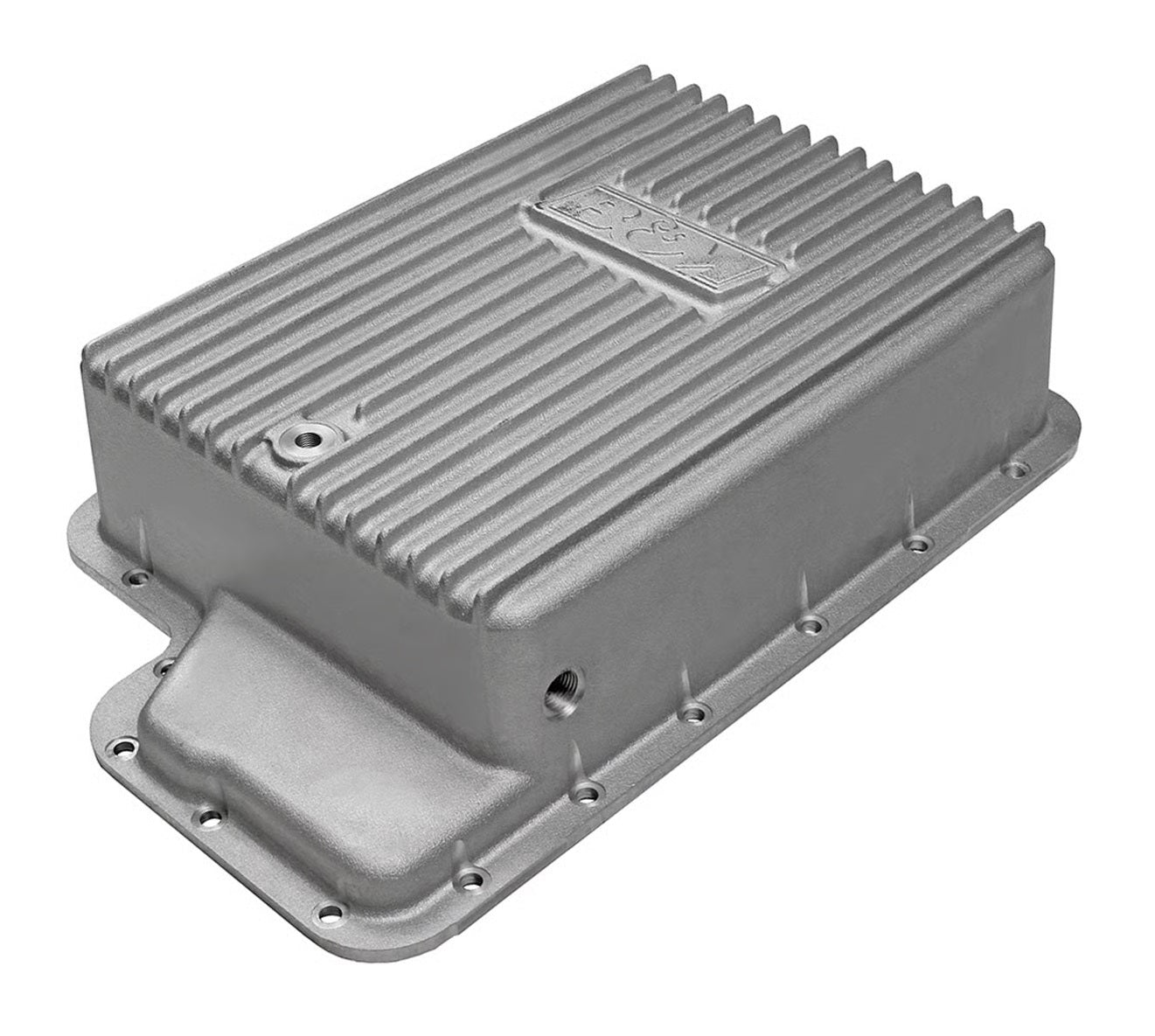

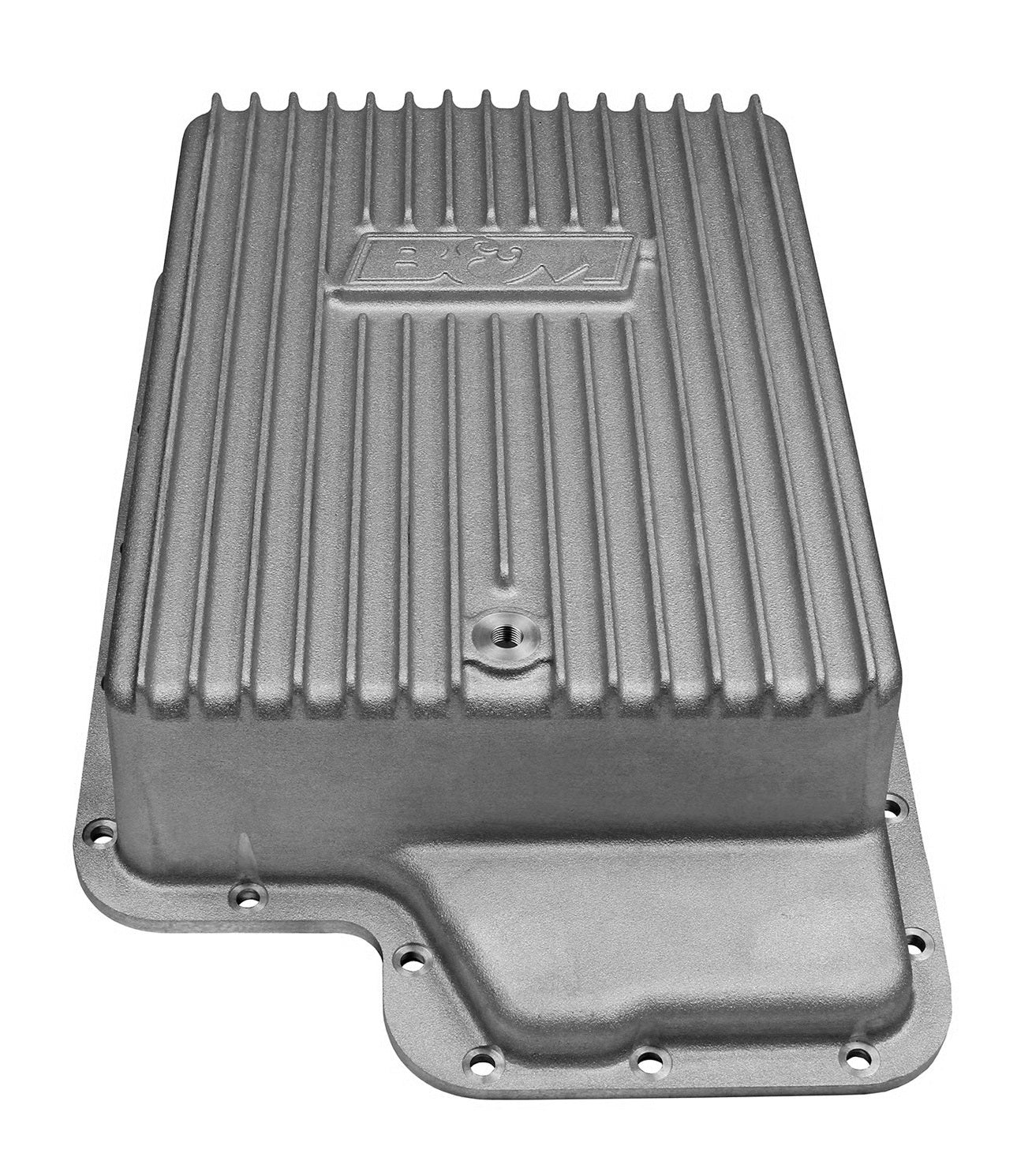

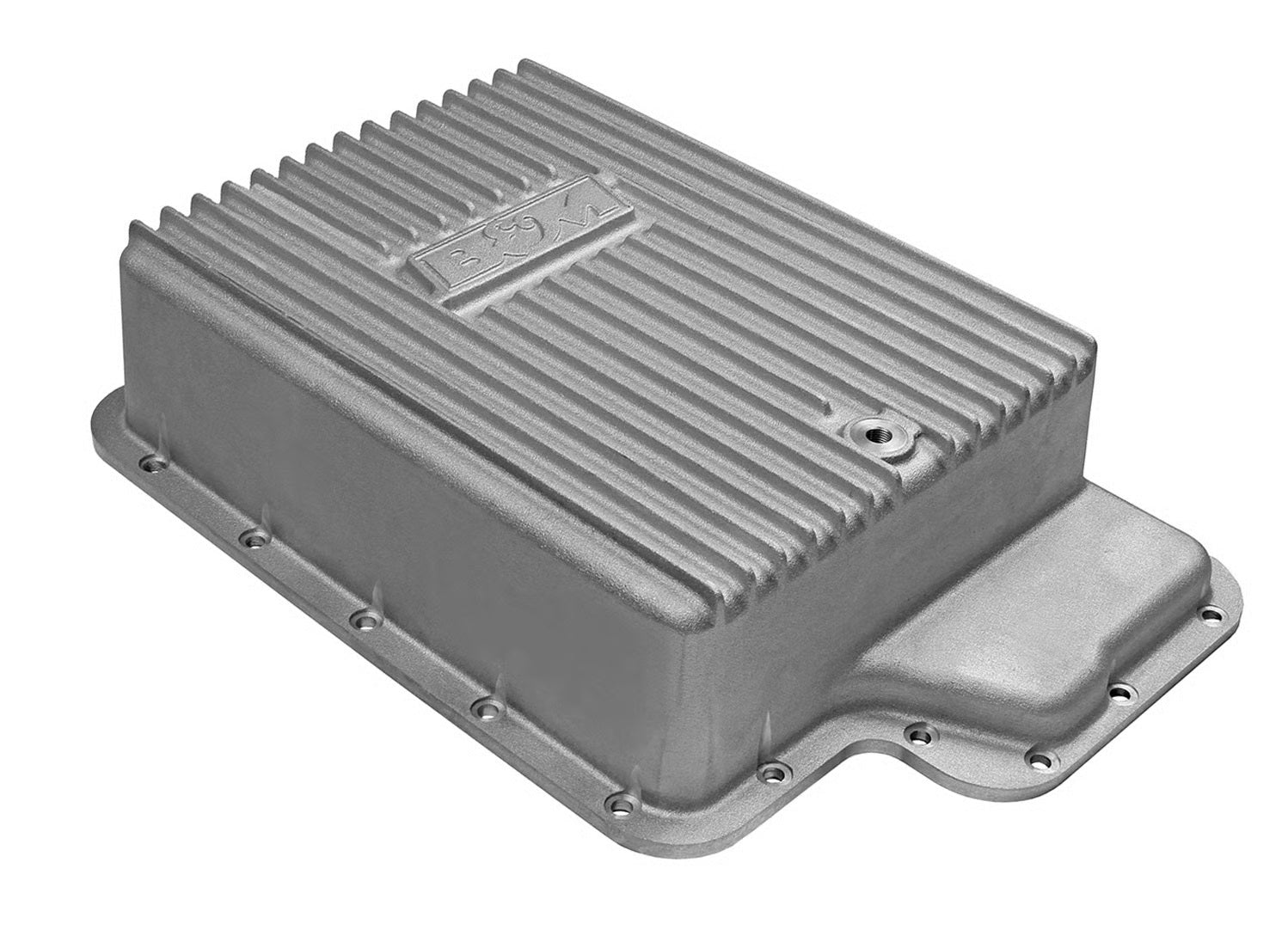

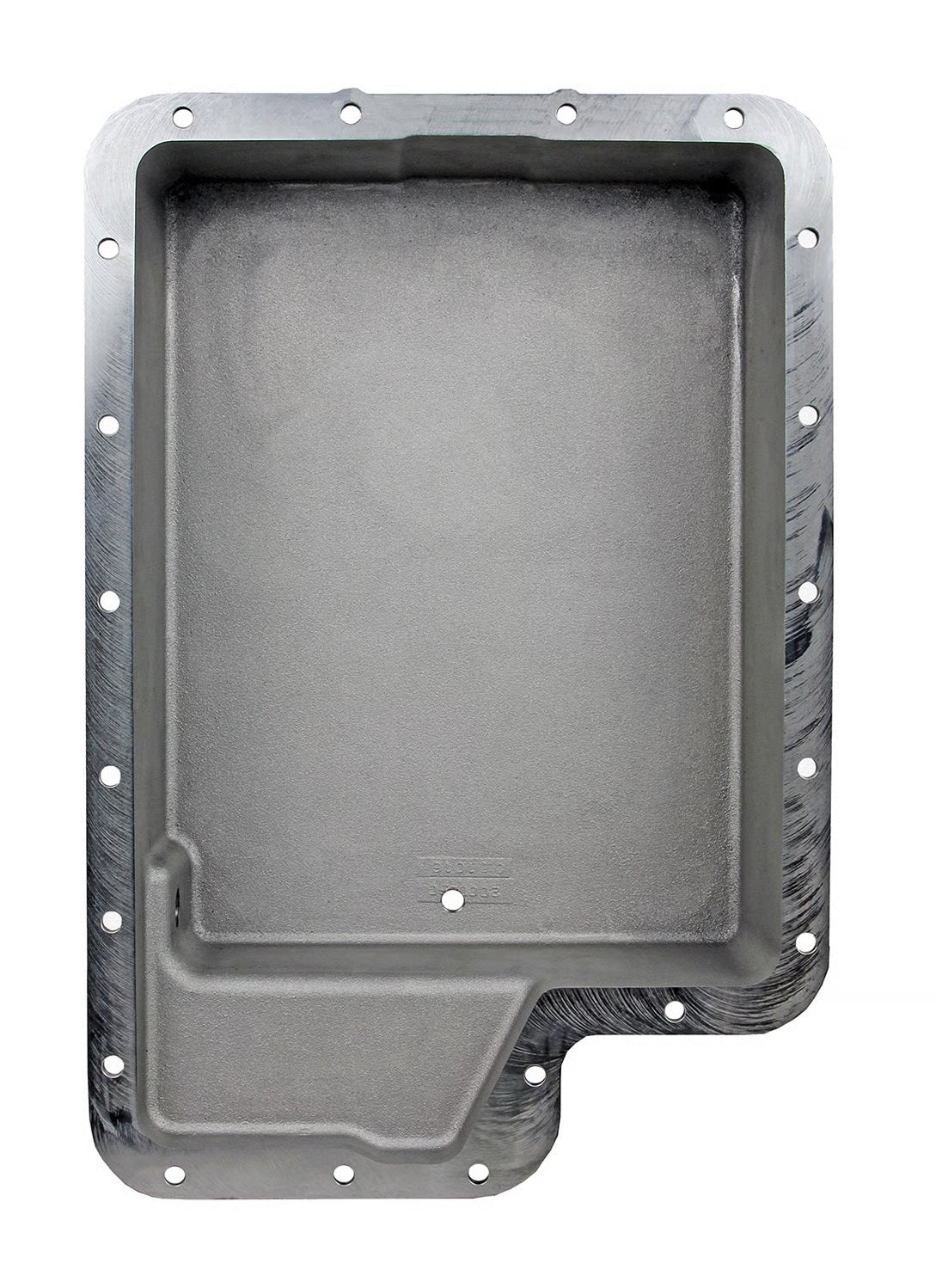

Our Hi-Tek deep transmission pans are constructed from A356-T6 aluminum and are cast with thick external fins adding additional strength and increased cooling properties. The deep pan design increases fluid capacity by 3.5 quarts over the stock O.E. steel pan. All these features combined help dissipate heat quicker netting lower transmission and fluid temperatures prolonging the life of your transmission, transmission fluid and corresponding components. Other features for this popular pan include a pan gasket and drain port with magnetic drain plug for clean and easy servicing. Also includes a 1/8-inch NPT temperature sensor port for easily adding a temp gauge for monitoring transmission temperatures while daily driving, towing or racing. Includes detailed instructions with all necessary hardware for an easy at home installation.

Notes:

•  Fits Ford E40D and 4R100 4-speed automatic transmissions.
• Adds 3.5 quarts of fluid capacity.
• We recommend changing out the filter when installing this pan with Ford 4WD filter part# YC3Z-7A098-BA or equivalent.

Features:

• Drain Port with Magnetic Drain Plug for Easy Servicing

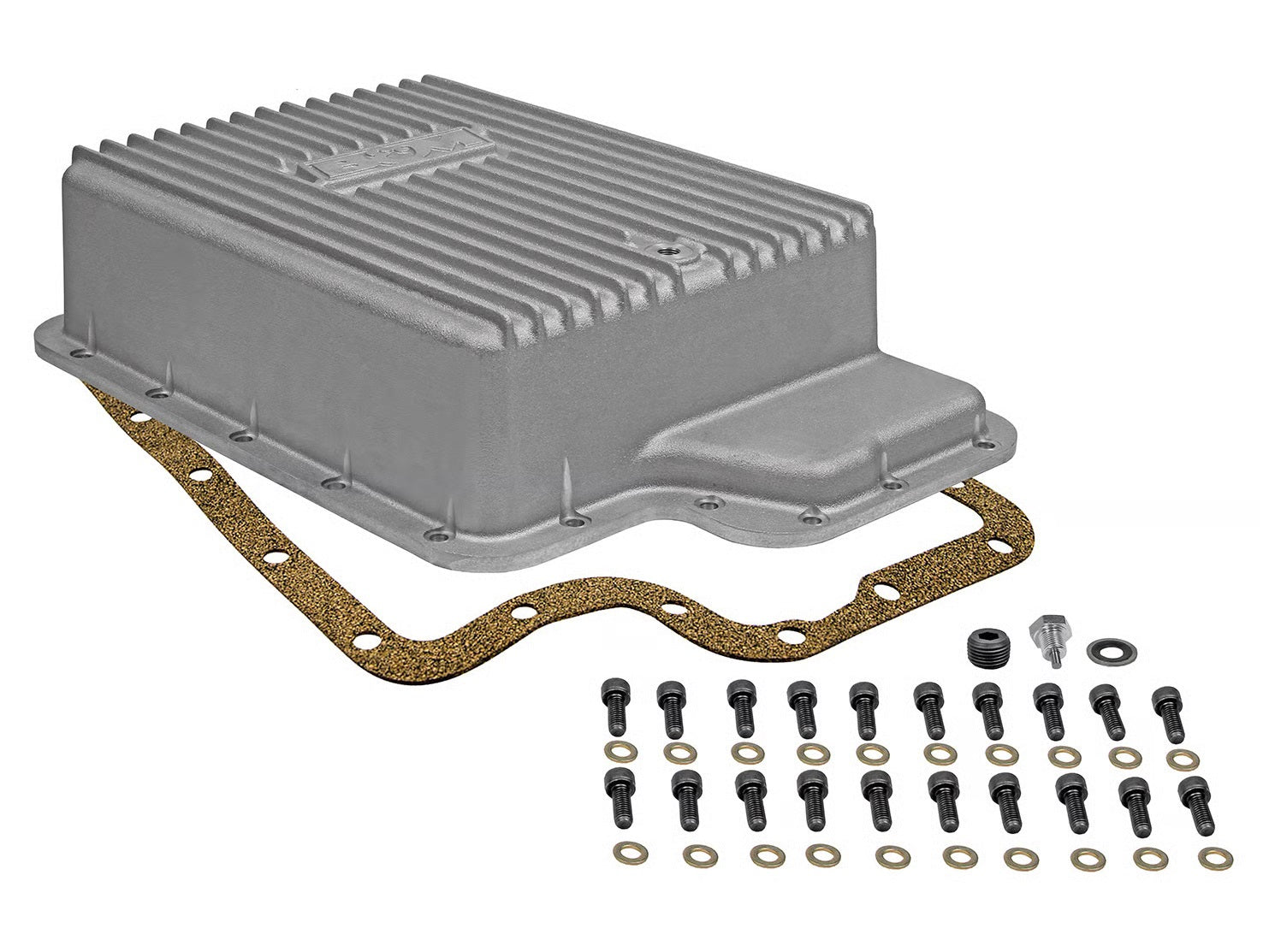

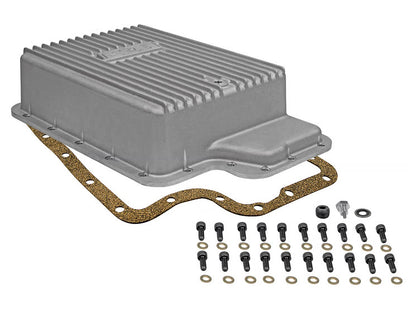

• Includes New Pan Gasket & Hardware

• Additional 3.5-quart Fluid Capacity

• Includes Temperature Sensor Port

• Improved Cooling Properties

• Easy Installation

• B&M Quality

Specs:

• Brand: B&M

• Capacity: 19.5 QT
• Filter Extension Included: No

• Filter Included: No

• Gasket Included: Yes

• Material: Cast Aluminum

• Mounting Hardware Included: Yes

• Oil Pan Gaskets Included: Yes

• Overall Depth (in): 4.9
• Product Type: Automatic Transmission Pan

• Style: Deep

• Temperature Sensor Bung: No

• Transmission: 4R100, E4OD

• Transmission Filter Included: No

• Transmission Type: Automatic

You can view and download the instruction booklet here.
