HI-TEK DEEP TRANSMISSION PAN,ALUMINUM,GM TH350

Brand New B&M Hi-Tek Aluminum Deep Transmission Pan for GM TH250 & TH350 Automatic Transmissions (Part #30280).

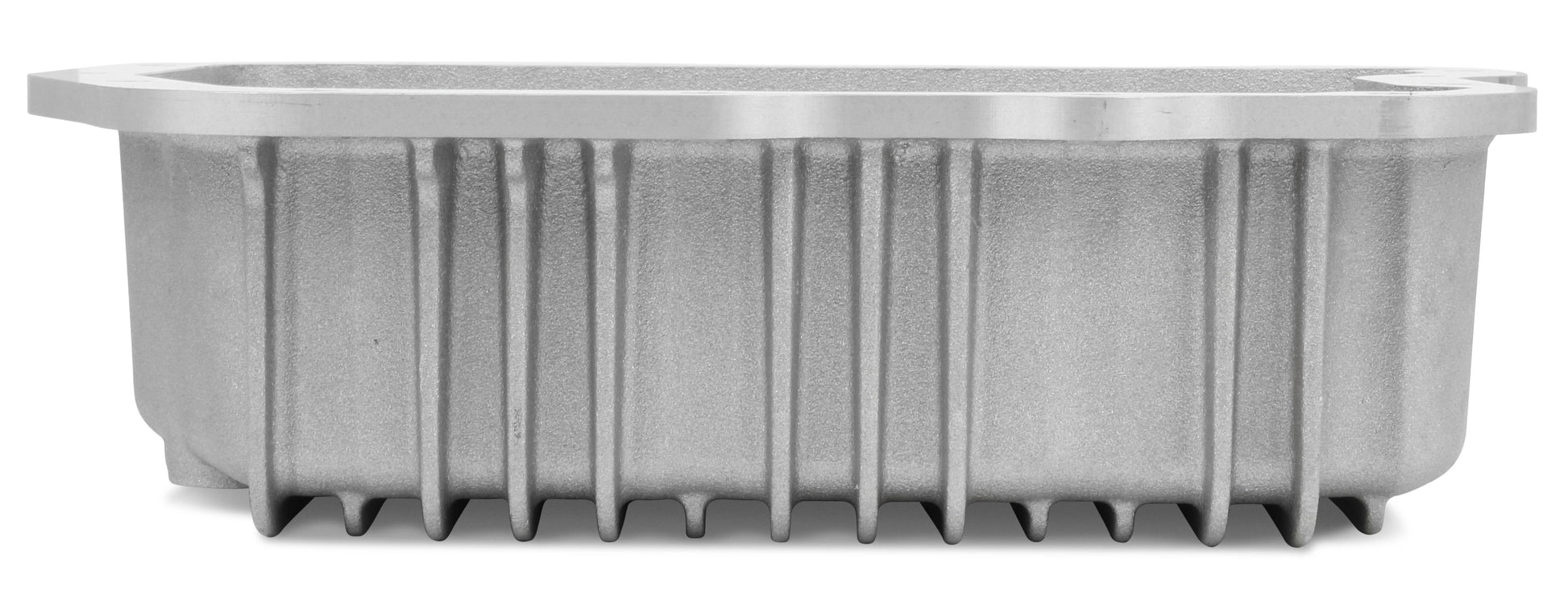

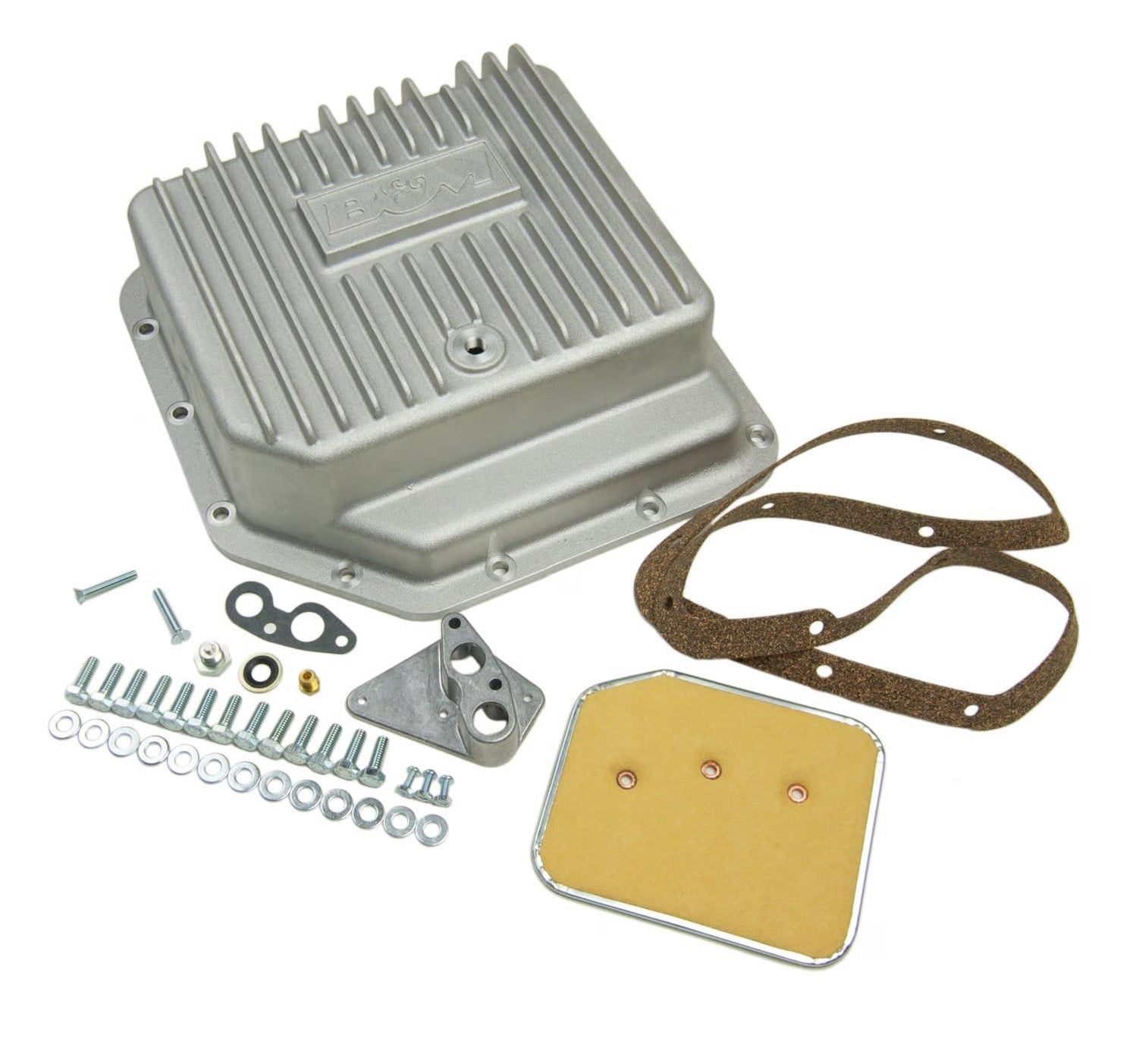

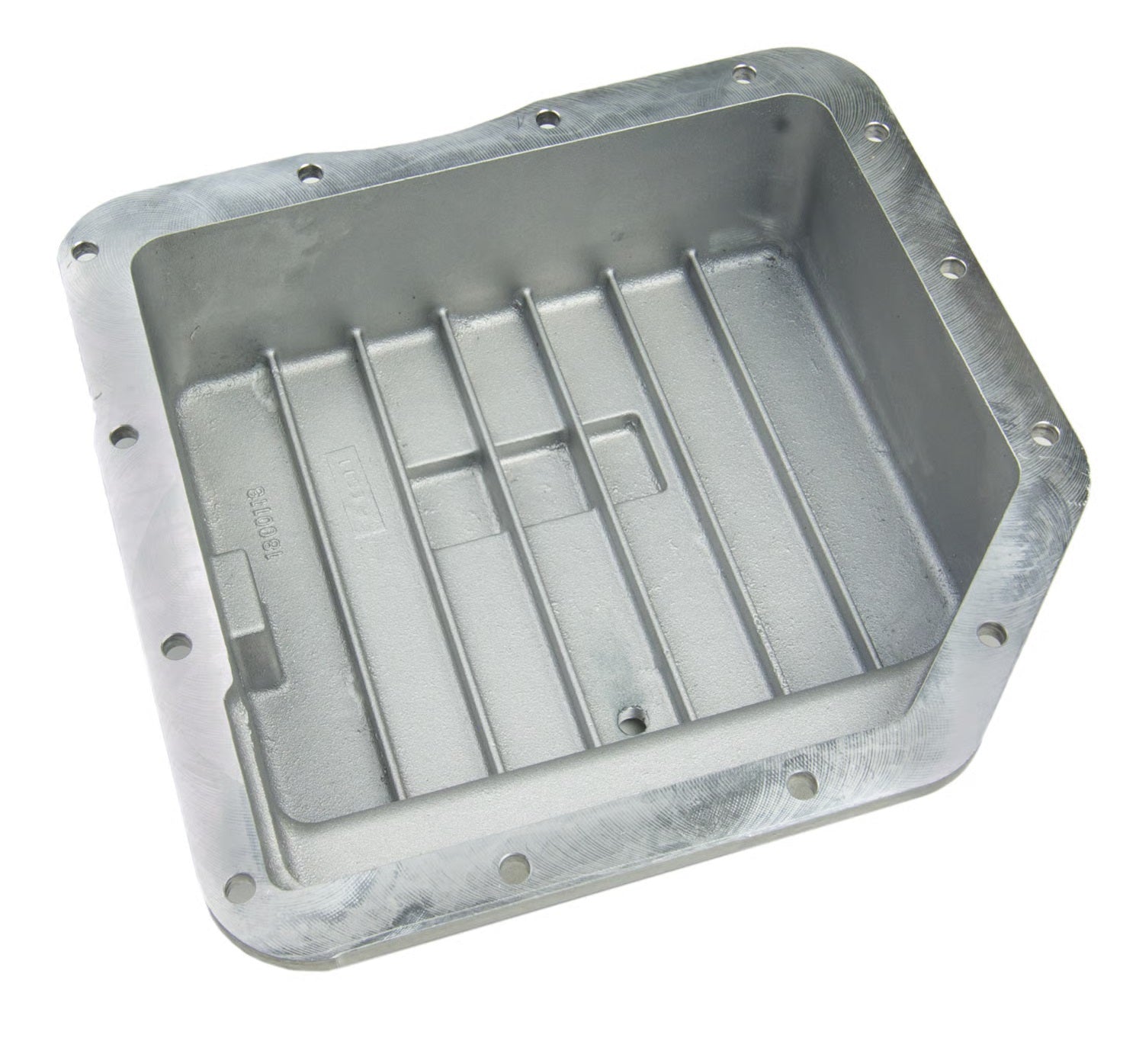

Our Hi-Tek deep transmission pans are constructed from A356-T6 aluminum and are cast with thick internal and external fins, adding additional strength and increased cooling properties. The deep pan design increases fluid capacity by 3-quarts over the stock O.E. steel pan. All these features combined help dissipate heat quicker netting lower transmission and fluid temperatures prolonging the life of your transmission, transmission fluid and corresponding components. Other features for this popular pan include a filter, filter extension, pan gasket and drain port with magnetic drain plug for clean and easy servicing. Also includes a 1/8 inch NPT temperature sensor port for easily adding a temp gauge for monitoring transmission temperatures while daily driving, towing or racing. Includes detailed instructions with all necessary hardware for an easy at home installation.

Notes:

• Fits all GM TH350 and TH250 automatic transmissions.
• Adds an additional 3-quarts of fluid capacity

Features:

• Drain Port with Magnetic Drain Plug for Easy Servicing

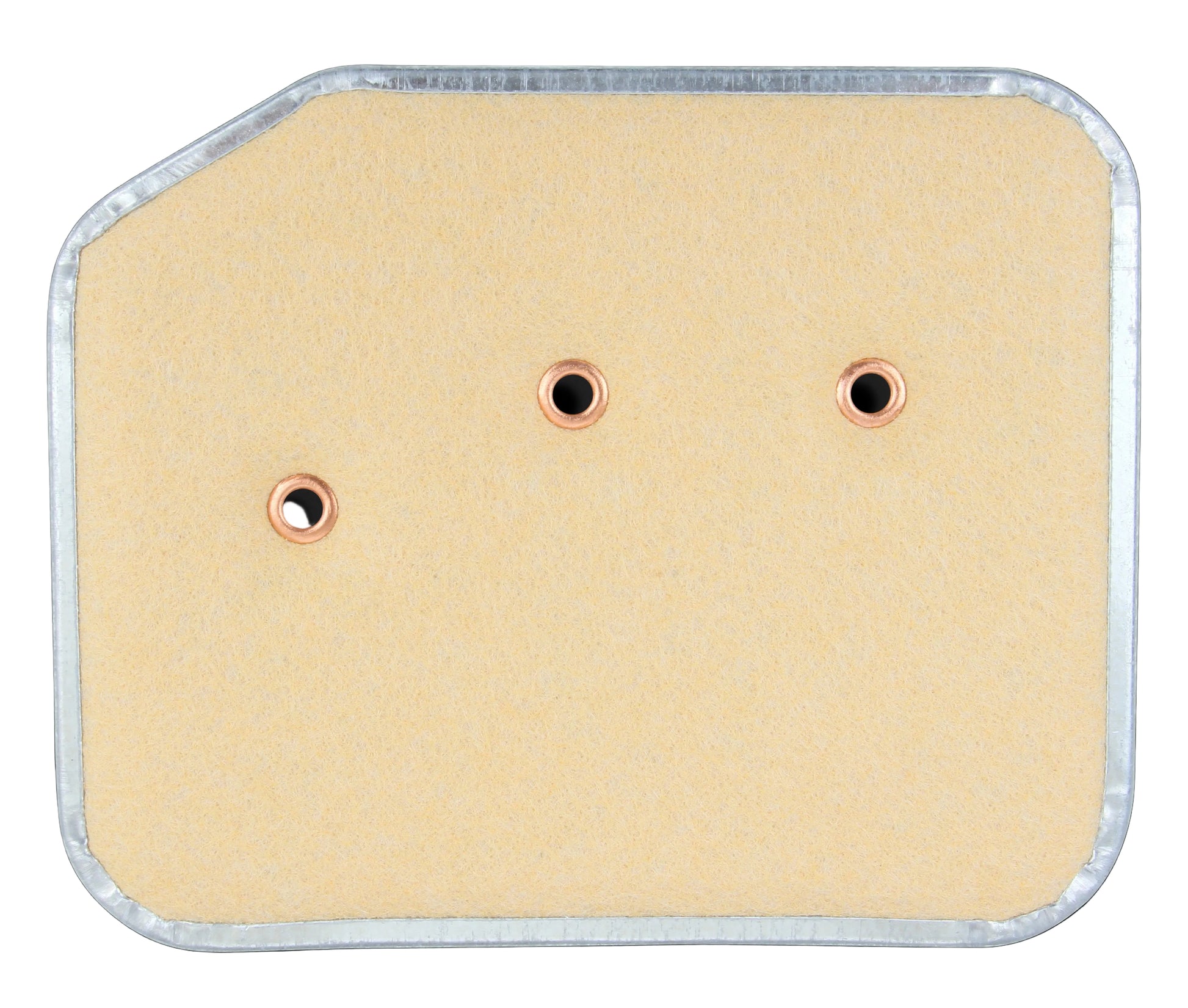

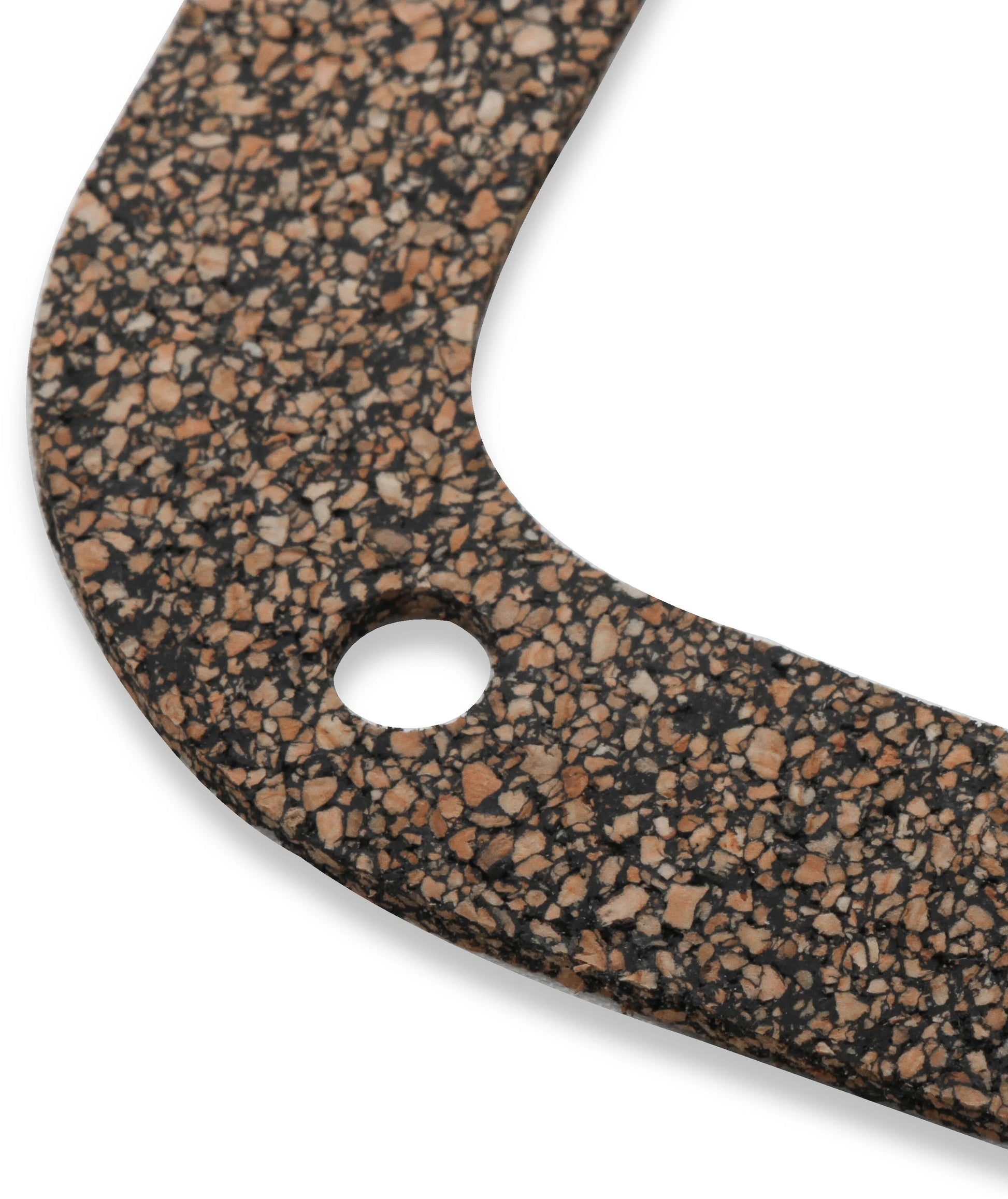

• Include Filter, Filter extension & Pan Gasket

• Some Include Fluid Pickup Extension

• Additional 3-quarts Fluid Capacity

• Includes Temperature Sensor Port

• Over 65 Years of B&M Quality

• Improved Cooling Properties

Specs:

• Brand: B&M

• Capacity: 15 QT
• Color: Aluminum
• Filter Extension Included: Yes

• Filter Included: Yes

• Gasket Included: Yes

• Material: Cast Aluminum

• Mounting Hardware Included: Yes

• Oil Pan Gaskets Included: Yes

• Product Type: Automatic Transmission Pan

• Style: Deep

• Temperature Sensor Bung: No

• Transmission: TH350

• Transmission Filter Included: Yes

• Transmission Type: Automatic

You can view and download the instruction booklet here.
