LOCKING DIPSTICK KIT,2015-24 GM 1500,8L90E/8L45E

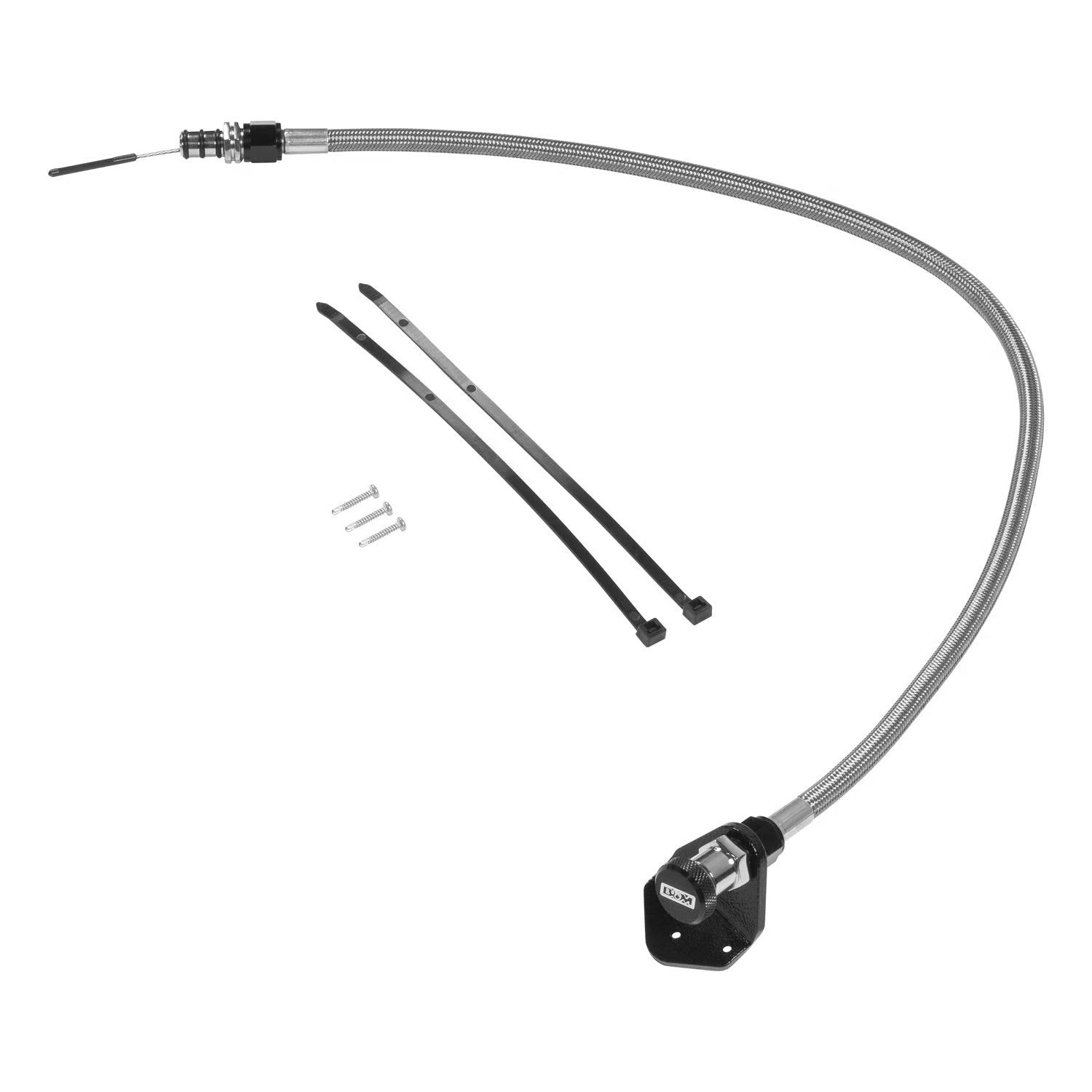

Brand New B&M Locking Automatic Transmission Dipstick & Tube - Billet Aluminum/Stainless Steel Braided (Part #22173).

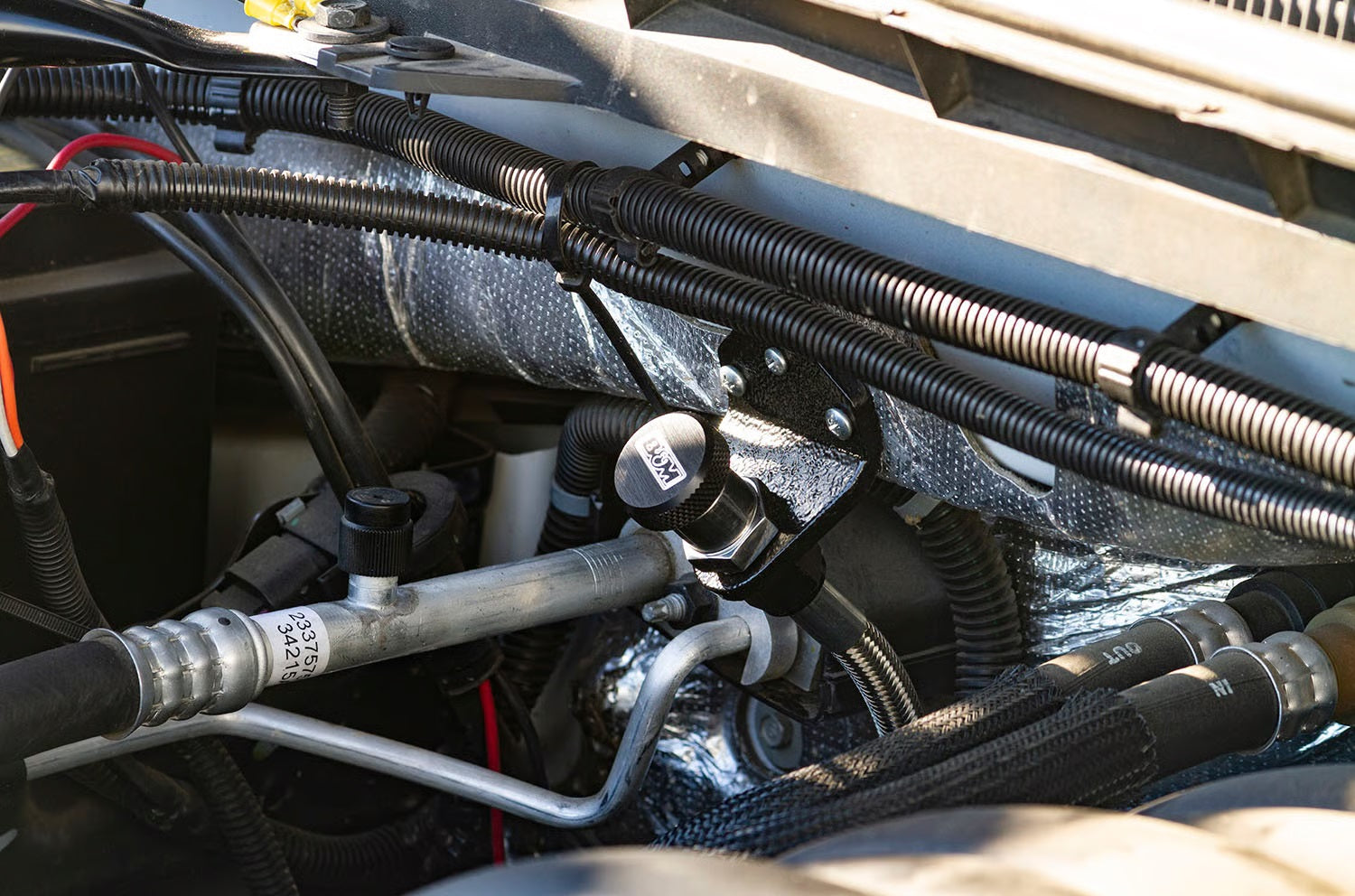

The B&M Locking Transmission Dipstick was designed to allow for a quick and easy check of the automatic transmission fluid level and fluid quality by the vehicle owner without having to go to the dealership. Fits 2015-2024 GM 1500 series trucks, 2015+ GM SUVs with 8L90E 8-speed transmissions, and 2017+ GM Colorado and GMC Canyon trucks with the 8L45E 8-speed automatic transmission. Features include billet aluminum fittings, stainless steel braided tube, and black mil-spec anodized aluminum 6061-T6 locking cap and bracket. This rugged unit replaces the factory plug on the transmission and mounts in the engine compartment for easy routine service checks. Additional features include an engraved B&M logo locking knurled handle cap and fluid level stamped indicator.

This is the perfect compliment to our Hi-Tek 8L90E deep transmission pan #70396.

Note: Fits 2015-2024 GM 1500 series trucks, 2015+ GM SUVs with 8L90E 8-speed transmissions, and 2017+ GM Colorado and GMC Canyon trucks with the 8L45E 8-speed automatic transmission

Compatible with:

• Chevrolet:
  • 2022 Camaro
  • 2017-2024 Colorado
  • 2022, 2024 Express 2500
  • 2022, 2024 Express 3500
  • 2015-2024 Silverado 1500
  • 2022 Silverado 1500 LTD
  • 2015-2017 Suburban
  • 2015-2017 Tahoe
• Cadillac:
  • 2022-2024 CT4
  • 2015-2017 Escalade
  • 2015-2017 Escalade ESV
• GMC:
  • 2017-2022 Canyon
  • 2022, 2024 Savana 2500
  • 2022, 2024 Savana 3500
  • 2015-2024 Sierra 1500
  • 2022 Sierra 1500 Limited
  • 2015-2017 Yukon
  • 2015-2017 Yukon XL

Features:

• Billet Stainless Steel and Aluminum 6061-T6 Construction

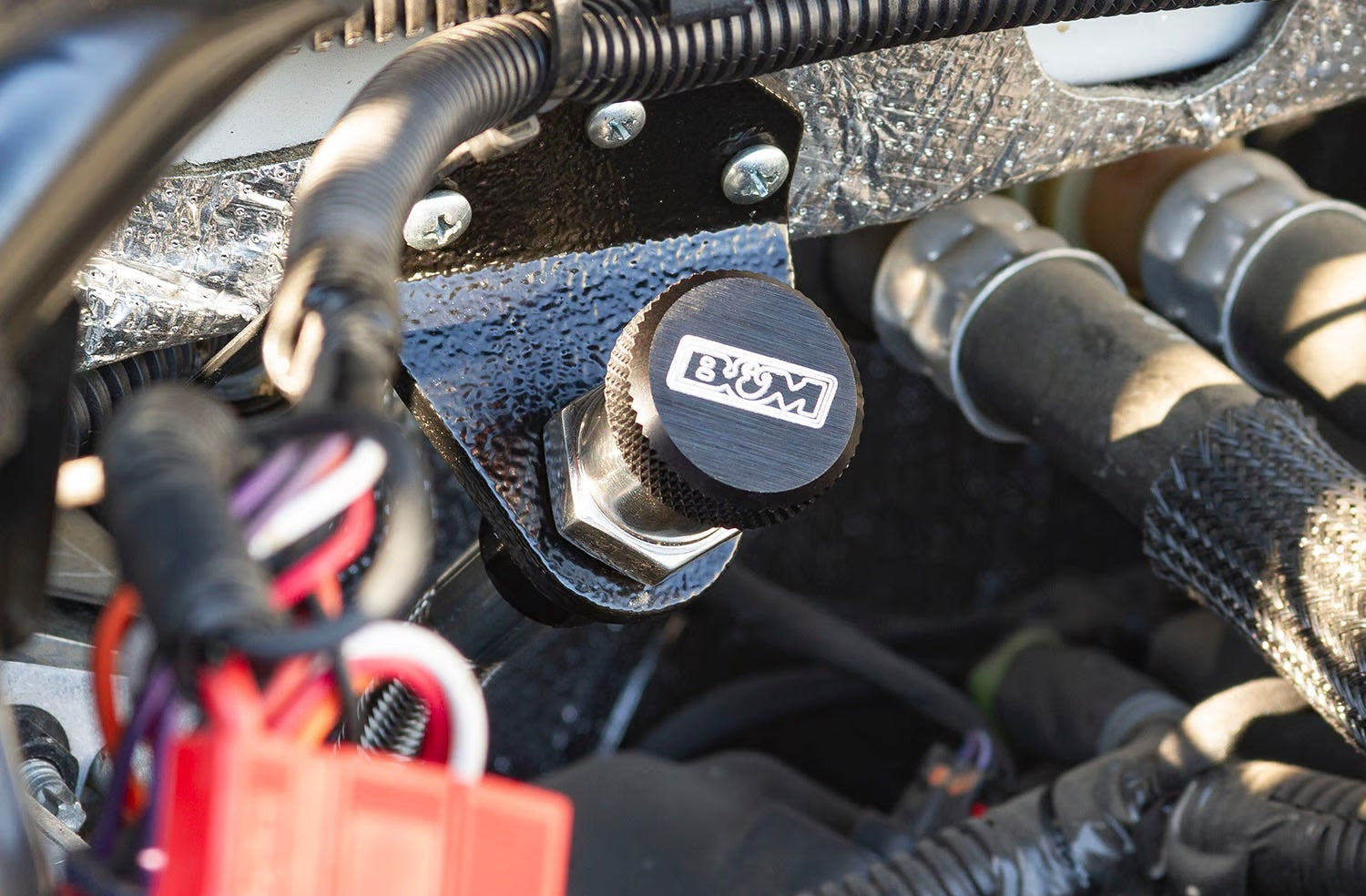

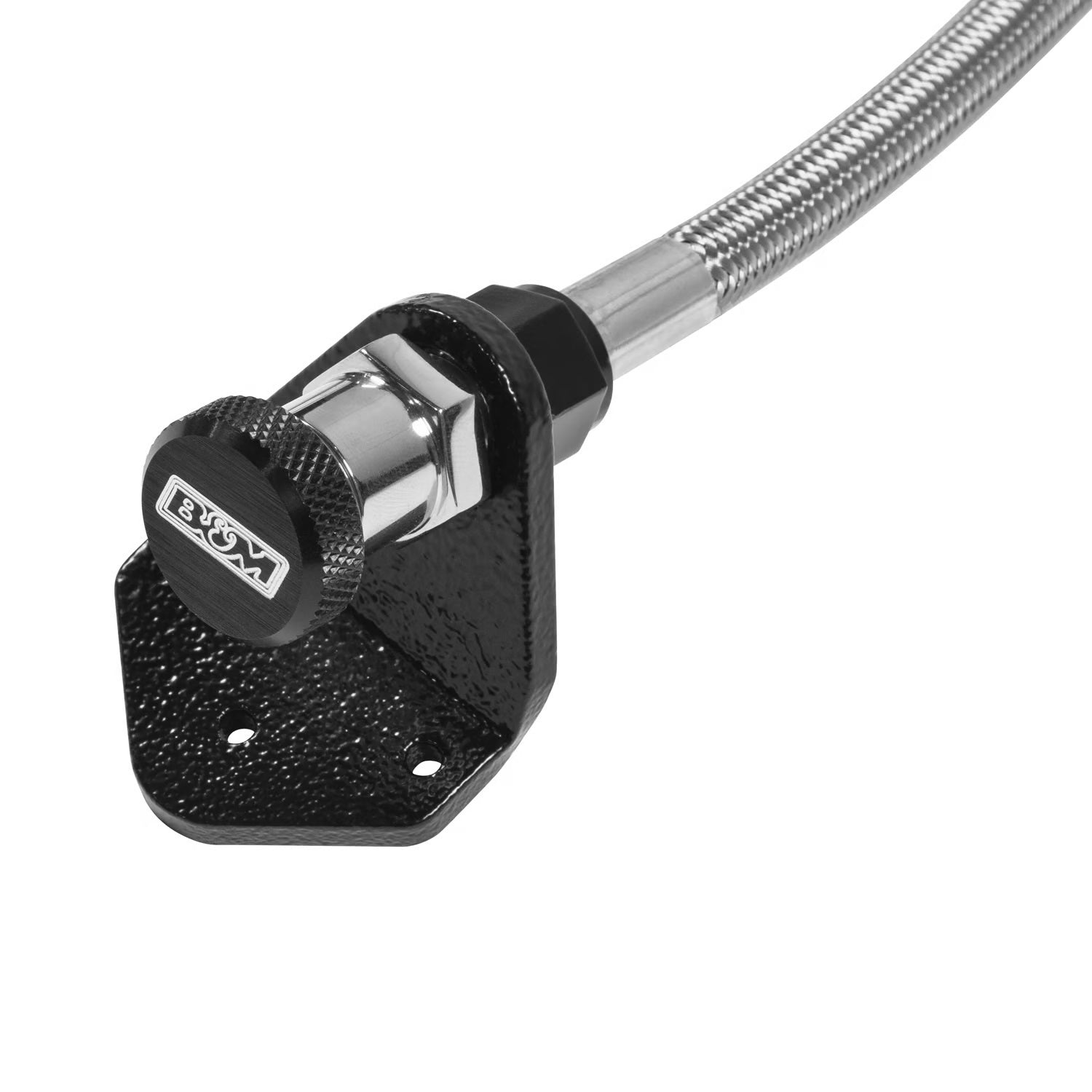

• Rugged Knurled and B&M Logo Engraved Locking Cap
• Stamped Transmission Fluid Level Indicator

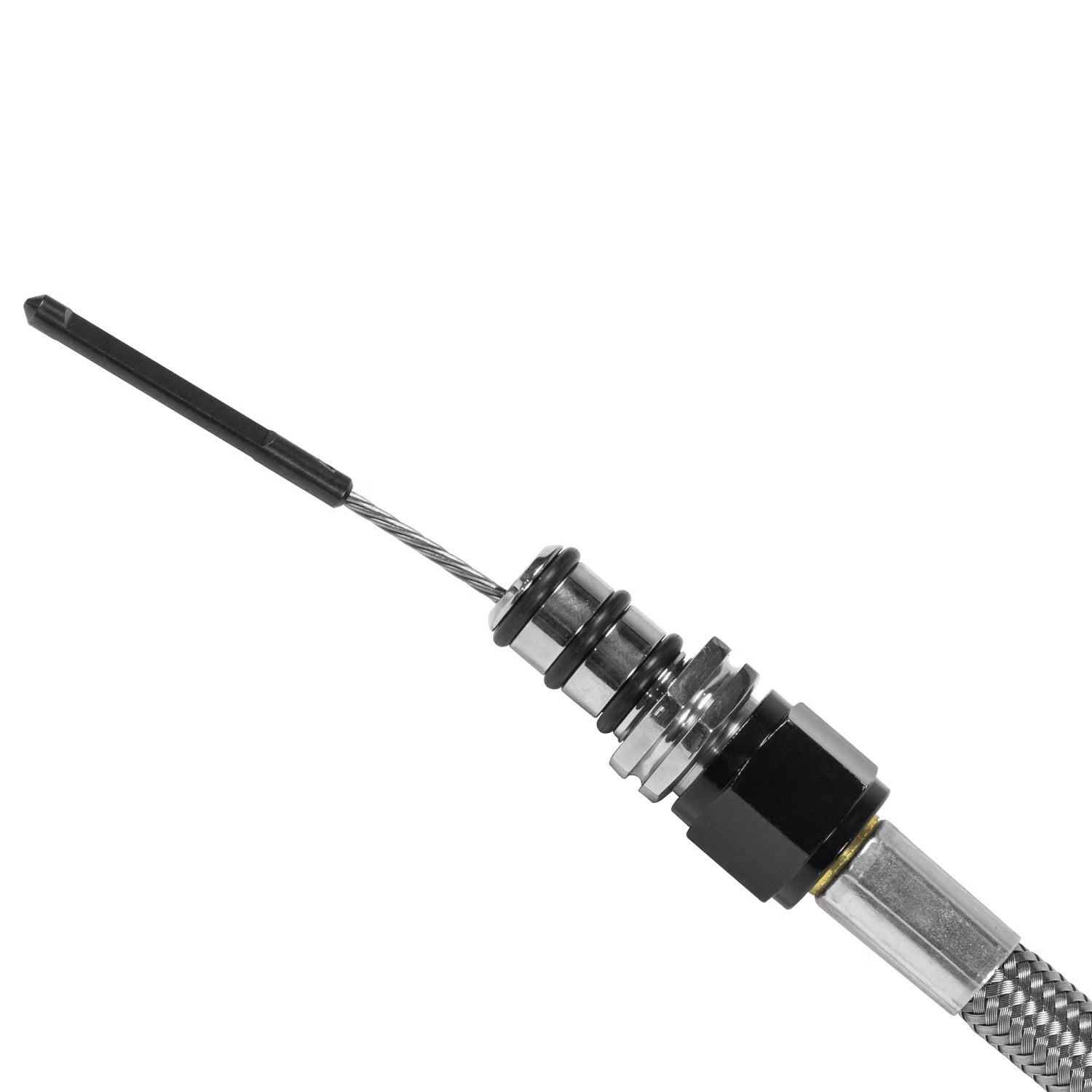

• Steel Braided Dipstick/Fluid Fill Tube
• Over 65 Years of B&M Quality
• Easy Installation

Specs:

• Brand: B&M
• Color: Black
• Dipstick Length (in): 42.25
• Dipstick Material: Stainless Steel
• Dipstick Tube Material: Braided Stainless Steel
• Dipstick/Filler Tube O-Rings Included: Yes
• Transmission: 8L45E | 8L90E
• Transmission Type: Automatic

You can view and download the complete assembly instruction booklet here.
