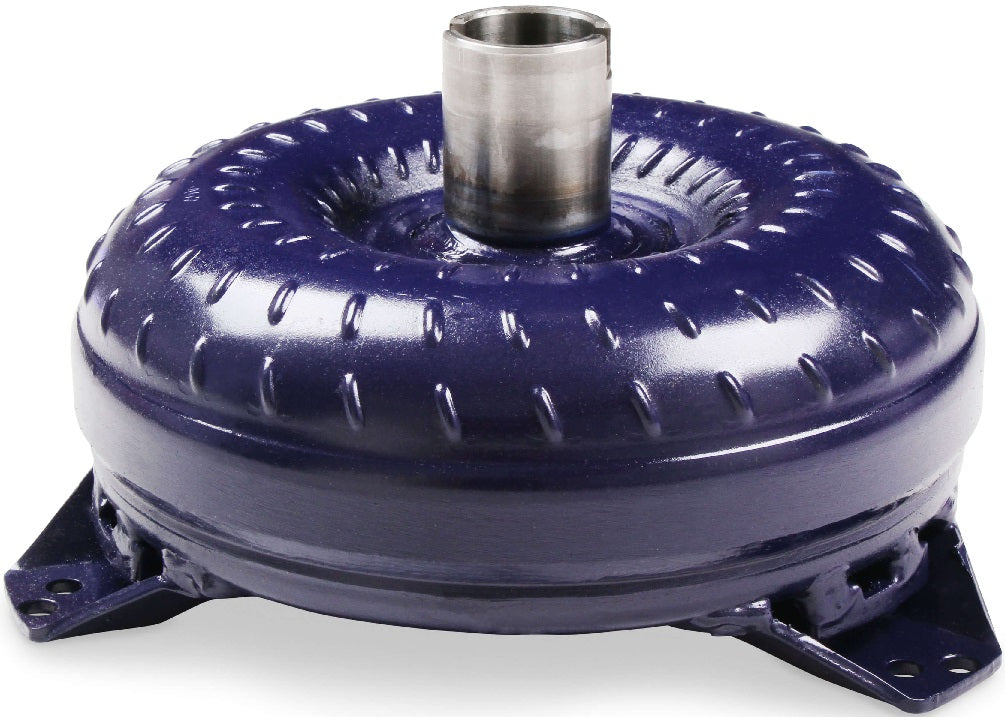

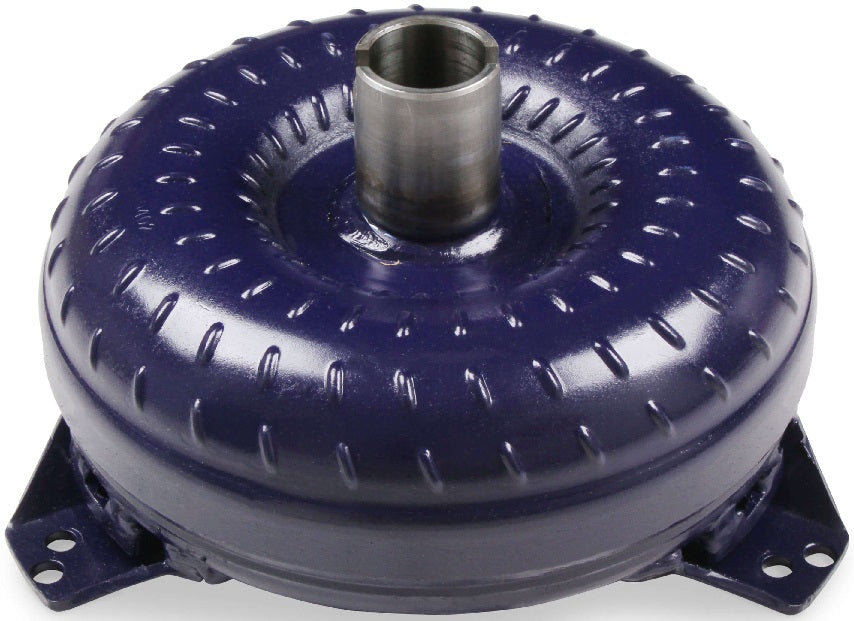

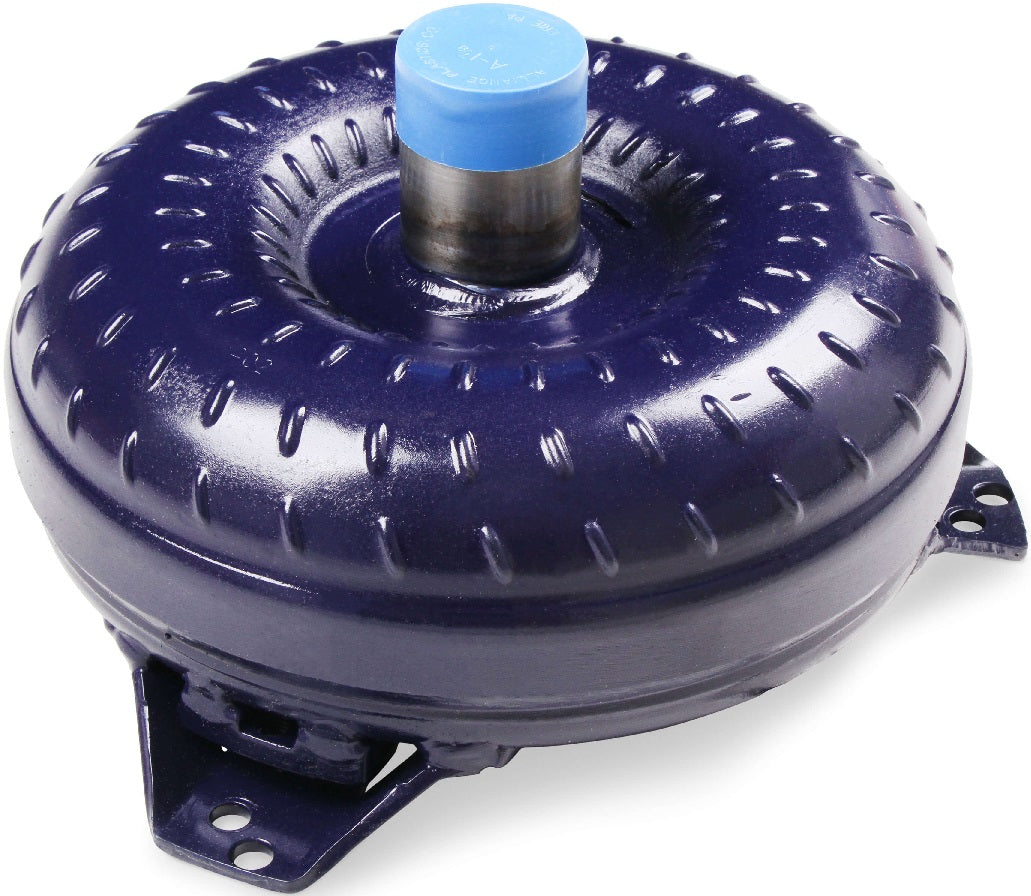

CONVERTER,GM 65-91TH400/68-81TH350,28-32

BRAND NEW B&M TORK MASTER 3000 TORQUE CONVERTER, 10.75" BOLT CIRCLE, COMPATIBLE WITH 1965-91 GM TH400, 1968-81 TH350 TRA�NSMISSIONS

THE TORK MASTER 3000 FITS 1965-91 GM TH400, 425, 375 & 1968-81 GM TH350, 375B (NOT 350C) TRA�NSMISSIONS. THESE CONVERTERS PERFORM BEST WHEN PAIRED WITH STOCK TO MODIFIED ENGINES UP TO 350HP/350 FT LBS OF TORQUE & LIGHTER WEIGHT APPLICATIONS, LIKE STREET RODS.

THE TORK MASTER WILL PROVIDE NOTICEABLY QUICKER LAUNCHES & HARDER ACCELERATION WHILE MAINTAINING NORMAL DAILY DRIVING QUALITIES. UPGRADES LIKE A NEW PRECISION ALLOY STEEL PUMP DRIVE TUBE, NEEDLE THRUST BEARING WHEN FACTORY EQUIPPED, NEW THRUST WASHER BETWEEN TURBINE & COVER WHEN REQUIRED & PRESSURE TESTED & FULLY BALANCED BY EXPERTLY TRAINED TECHNICIANS.

NOTE: NOT RECOMMENDED FOR BIG BLOCK, SUPERCHARGED, PLATE-TYPE NITROUS OXIDE OR TRANS-BRAKE APPLICATIONS. PRODUCT IMAGES SHOWN ARE FOR ILLUSTRATION PURPOSES ONLY & MAY NOT BE AN EXACT REPRESENTATION OF THE PRODUCT. HAS 10.75" BOLT CIRCLE.

NOTE: COMPATIBLE WITH GM 1965 TO 1991 TH400, 425, 375 & 1968 TO 1981 TH350, 375B (NOT 350C) AUTO TRA�NSMISSIONS.

NOTE: HIGHER STALL CONVERTERS CAN GENERATE MORE HEAT & IT IS RECOMMENDED TO ADD A TRA�NSMISSION COOLER.

NOTE: REQUIRES SMALL 10.75" BOLT CIRCLE FLEXPLATE OR DUAL PATTERN FLEXPLATE.

FEATURES:

• QUICKER LAUNCHES & HARDER ACCELERATION

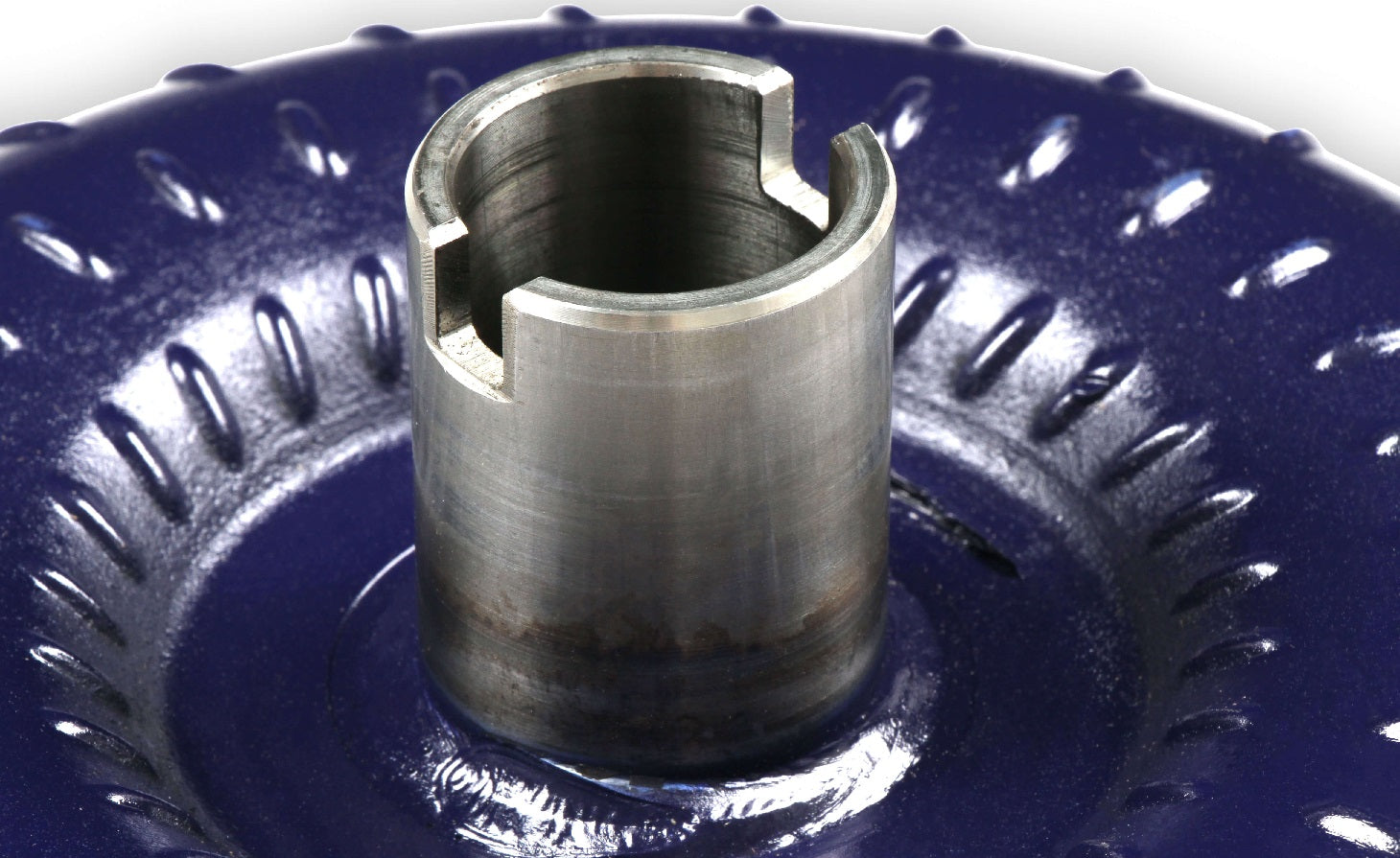

• NEW PRECISION ALLOY STEEL PUMP TUBE
• FULLY BALANCED & PRESSURE TESTED

SPECS:

• ADDITIONAL CONTENTS: NEW NEEDLE BEARING & THRUST WASHER
• BOLT CIRCLE DIAMETER: 10.75"
• FLEXPLATE CHANGE NEEDED: YES
• FURNACE BRAZED: YES
• MATERIAL: STEEL
• PRODUCT TYPE: AUTO TRA�NSMISSION TORQUE CONVERTER STALL TORQUE RATIO: 2800 TO 3200 RPM STALL
• TRA�NSMISSION: TH350 | TH375 | TH375B | TH400 | TH425

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS TORQUE CONVERTER HERE.
